4K HDBaseT Extender with Ethernet Relay, Enjoy internet from Long Distance Without Additional Router
SKU: 4KEX100-L
€213.59
[email protected] up to 100m/330ft:
HDMI audio supports stereo, LPCM 5.1/7.1, Dolby True HD, DTS-HD Master Audio.
Internet Relay Along with HDMI Signal:
100M ethernet signal extension with 4K HDMI signal over signal CATX cable.
Bi-directional PoE/IR/RS232:
Flexible use of multiple applications or work with third party`s control systems.
Notes:
Please use CAT5e or above cables for better performance. And this extender does not support ARC function. Search: [4KEX70-ARC-H2] for ARC extender.
In stock
High-End 100m [email protected] HDMI Extender

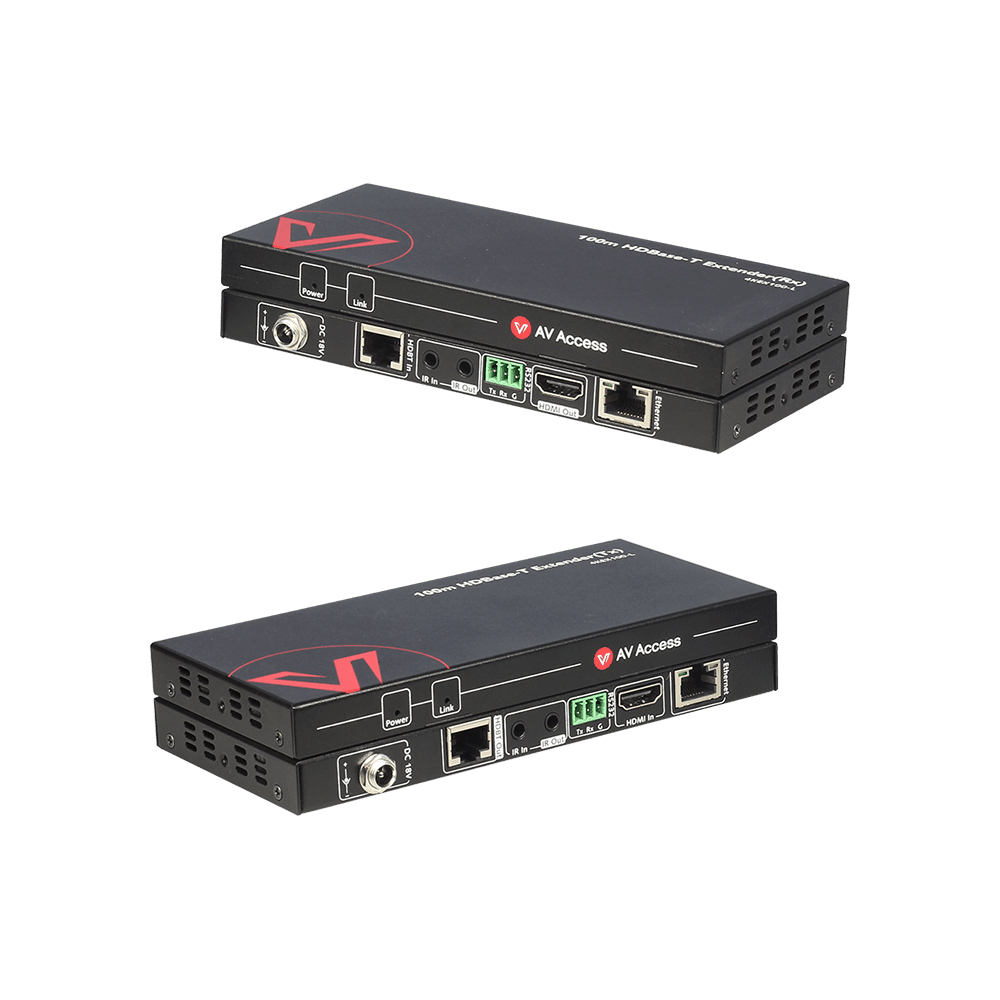

4KEX100-L is a pair of slim HDMI extenders, and it is designed to extend 4K HDMI signals up to 70m/230ft via a single Cat 5e/6 cable and 100m/330ft via a single Cat 6a/7 cable. The Transmitter and Receiver just need a single power supply to power both devices via its bi-directional PoE function. You can control the source from the display’s location or control the display from source’s location via IR pass-through function and it also support Ethernet pass-through, connect the Ethernet port of transmitter/receiver to the local area network, and PC connected to the ethernet port of receiver/transmitter can access to the local area network. The extender is easy to install and space saving, offer solutions for home, office, digital entertainment centers, control centers, conference rooms, school and corporate training environments.
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
Main Features:
- Slim profile, space saving and easy-to-install
- Slim appearance and space saving.
- Support bi-directional PoE.
- Transfer bi-directional infrared control signal together with the HDMI signal.
- Use a pair of Transmitter and Receiver to extend HDMI signals without additional settings.
- HDMI 1.4 with 4K2K.
- HDCP 2.2 compliant.
- Support RS232 ports for firmware upgrading or signal controlling.
- Support Ethernet pass-through.
- Use a single Cat 5e/6/6a/7 cable, following the standard of IEEE-568B, to extend 4K signals up to 70m/230ft via Cat 5e/6 cable and 100m/330ft via Cat 6a/7 Cable, extend 1080P signals up to 100m/330ft via Cat 5e/6/6a/7 cable.
[email protected] Ultra HD Video
With HDMI technology which supports up to [email protected] (4:2:0) resolution, the extender brings ultra-high definition picture with more vivid visual effect.
Excellent Audio Enjoyment
The extender supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master and LPCM 7.1CH, so it can work perfectly with AV receiver, home cinema, speaker, amplifier, etc.
Bi-Directional PoE/IR
The extender provides bi-directional PoE, enabling only one power adapter connected to either transmitter or receiver to power both units. Bi-directional IR pass through allows you to control the source at the display location or control the display at the source location with ease.
| Technical | |
|---|---|
| Video Signal Type | HDMI 1.4, HDCP 2.2 |

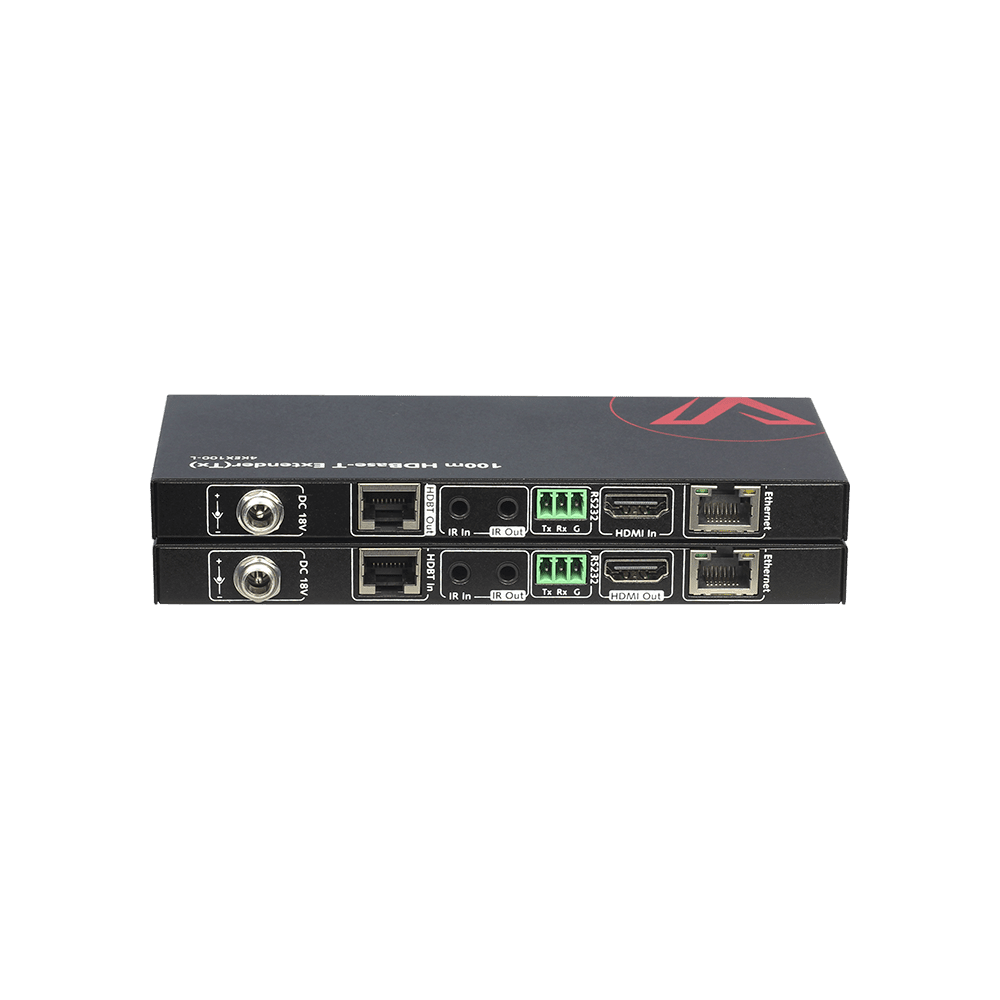

| Input/Output Port | Input: 1x HDMI IN, 1x HDBT IN
Output: 1x HDBT OUT, 1x HDMI OUT |
| Input/Output Resolution Support | 4096 x [email protected]/50/30/25/24hz, 3840 x [email protected]/50/30/25/24hz, [email protected]/50/30/25/24hz, 1080i, 720p, 576p, 576i, 480p, 480i |
| Audio Format Supported | Stereo, LPCM 5.1, LPCM 7.1, Dolby True HD, DTS HD Master Audio |
| Maximum Data Rate | 10.2 Gbps |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113 °F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158 °F) |
| Humidity | 10% to 90%, non-condensing |
| Power Consumption | 11W (Pair) |
| Product Weight | Transmitter/Receiver: 0.25kg/0.55lb |
| Device Dimensions | 162 mm × 15 mm ×74.2 mm/ 6.38” x 0.59” x 2.92” |

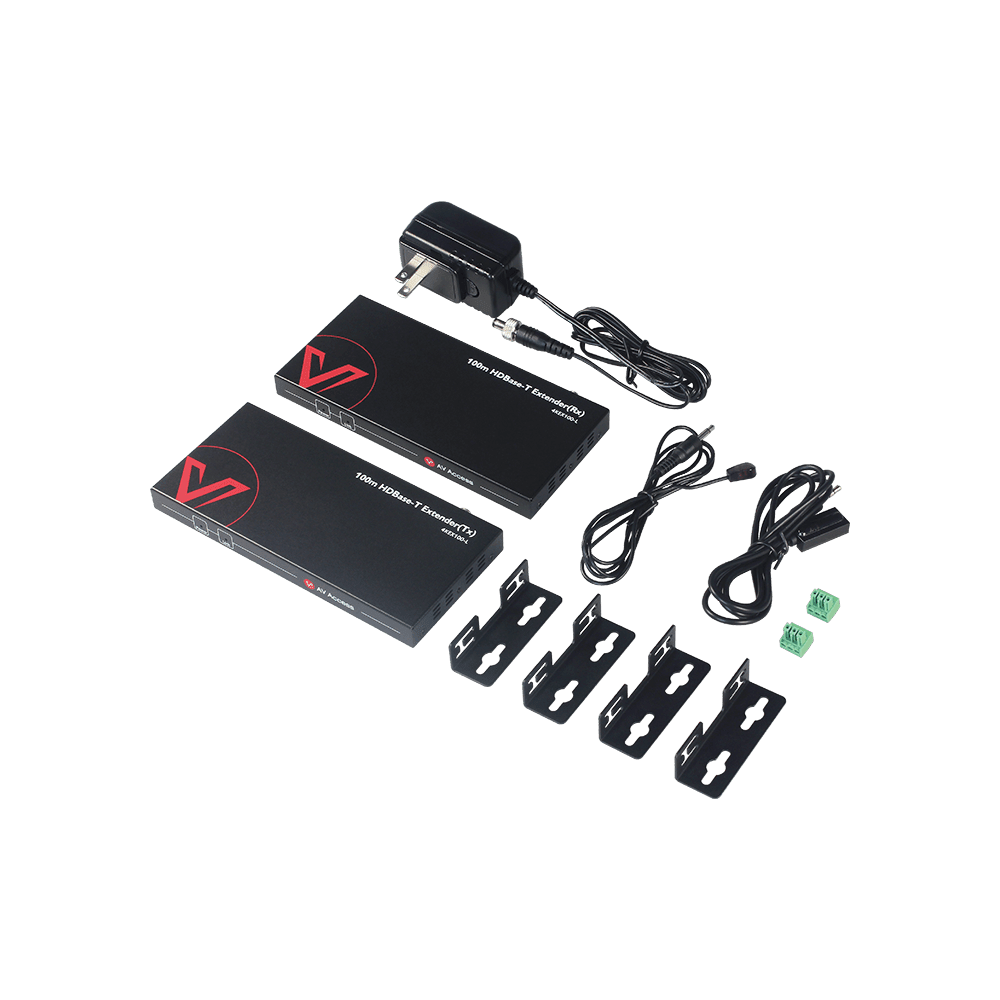

In the Box
- Transmitter x 1
- Receiver x1
- Power Adapter (DC 18V 1A) x1
- IR Emitter x1
- Wide-Band IR Receiver (30 KHz ~ 50 KHz) x1
- Phoenix Male Connectors (3.5mm, 3 Pins) x 2
- Mounting Brackets (with Screws) x 2
- User Manual x 1
You May Also Like
Out of stock
€491.27
MODEL: 4KEX70-eARC
€288.35
MODEL: 4KEX100-H2
Comparison Chart of Related Products
 |  |  |  |  |  |  |
||
| HDMI2.0 Cable | 4KEX60-H2 | 4KEX70-H2 | 4KEX70-ARC-H2 | 4KEX100-L | 4KEX100-H2 | 4KEX300-F | HDIP100E/HDIP100D | |
| Supported Video Resolution | [email protected] (4:4:4 8bit), [email protected] (4:2:0 10bit), [email protected], 3D | [email protected] (4:4:4 8bit), [email protected] (4:2:0 10bit), [email protected], 3D | [email protected] (4:4:4 8bit), [email protected] (4:2:0 10bit), [email protected], 3D | [email protected] (4:4:4 8bit), [email protected] (4:2:0 10bit), [email protected], 3D | [email protected] (4:2:0 8bit), [email protected] 4:4:4, 1080p @60Hz | [email protected] (4:4:4 8bit), [email protected] (4:2:0 10bit), [email protected], 3D | [email protected] (4:4:4 8bit), [email protected] (4:2:0 10bit), [email protected], 3D | [email protected] |
| Transmission Range | 1m/2m/3m | 164ft (50m): 1080P. 115ft (35m): UHD [email protected] 44:4 | 230ft (70m): 1080P. 130ft (40m): UHD [email protected] 4:4:4 | 230ft (70m): 1080P. 130ft (40m): UHD [email protected] 4:4:4 | 330ft (100m): 1080P. 330ft (100m): UHD [email protected] 4:2:0 | 330ft (100m): 1080P. 330ft (100m): UHD [email protected] 44:4 | 1000ft(300m):4K & 1080P | 394ft(120m): 1080P |
| HDMI | 2.0a | 2.0b | 2.0a | 2.0a | 1.4 | 2.0a | 2.0a | 1.3 |
| HDCP | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 1.4 |
| POE/PoC | / | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | No | Can be powered by PoE switch |
| IR Control | / | Uni-Direction | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | No |
| RS232 | / | No | Yes | Yes | Yes | Yes | Yes | Yes |
| HDR | 4K60Hz | 4K60Hz | 4K60Hz | 4K60Hz | No | 4K60Hz | 4K60Hz | No |
| ARC | Yes | No | No | Yes | No | No | No | No |
| Router/Ethernet Switch Compatibility | No | No | No | No | No | No | No | Yes |
