4K Economical HDMI Extender up to 50m/164ft, 2-Way PoC, IR Control
SKU: 4KEX60-H2
€99.99
4K@60Hz (4:4:4) 18Gbps up to 35m/115ft：
1080P@60Hz up to 50m/164ft, Support Dolby vision up to 4K@30.
HDCP2.2 with Excellent Audio Pass through：
Backwards support HDCP1.4 and Dolby Atmos, DTS: X, DTS-HD, Master Audio, True-HD, PCM7.1.
Delicate Design and Easy Installation：
Small metal casing with mounting ear makes it fit in anywhere. Threaded power adapter for safety using.
Notes:
Please use HDMI 2.0 cables for better performance.
Out of stock
Economical 4K HDMI Extender up to 50m/164ft
4KEX60-H2 is a 4K HDMI extender kit with HDCP 2.2 compatibility. It supports resolutions up to 4K@60Hz 4:4:4 8bit, and transmits UHD video, HD audio up to 35m/115ft over a Cat 6 or above cable. It also supports bi-directional PoC and one-way IR pass-through.
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
Main Features:
- Supports video resolutions up to 4K@60Hz 4:4:4 8bit and HDCP 2.2.
- Over a Cat 6/6a/7 cable, transmits 4K@60Hz 4:4:4 8bit up to 35m/115ft.
- Over a Cat 5e/6/7 cable, transmits 1080P@60Hz up to 50m/164ft.
- Supports multichannel audio up to PCM 7.1, Dolby TrueHD and DTS-HD Master Audio.
- Supports one-way IR pass-through from receiver to transmitter.
- Supports bi-directional PoC, one power adapter at either transmitter or receiver side can power both units.
- Slim profile for easy installation.
4K@60 Ultra HD Video
With HDMI 2.0 technology which supports up to 4K@60Hz (4:4:4) HDR 3D resolution, the extender brings ultra-high definition picture with more vivid visual effect and no signal loss or delay.
High Compatibility
The extender is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. No more hesitation on choosing HDR or 4K@60hz for you could have both.
Bi-Directional PoC
The extender supports bi-directional PoC function which integrates power into the Cat 5e/6 cable. Only one power supply is needed at either TX or RX side for hassle-free installation.

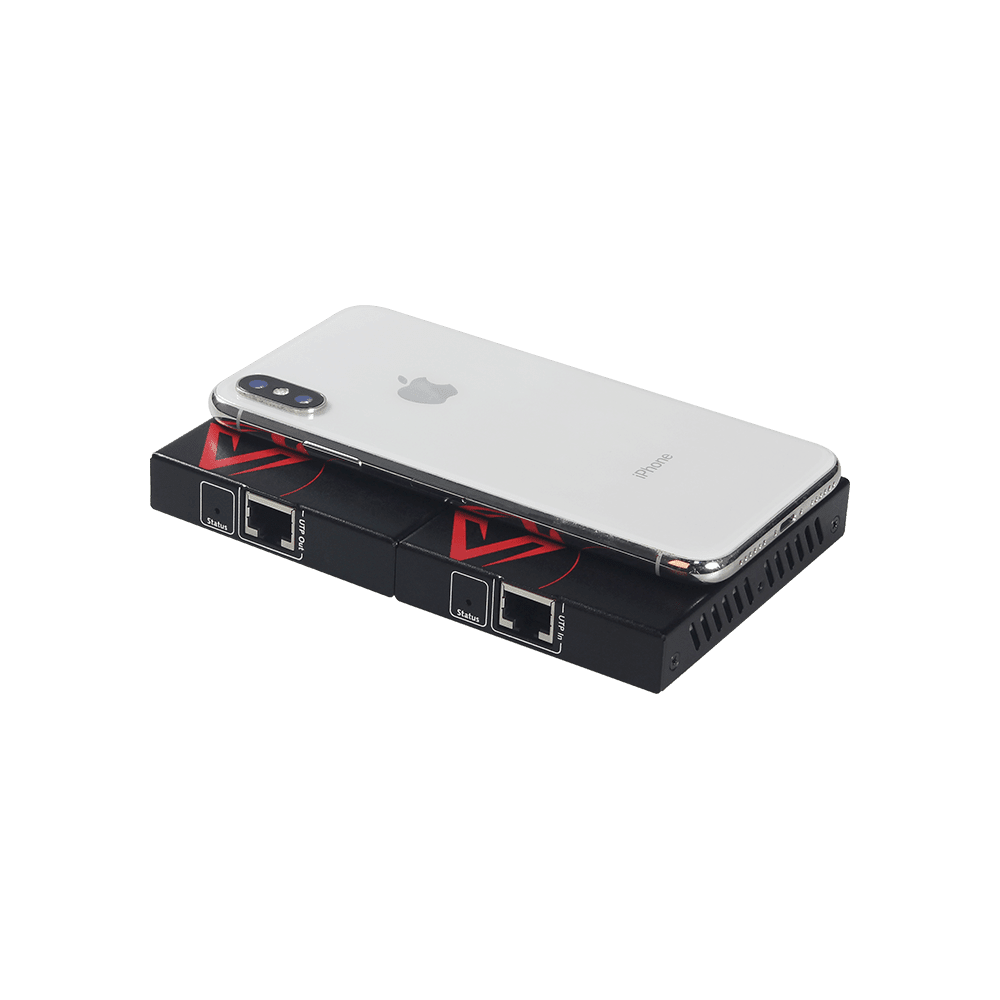

Slim and Delicate Design
The transmitter and receiver are easy to install. They are space saving and offer ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments.
| Video | |
| Input/Output Signal Type | HDMI 2.0b, HDCP 2.2, 3D |
| Input/Output Resolution Supported | Up to 4096×2160@60Hz, including 4K@60Hz/4K@30Hz/1080P/1080i/720P |
| Maximum Data Rate | HDMI: 18Gbps |
| Maximum Pixel Clock | 600MHz |
| Audio | |
| Audio format supported | Fully supports audio formats in HDMI 2.0 specification, including PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X |
| General | |
| Operating Temperature | 0 °C to + 45°C (32°F to + 113 °F) |
| Storage Temperature | -20 °C to +70°C (-4°F to +158 °F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human Body Model: ±8kV (air-gap discharge)/ ±4kV (contact discharge) |
| Product Supply | DC 12V 1A |
| Power Consumption (Max) | 6.48W (Pair, PoC) |
| Product Dimension | 70mm × 15.2mm × 90mm / 2.76’’ × 0.60’’ × 3.54’’ (Each for TX/RX) |
| Product Weight | 0.15kg/0.33lb (Each for TX/RX) |

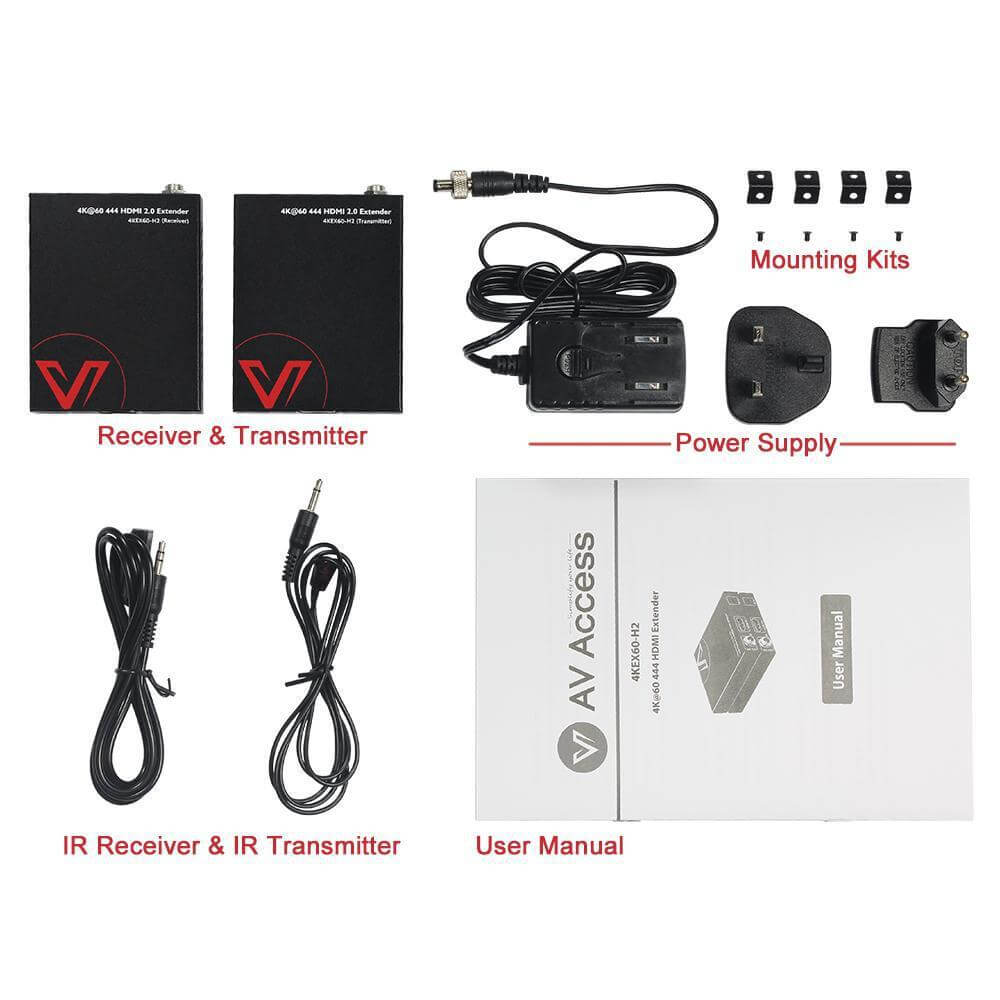

In the Box
- 4KEX60-H2 Extender x 1
- Power Supply (DC 12V 1A) x 1
- IR Emitter x 1
- IR Receiver x 1
- Mounting Brackets (with Screws) x 4
- User Manual x 1
You May Also Like
Sale!
12% OFF
Out of stock
Out of stock
€459.99
MODEL: 4KEX70-eARC
Sale!
€20 OFF
€269.99
MODEL: 4KEX100-H2
Comparison Chart of Related Products
 |  |  |  |  |  |  | ||
| HDMI2.0 Cable | 4KEX60-H2 | 4KEX70-H2 | 4KEX70-ARC-H2 | 4KEX100-L | 4KEX100-H2 | 4KEX300-F | HDIP100E/HDIP100D | |
| Supported Video Resolution | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:2:0 8bit), 4K@30Hz 4:4:4, 1080p @60Hz | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 1080p@60Hz |
| Transmission Range | 1m/2m/3m | 164ft (50m): 1080P. 115ft (35m): UHD 4K@60Hz 44:4 | 230ft (70m): 1080P. 130ft (40m): UHD 4K@60Hz 4:4:4 | 230ft (70m): 1080P. 130ft (40m): UHD 4K@60Hz 4:4:4 | 330ft (100m): 1080P. 330ft (100m): UHD 4K@60Hz 4:2:0 | 330ft (100m): 1080P. 330ft (100m): UHD 4K@60Hz 44:4 | 1000ft(300m):4K & 1080P | 394ft(120m): 1080P |
| HDMI | 2.0a | 2.0b | 2.0a | 2.0a | 1.4 | 2.0a | 2.0a | 1.3 |
| HDCP | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 1.4 |
| POE/PoC | / | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | No | Can be powered by PoE switch |
| IR Control | / | Uni-Direction | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | No |
| RS232 | / | No | Yes | Yes | Yes | Yes | Yes | Yes |
| HDR | 4K60Hz | 4K60Hz | 4K60Hz | 4K60Hz | No | 4K60Hz | 4K60Hz | No |
| ARC | Yes | No | No | Yes | No | No | No | No |
| Router/Ethernet Switch Compatibility | No | No | No | No | No | No | No | Yes |
