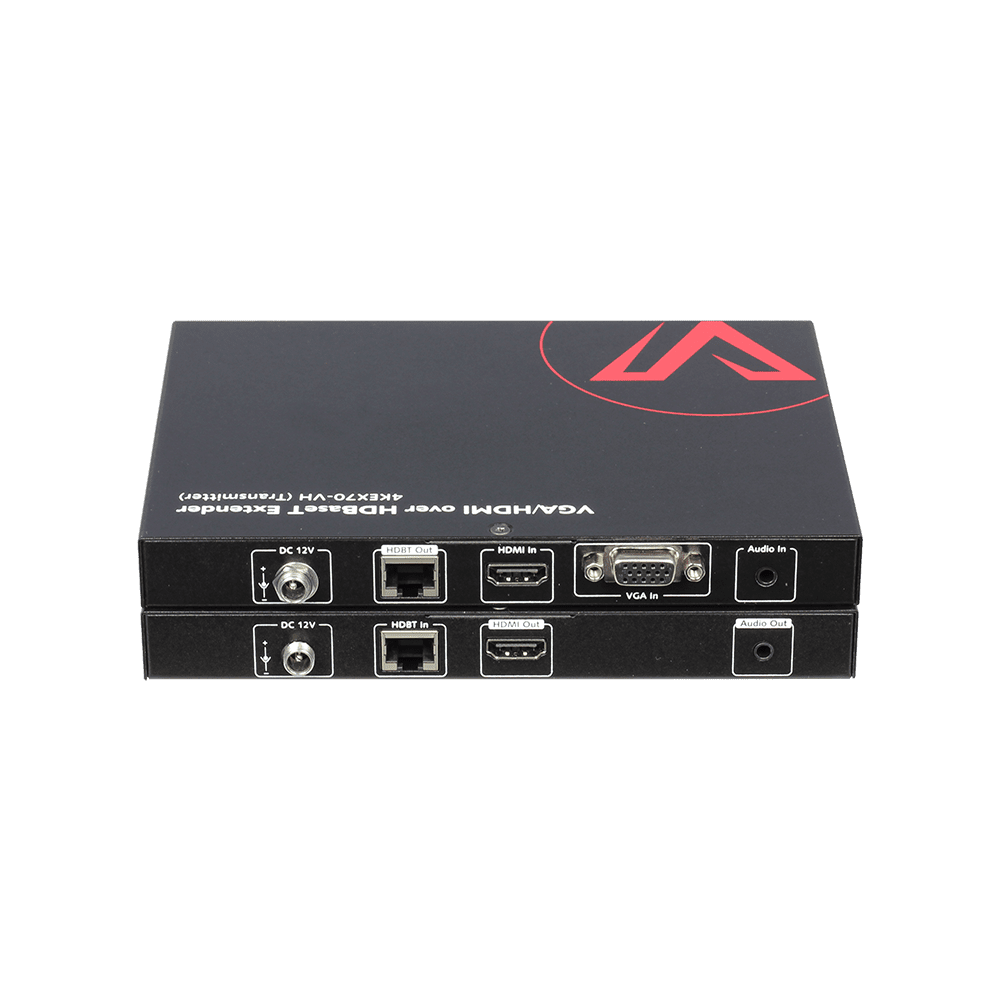

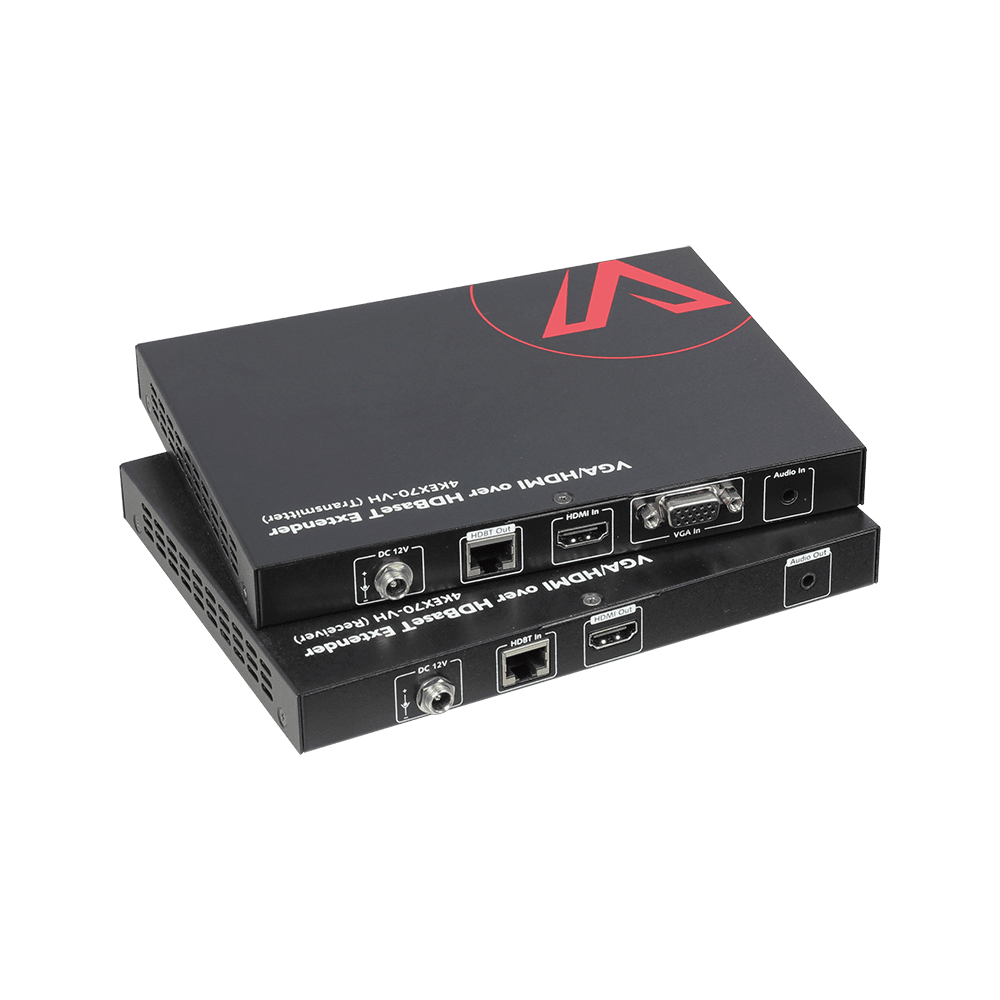

4K HDMI VGA HDbaseT Extender, 2-Way IR, RS232, VGA Audio Pass through
SKU: 4KEX70-VH
€245.00
VGA HDMI Auto Switch to HDMI Output：
HDMI (priority) and VGA inputs to HDBT output. 1080P up to 70m/230ft, 4K up to 35m/115ft. HDMI 1.4 with 4K and HDCP 2.2 compliant.
PoE & Bi-directional IR:
Powered by transmitter side. Extra phoenix male interface for self-powered. With wide brand IR control(30-55kHz).
Delicate Design and Easy Installation：
Metal casing with mounting ear makes it fit in anywhere. Threaded power adapter for safety using.
Excellent Reliability：
Preventing thunder strikes, built-in surge/ lightning protection, superior ESD Protection.
In stock
4K HDMI VGA EXTENDER OVER HDBASET
The 4KEX70-VH HDMI extender is a slim transmitter receiver pair which is designed to extend HDMI 1080P@60Hz signals up to 70 meters and 4K@60Hz signals up to 40m via a single Cat 6a/7 cable. The transmitter can supply the power for the receiver. You can control the source from the display’s location or control the display from source’s location via IR pass-through function.
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
Main Features:
- Via Cat 6a/7 cables, 4Kx2K@60Hz (4:2:0) output up to 40m, 1080P@60Hz up to 70m
- Via Cat 5e cable, 4Kx2K@60Hz (4:2:0) output up to 35m, 1080P@60Hz up to 60m
- Transfers bi-directional infrared control signal together with the HDMI signal
- Transmitter supplies the power for receiver
- Auto-switch between VGA and HDMI inputs, HDMI IN has higher priority over VGA IN if both are connected
- HDMI 1.4 with 4K and HDCP 2.2 compliant
- Supports Bi-directional RS232 pass through
4K@60 Ultra HD Video
With HDMI technology which supports up to 4K@60Hz (4:2:0) resolution, the extender brings ultra-high definition picture with more vivid visual effect.
Excellent Audio Enjoyment
The extender supports DTS:X, Dolby TrueHD and LPCM 2.1/5.1/7.1CH, so it can work perfectly with AV receiver, home cinema, speaker, amplifier, etc.
VGA/HDMI Input
VGA and HDMI inputs are automatically selected and switched when the unit detects a signal, with a smart detection feature prioritizing HDMI over VGA if two devices are transmitting at the same time.
| Technical | |
|---|---|
| Video Signal Type | HDMI 1.4 with 4K |
| Input/Output Resolution | HDMI: Up to 4K@60Hz YUV4:2:0 VGA: Up to 1920 x 1200@60Hz |
| Audio Format | Stereo, PCM 2.1/5.1/7.1, DTS, Dolby, pass through |
| General | |
|---|---|
| Operating Temperature | 0 °C to 45°C (32°F to 113 °F) |
| Storage Temperature | -20 °C to 70°C (-4°F to 158 °F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human Body Model: ±8kV (air-gap discharge)/ ±4kV (contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Power Consumption (Max) | 19.2W (Pair) |
| Device Dimension (W x H x D) | 180mm × 20mm × 134.2mm |
|---|---|
| Product Weight | Transmitter: 0.60kg Receiver: 0.58kg |
In the Box
- 1 x 4KEX70-VH Transmitter
- 1 x 4KEX70-VH Receiver
- 1 x Power Adapter (DC 12V 2A)
- 1 x IR Emitter
- 1 x IR Broadband Receiver (30-50KHz)
- 2 x Mounting Brackets
- 2 x Phoenix Connector (3.5mm 3 Pin)
- 1 x User manual
