4K HDMI VGA & Audio Wall Plate Transmitter, 2-Way IR, RS232, Works with 4KEX70-RX-PSE
SKU: 4KEX70-W
€119.00
VGA HDMI Auto Switch to HDBT Output：
HDMI (Priority) and VGA inputs to HDBT output. 1080P up to 70m/230ft, 4K up to 35m/1150ft. Auto EDID. Support HDCP 2.2.
PoE & Bi-directional IR:
Powered by receiver side. Extra phoenix male interface for self-powered. With wide brand IR control(30-55kHz).
Aluminum Casing and Easy Installation：
Better cooling and durability. 2-Gang US Decora wall plate cover is offered. Perfect for in-wall wires.
Important Note：
This is transmitter only, recommend to work with receiver: 4KEX70-RX-PSE
Out of stock

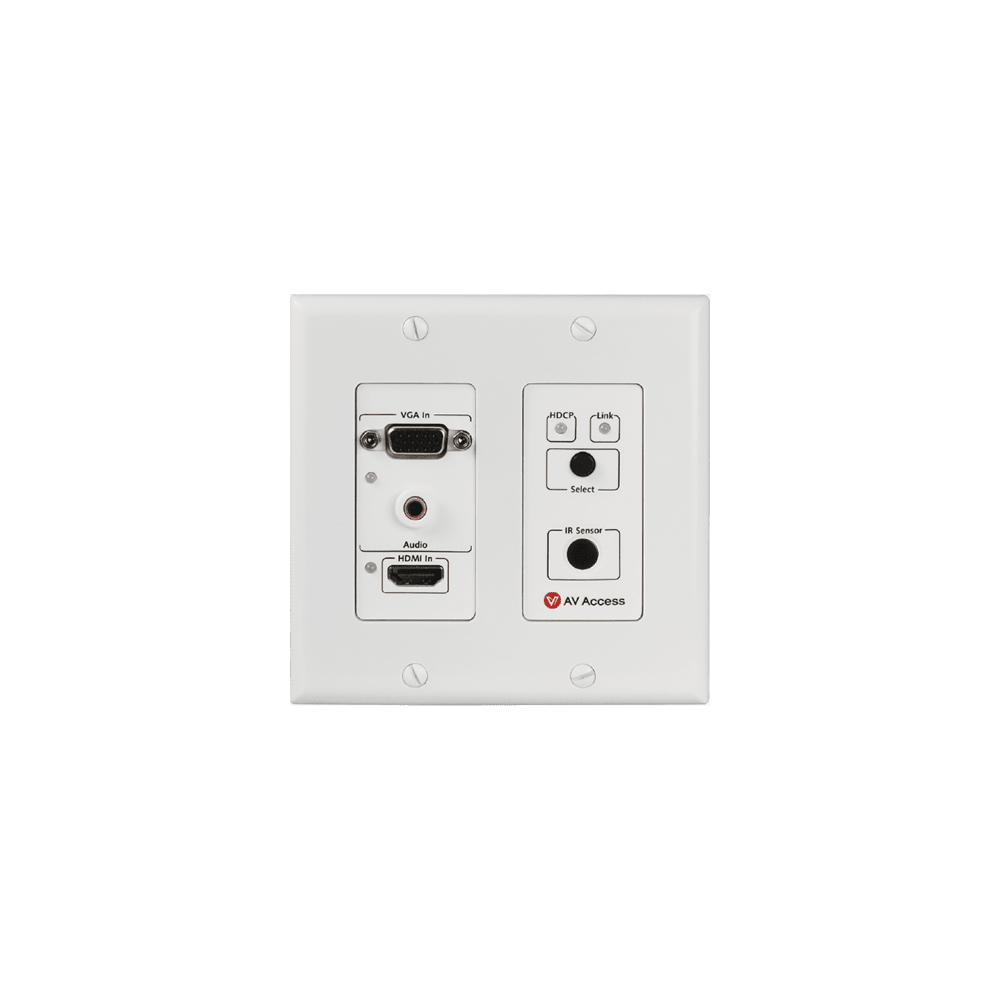

4K HDMI/VGA Wallplate Transmitter
4KEX70-W is an in wall 4K HDBT transmitter which includes an HDMI input, a VGA input and an HDBT output, and is designed to work with an HDBT receiver such as the 4KEX70-RX-PSE. It supports resolutions up to 4K@60Hz 4:2:0 8bit and HDCP for the HDMI signal. It can reliably extend HDMI signal up to 131ft (40m) at 4K and 230ft (70m) at 1080P over a Cat 6a/7 cable, or up to 115ft (35m) at 4K and 197ft (60m) at 1080P over a Cat 5e/6 cable.
Notes:
This product is a transmitter only. It is recommended to use it with 4KEX70-RX-PSE receiver for HDMI extension.
Main Features:
- Switches HDMI and VGA inputs to an HDBT output
- HDMI input supports resolutions up to 4K@60Hz 4:2:0 8bit and HDCP
- Over a Cat 6a/7 cable, HDMI signal transmission distance up to 131ft/40m at 4K and 230ft/70m at 1080P
- Over a Cat 5e/6 cable, HDMI signal transmission distance up to 115ft/35m at 4K and 197ft/60m at 1080P
- Independent DIP switch for EDID management on VGA input
- Supports automatic and manual button switch between HDMI and VGA inputs

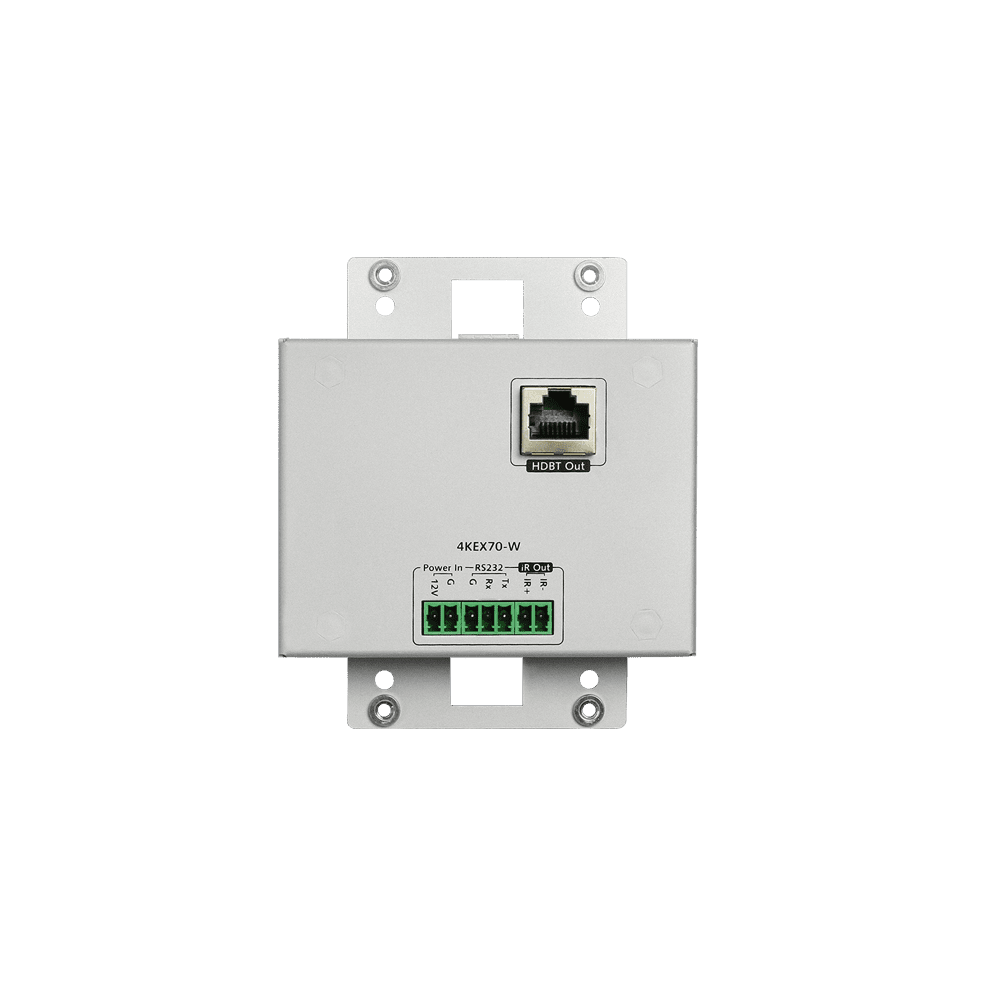

- Supports one-way PoH to receive power from connected HDBT receiver with built-in PSE (Power Sourcing Equipment)
- Supports bi-directional IR/RS232 pass-through
- 2-Gang US Decora wall plate cover included
- Compact size for convenient and unobtrusive installation

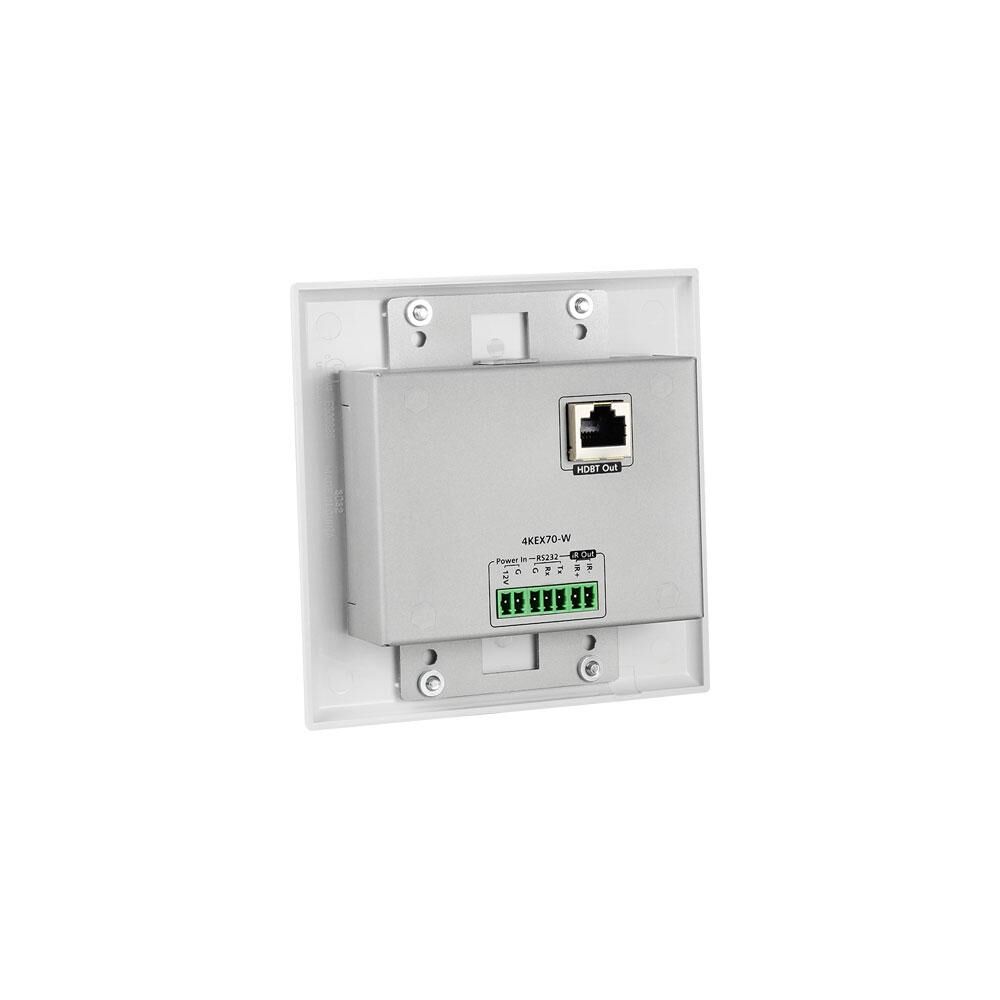

Exquisite Wall-Mount Design
4KEX70-W transmitter was developed to simplify the installation and create a clean seamless look with your décor. It offers an ideal solution for homes, offices, digital entertainment centers and conference rooms, etc., which require signal switching between VGA and HDMI sources and transmission over long distance.
4K@60 HDMI Signal Extension
4KEX70-W allows automatic and manual button switch between HDMI and VGA inputs. It can work perfectly with a HDMI receiver to extend 4K@60 4:2:0 HDMI signal up to 131ft/40m and 1080P@60 HDMI signal up to 230ft/70m over a Cat 6a/7 cable.
One-Way PoH Function
The transmitter can receive power from an HDBT receiver with built-in PSE. It also supports bi-directional IR and RS232 pass-through.
Note: We recommend you use it with AV Access 4KEX70-RX-PSE HDMI receiver. If you use it with other HDBaseT receivers, both the wallplate transmitter and the receiver must be powered by power adapter.
High Compatibility
The transmitter is compatible with the latest HDMI sources, such as Cisco cable box, Comcast, Xbox One X, PS4 Pro, etc. No more hesitation on choosing HDR or 4K@60hz for you could have both.
| Technical | |
| Video Signal Type | VGA, HDMI |
| Input/Output Resolution Supported | VGA: 640×480, 800×600, 1024×768, 1280×720, 1280×1024, 1920×1080, 1920×12008 HDMI: SMPTE: 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8 VESA: 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz Note: 4096×2160/3840×2160@50Hz/60Hz is based on chroma sub-sampling 4:2:0 8-bit only. |
| Audio Format Supported | HDMI: Stereo, PCM 5.1/7.1; Dolby True HD, DTS-HD Master Audio VGA: Stereo |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
| Power Supply | DC 5V 1A |
| Power Consumption (Maximum) | 3.36W |
| Device Dimension (W x H x D) | 3.58” x 1.16” x 4.16” (91mm × 29.4mm × 105.6mm) |
| Product Weight | 0.18kg/0.4lb |

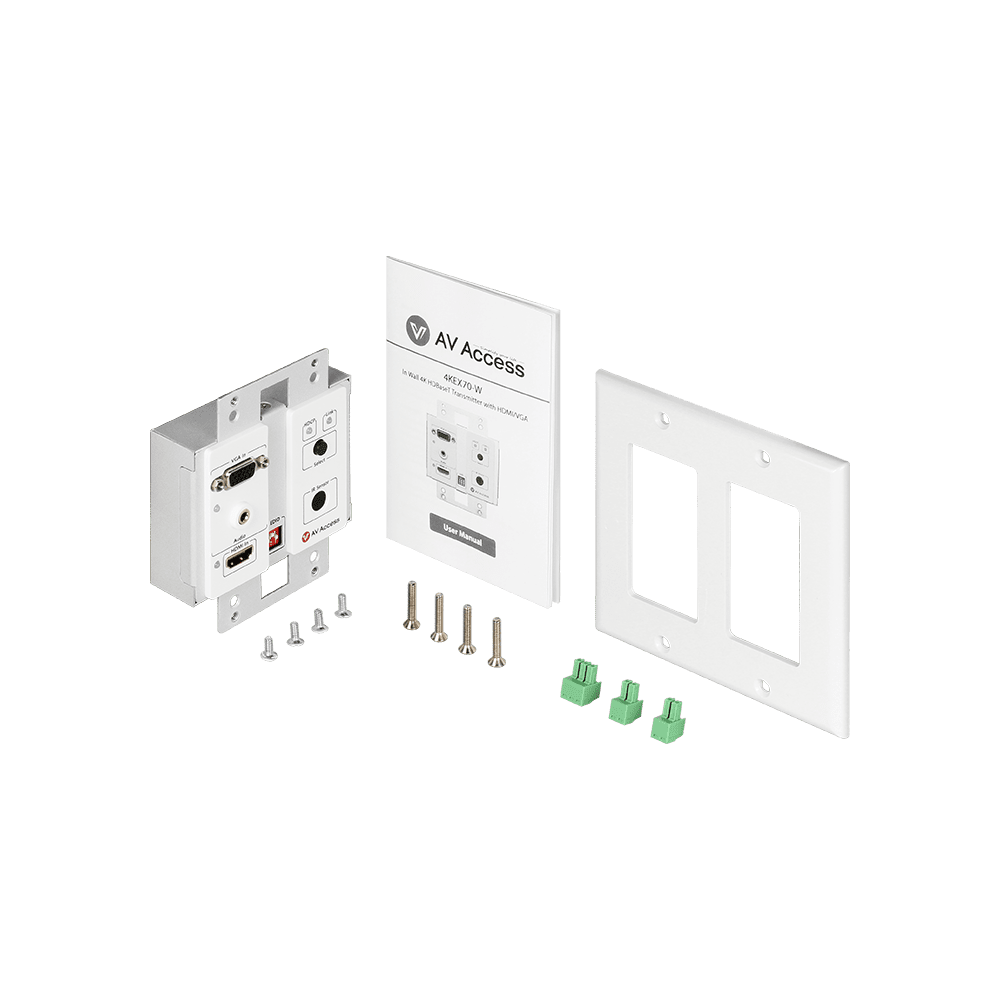

In the Box
- HDBT Transmitter 4KEX70-W x1
- 3-Pin 3.5mm Phoenix Male Connector x1
- 2-Pin 3.5mm Phoenix Male Connector x2
- 2-Gang US Decora Wall Plate Cover with matching screws x1
- Flat Head Installation Screw (#6-32*20mm) x4
- User Manual x1
