4X2 4K HDMI Matrix Switch with Stereo Audio, Auto EDID, IR Remote, CEC Control TVSKU: 4KMX42
Excellent Video and Multiple Audio Format:
Up to 4K@30Hz High quality image. Supports Dolby digital, DTS-HD and Dolby True-HD Audio.
4 Inputs with 2 Outputs:
Switch between four HDMI sources and distribute any source to any display.
Auto EDID and CEC control to turn on/off TV:
Please make sure both sources and displays support CEC.
Two Ways to Switch：

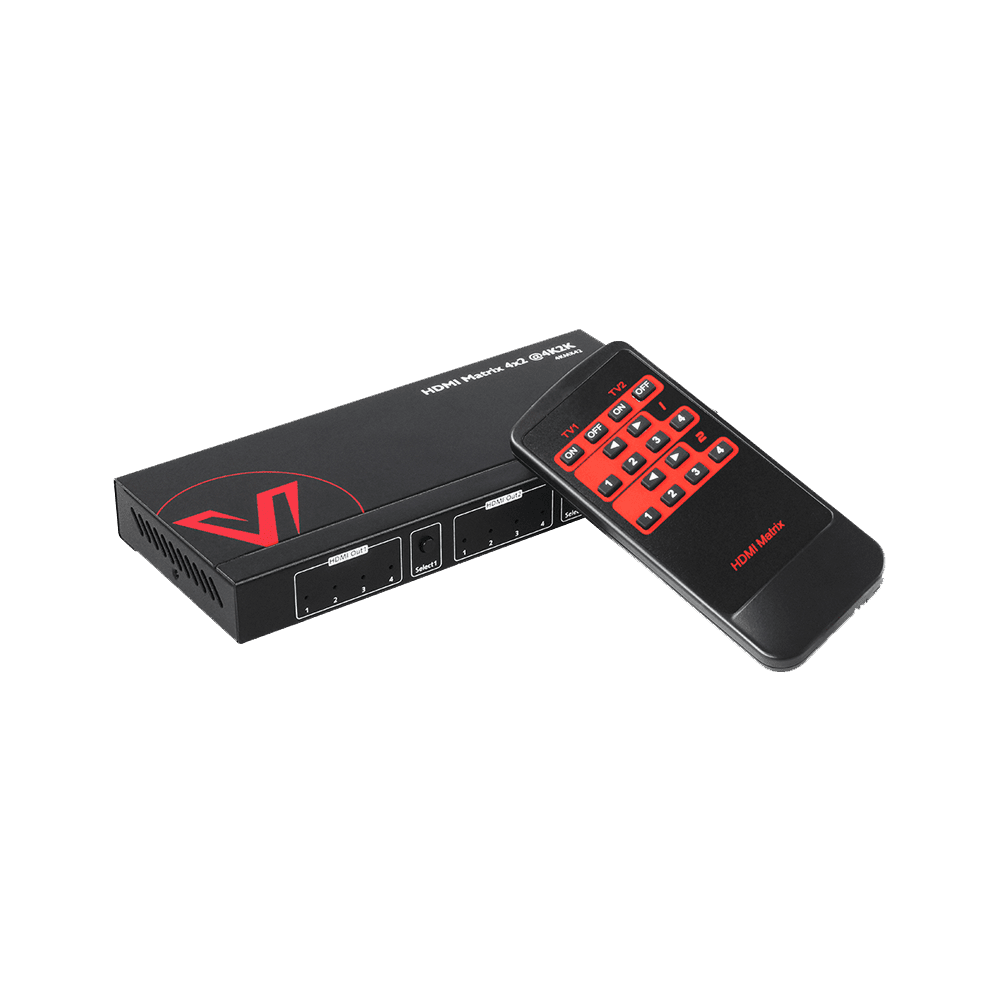

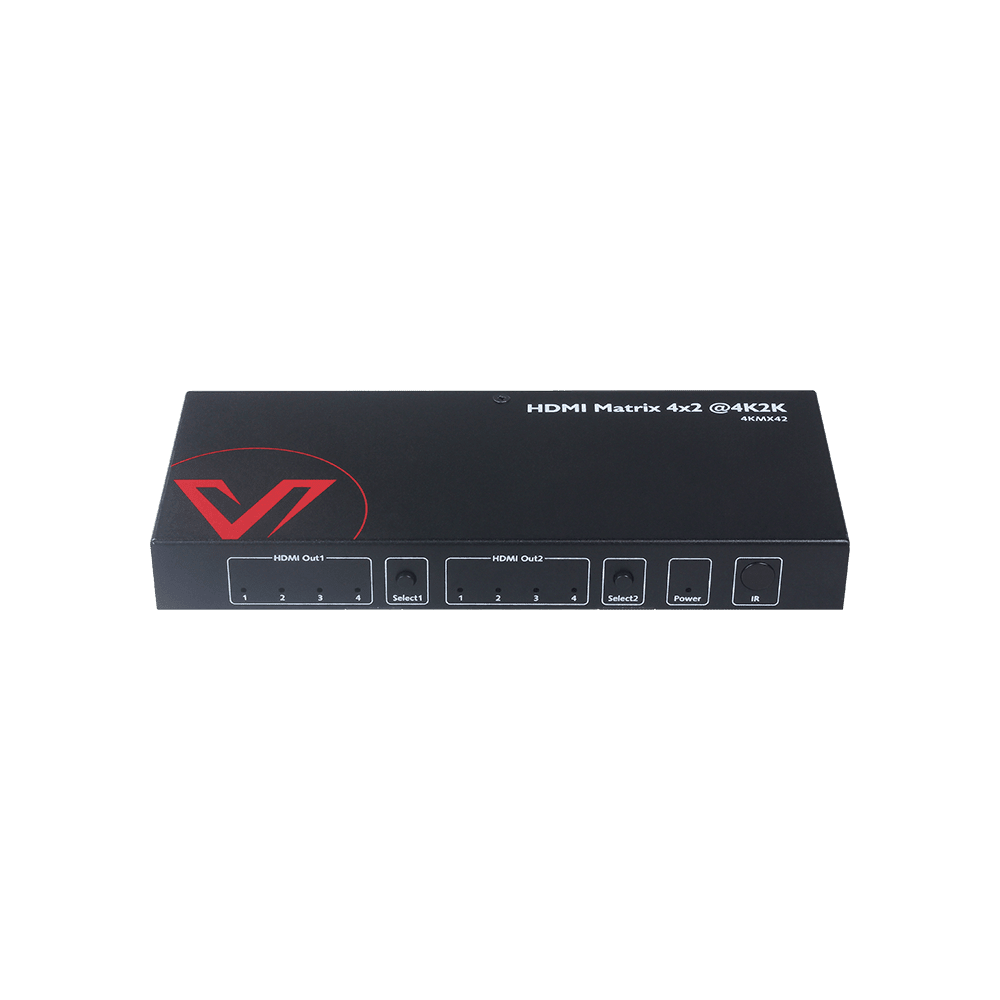

Remote control and front panel button switch supported for this device.
Economical 4×2 4K HDMI Matrix
The 4KMX42 is a 4 in 2 out slim HDMI matrix with Ultra HD 4K support. It reliably distributes four HDMI source signals to up to two HDMI displays. The HDCP compliant matrix supports resolutions up to 4K@30Hz and 1080p@60Hz. This matrix features two advanced technologies: automatic EDID management, which provides Copy/Fixed EDID options for different resolution outputs, and HDCP management, which authenticates HDCP encryption between all devices, ensuring the HDMI source reliably outputs correct content for display.
- 4K HDMI Matrix 4×2
- Supports HDCP 1.4
- Supports automatic EDID management with Copy/Fixed mode
- 15M HDMI transmission distance @4K
- Supports optional remote control
- Supports CEC TV turn on/off control
- Supports stereo audio output
4K Ultra-HD Image
With four input ports and two output ports, the matrix switcher reliably distributes four HDMI source signals to up to two HDMI displays. It supports resolutions up to 4K@30Hz and 1080p@60Hz, delivering ultra-HD visual feast.
Excellent Audio Enjoyment
The matrix switcher supports PCM 2.0/5.1/7.1, Dolby True HD, DTS Master Audio, etc., so it can work perfectly with AV receiver, home cinema, speaker, amplifier, etc. to bring you wonderful audio experience.
With its compact and handy design, the matrix switcher is ideal for wide applications, such as offices, schools, conferences rooms, shopping malls, hotels or museums, which require the distribution of an HDMI source signal to multiple displays.

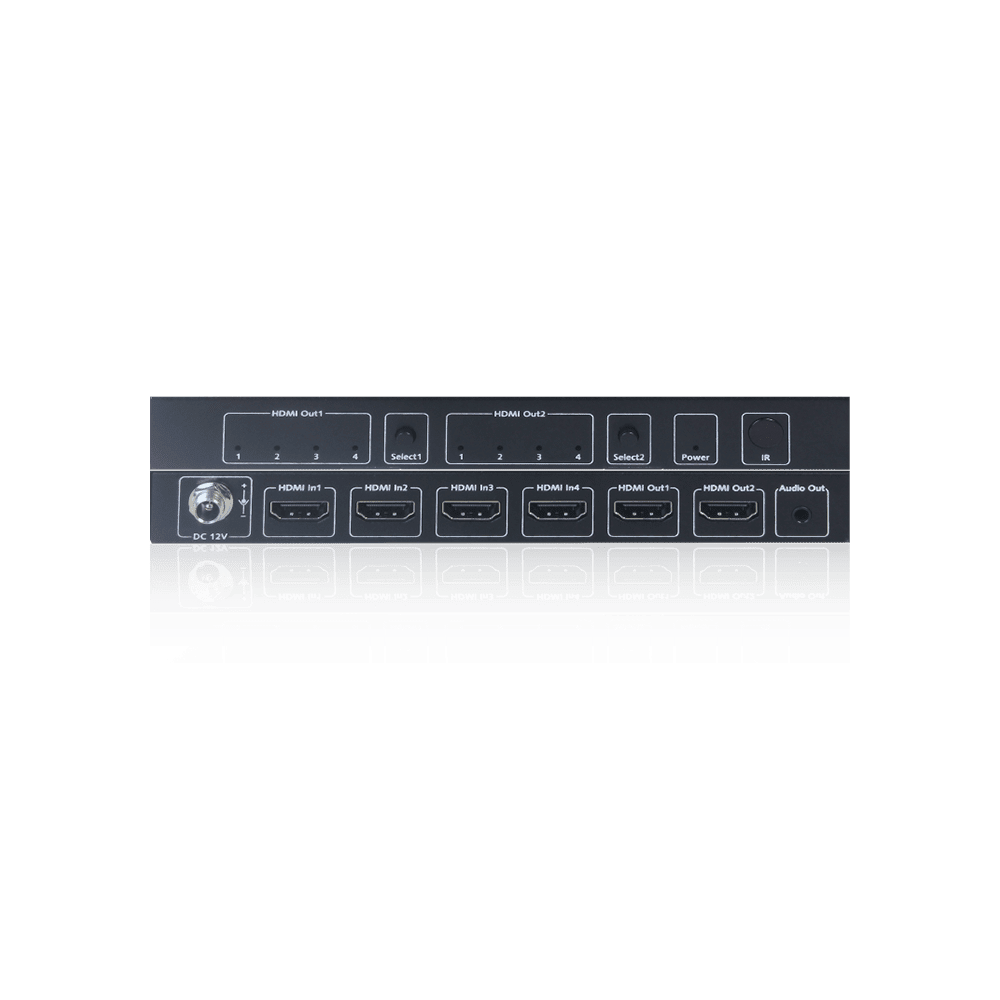

|Input/output||4 x HDMI IN,
2 x HDMI OUT
1 x Audio OUT,
1 x IR Remote
|Input/output Signal Type||HDMI 1.4|
|Input/output Resolution Support||480i, 480p, 576i, 576p, 720p,1080i, 1080p, 1920×1200@60Hz,
3840 x 2160@30Hz,
4096 x 2160@30Hz
|Audio Format||HDMI In/Out: PCM 2.0/5.1/7.1, Dolby True HD, DTS Master Audio
Audio Out: Stereo
|Control Method||IR, Front panel button control|
|Operating Temperature||0°C to 45°C (32°F to 113 °F)|
|Storage Temperature||-20°C to70°C (-4°F to 158 °F)|
|Humidity||10% to 90%, non-condensing|
|Power Supply||12 VDC 1 A|
|Power Consumption||5 W (Maximum)|
|ESD Protection||Human-body Model:
|Device Dimensions||182mm × 22 mm × 77 mm
/7.17″ x 0.67″ x 3.03″
