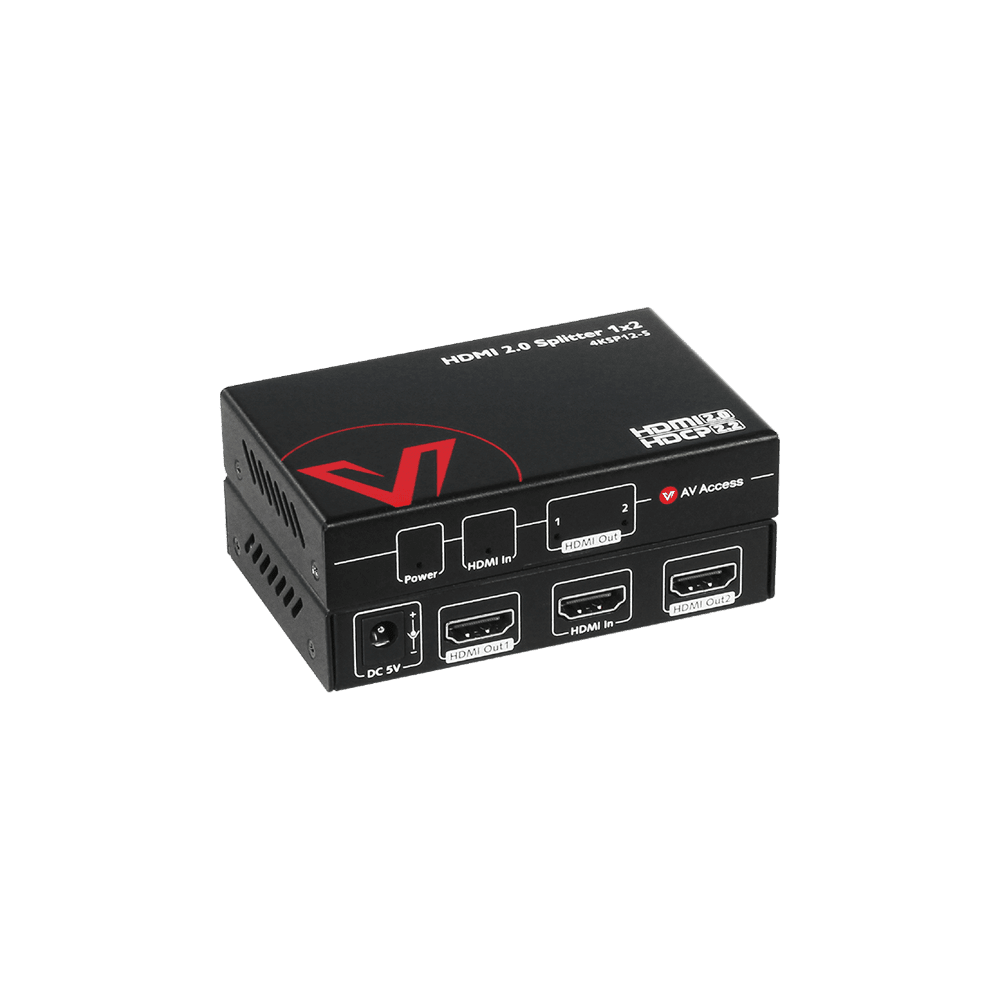

4K HDMI 2.0 Splitter 1 In 2 Out, Auto Scaling, HDR, Dolby Vision, HDCP2.2/1.4SKU: 4KSP12-S
Excellent Video and Multiple Audio Format:
Up to [email protected] (4:4:4 8-bit) High quality HD image. Supports Dolby digital, DTS-HD and Dolby True-HD Audio.
Delicate Design and Easy Installation：
Small metal casing with mounting ear makes it fit in anywhere.
Note: Does Not Support Audio Extraction:
If user wish to send one HDMI output to audio system. The display in other output must supports same standard audio format or they will not work.
Out of stock
1×2 HDMI Splitter with Scaler
The 4KSP12-S is a 1 x 2 HDMI splitter with scaler, reliably distributes one HDMI input signal to two outputs at resolutions up to [email protected] 4:4:4 chroma subsampling. It follows HDCP 2.2 and HDMI 2.0b specifications, including supported data rates up to 18 Gbps, HDR (high dynamic range), 3D and HD lossless audio formats.
With the built-in scaler, when connected to two different displays, the corresponding HDMI output is capable of scaling down automatically (down to 1080P) to feed an optimal output signal to its attached display.
The splitter provides HDCP management which continuously authenticates HDCP encryption between all devices, ensuring correct source content is output to each display. It also features automatic input cable equalization, actively conditions input HDMI signals to compensate for signal loss when using long cables or cascading multiple units.
- Distributes one HDMI input signal to two HDMI displays
- Supports HDMI 2.0b Specifications, including: Data rates up to 18.0 Gbps ,3D, HDR, HD lossless audio formats
- HDCP 2.2 compliant
- Each HDMI output supports scaling down to 1080P individually (fps will not change during scaling down from 4K to 1080P)
- HDMI Input and output cable length up to 10m/33ft + 15m/50ft for [email protected], up to 5m/16ft +5m/16ft for [email protected]
- Front panel LED indication for I/O and Power connectivity
- Automatic input cable equalization for signal regeneration compensation
4K Ultra-HD Image
With one input port and two output ports, the compact HDMI splitter reliably distributes one HDMI input signal to two outputs at resolutions up to [email protected] 4:4:4, delivering ultra-HD visual feast.
Route your 4K video sources to 4K displays and 1080P displays simultaneously via downscaling. Mixed output resolutions offer you the flexibility to distribute your display economically and save more cost.
Excellent Audio Enjoyment
The 1×2 HDMI splitter supports audio formats such as Dolby Atmos, DTS: X, DTS-HD Master Audio, PCM7.1 and Dolby TrueHD, so that you can enjoy 3D and HD lossless audio effect. It supports HDCP 2.2/1.4 to prevent audio/video content from copying.
The HDMI splitter is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. No more hesitation on choosing HDR or [email protected] for you could have both.
|Input||1 x HDMI IN (Type-A female connector)|
|Output||2 x HDMI OUT (Type-A female connector)|
|Video Signal Type||HDMI2.0, HDCP 2.2|
|Input/Output Resolution Supported||
Up to [email protected] 4:4:4
Please refer to the user manual for the specific resolutions it supports.
|HDR Format Supported||PCM2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio|
|Maximum Data Rate||18 Gbps|
|Operating Temperature||0°C to 45°C (32°F to 113°F)|
|Storage Temperature||-20°C to 70°C (-4°F to 158°F)|
|Humidity||10% to 90%, non-condensing|
|ESD Protection||±8kV (Air-gap discharge)/
±4kV (Contact discharge)
|Power Supply||DC 5V 1A|
(W x H x D)
|100mm x 20mm x 65.2mm/
4’’ x 0.8’’ x 2.6’’
