4K HDMI KVM Switch, Sharing 3x USB Port, Works with 4x PC, Supports 120hz & 144hz, Ideal for Home office or Gaming
SKU: 4KSW41-KVM
€85.99
HDMI 2.0 4K@60Hz with USB 2.0:
Supports latest HDR & Dolby Vision with Fantastic audio performance. Also supports 1080P@120hz and 2560×1440@144Hz, ideal for gaming, working from home or any entertainment.
Switch Between Four Sets of Computer with 3 USB Ports:
One HDMI out for the display and by push button on the front panel, the HDMI input and USB input are switched simultaneously.
High Compatibility with Audio In/Out:
Works for most popular devices and provides excellent audio.
User Tips:
The USB cables must be connected to the right port so it could switch along with HDMI.
Manual switch only, without keyboard or remote. Does not support USB 3.0 devices.
Out of stock
Best-Selling 4×1 4K KVM Switch
4KSW41-KVM is a 4×1 4K KVM Switch with HDMI2.0 and HDCP2.2 compatibility. It supports 2560×1440@144Hz and 1080P@120hz, ideal for video switching of game sources. With the four port KVM switch allows the user controls four source devices/computers with only one set of USB devices (e.g. USB mouse, USB keyboard, USB flash and other USB2.0 compliant devices). This product provides a cost-effective way to share one USB keyboard, one USB mouse, one USB2.0 device and one HDMI monitor to control four computers.
Main Features:
- 4×1 HDMI KVM switcher with HDMI2.0 and HDCP2.2 compliant;
- Full 18G bandwidth, up to 4K/UHD @60Hz with 4:4:4 chroma sampling;
- Supports three USB-A port for USB keyboard, USB mouse and other
- USB2.0 devices to control one of the four computers;
- Supports switching the KVM input port by push button on the front panel, the
- HDMI input and USB input are switched simultaneously;
- Supports one microphone input and one headphone output for audio application;
- Wide compatibility with Windows 10/8/7 XP, Mac OS and Linux;
- No driver required and simple plug and play.
HDMI2.0/HDCP2.2 Compliant
HDMI 2.0 standard provides high resolution up to 4K@60Hz (4:4:4) 18Gbps; Fantastic audio formats are also supported like Atmos, DTS: X, Dolby True-HD and PCM7.1 pass through.
Wonderful Gaming Experience with 120 Hz & 144 Hz
For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the player’s performance. The KVM switch supports 1080P@120Hz and 2560×1440@144Hz video input, ensuring your game sources can be effectively switched. With the KVM switch, you can have an unprecedentedly enjoyable gaming experience.
High Compatibility with Audio in/out
With mic input and audio output ports, the switcher works perfectly with popular devices such as X box one X, PS4 Pro, Apple 4K TV, Roku 4, Amazon Fire TV, Nintendo Switch, etc.
Effortless KVM Switching
You can connect up to four computers to the switcher and control any one of them via keyboard, mouse and other USB2.0 devices. Simply pressing the buttons on the front panel, you can simultaneously switch the HDMI input and USB input.
| Technical | |
|---|---|
| Input/Output Signal Type | 4 x HDMI in, 4x USB2.0 type-B Host |
| Input Signal Type | HDMI: HDMI 2.0 / HDCP 2.2 USB: USB2.0 |
| Input/Output Resolution Supported | VESA: 640×4808, 9, 10, 800×6008, 9, 10, 1024×7688, 9, 10, 1024×7688, 9, 10, 1280×7688, 10, 1280×8008, 1280×9608,10, 1280×10248,9,10, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, SMPTE: 720x480P7,8, 720x576P8, 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8; 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 75 Hz, 10 = at 85 Hz; |
| Maximum Data Rate | HDMI: 18Gbps USB: 480Mbps |
| Output | 1 x HDMI, 3x USB2.0 type-A devices, 1x MIC in, 1x Audio out (Analog) |
| Output Signal Type | HDMI: HDMI 2.0 /HDCP 2.2 USB: USB2.0 |
| Audio format supported | PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio |
| Control method | Front Panel Button Control |
| General | |
|---|---|
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
| Power Supply | DC 12V/2A |
| Power Consumption | 4K Full load Power Consumption:7.7W |
| Device Dimension (W x H x D) | 170mm × 101mm × 42mm / 6.69’’ × 3.98’’ × 1.65’’ |
| Net Weight | 1.32lb/0.60kg |

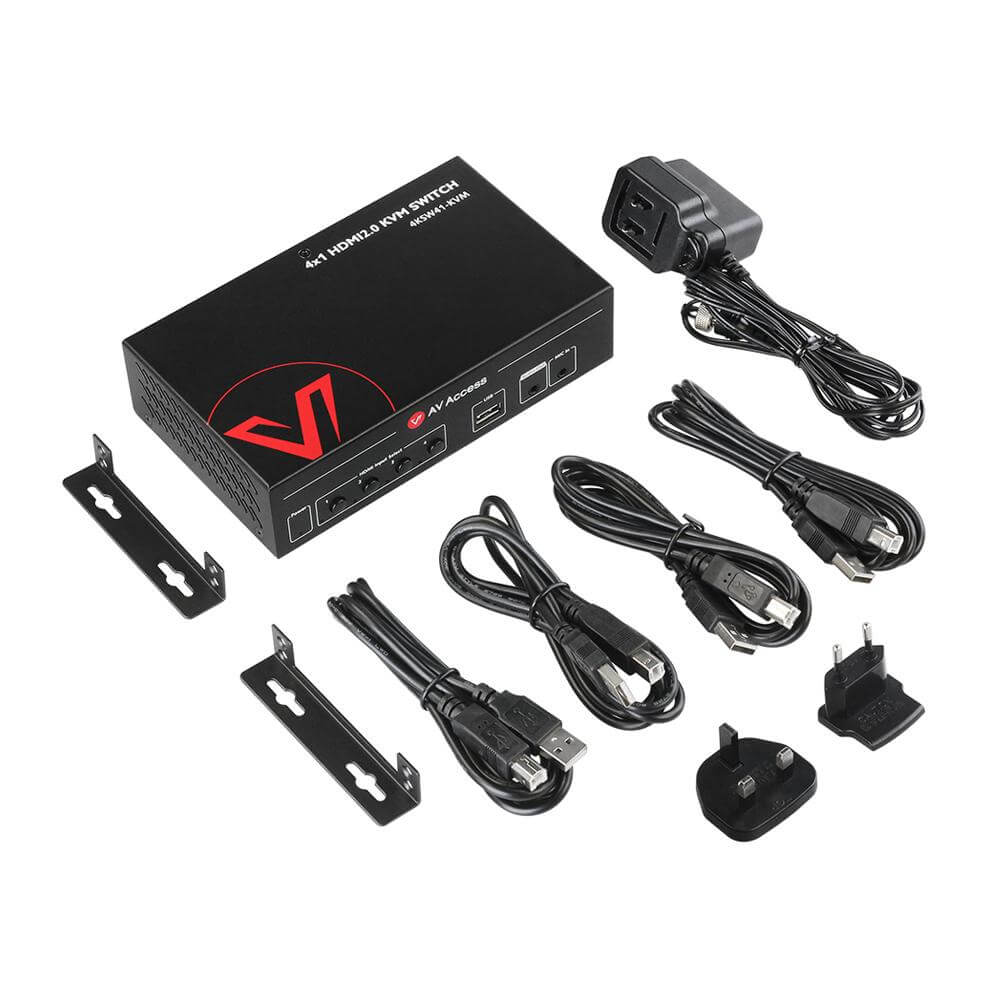

In the Box
- 1 x 4KSW41-KVM Switcher
- 1 x DC12V Power Supply (with US pins)
- 2 x Mounting Brackets
- 4 x USB-A to USB-B Data Cable (1500mm)
- 1 x User Manual
