eShare W50 4K Wireless Presentation System w/ BYOD & USB 3.0 for Hybrid Conference
SKU: eShare W50
€199.00 – €853.10
Partner Discounts | Free Quote | Book a Demo
We offer attractive partner margins; contact sales for bulk order discounts.
● All-in-One Design: Share contents readily from your PC to a larger screen via USB-C/HDMI port or wireless casting.
● Share from any Device: Supports wireless screen mirroring via AirPlay, Miracast or the eShare D10 USB-C Dongle. Cast screen confidently with your laptop, smartphone or tablet.
● USB Peripheral Control: Works flawlessly with BizEye series webcams, AnyCo series speakerphones or other USB 3.0 peripherals, perfect for video conferencing.
● Intuitive Web UI and OSD: Modify settings based on your needs. Get easier access to the device’s basic information on the TV screen.
● Set up in Minutes: No software or driver required, just plug and play. Mount it, plug it in, and start your presentation in no time.
● Important Notes: To control the USB peripherals, you need to connect your PC to eShare W50 via the included USB-C cable. Wireless control with the eShare D10 USB-C dongle is not supported. Please refer to eShare W80 if you need wireless control.
If you’re not satisfied, we’ll refund your payment. No hassle, no risk.
Present to any Screen, in any Room, from any Device
Share via HDMI/USB Cable, AirPlay, Miracast or Dongle
Note: Some laptops may not have a USB-C port. If you need to control the connected USB peripherals, it is recommended to use an HDMI cable and a USB-A to USB-C cable at the same time to connect your laptop to the presentation system.
USB-C CABLE
Unlike other pure wireless presentation system devices on the market, eShare W50 offers you extra USB-C/HDMI physical input interfaces. If you worry about the stability of wireless connection or prefer the traditional method, eShare W50 could be your optimal choice.
DONGLE
When your guests/clients walk into your conference room, you probably don’t want them to struggle with messy cables for presenting. Just ask them to pick up the eShare D10 USB-C dongle on the table, plug it in and share. No cable hassle, no software needed, no training required.
AIRPLAY
Any time you want to share something in the meeting, just do it with confidence. Say goodbye to untidy video input cables by using your iPhone, iPad or Macbook. With eShare W50’s Wi-Fi password and access code shown clearly on the screen, wireless screen mirroring is a total breeze.
MIRACAST
Rest assured you can share with your Android smartphone/tablet or Windows PC (Win 10 or higher) as well. No need to connect your device to the Wi-Fi hotspot, no software required. Everything is as easy as ABC.
Designed for Hybrid Meetings & Classroom Teaching
AV Access eShare W50 is a professional all-in-one wireless presentation system, designed for video presentation and collaboration in small/medium meeting rooms. Whether it’s an in-person or hybrid meeting, simply turn every meeting into success.
You can also apply it to classroom teaching, delivering an engaging lesson and interacting with your students effectively.
Learn moreeShare W50 4K Wireless Presentation System w/ USB 3.0
AV Access eShare W50 is a professional wired and wireless presentation system which supports USB-C/HDMI input and wireless casting. It is plug-n-play and easy-to-use, especially designed for video presentation and collaboration in small/medium meeting rooms. The presentation system boasts 4K@30hz 4:4:4 input/output, three USB 3.0 ports and automatic switching. It works perfectly with BizEye series webcams and AnyCo series speakerphones, meeting all your needs for a seamless and efficient hybrid meeting.
Notes:
1. Some laptops may not have a USB-C port. If you need to control the connected USB 3.0 peripherals, it is recommended to use an HDMI cable and a USB-A to USB-C cable at the same time to connect your laptop to the presentation system.
2. eShare D10 USB-C dongle is not included in the package. Please purchase it on its product page if you need.
Main Features:
- All-in-one design; supports wired and wireless connection
- Plug and play; no extra software or driver required
- Supports wireless screen casting with AirPlay, Miracast and USB-C dongle
- Supports USB-C/HDMI input
- Supports up to 4K@30hz 4:4:4 input/output
- Built-in 3x high-speed USB 3.0 port
- Supports settings and firmware upgrade via Web UI
- Detailed and user-friendly OSD information
- Supports automatic signal switching
Enjoy Sharp Image in 4K Ultra HD
This wired and wireless presentation system is built with an HDMI and a USB-C port, so you can easily connect it to your laptop. Supporting up to 4K@30Hz 4:4:4 video input and output, it allows you to present every tiny detail clearly with ultra HD image.
Bring Your Own Device
There is no need to install an external Wi-Fi router for wireless connection. Built with an antenna for transmitting stable and strong video signal, the presentation system allows you to wirelessly cast your screen, without cable hassle. No extra casting software is required. Readily share contents from your laptop, smartphone or iPad via AirPlay/Miracast.
One-Click to Share with USB-C Dongle
The eShare D10 USB-C dongle can pair with the presentation system automatically, once it is plugged into the front USB-C port. Connect the dongle to your laptop, click on the control button, then you can cast your screen wirelessly. Start, stop or pause screen mirroring at any time.
Note: You cannot control the connected USB peripherals while using the eShare D10 USB-C dongle. If you need to control the USB peripherals, please unplug the dongle and connect your source to eShare W50 via a USB-C cable directly.
High-Speed USB 3.0 Ports
This wireless presentation system is also designed with three USB 3.0 ports. The data transfer rate can reach up to 5Gbp/s, 10 times faster than USB 2.0. Compatible with a 4K webcam, speakerphone, touch screen, and other USB 3.0 conference device, the system allows you to hold a seamless and efficient video conference in front of your boss and colleagues.
Intuitive and User-Friendly Design
This wireless presentation system is built with user-friendly OSD to convey its basic information, like device name, Wi-Fi password, PIN code, etc. Besides, you can easily modify these settings and upgrade firmware via its intuitive web UI.
Automatic Switching Function
Once the presentation system detects a new source input from its HDMI or USB-C port, it will automatically switch to that source. Don’t need to waste time pressing control buttons any more. All of your team members can enjoy a smooth presentation and collaboration experience.

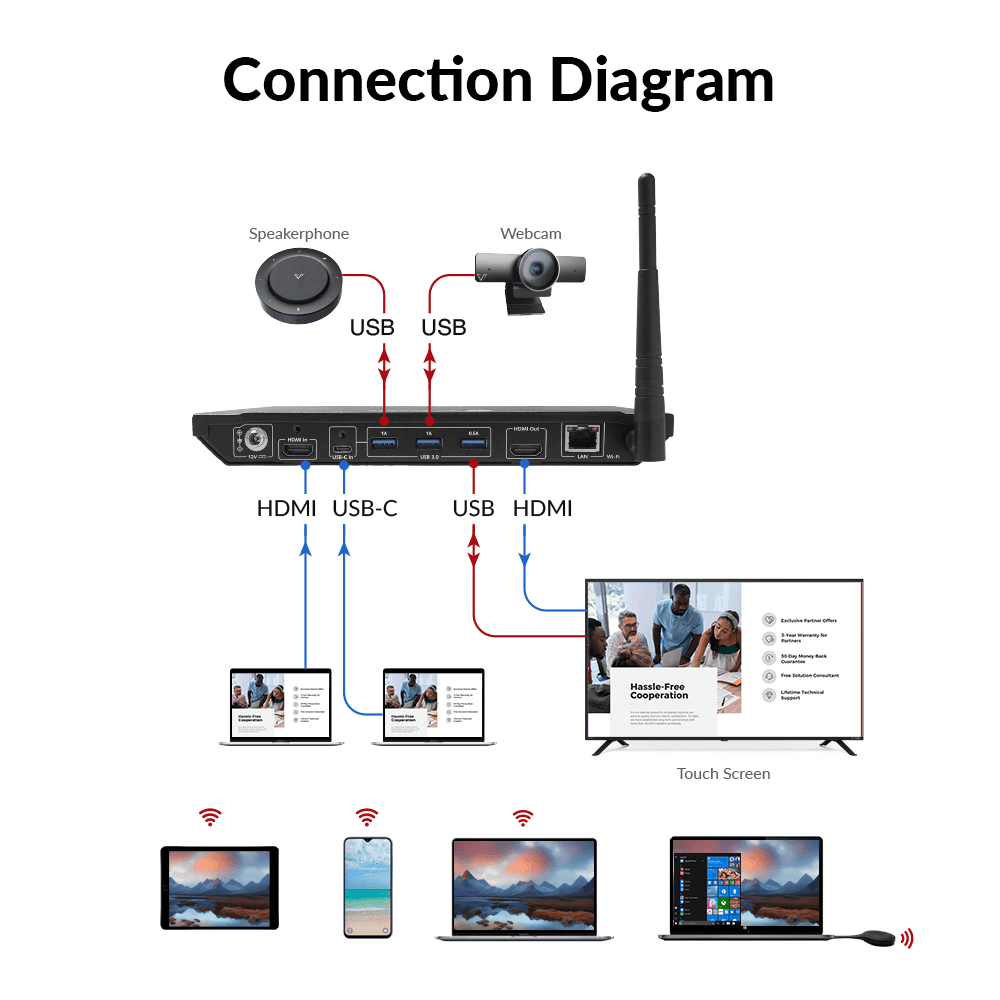

Connection Diagram
 |  |  | |
| eShare W50 | eShare W80 | eShare C30 | |
| A/V Interface | 1x HDMI in, 1x HDMI out, 1x USB-C in | 2x HDMI in, 2x HDMI out | 1x HDMI in, 1x HDMI out, 1x USB-C in |
| Supported Video Resolution | Up to 4K@30hz | Up to 4K@30hz | Up to 4K@60hz |
| USB Interface | 3x USB 3.0 | 3x USB 3.0 | 3x USB 3.0 |
| HDMI | 1.4 | 1.4 | 2.0 |
| HDCP | 1.4 | 1.4 | 2.2 |
| Wireless Casting | AirPlay, Miracast, USB-C dongle | AirPlay, Miracast, USB-C dongle | No |
| Multiview | No | Yes | No |
| Wireless USB Peripheral Control with Dongle | No | Yes | No |
| Automatic Signal Switching | Yes | Yes | Yes |
| Touch Screen Support | Yes | Yes | No |
| Settings with Web UI | Yes | Yes | No |
Specifications
-
Technical Input Video Port 1 x USB-C In; 1 x HDMI In; 1 x LAN, 10/100/1000Mbps Ethernet; 1 x WLAN Input Video Signal • HDMI: HDMI 1.4, HDCP 1.4 • USB-C: DisplayPort 1.1, HDCP 1.4
• LAN/WLAN: H.264
Input Resolutions HDMI: up to 3840×2160@30hz (2160p30) LAN/WLAN: up to 1920×1080@30hz (1080p30)
Note: The input resolution support for LAN or WLAN may vary according to the specific BYOD protocols and devices.
Output Video Port 1 x HDMI Output Video Signal HDMI 1.4, HDCP 1.4 Output Resolution up to 3840×2160@30hz (2160p30) Audio Input Audio Port 1 x HDMI; 1 x USB-C In; 1 x LAN; 1 x WLAN Input Audio Signal RAW PCM 2.0, 16 bit, 32/44.1/48KHz sps Output Audio Port 1 x HDMI Output Audio Signal RAW PCM 2.0, 16 bit, 48KHz sps Control Control Connector 1 x RJ45, 10/100/1000Mbps Ethernet Control Method LAN (Web UI) General Power Supply 12V 2A DC Power Consumption 19W (Max) Device Dimensions (W x H x D)
230mm x 25mm x 142.6mm / 9.1” x 0.98” x 5.6” (Antenna not included) Product Weight 0.68kg/1.5lbs
| Technical | |
| Input Video Port | 1 x USB-C In; 1 x HDMI In; 1 x LAN, 10/100/1000Mbps Ethernet; 1 x WLAN |
| Input Video Signal | • HDMI: HDMI 1.4, HDCP 1.4 • USB-C: DisplayPort 1.1, HDCP 1.4 • LAN/WLAN: H.264 |
| Input Resolutions | HDMI: up to 3840×2160@30hz (2160p30) LAN/WLAN: up to 1920×1080@30hz (1080p30) Note: The input resolution support for LAN or WLAN may vary according to the specific BYOD protocols and devices.
|
| Output Video Port | 1 x HDMI |
| Output Video Signal | HDMI 1.4, HDCP 1.4 |
| Output Resolution | up to 3840×2160@30hz (2160p30) |
| Audio | |
| Input Audio Port | 1 x HDMI; 1 x USB-C In; 1 x LAN; 1 x WLAN |
| Input Audio Signal | RAW PCM 2.0, 16 bit, 32/44.1/48KHz sps |
| Output Audio Port | 1 x HDMI |
| Output Audio Signal | RAW PCM 2.0, 16 bit, 48KHz sps |
| Wi-Fi | |
| Standard | IEEE 802.11 a/b/g/n/ac |
| Frequency | Dual bands, 2.4~2.4835GHz, 5.0~5.8GH |
| Security | WEP, TKIP, AES, WPA, WPA2 |
| Control | |
| Control Connector | 1 x RJ45, 10/100/1000Mbps Ethernet |
| Control Method | LAN (Web UI) |
| General | |
| Operating Temperature | 0°C to + 45°C (32 to + 113 °F) |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/±4kV (Contact discharge) |
| Power Supply | 12V 2A DC |
| Power Consumption | 19W (Max) |
| Device Dimensions (W x H x D) | 230mm x 25mm x 142.6mm / 9.1” x 0.98” x 5.6” (Antenna not included) |
| Product Weight | 0.68kg/1.5lbs |
In the Box
- 1x eShare W50 Wireless Presentation System
- 1x DC 12V Power Adapter (with US, UK and EU Pins)
- 1x Wi-Fi Antenna
- 1x USB Type-C to USB Type-C Cable with Lock (L=2m)
- 1x HDMI Cable with Lock (L=2m)
- 2x Mounting Brackets
- 4x Mounting Screws
- 4x Self-drilling Screws
- 1x User Manual
Documents & Softwares
1. What is a wireless presentation system?
Wireless presentation system is a device which allows you to cast contents wirelessly from your laptop, smartphone, or tablet to a connected projector, flat panel or TV. Some of the brands include AV Access eShare W50, Barco ClickShare CX-20, Barco ClickShare CX-30. eShare W50 is built with HDMI and USB-C ports, so you can also connect your video source to it via an HDMI or USB-C cable.
2. What are the main features of the eShare W50 presentation system?
The eShare W50 presentation system support both wired HDMI/USB-C and wireless connection, with up to 4K@30hz 4:4:4 resolution. It is plug and play, no extra software or driver required. Built with three USB 3.0 ports, you can connect a BizEye series webcam and an AnyCo series speakerphone to it, meeting all your needs for a seamless and efficient hybrid meeting.
It is one of the best Clickshare alternatives you should choose.
3. What are the main differences between eShare W50 and eShare C30?
The eShare W50 presentation system supports both wired HDMI/USB-C and wireless connection, with up to 4K@30Hz 4:4:4 resolution. The eShare C30 presentation system only supports wired HDMI/USB-C input with up to 4K@60hz 4:4:4 resolution.
4. Where can I use the eShare W50 presentation system?
With the eShare W50 wireless presentation system, you can make a wonderful local presentation or hold an efficient remote conference in your meeting room, including huddle room as well as small and medium-sized meeting room.
You can also apply it to your classroom teaching, connecting it to your laptop, DVD players, document camera, etc. Your students can share their contents with a laptop, smartphone, or tablet for effective interaction.
5. How does the eShare W50 presentation system work?
The eShare W50 wireless presentation system is built with an HDMI input port, a USB-C input port and an HDMI output port. It can work as a video presentation switch, so you can connect your video source to it via an HDMI or USB-C cable, then transmit to the display device.
Built with an antenna receiving the wireless signal, you can also cast contents wirelessly from your laptop, smartphone or tablet via Miracast, AirPlay or a USB-C dongle.
It is one of the best Clickshare alternatives you should choose.
6. What does BYOD mean?
BYOD stands for “bring your own device”. It means participants can use their personal device, rather than being required to use an officially provided device. For example, company employees can bring their own personal devices to connect to the company’s network and access what they need to do their jobs. The devices used for BYOD can include smartphones, tablets, personal computers, laptops, or USB drives. This way of doing work offers employees more freedom to use the devices that make them better able to perform day-to-day tasks.
7. How can I cast screen wirelessly with the eShare W50 presentation system?
The eShare W50 presentation system allows you to cast contents wirelessly from your laptop, smartphone or tablet via Miracast, AirPlay or a USB-C dongle.
For iPhone/iPad/Mac, you need to connect your device to eShare’s Wi-Fi hotspot first, open “Control Center” on your device, tap “screen mirroring” and select “eShare W50” to cast your screen.
For Android smartphone, you need to enable the Wi-Fi or WLAN feature of your smartphone first, find the wireless project function in your device’s control center, then select “eShare W50” to cast your screen.
For Windows PC (Window 10 or higher), you need to enable the WLAN feature of your PC. On your PC, press the combination keys “ Windows + K” and select “eShare W50”.
For screen casting with dongle, you need to pair the dongle with eShare W50 first, insert the dongle into your own device (laptop/smartphone/tablet), then click the dongle button to cast your screen.
8. How can I pair the eShare W50 presentation system with the USB-C dongle?
Plug the USB-C dongle into eShare W50 wireless presentation system via the front USB-C port, then they can get paired automatically. Once the pairing is completed, the prompt“Pairing Successful” will appear on the TV connected to eShare W50.
9. What is the maximum resolution eShare W50 supports?
The eShare W50 presentation system supports up to 4K@30Hz 4:4:4 resolution.
10. Does the presentation system support CEC?
Yes, the eShare W50 presentation system supports CEC.
When it detects any video input signal, it can help turn on the connected TV automatically. When there is no video input, eShare W50 is outputting guide screen image by default.
If there is no video input for 60 seconds, a countdown timer with the time period of 60 seconds will appear on the guide screen. When the timer reaches zero, the connected display will enter standby mode if it is CEC-enabled.
11. Can I set a password for the wireless casting function?
Yes, through the web UI, you can set a PIN code for wireless casting, then you need to input the code for sharing your screen. Besides, you can also configure the Wi-Fi hotspot password for iPhone/iPad/Mac. When the PIN code and the Wi-Fi password are set, they will appear on the upper right corner of the connected display device.
12. Does the presentation system work with a touch-screen panel?
Yes, the eShare W50 presentation system can work with a touch-screen panel/TV. You can connect it to eShare W50 via an HDMI cable and a USB cable.
13. I find there is no control button on the device panel for switching video sources. How can I switch to a desired video source?
The eShare W50 presentation system supports automatic signal switching function, allowing you to output desired sources easily and quickly. This function follows “Last-In-First-Out“ rule. Whenever you connect a new video source to eShare W50, it will automatically show on the connected display device and replace the last source.
14. How can I access the presentation system's web UI?
Step 1: Connect the LAN port of the eShare W50 presentation device to a local area network. Ensure there’s a DHCP server in the network so that the device can obtain a valid IP address.
Step 2: Connect a PC to the same network as the device.
Step 3: Input the device’s IP address in a browser and press “Enter”, then the login window will pop up. Input the password (default password: admin) and click “Login” to enter the main page.
15. How can I upgrade the device's firmware to the latest version?
The eShare W50 wireless presentation system supports firmware upgrade through either Web UI or USB-A ports on rear panel. For detailed steps, you can refer to the “Firmware Upgrade” chapter in the user manual.
