Newest Zero-Latency 1080P Dual Monitor HDMI KVM Extender w/4x USB 2.0 Port, One-Way PoC, Ideal for Desktop, Workstation & Gaming PC
SKU: HDEX60-DM
€199.99
Partner Discounts | Free Quote
Dual HDMI Design:
HDMI 1.3 & HDCP 1.4 compliant. Transmits dual 1080P full HD HDMI signal up to 60m/197ft over a single Cat 5e/6/6a/7 cable, with zero loss or delay. View extra screens and maximize your productivity.
Built-in USB 2.0 Hub:
Easily connect up to four USB 2.0 peripherals, like keyboard, mouse, speakerphone, webcam, hard disk, etc. Extend USB 2.0 signal (max 480Mbps) up to 60m/197ft with zero latency.
One-Way PoC:
The transmitter can be powered by the receiver via the Cat cable, so only one power adapter is required at the receiver side to power both units.
High Reliability & Universal Compatibility:
Certificated by CE & FCC. Comes with mounting brackets for hassle-free installation. No driver is required, just plug and play. Works with different operating systems, like Windows 10/8/7/XP, Mac OS and Linux.
In stock

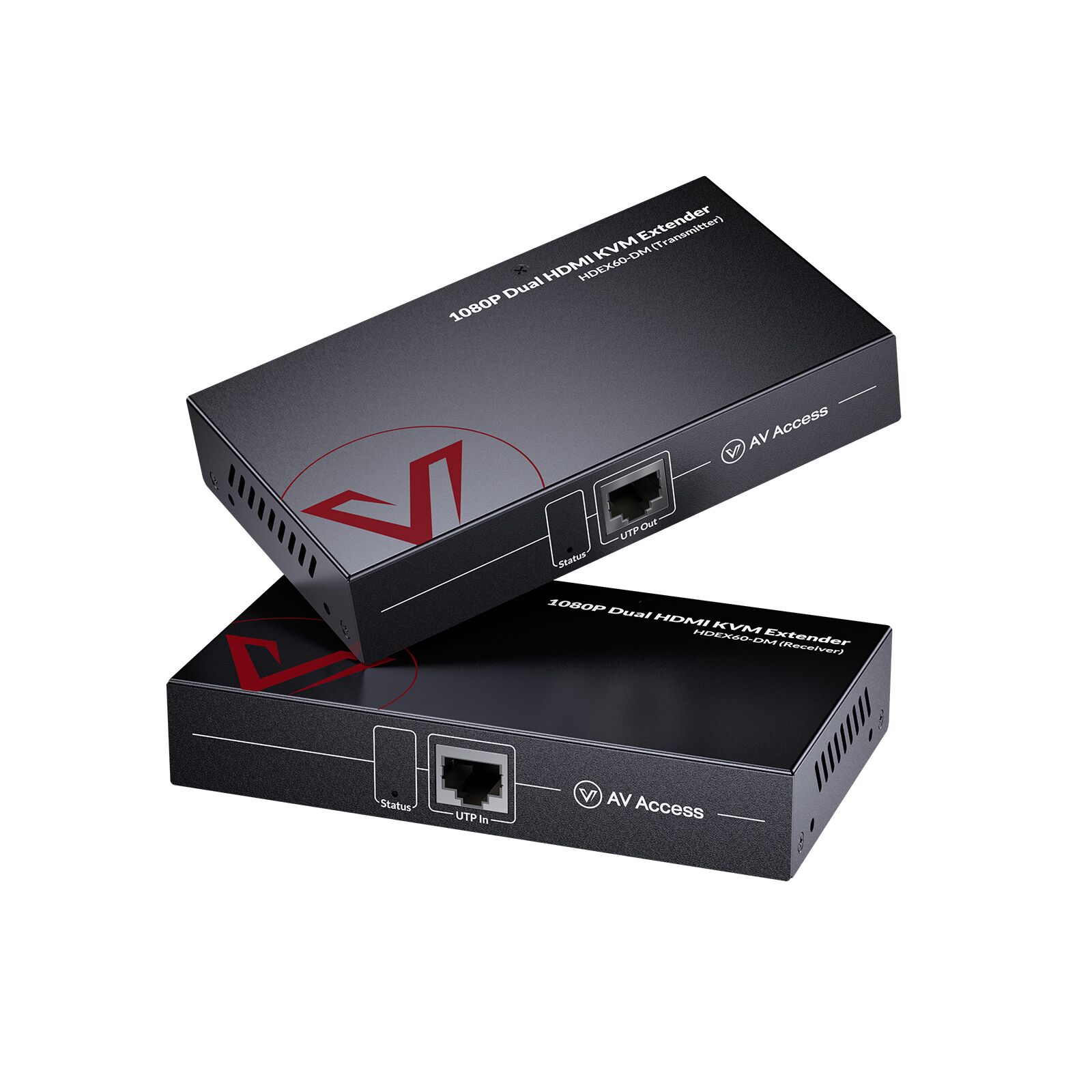

Brand-New 1080P Dual Monitor KVM Extender
AV Access HDEX60-DM is a brand-new dual monitor HDMI KVM extender kit. It can transmit dual 1080P HDMI signal along with USB 2.0 up to 60m/197ft over a single Cat 5e/6/6a/7 cable, with zero loss or delay. With its plug-n-play feature, ultra-slim design and excellent performance, HDEX60-DM KVM extender is ideal for extending your desktop, workstation, gaming PC, etc. It allows you to view extra screens and maximize your productivity.
Main Features:
- Brand-New dual HDMI design;
- Supports 1080P@60Hz 4:4:4 8bit and HDCP 1.4;
- Extends HDMI and USB signals up to 60m/197ft with zero latency;
- 4x USB 2.0 ports with full bandwidth up to 480Mbps;
- Two USB device ports support 5V/1A higher current output;
- Supports one-way PoC;
- Plug and play, no driver needed;
- Ultra-Slim and portable design.
Brand-New Dual HDMI Design

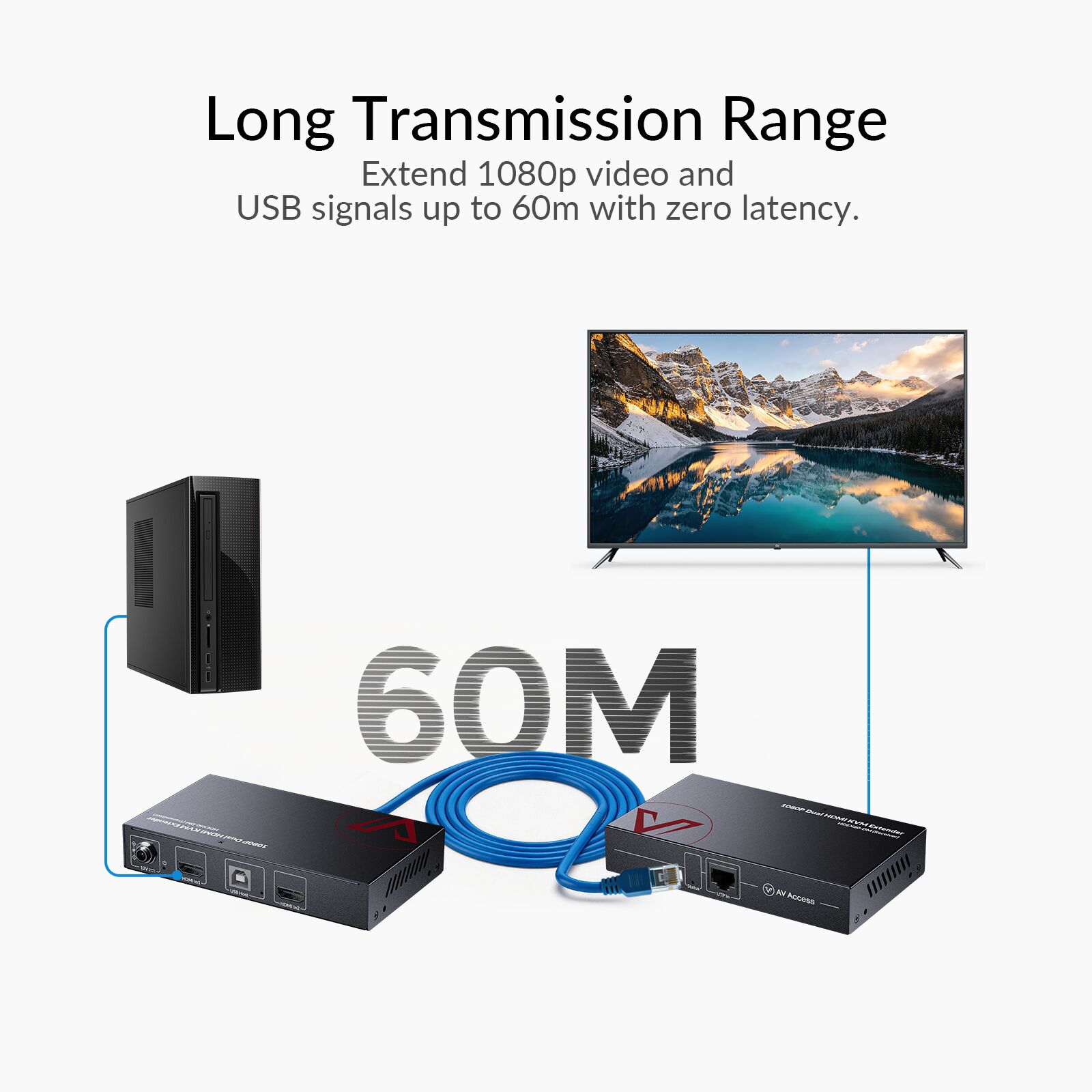

Built with two HDMI input ports on the transmitter and two HDMI output ports on the receiver, the dual monitor KVM extender allows you to easily extend two full HD HDMI signals over a single Cat cable, with zero latency. Even if your desktop computer is placed in the basement or equipment room 60m/197ft away, you can view extra screens and maximize your productivity in your home studio.

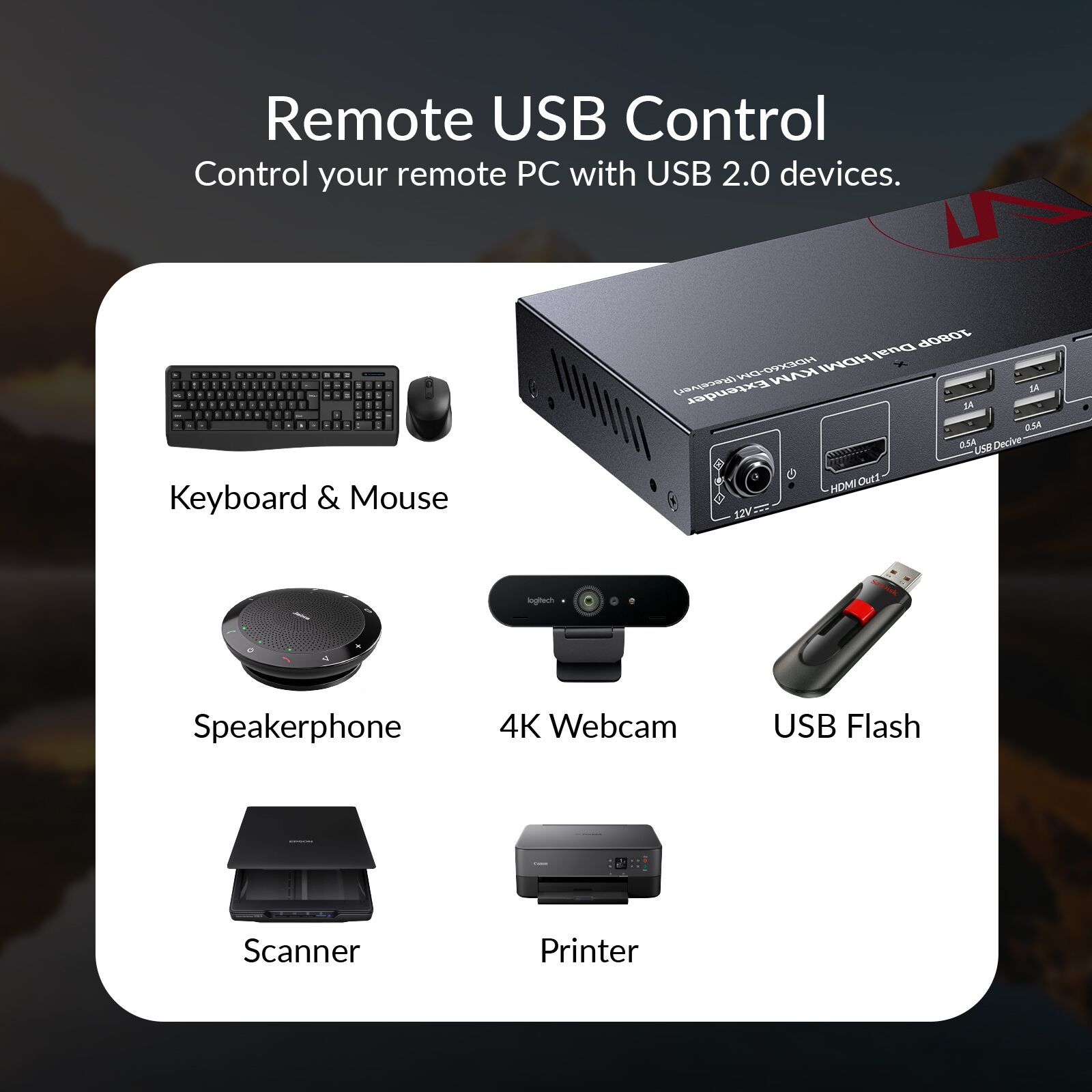

Effortless USB Signal Extension
Designed with four USB 2.0 device ports on the receiver, the HDMI KVM extender allows you to extend mouse, keyboard, printer, scanner or other USB 2.0 devices up to 60m/197ft. Two of the USB ports support 5V/1A higher current output, so you can easily connect high-power USB devices, such as USB camera or USB hard disk.

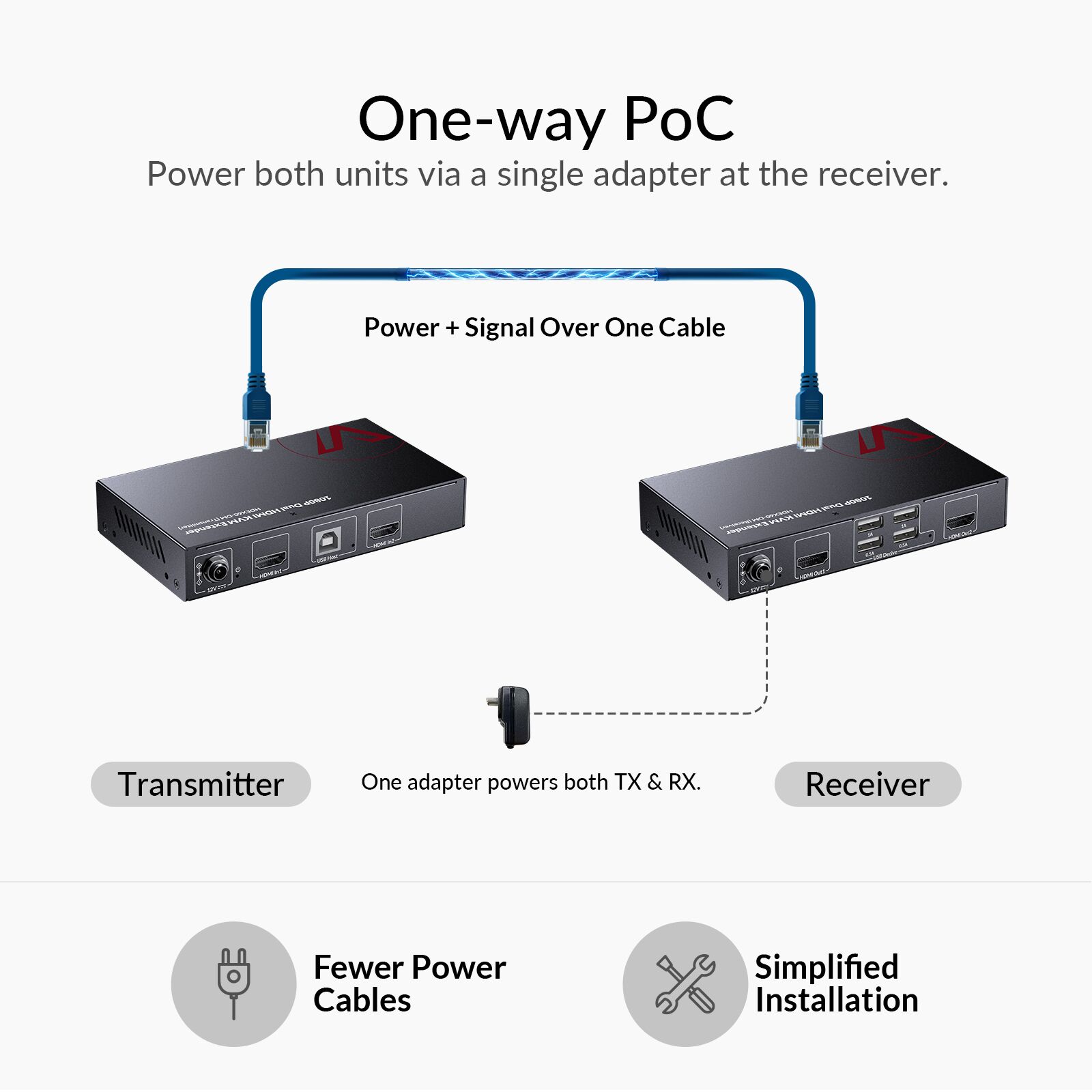

One-Way PoC Function
With the built-in PoC function, the transmitter can be powered by the receiver via a Cat cable, so only one power supply is needed at the receiver side to power both units. It offers you more convenience in installation at the source side.

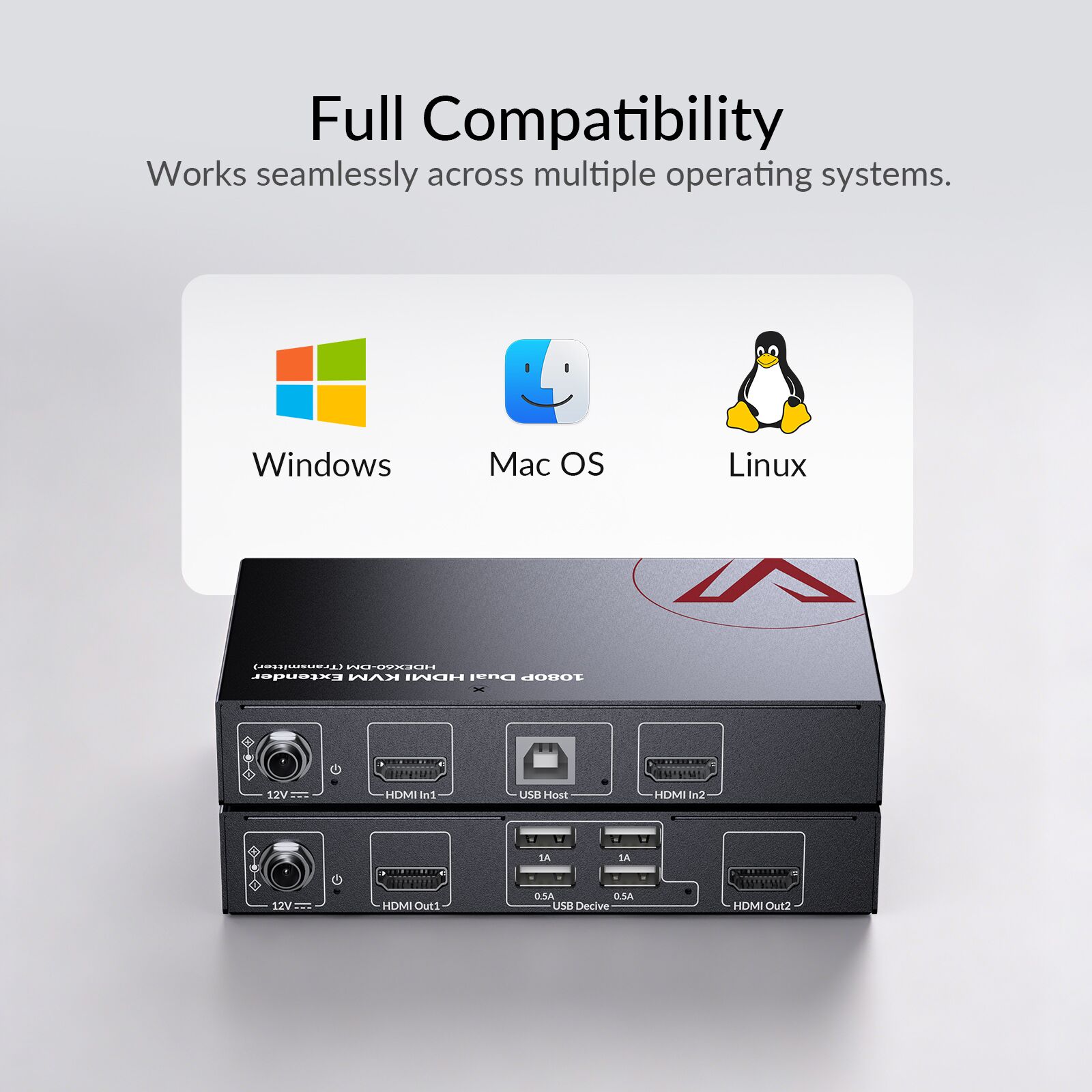

Plug & Play, Universal Compatibility
The dual monitor HDMI extender can work with all operating systems, including Windows 10/8/7/XP, Mac OS and Linux. No extra software or driver is required; just plug and play. Now it is easier than ever to extend your workstation or gaming PC.

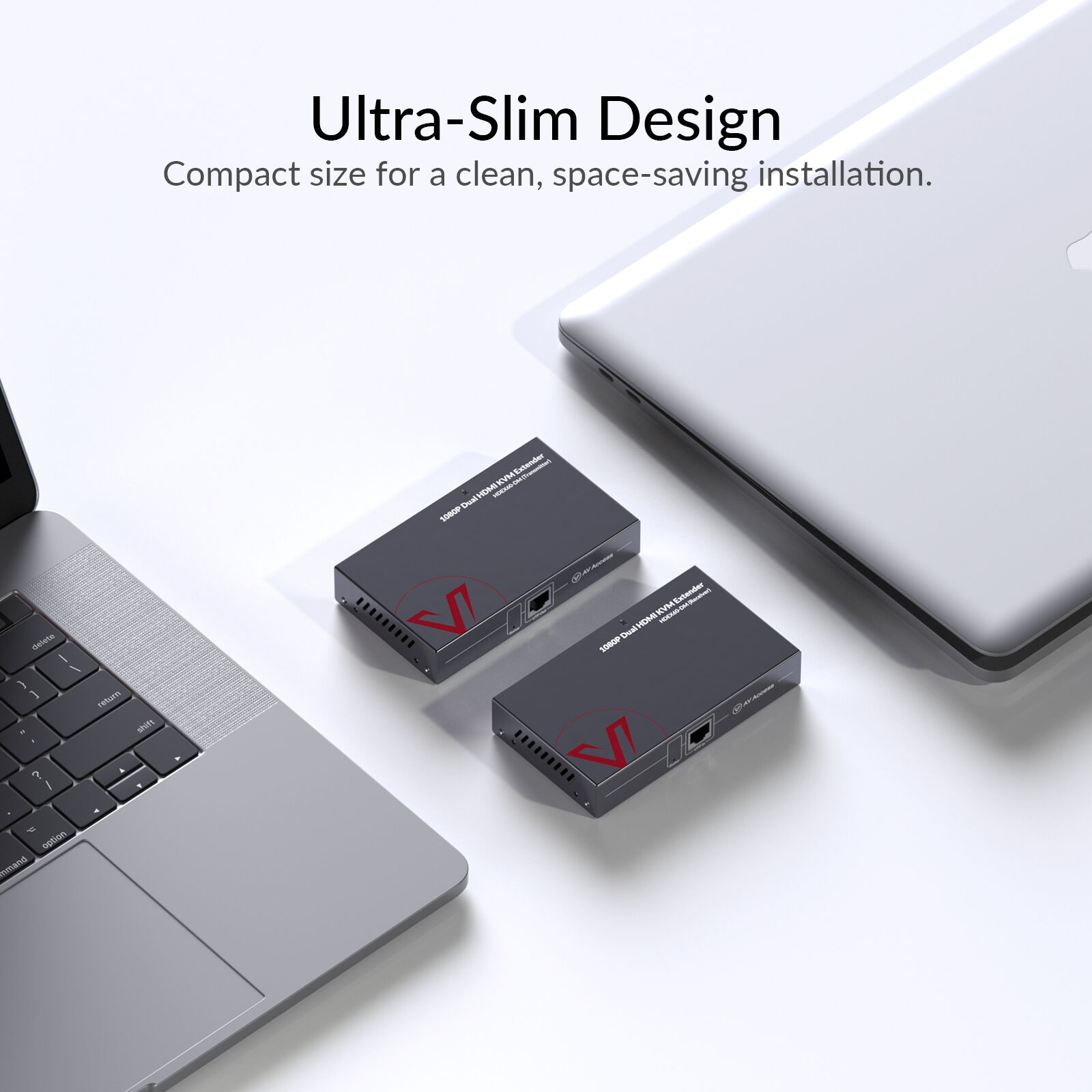

Ultra-Slim and Compact Design
This HDMI KVM transmitter and receiver kit is compact and portable, as small as a palm. It is easy to install and space-saving; you can almost place them everywhere in your house.

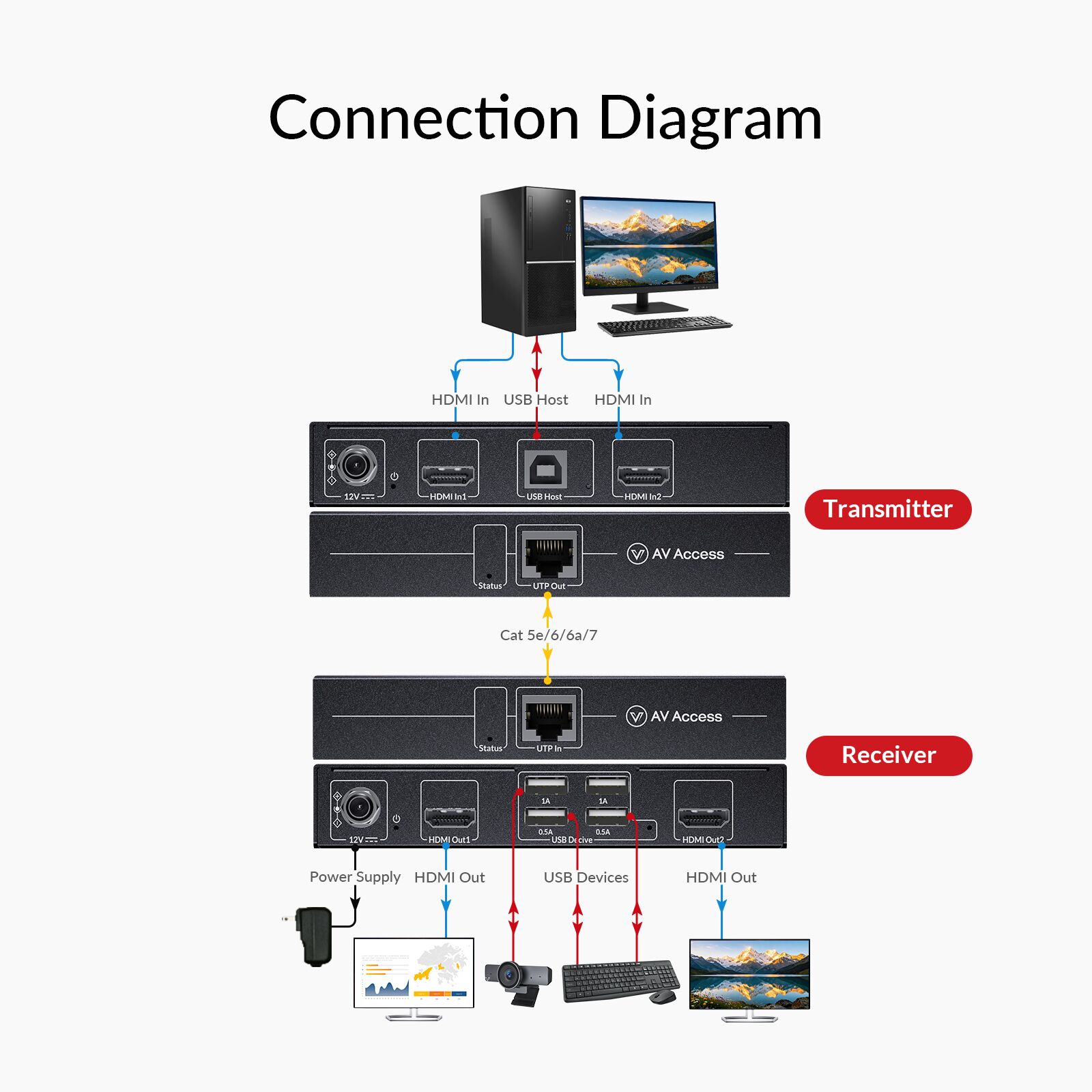

Connection Diagram
Notes:
1. The Cat 5e/6/6a/7 cable used must be within 60m/197ft.
2. With one-way PoC supported, one power adapter is needed to be connected to the receiver to power both units.
3. The two USB 2.0 ports supports 1A can be connected to high-power USB devices such as USB camera, USB hard disk.
 |  |  |  |  |  | |
| HDEX60-DM | HDEX80-KVM | 4KEX50-KVM | 4KIP100-KVM | 4KEX100-KVM | 4KEX100-DP-KVM | |
| Product Type | Dual Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor |
| Video Interface | 2x HDMI in, 2x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x DisplayPort in, 1x DisplayPort out |
| HDMI Version | 1.3 | 1.3 | 2.0 | 1.4 | 1.4 | No, DP 1.2 |
| HDCP Version | 1.4 | 1.4 | 2.2 | 1.4 | doesn't support HDCP | 1.4 |
| Supported Video Resolution | Up to 1080p@60Hz | Up to 1080p@60Hz | up to 4K@60Hz 4:4:4 | up to 4K@30Hz; 1080P@120Hz | up to 4K@60Hz (4:2:0 8bit); 4K@30Hz 4:4:4, 1080P@120hz | up to 4K@30Hz, 1080P@120hz |
| HDMI Audio Channel | Stereo | Stereo | 5.1 Channel | 7.1 Channel | 7.1 Channel | 7.1 Channel |
| Maximum Transmission Range | 197ft (60m) | 260ft (80m) | 164ft (50m) | 395ft (120m) | 330ft (100m) | 330ft (100m) |
| USB Ports | 4x USB 2.0 port | 2x USB 2.0 port | 4x USB 2.0 port | 3x USB 2.0 port | 4x USB 2.0 port | 2x USB 2.0 port |
| POE/POH/POC | Uni-Direction (RX to TX) | Bi-Direction | Uni-Direction (RX to TX) | No | Uni-Direction (TX to RX) | Uni-Direction (TX to RX) |
| RS232 | No | No | No | No | Yes | Yes |
| IR | No | No | No | No | No | No |
| Router/Ethernet Switch Compatibility | No, point to point | No, point to point | No, point to point | Yes, up to 16 sets of TX and RX | No, point to point | No, point to point |
| Plug & Play | Yes | Yes | Yes | Yes | Yes | Yes |
Specifications
| Technical | |
| Video Signal Type | HDMI with 1080P@60Hz, 4:4:4 8bit, HDCP 1.4 |
| Input/Output Resolution | 1080P@60/50/30/25Hz; 720P@60/50Hz; 480P@60Hz |
| Audio Format | PCM 2.0 |
| Max Data Rate | 6.75 Gbps |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 20% to 90%, non-condensing |
| Power Consumption | 5.7W (Maximum) |
| Device Dimensions (W x H x D) | 140 mm ×25 mm ×80.2 mm/ 5.51” x 0.98” x 3.16” |
| Product Weight | Transmitter/Receiver: 0.33kg/0.73lb |
In the Box
- 1x Transmitter
- 1x Receiver
- 1x DC 12V Power Adapter (with US, UK and EU Pins)
- 1x USB 2.0 type-A to type-B Cable
- 4x Mounting Brackets (with Screws)
- 1x User Manual
1. What is a dual monitor KVM extender?
A dual monitor KVM extender is a special type of extender, which allows you to extend dual audio/video signals along with USB over a single Cat cable.
2. What are the main features of the HDEX60-DM KVM extender?
The HDEX60-DM dual monitor KVM extender features a brand-new dual HDMI port, 4x USB 2.0 ports with full bandwidth up to 480Mbps, up to 60m/197ft transmission distance with zero latency, plug-n-play and ultra-slim design, one-way PoC, etc.
3. What are the main differences between HDEX60-DM and HDEX80-KVM?
The HDEX60-DM KVM extender is built with 2x HDMI input port and 2x HDMI output port, and can connect up to 4x USB 2.0 device. It can transmit dual 1080P HDMI signals along with USB 2.0 up to 60m/197ft over a single Cat cable. In contrast, HDEX80-KVM is built with 1x HDMI input port and 1x HDMI output port, and can connect up to 2x USB 2.0 device. It can transmit one 1080P HDMI and USB signals over a single Cat cable up to 80m/260ft.
4. Where can I use the HDMI KVM extender?
The HDEX60-DM KVM extender is ideal for home applications. You can extend your desktop, workstation, gaming PC, etc. It allows you to view extra screens and maximize your productivity.
5. How does the HDMI KVM extender work?

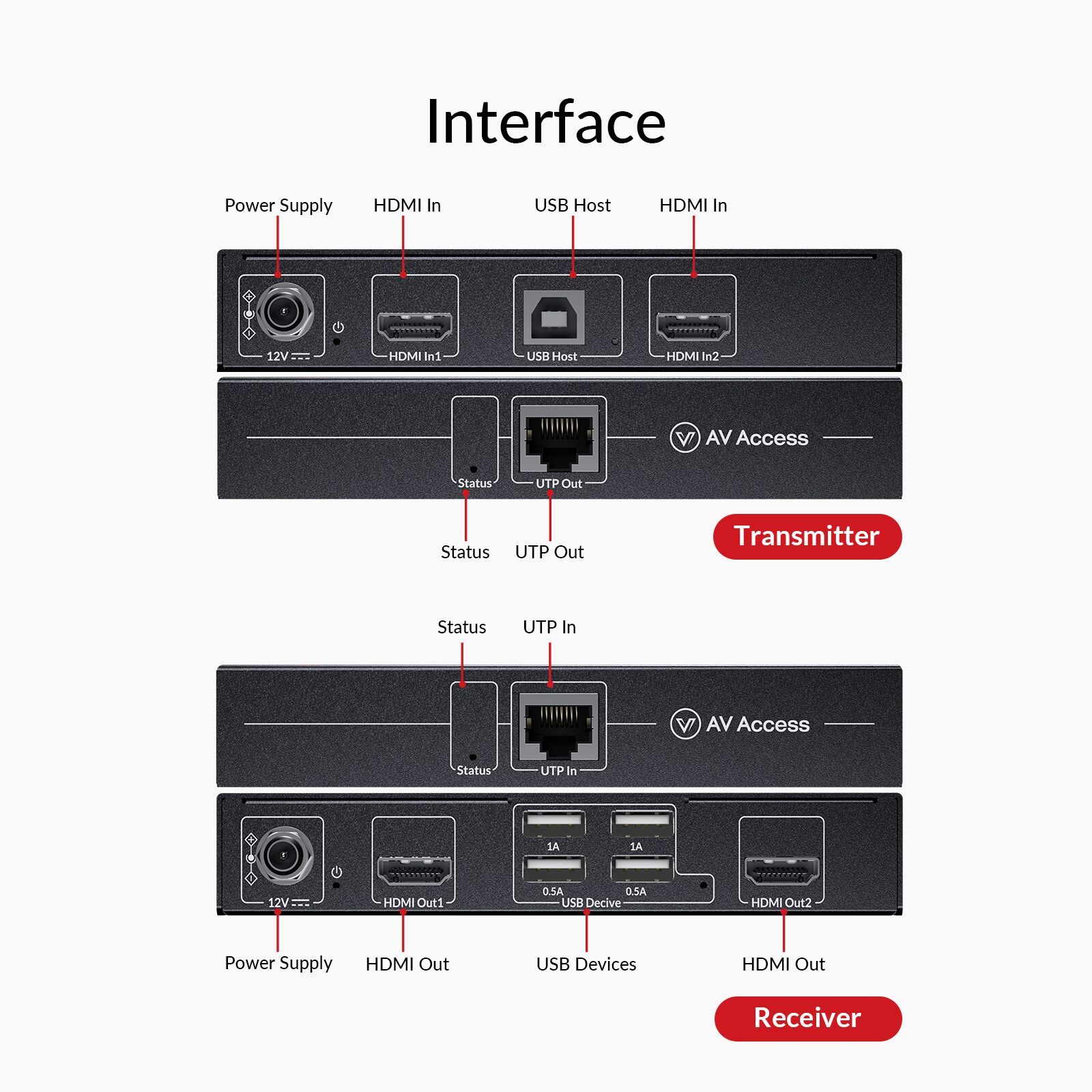

The HDEX60-DM KVM extender transmitter is built with 2x HDMI input port and 1x USB host port, while the receiver is built with 2x HDMI output port, 4x USB device port. With just a single Cat cable, it can extend dual 1080P HDMI signals along with USB 2.0 up to 60m/197ft.
6. Can the HDMI KVM extender work with AV Access's HDMI splitters or HDMI switches?
Yes, the HDMI KVM extender can work with AV Access’s HDMI splitters and HDMI switches.
7. Can I purchase the HDMI transmitter or receiver only?
No, the HDMI transmitter and receiver work in pair and are sold in a kit.
Kirik –
I have bought several pairs of these in my office and these boxes work great. Stable delivery. Quality image and no lag is noticed. I have to say watch out for your cables. I would recommend a CAT6 cable for a more reliable performance. Thanks for the timely assistance from the support team. You did a great job.
Glory –
I’m very impressed that this kit works very well with my kvm setup. Good work! I use it to extend my Macbook Pro and my PC to the KVM switch at the living room. Source: Macbook Pro M1, a personal computer Cable: Cat7 120ft x2, HDMI 2.0 x6, (USB cable is provided by the vendor) Docking hub: Anker dual monitor docking station Display: a 1080p and a 4K display USB: Wireless keyboard/mouse, Logitech webcam/microphone work flawlessly. No lag. No display issues. Performs as advertised!
Goodman –
Simple and easy to use. It works great for my home office application. I’ve used this to simply send my PC to 2 remote monitors downstairs. It does exactly what it’s supposed to do at a better price on the maket.
Alexander (verified owner) –
The device has a very good price-performance ratio. AV Access responded promptly to several technical questions before purchase. Ordering was easy and delivery (in Europe) was surprisingly fast. The device makes a quality impression and worked “plug&play” right away. Experiences with transmission over a long distance (50 m) and in longer operation are not yet available.
