Zero-Configuration 1080P H.265 AV over IP Encoder w/ Video Wall & Visual Control
SKU: HDIP100E€199.99
Partner Discounts | Free Quote
We provide high profit margin for partners.

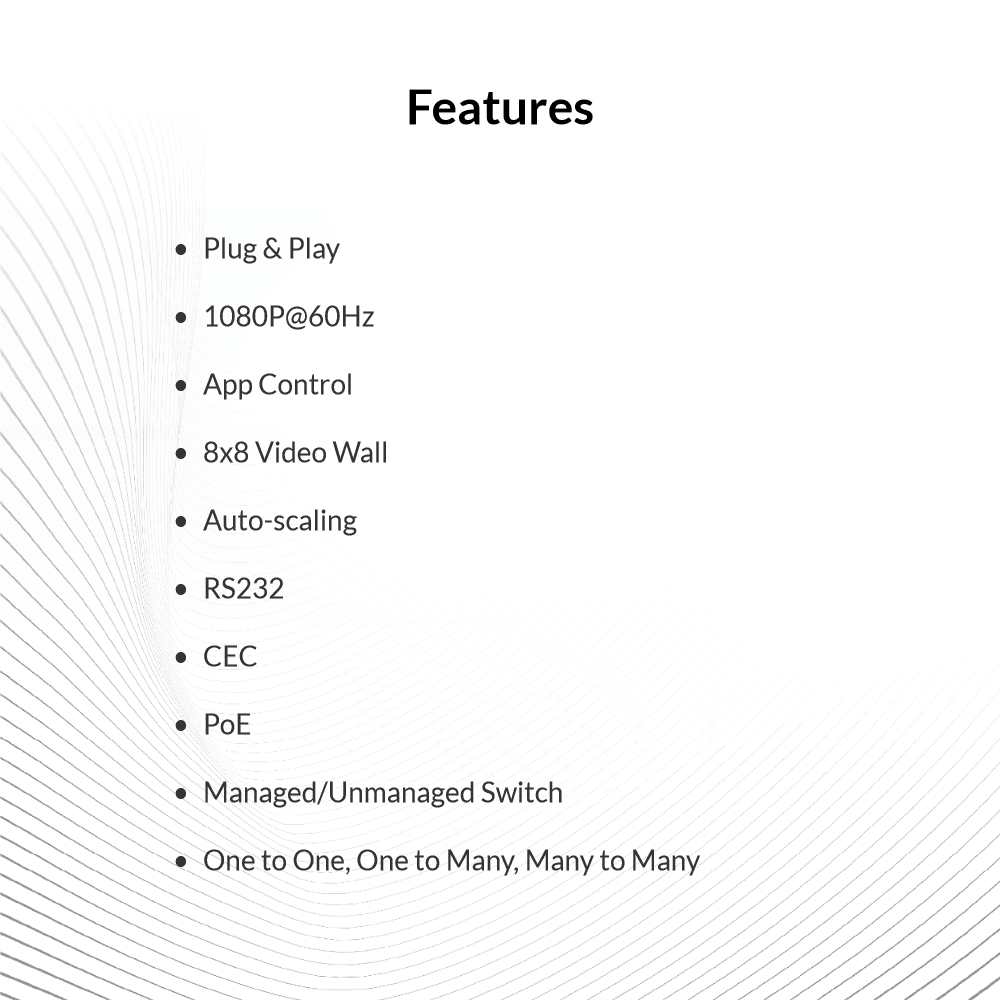

● Zero Configuration: Works flawlessly with universal Ethernet switches; no need to configure IGMP. Set up within minutes, just plug and play.
● IP Matrix with Video Wall: Works with HDIP100D decoders to build a distributed IP matrix with a video wall up to 8×8. More flexible and scalable than traditional matrixes.
● Effortless Visual Control: Install the “VDirector” App on your smartphone, tablet or computer to manage all codecs simultaneously.
● Long-Distance Extension: One pair of encoder/decoder can extend 1080P full HD HDMI signal up to 394ft/120m. Transmits farther than common HDBaseT extenders.
● Multi-Functional IP Solution: Supports the advanced H.265 compression, HDMI audio extraction, PoE, RS232 pass-through, fast seamless switching, etc.
If you’re not satisfied, we’ll refund your payment. No hassle, no risk.
In stock

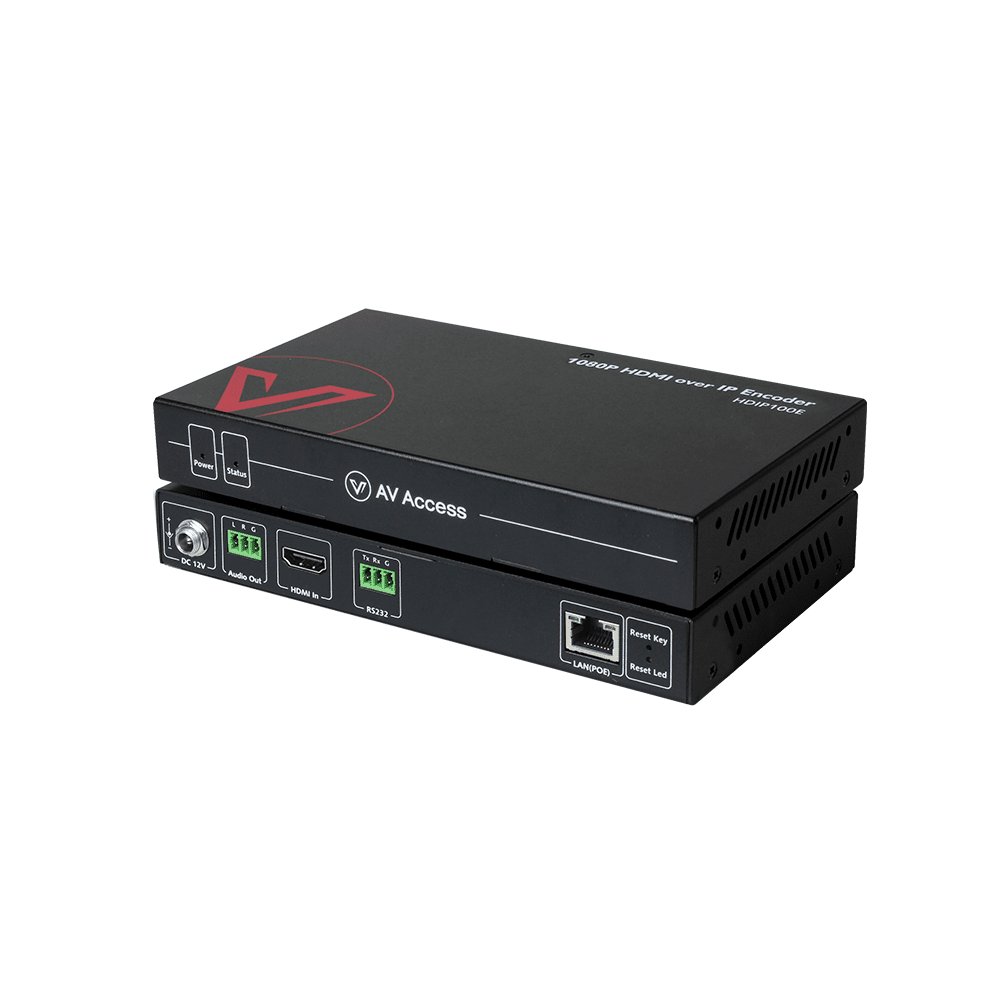

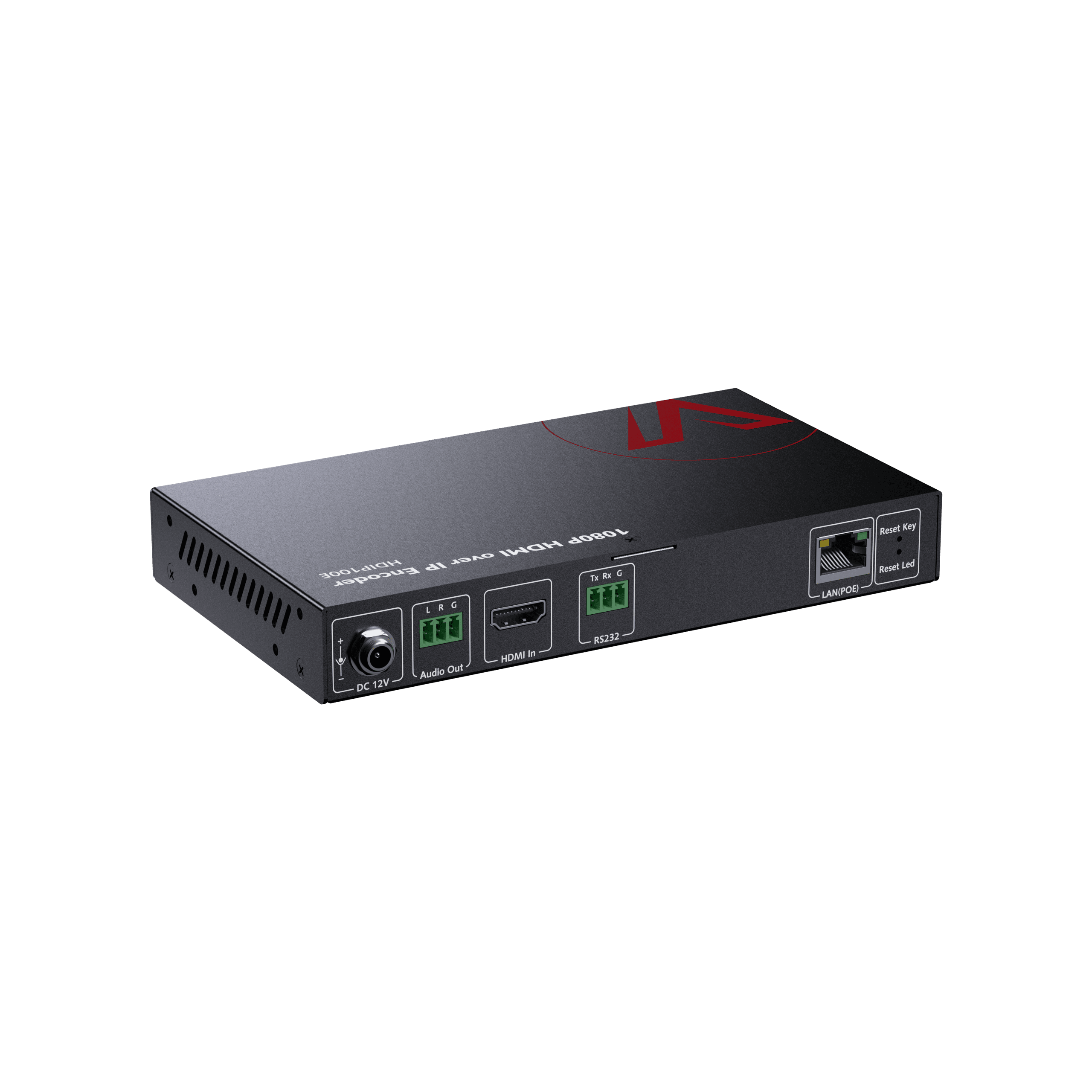

HDIP100 Zero-Configuration AV over IP Encoder
Build Video Wall in Seconds
The industry’s first and only plug-n-play AV over IP solution. Easier than ever to build a 1080P distributed IP matrix with video wall, ideal for sports bar, house of worship, retail, etc.
Get Partner Discounts Ask for QuoteThe Industry’s First Zero-Configuration 1080P AV over IP Solution
Note: This IP encoder can’t be used alone; it must be used with one or more HDIP100D decoders for HDMI signal extension or splitting. One encoder can distribute an HDMI signal to maximum 50 units of decoder simultaneously.
Plug & Play
Works flawlessly with a universal Ethernet switch; no need to configure IGMP for many-to-many applications. Quite friendly to installers and end-users.
Visual Control
Install the “VDirector” App on your smartphone, tablet or Windows PC for effortless visual control. Easily manage all codecs at the same time.
Video Wall

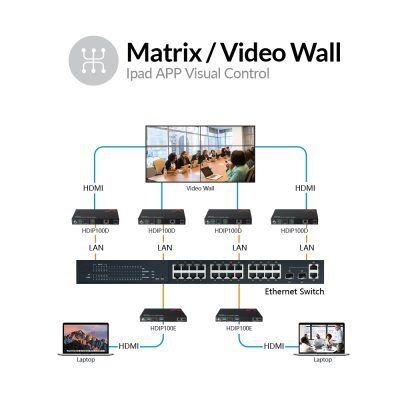

Build a distributed IP matrix system with a video wall up to 8×8, ideal for sports bar, house of worship, shopping mall, etc.
H.265 Codec
Supports the advanced H.265 codec, HDMI audio extraction, PoE, RS232 pass-through, fast seamless switching, etc.
Designed to Build an IP Matrix with Video Wall
HDIP100E is AV Access’s best-selling AV over IP encoder, requiring no configuration on the Ethernet switch. The HDMI over IP encoder can work with one or more HDIP100D decoders for one-to-one, one-to-many, or many-to-many applications. With IP matrix capability, video wall support, easy visual control and other amazing features, this HDMI over IP solution is ideal for wide applications like sports bar, restaurant, house of worship, shopping mall, retail store, casino, school, etc.
Learn MoreTypical Applications
No matter it’s a sports bar, retail store, house of worship, casino or other scenario, our HDIP100 AV over IP solution can function as an HDMI extender, splitter or distributed IP matrix, to transmit splendid audio and vivid video. Some of the applications are as follows:
Sports Bar & Restaurant
Adopt the HDIP100 AV over IP solution in your sports bar, to meet all your needs for AV extension, distribution, switching, video wall and mobile centralized control. It ensures your patrons enjoy the best screen viewing experience possible.
House of Worship & Church
Utilize the powerful HDIP100 HDMI over IP solution to distribute an HDMI source to multiple displays in your church. It can grant your priest or pastor with a seamless and user-friendly setup to communicate content and information to your parish.
LEARN MOREShopping Mall & Retail Store
Install HDIP100 in an equipment room of a shopping mall or retail store, and distribute all advertisements to every corner/corridor in your shop. With the dazzling video walls, HDIP100 helps boost your business with superior video and sound.
LEARN MORENo Configuration Required, Friendly to All Users

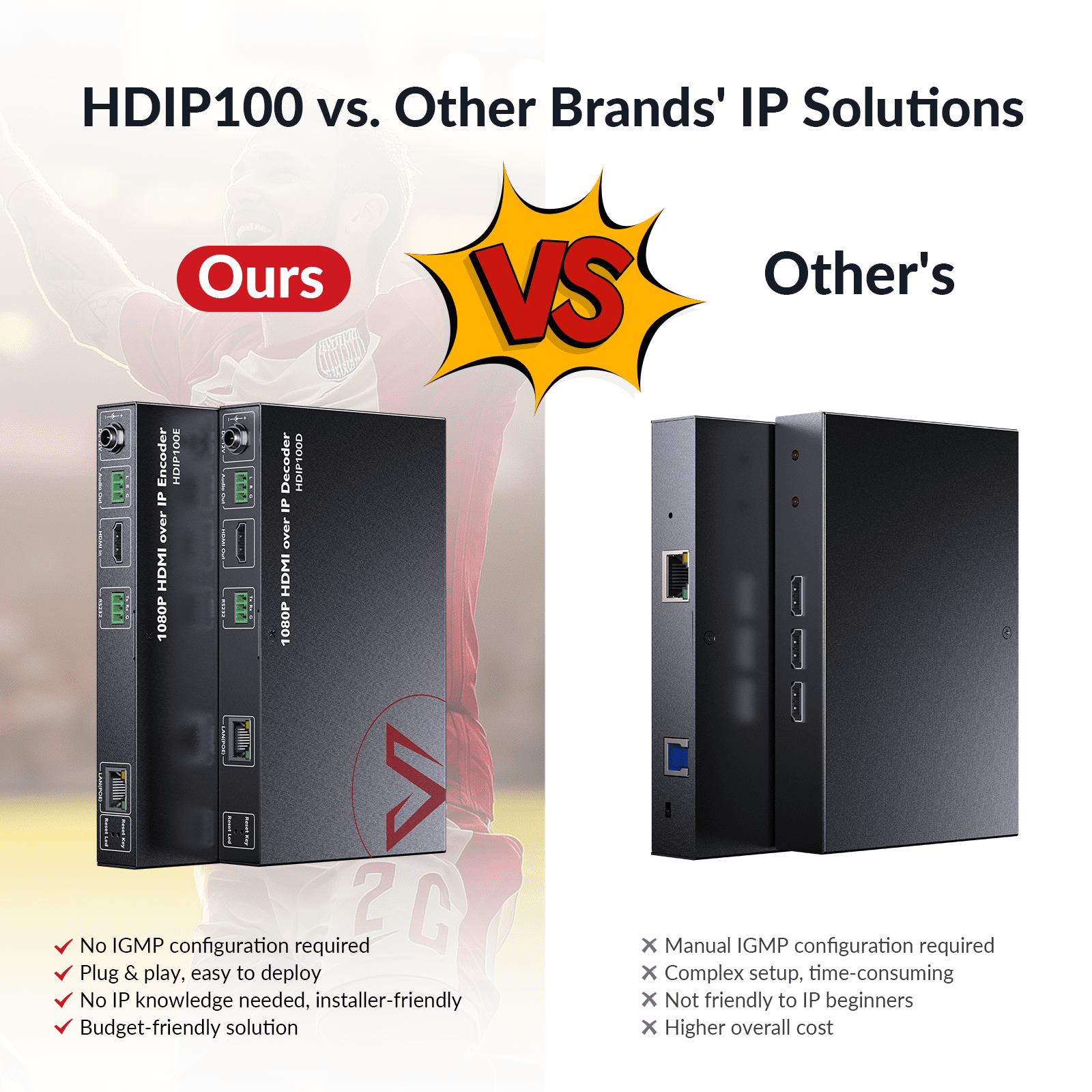

The HDIP100 AV over IP encoder/decoder can work flawlessly with a universal Ethernet switch, both managed and unmanaged. Don’t need to spend so much time configuring IGMP any more, as HDIP100 solution is truly plug-n-play. Whether you are an installer or end-user, you can effortlessly complete installation, even if you were not exposed to any IP knowledge before.
Note: You must use a PoE Ethernet switch if you want to supply power to the encoder. A gigabit switch is recommended.
Easy Visual Control on Your Palms
With the visualized and user-friendly VDirector App, you can perform the settings below:
⭐Preview all sources and preset different scenarios;
⭐Switch any source to any or all displays;
⭐Drag-and-drop to perform matrix switching;
⭐Create/Delete a video wall up to 8×8 within 15 seconds;
⭐Enable CEC function to turn on/off all connected displays.
Easy Visual Control on Your Palms
With the visualized and user-friendly VDirector App, you can perform the settings below:
⭐Preview all sources and preset different scenarios;
⭐Switch any source to any or all displays;
⭐Drag-and-drop to perform matrix switching;
⭐Create/Delete a video wall up to 8×8 within 15 seconds;
⭐Enable CEC function to turn on/off all connected displays.
More Scalable and Flexible than Traditional Matrix

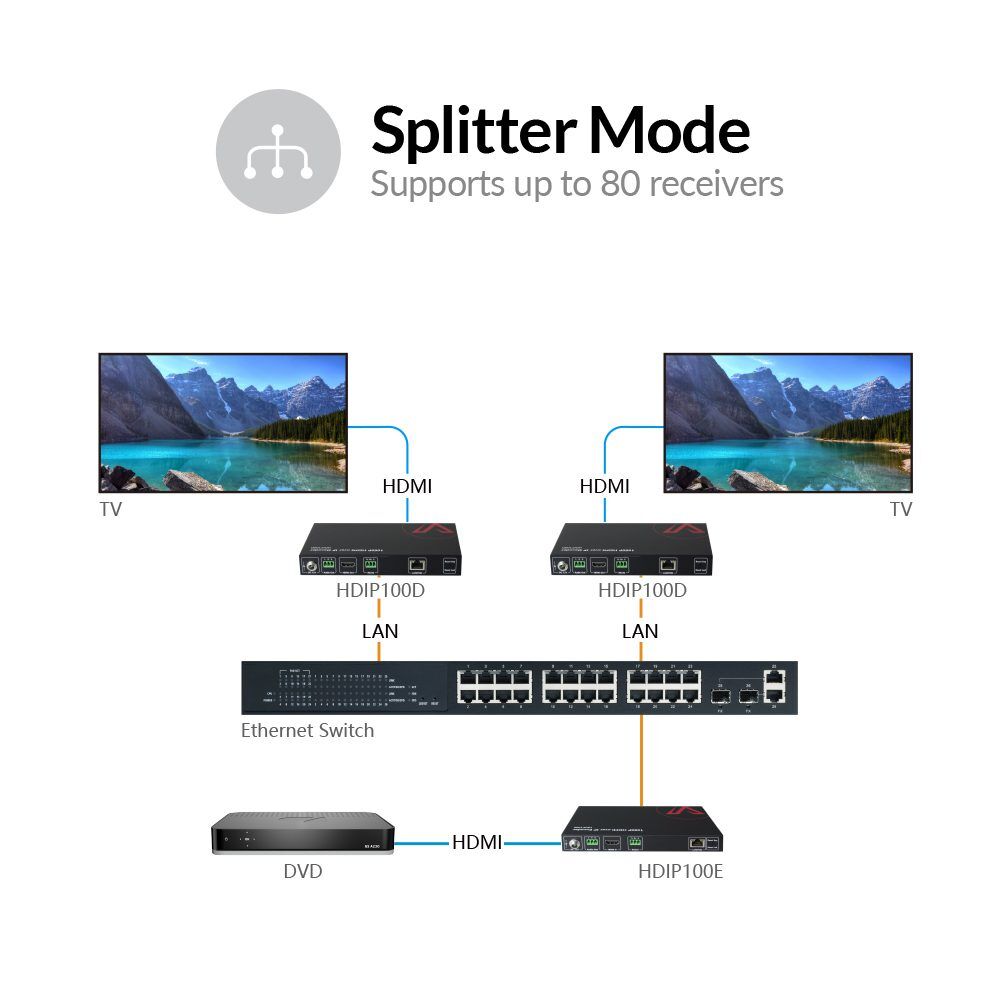

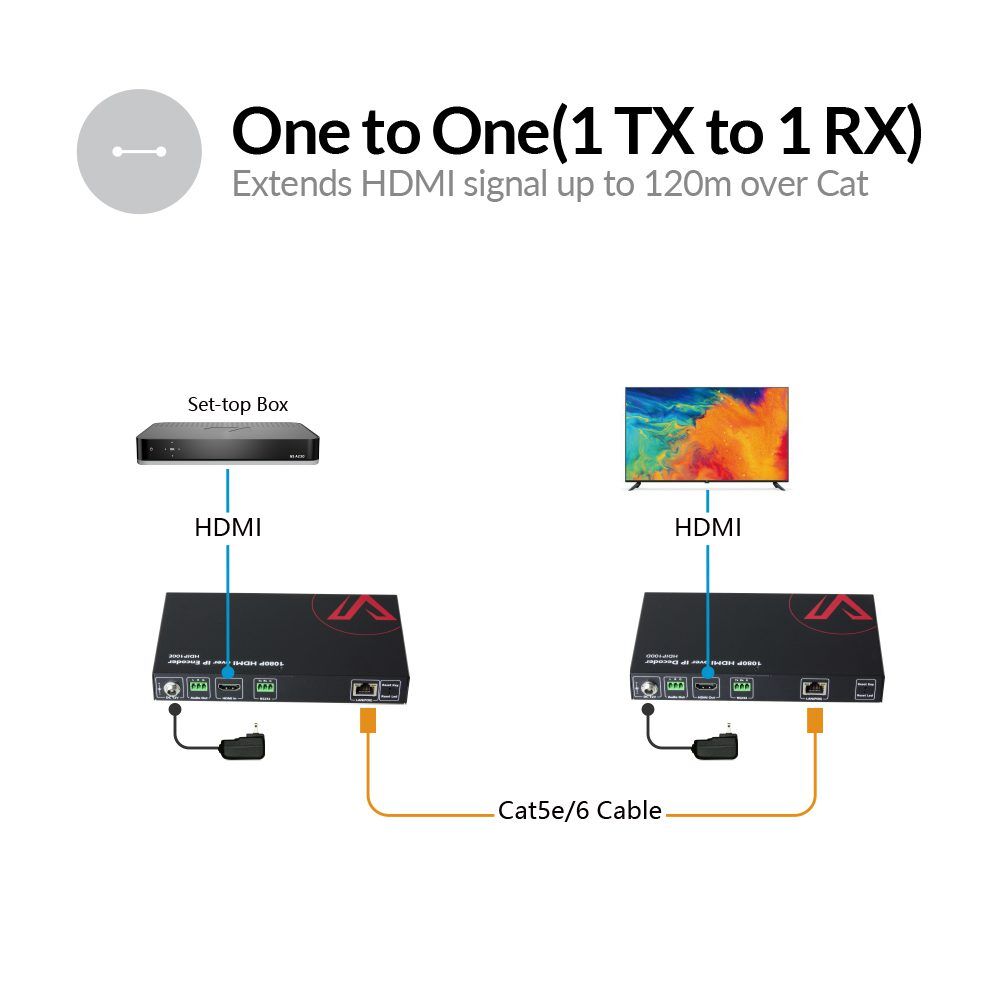

HDIP100 AV over IP solution supports one-to-one application, so only one pair of encoder and decoder can work together to transmit 1080P full HD HDMI signal up to 394ft/120m. You can also add up to 254 units of encoders or decoders to form a distributed IP matrix, which is far more flexible and cost-effective than traditional matrixes.
Note: HDIP100 is more cost-efficient when you need irregular matrix switching like 3×7 and 5×9, or when you need to build a matrix larger than 8×8.
Compatible with Various Devices
You can install the “VDirector” App on your mobile devices for visual control, including iPhone and iPad, Android smartphone and tablet, Windows PC and tablet, etc. Besides, HDIP100 supports RS232 control passing through a 3rd party device like a projector. It can also be integrated into a 3rd party control system like Crestron.
Notes:
1. For visual control on your smartphone/tablet, you need to install an additional wireless router for signal transmission.
2. For the visual control app, you can input and search “VDirector” in App Store or Google Play to install the iOS/Android version. You can also scan the QR code in the user manual to download. For Windows version, please click this link to download.
Comparison Chart of Related Products
4KIP200E/D | 4KIP204E | HDIP100E/D | HDIP120E/D | 4KIP100-KVM | |
Product Type | Transmitter & Receiver | Transmitter | Transmitter & Receiver | Transmitter & Receiver | Transmitter & Receiver |
HDMI Interface | Transmitter: 1x HDMI in Receiver: 1x HDMI out | 4x HDMI in | Transmitter: 1x HDMI in Receiver: 1x HDMI out | Transmitter: 1x HDMI in Receiver: 1x HDMI out | Transmitter: 1x HDMI in Receiver: 1x HDMI out |
Supported Video Resolution | Up to 4K@30hz | Up to 4K@30hz | Up to 1080P@60Hz | Up to 1080P@60Hz | Up to 4K@30hz; 1080P@120hz |
HDMI | 1.4 | 1.4 | 1.3 | 1.3 | 1.4 |
HDCP | 2.2 | 2.2 | 1.4 | 1.4 | 1.4 |
Audio Channel | Stereo | Stereo | Stereo | Stereo | 7.1 Channel |
Type of Switch Required | 100M (1G recommended) | 100M (1G recommended) | 100M (1G recommended) | 100M (1G recommended) | 1G |
Connection Mode | One to one, one to many, many to many | One to one, one to many, many to many (works with 4KIP200D) | One to one, one to many, many to many | One to one, one to many | (Multiple) one to one |
One-to-One Transmission Range | Transmits 4K@30hz HDMI signal up to 120m/394ft | Transmits 4K@30hz HDMI signal up to 120m/394ft | Transmits 1080P@60hz HDMI signal up to 120m/394ft | Transmits 1080P@60hz HDMI signal up to 120m/394ft | Transmits 4K@30hz HDMI signal up to 120m/394ft |
KVM Extension | No | No | No | No | Yes |
PoE | Yes | No | Yes | No | No |
IR Control | No | No | No | Yes | No |
RS232 | Yes | No | Yes | No | No |
Video Wall | Yes, up to 8x8 | Yes, up to 8x8 (need to work with 4KIP200D) | Yes, up to 8x8 | No | No |
Visual Control on App | Yes | Yes | Yes | No | No |
Specifications
-

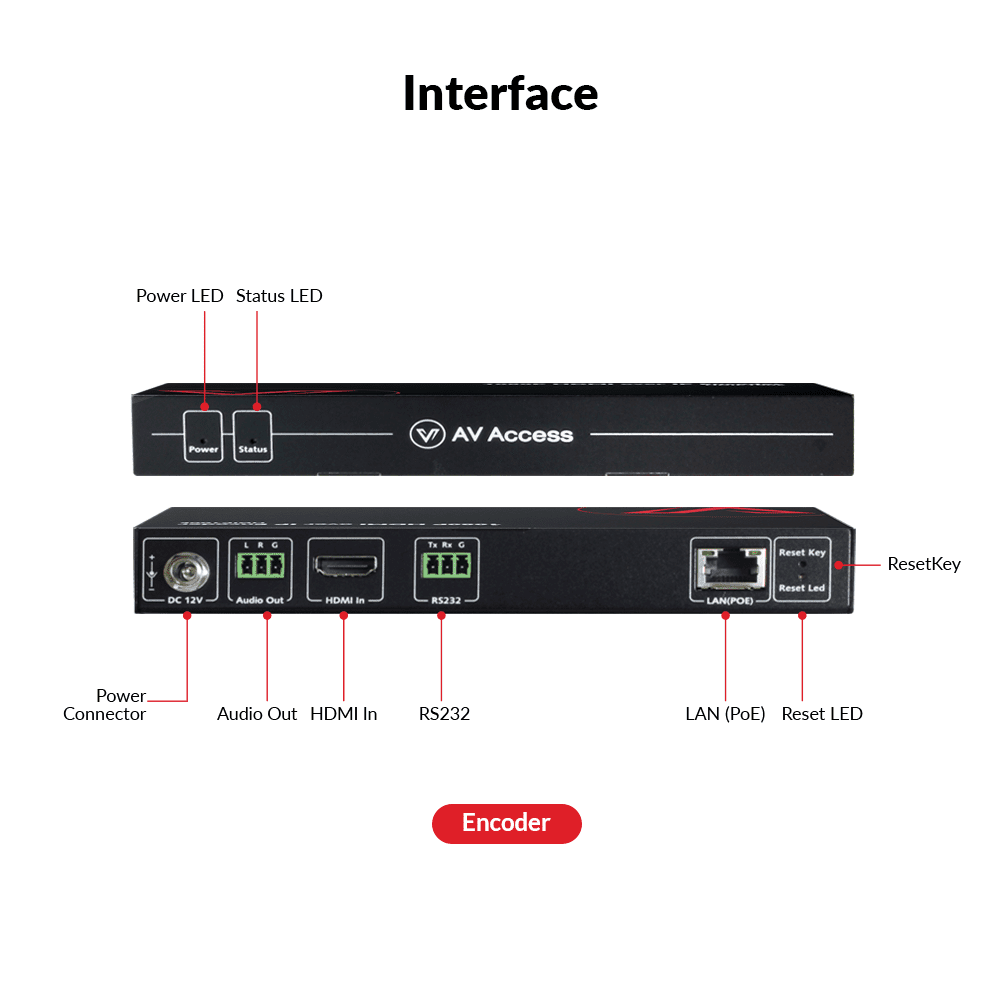

Video Input Port 1 x HDMI Input Resolutions up to 1080P@60Hz Output Port 1 x LAN Output Resolutions up to 1080P@60Hz Video Protocol H.265 Video Compression Audio Input Port 1 x HDMI Output Port 1 x LAN, 1 x Line Out Audio Format MPEG4-AAC and LPCM Stereo Control Control Method VDirector App General Power Supply DC12V 1A /PoE Power Consumption Encoder: 5W (Max) Decoder: 6W (Max) Product Dimension (W x H x D) 175mm x 25mm x 100.2mm/ 6.9” x 0.98” x 3.9” each for encoder and decoder Net Weight 0.60kg/1.32lbs each for TX and RX
Video | ||
Input Port | 1 x HDMI | |
Input Resolutions | up to 1080P@60Hz | |
Output Port | 1 x LAN | |
Output Resolutions | up to 1080P@60Hz | |
Video Protocol | H.265 Video Compression |
Audio | ||
Input Port | 1 x HDMI | |
Output Port | 1 x LAN, 1 x Line Out | |
Audio Format | MPEG4-AAC and LPCM Stereo |
Control | |
Control Method | VDirector App |
General | |
Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing |
Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
Power Supply | DC12V 1A /PoE |
Power Consumption | Encoder: 5W (Max) Decoder: 6W (Max) |
ESD Protection | Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
Product Dimension (W x H x D) | 175mm x 25mm x 100.2mm/ 6.9” x 0.98” x 3.9” each for encoder and decoder |
Net Weight | 0.60kg/1.32lbs each for TX and RX |
In the Box
- 1 x HDIP100E Encoder
- 1 x Power Adapter (DC 12V 1A)
- 3 x Exchangeable Plugs (US, UK, EU)
- 2 x Phoenix Male Connectors (3.5 mm, 3 Pins)
- 2 x Mounting Ears (with Screws)
- 1 x User Manual
In the Box
- 1 x HDIP100E Encoder
- 1 x Power Adapter (DC 12V 1A)
- 3 x Exchangeable Plugs (US, UK, EU)
- 2 x Phoenix Male Connectors (3.5 mm, 3 Pins)
- 2 x Mounting Ears (with Screws)
- 1 x User Manual
Troubleshooting FAQ
- Try resetting both the encoder and the decoder.
- Set the source resolution to 1080P to check if it helps.
- Try connecting the source to the display device directly, without using the encoder/decoder. Then check if there is any video output.
- Try resetting both the encoders and the decoders.
- Check the devices’ IP address information. Ensure the PC/mobile device running the VDirector and all the encoders/decoders are in the same LAN.
- Ensure the broadcast function of both the wireless router and the Ethernet switch is not disabled.
- It is recommended to use a Gigabit Ethernet switch.
- Please note that the more codecs you add to the network, the greater network bandwidth is required.
- It is recommended to separate the codecs’ local area network from your home network, especially when you need to add a large number of codecs.
- Check if the connection method of the RS232 cable between the codecs and the control/controlled device is correct. It should be “TX-RX, RX-TX, GND-GND”.
- Please note that the default baud rate of the device is “115200”.
- Perform an RS232 loopback test to see if the RS232 pass-through function can work normally.
- Try connecting the control device and the controlled device directly without using the codecs. Then check if the RS232 connection works.
- Set the input source’s audio format to PCM.
- Try connecting the source to the display device directly via an HDMI cable. Then check if there is any audio output.
- Try connecting the encoder to the decoder directly, without using the Ethernet switch. Then check if the problem is solved.
- If this problem occurs only when the codecs are connected to the Ethernet switch, it is probably caused by network packet loss.
- Check the network connection. Try using the Ethernet switch with strong processing power as the hub device. Please don’t use the wireless router as the hub device of the whole network.
- Check if the trunk bandwidth is sufficient. There should be no more than 50 streams for 1G trunk connection.
- Try using a new Ethernet switch with stronger processing capability, or connecting less codecs to the Ethernet switch. Thus, some ports can be reserved to reduce the work load.
- Check if this problem is caused by some ports or the poor quality of the corresponding Cat cables. Swap the Cat cables for these ports to check.
- If there are other applications on the same network, try removing them to avoid mutual influence.
Other FAQ
AV over IP stands for “Audiovisual over Internet Protocol”. It is the transmission of audio, video and control signals over a network cable infrastructure, like WAN, LAN or the Internet. Different from conventional analogue AV environments, AV over IP commonly refers to the use of standard network equipment to switch and transmit audio/video signals.
Compared with traditional AV solutions, AV over IP solutions boast more flexibility and scalability. The number of sources and displays attached is no longer limited. Even when physical ports run out, multiple IP switches can be connected to expand. They also break the distance barriers and allow you to have better ratio of inputs to outputs.
Different from HDIP120 AV over IP solution, HDIP100 supports video wall up to 8×8 and easy visual control with mobile App. There is no need to configure your Ethernet switch to build a distributed IP matrix system. With HDIP120, you need to configure VLAN on your Ethernet switch for matrix switching. What’s more, HDIP120 features HDMI local output and IR remote control, which HDIP100 doesn’t support. If you need to build an IP matrix with video wall, HDIP100 is the right solution for you. If you only need HDMI extension and splitting, HDIP120 is a more economical option for you, priced only at $79.99 (a transmitter and receiver kit) on our site.
The HDIP100 AV over IP solution is easy-to-use and plug-n-play. The HDMI encoder/decoder can work easily with any universal managed or unmanaged Ethernet switch on the market. It features matrix switching, video wall support, easy visual control, H.265 codec, fast seamless switching and other amazing features.
This easy-to-use and plug-n-play AV over IP solution features matrix switching, video wall and visual control. It is ideal for wide applications like sports bar, restaurant, shopping mall, retail store, house of worship, casino, college and university, etc.
