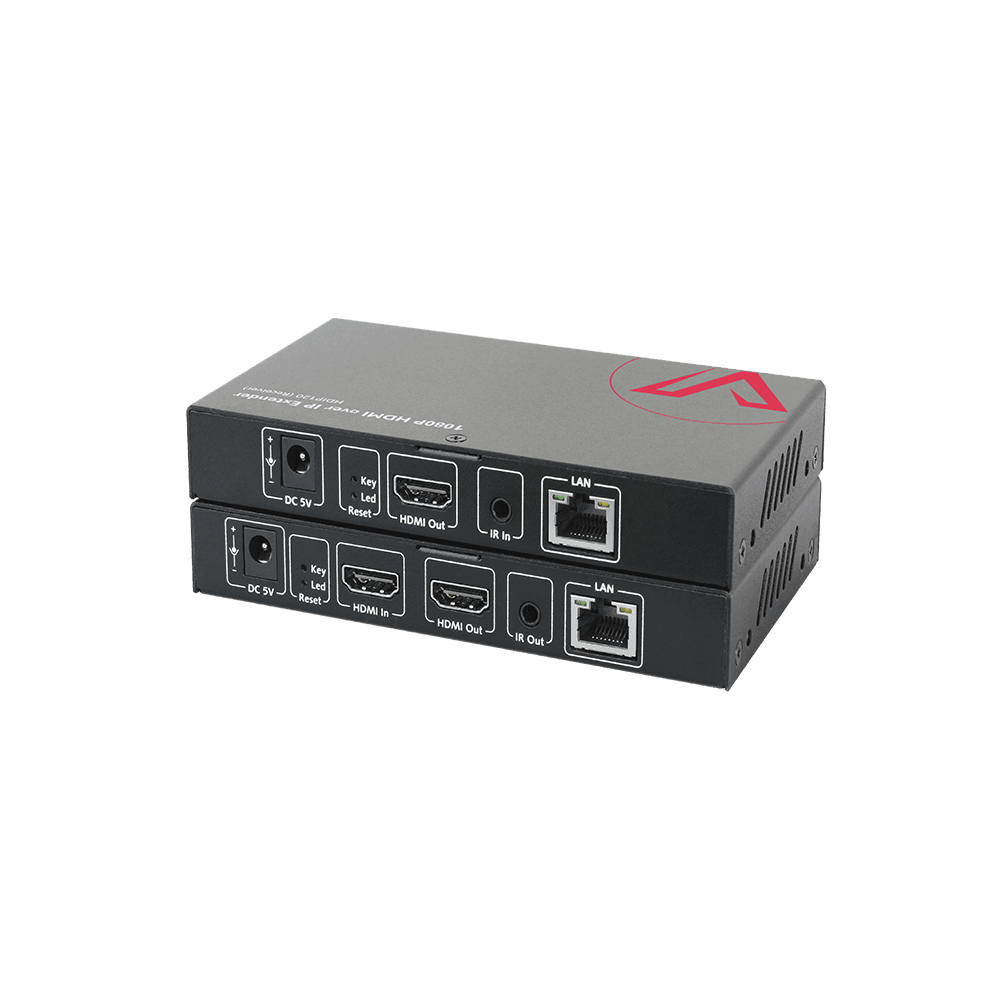

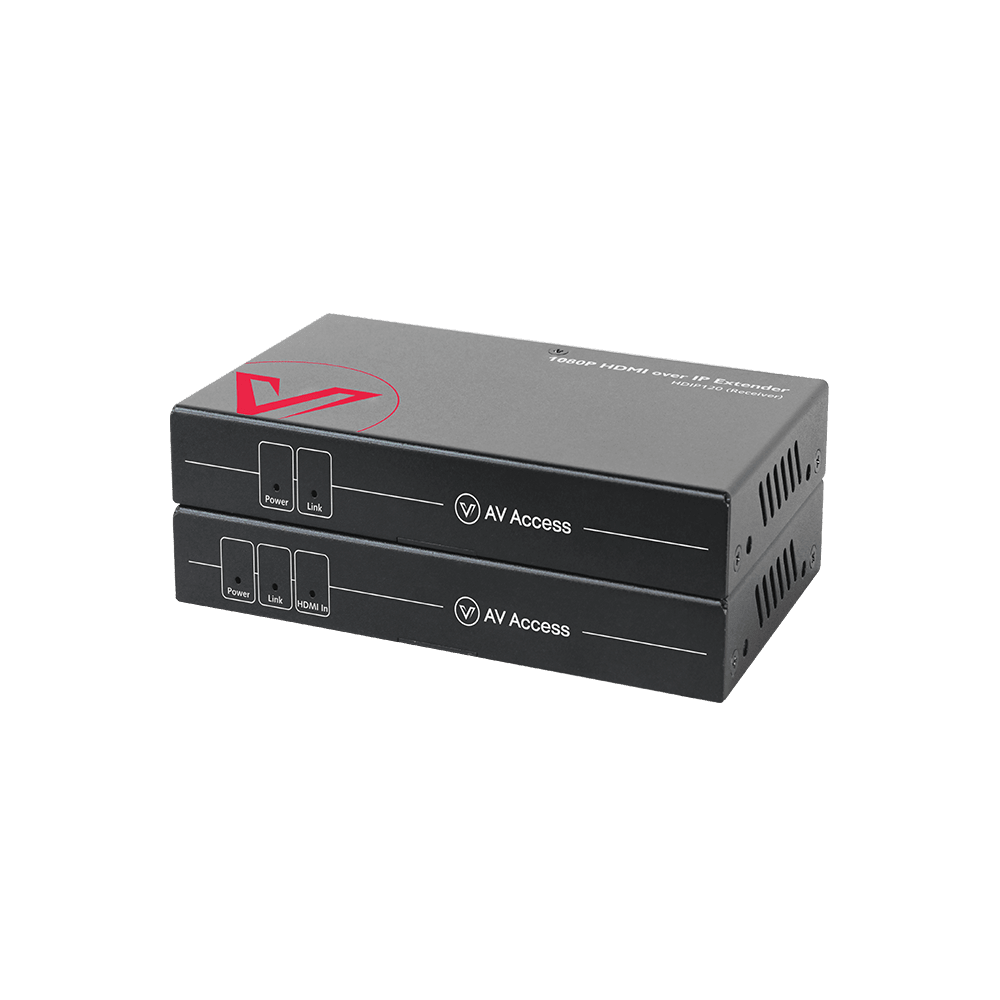

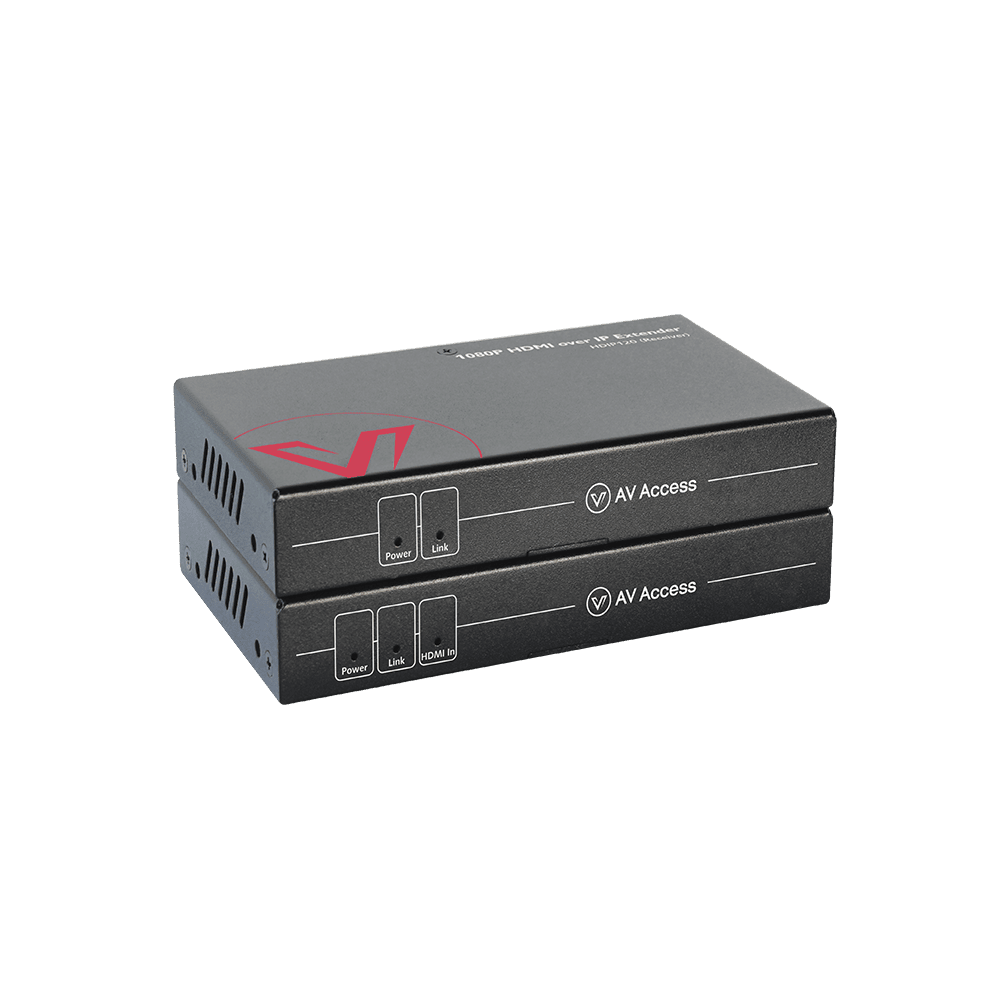

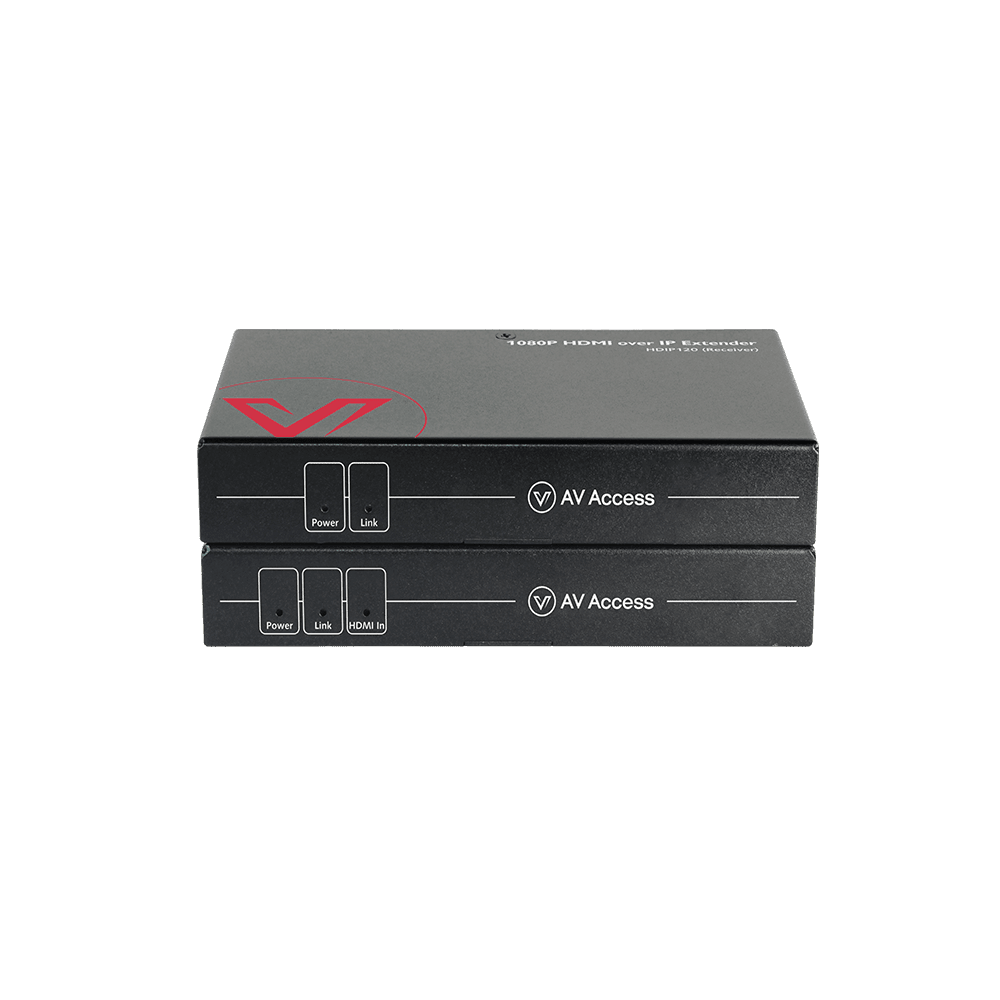

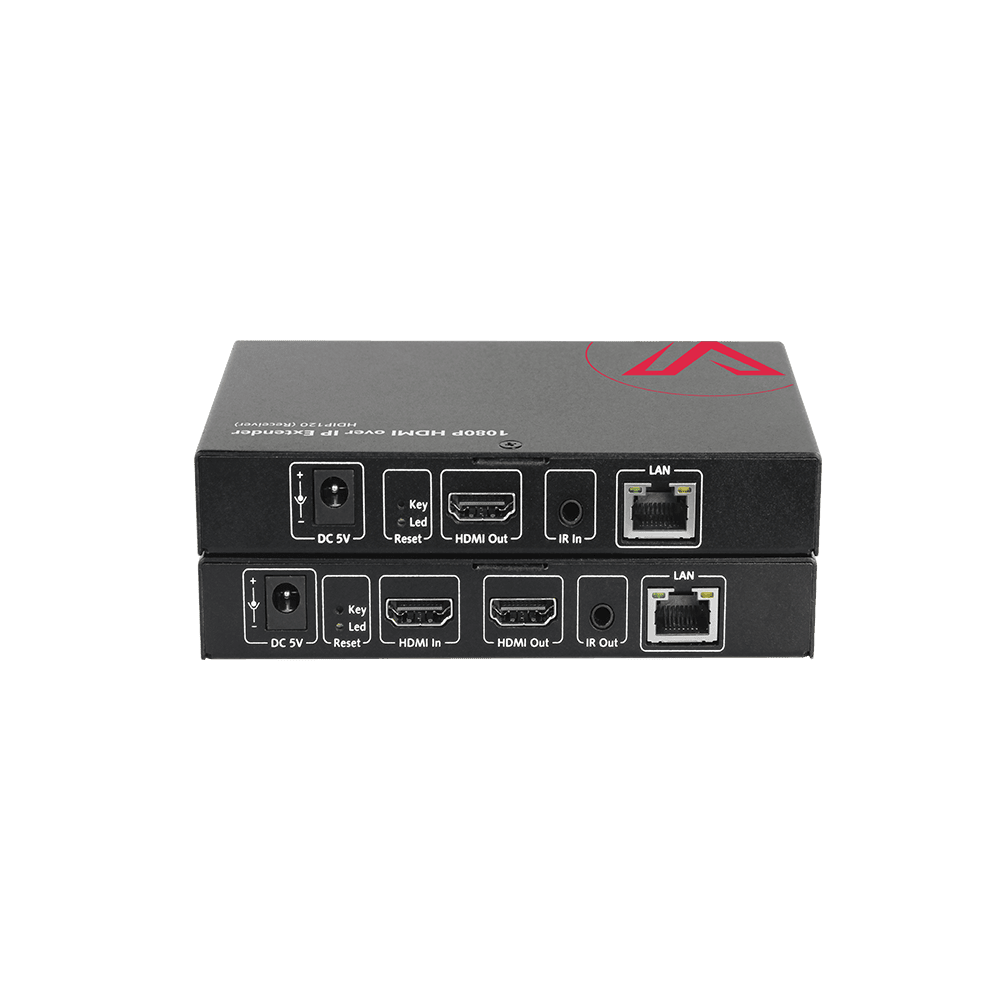

Economical 1080P AV over IP Extender Kit, H.265 HDMI Extender w/ Loop Out, IR Remote Control, Plug & Play, Ideal for Bar, Restaurant & ChurchSKU: HDIP120
Extend and Split with Ease:
Supports one-to-one and one-to-many applications. Transmits 1080P@60hz full HD HDMI signal up to 120m/394ft. Easily build an extender splitter combo with one transmitter and up to 10 receivers.
No Configuration Required, Plug & Play:
Works flawlessly with universal Ethernet switches, no dedicated IGMP Gigabit switch required. Set up within minutes, just plug and play.
H.265 Codec & Low Latency:
The advanced H.265 codec takes up less bandwidth while also preserving superior video quality. The end-to-end latency is less than 0.1 seconds, ideal for sports programs, movies, PC games, or video presentations.
HDMI Loop out & IR Control:
Connect the transmitter to a local monitor for easy preview or video splitting. And the included IR signal emitter and receiver allow you to control the source device at the receiver side.
Out of stock
Economical H.265 1080P AV over IP Extender Kit w/ Loop Out
HDIP120 is AV Access’s brand-new economical HDMI over IP extender kit. It supports one-to-one and one-to-many applications. With just a single Cat5e/6 cable, it can extend 1080P@60hz full HD HDMI signal up to 120m/394ft. One transmitter and up to 10 receivers can also work with a gigabit switch to build an extender splitter combo. HDIP120 is ideal for sports bar, church, restaurant, home surveillance, broadcasting station or other scenarios where you need HDMI signal extension and splitting.
1. This kit only includes one transmitter and one receiver. If you need more receivers, please click this link for your purchase.
2. HDIP120 also supports many-to-many configuration. You can create a scalable distributed IP matrix system by configuring VLAN on your Ethernet switch. It is recommended to configure VLAN with the help of an IT specialist. Each VLAN can only accommodate 1 transmitter.
- Extends 1080P@60hz HDMI signal up to 120m/394ft via a single Cat5e/6 cable
- Works easily with an Ethernet switch, no need to configure; real plug and play
- Supports high-efficiency H.265 codec
- End-to-end latency: less than 0.1s
- HDMI local output & IR remote control
- Supports many-to-many configuration via VLAN configuration on the switch
Work as Extender Splitter Combo
With this extender kit, you can easily transmit 1080P@60hz full HD HDMI signal up to 120m/394ft via a single Cat5e/6 cable. You can also connect one transmitter and up to 10 receivers via a gigabit switch to build an extender splitter combo. HDIP120 is ideal for sports bar, church, restaurant, home surveillance, broadcasting station or other scenarios where you need HDMI signal extension and splitting.
Set up in Minutes, Just Plug and Play
HDIP120 is designed for users without any IP knowledge, as easy as HDBaseT products. It can work flawlessly with any universal Ethernet switch, both managed and unmanaged. Don’t need to configure the IGMP protocol on your Ethernet switch for one-to-many applications any more.
H.265 Codec & Low Latency
The advanced H265 codec takes up less bandwidth and greatly improves transmission efficiency, while also preserving superior video quality. Besides, the extender’s end-to-end latency (from one transmitter to one receiver) is less than 0.1 seconds, ideal for sports programs, movies, PC games, or video presentations.
HDMI Local Output & IR Remote Control
With the HDMI local output on the transmitter, you can connect it to a local monitor to easily preview whatever image streamed to the remote side. What’s more, with the included IR signal emitter and receiver, you can effortlessly control your source device even at the receiver side.
|Input A/V Port||Transmitter: 1 x HDMI
Receiver: 1 x LAN
|Input Resolutions||Up to 1080P@60Hz|
|Output A/V Port||Transmitter: 1 x HDMI, 1 x LAN
Receiver: 1 x HDMI
|Output Resolutions||Up to 1080P@60Hz|
|Compliance||HDMI 1.3, HDCP 1.4|
|Operating Temperature||+32°F ~ +113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing
|Storage Temperature||-4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
|Power Supply||DC 5V 1A|
|Power Consumption||TX: 3.5W (Max) RX: 1.6W (Max)|
|ESD Protection||Human body model:
• ±8kV (air-gap discharge)
• ±4kV (contact discharge)
(W x H x D)
|140mm x 21mm x 80mm/5.5” x 0.83” x 3.15″ each for TX and RX|
|Net Weight||TX: 0.3kg; RX: 0.29kg|
In the Box
1x Transmitter; 1x Receiver;
Others: 2x Power Adapters (DC 5V 1A); 2x Exchangeable US Plugs; 1x IR Emitter; 1x Broadband IR Receiver (30-50KHz); 4x Mounting Ears (with Screws); 1x Quick Start Guide
Documents & Softwares
Download User Manual
Download Connection Diagram
