Wireless 1080P HDMI Extender w/Loop Out, Max 200m/656ft, IR Remote Control, Ideal for Home Theater, Projector & Office Use
SKU: HDW100
€145.99
Up to 200m Transmission Range:
Extends 1080P full HD HDMI signal wirelessly up to 200m/656ft in an open field. Transmits 10m-50m (32ft-165ft) through an interior drywall or other obstructions, stable and reliable.
Wired or Wireless, up to You:
Enjoy truly wireless freedom; no need to run cables through walls or drill holes. It is ideal for scenarios where it is not convenient to install long video cables. Wired mode is also available.
Plug & Play, Low Latency:
After power-on, the transmitter and the receiver can automatically get paired. The transmission latency is about 0.1-0.2 second, great for TVs, movies and video presentations.
HDMI Local Output & IR Control:
With the HDMI local output on the transmitter, you can connect it to a local monitor for video splitting or preview. IR signal emitter/receiver is included for remote control.
In stock

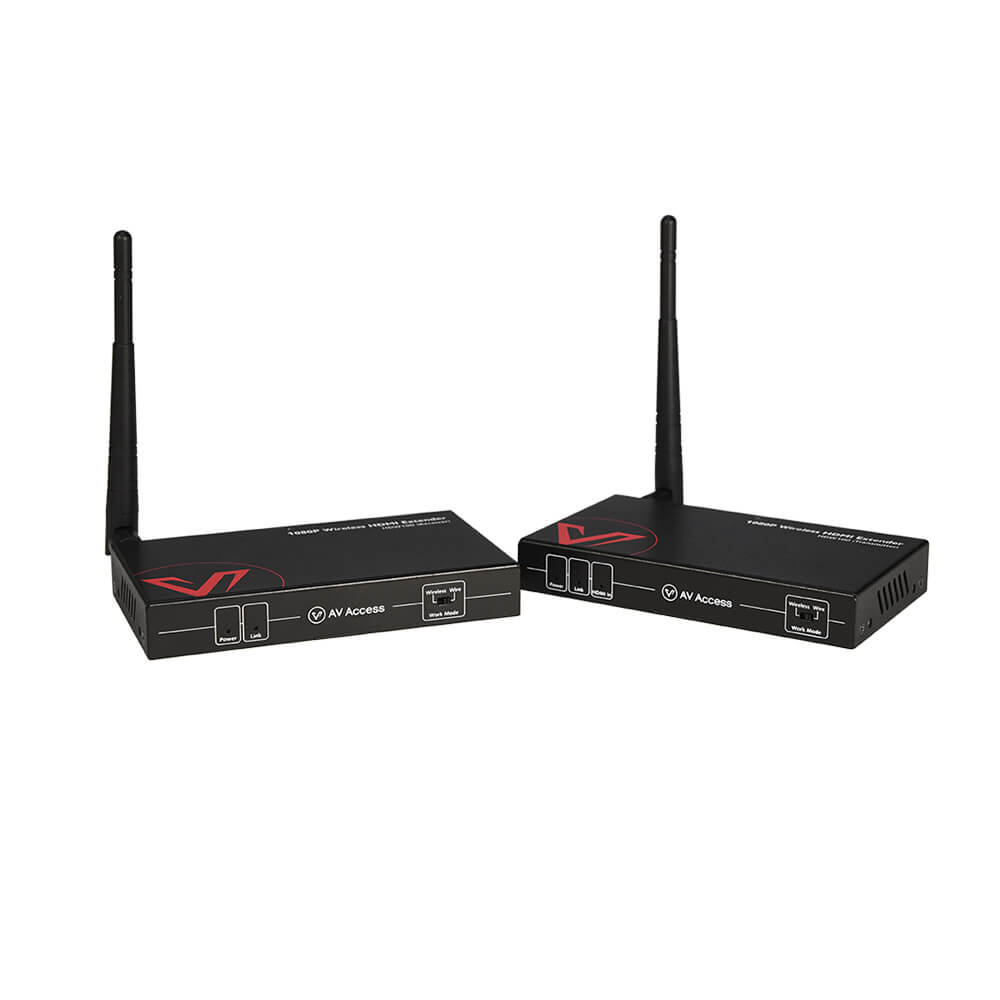

Brand-New 200m/656ft Wireless HDMI Extender w/Loop-out
HDW100 is AV Access’ first innovative wireless HDMI extender. It can wirelessly extend 1080P full HD HDMI signal up to 200m/656ft in an open field, and 10m-50m (32ft-165ft) through an interior drywall. Wired connection option is also supported. With its long transmission range, low latency, plug-n-play feature and exquisite design, HDW100 is your ideal choice for both home and business applications where it is not convenient to install long video cables.
Notes:
1. HDW100 is not recommended for real-time applications, such as PC gaming and high-speed sports program. The HDMI local output has zero latency and can be connected to a local display.
2. This product is a transmitter and receiver kit. We don’t sell them separately.
Main Features:
- Up to 200m/656ft Wireless Transmission Range (Line-of-Sight)
- Transmits 10m-50m (32ft-165ft) through an Interior Drywall
- 1080P Full HD Crystal Clear Image & HDCP1.4 Compliant
- Wired Connection Mode Selectable by Toggling the Switch on Device
- Plug & Play, Transmitter and Receiver Pair Automatically in the Range
- 0.1-0.2 Second Delay on Transmission
- HDMI Local Output & IR Remote Control
Ultra-Long Wireless Transmission Distance
HDW100 HDMI extender can transmit 1080P full HD HDMI signal wirelessly up to 200m/656ft in an open field. Even if there is an interior drywall or other obstructions between the transmitter and the receiver, the signal can still transmit 10m-50m(32ft-165ft), stable and reliable.
Wired or Wireless, up to You
HDW100 HDMI extender offers you truly wireless freedom as it saves the hassles of running cables through walls or drilling holes. It is an ideal choice for both home and business applications where it is not convenient to install long video cables. If you prefer wired transmission, you can toggle the DIP switch on the device to switch to wired mode.
Auto Pairing, Plug & Play
The transmitter and the receiver are quite portable and easy to install. After power-on, they can automatically get paired within the appropriate range. No software driver or complicated setting is required; just plug and play.
Low Latency on Signal Transmission
The wireless extender can transmit lossless signals and may have a transmission latency of 0.1-0.2 second, which depends on the signal quality. It is great for TVs, movies and video presentations. For signals from the HDMI local output, there is no delay at all.
HDMI Local Output & IR Remote Control
With the HDMI local output on the transmitter, you can connect it to a local monitor to easily preview whatever image streamed to the remote side. What’s more, with the included IR signal emitter and receiver, you can effortlessly control your source device even at the receiver side.

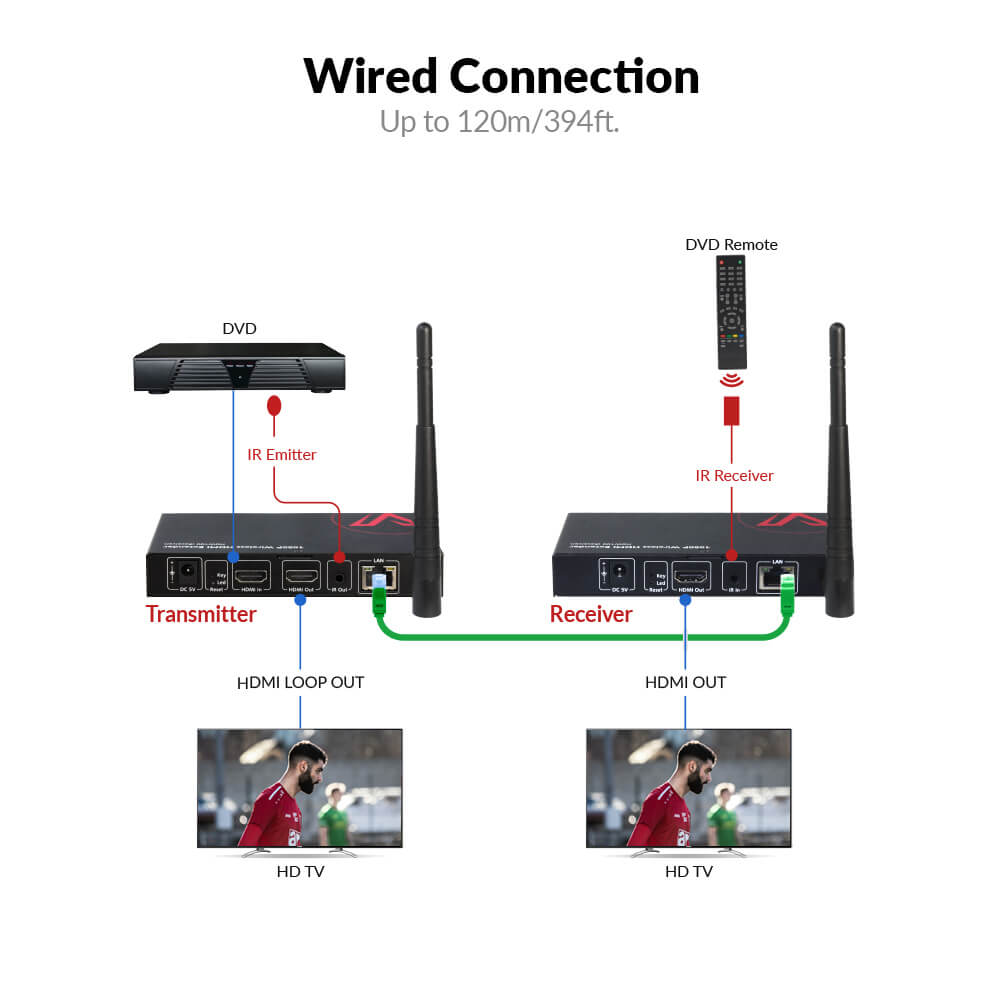

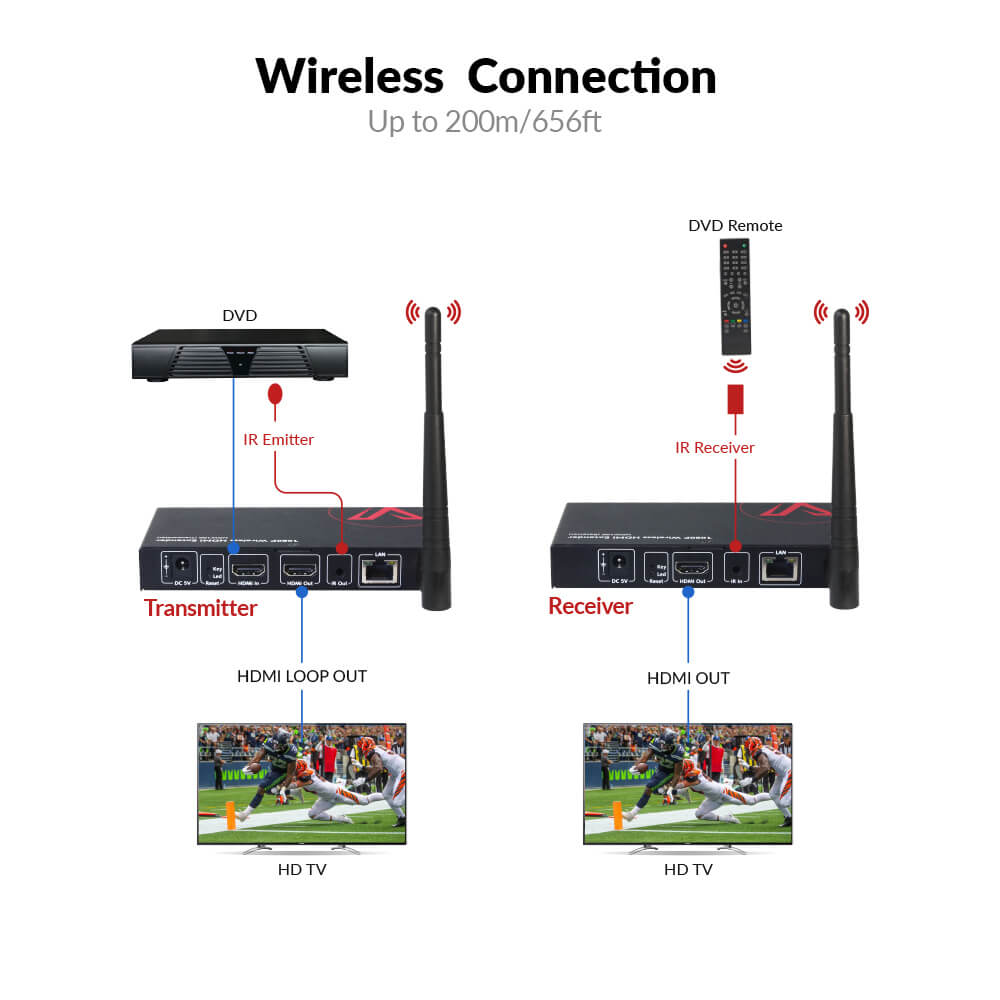

Connection Diagram
Application Scenarios
| Technical | |
| Input A/V Port | Transmitter: 1 x HDMI
Receiver: 1 x LAN, 1 x WLAN |
| Input Resolutions | Up to 1080P@60Hz |
| Output A/V Port | Transmitter: 1 x HDMI, 1 x LAN, 1 x WLAN
Receiver: 1 x HDMI |
| Output Resolutions | Up to 1080P@60Hz |
| Compliance | HDMI 1.3, HDCP 1.4 |
| Transmission Distance | Wireless: 200m/656ft (line of sight)
Wired: 120m/394ft |
| General | |
| Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing |
| Power Supply | DC 5V 1A |
| Power Consumption | TX: 3.5W (Max) RX: 1.6W (Max) |
| ESD Protection | Human body model:
• ±8kV (air-gap discharge) • ±4kV (contact discharge) |
| Product Dimension (W x H x D) | 140mm x 21mm x 80mm/5.5” x 0.83” x 3.15″ each for TX and RX (Antennas not included) |
| Net Weight | TX: 0.31kg; RX: 0.30kg |
| Gross Weight | 1.10kg |
In the Box
- 1 x Transmitter; 1 x Receiver;
- Others: 2 x Antennas; 2 x Power Adapters (DC 5V 1A); 2 x Exchangeable US Plugs; 1 x IR Emitter; 1 x IR Receiver; 4 x Mounting Ears (with Screws); 1 x User Manual
