4KCVH2H

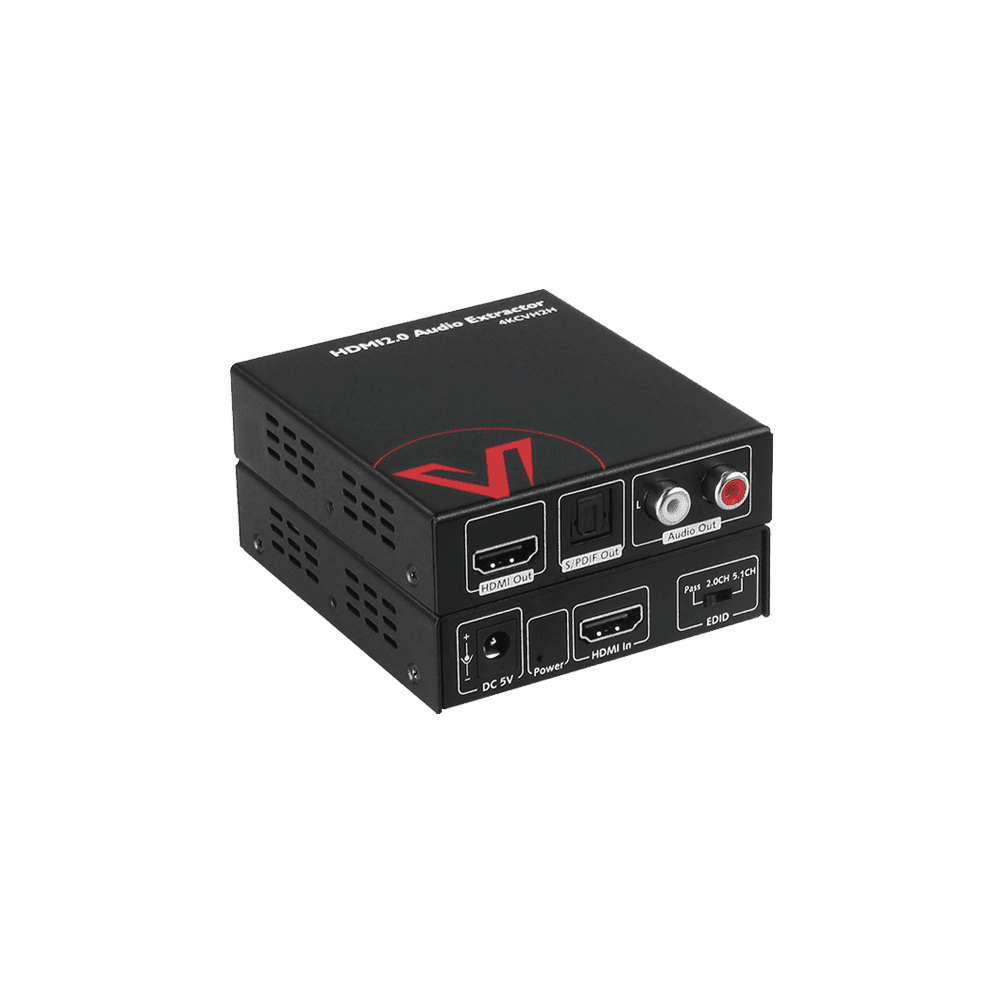

Second Generation 4K HDMI 2.0 Audio Extractor, HDCP2.2, CEC

$34.99
Extracts audio from digital HDMI signal:
Converts it to an optical Toslink SPDIF audio or analog 2-channel stereo output.
4K@60Hz & Dolby Atmos:
Full HDMI 2.0 audio and video format supported.
Optional Audios:
Third-gear slide switch with 3 EDIDs: 5.1ch, 2.0ch, pass.
Delicate Design and Easy Installation:

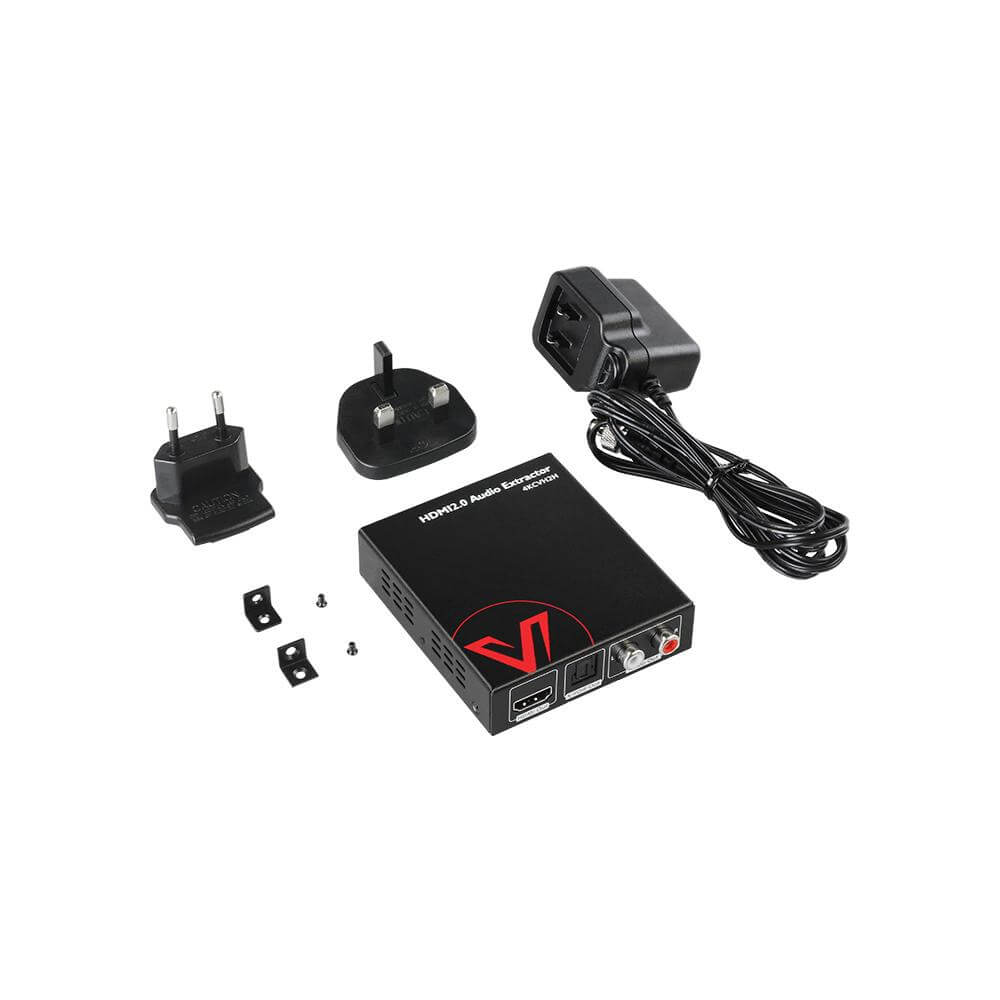

Small enough to hide behind TV, equipped with DC 5V 1A power adapter.




4KCVH2H is an HDMI2.0 audio extractor with resolutions up to 4K@60Hz (Chroma sub-sampling 4:4:4 8-bit) and HDCP 2.2.

Its digital or analog audio output allows audio to be de-embedded from HDMI input and sent to audio distribution system, such as AVR or Amplifier. Third-gear slide switch for audio setting in EDID has 3 EDID (pass-through, 2.0ch and 5.1ch) presets for EDID management.

By auto-detecting input signal status, it could automatically trigger CEC command to turn on or off TV with CEC support. It can be used in any AV application, such as homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments which need HDMI audio extraction.

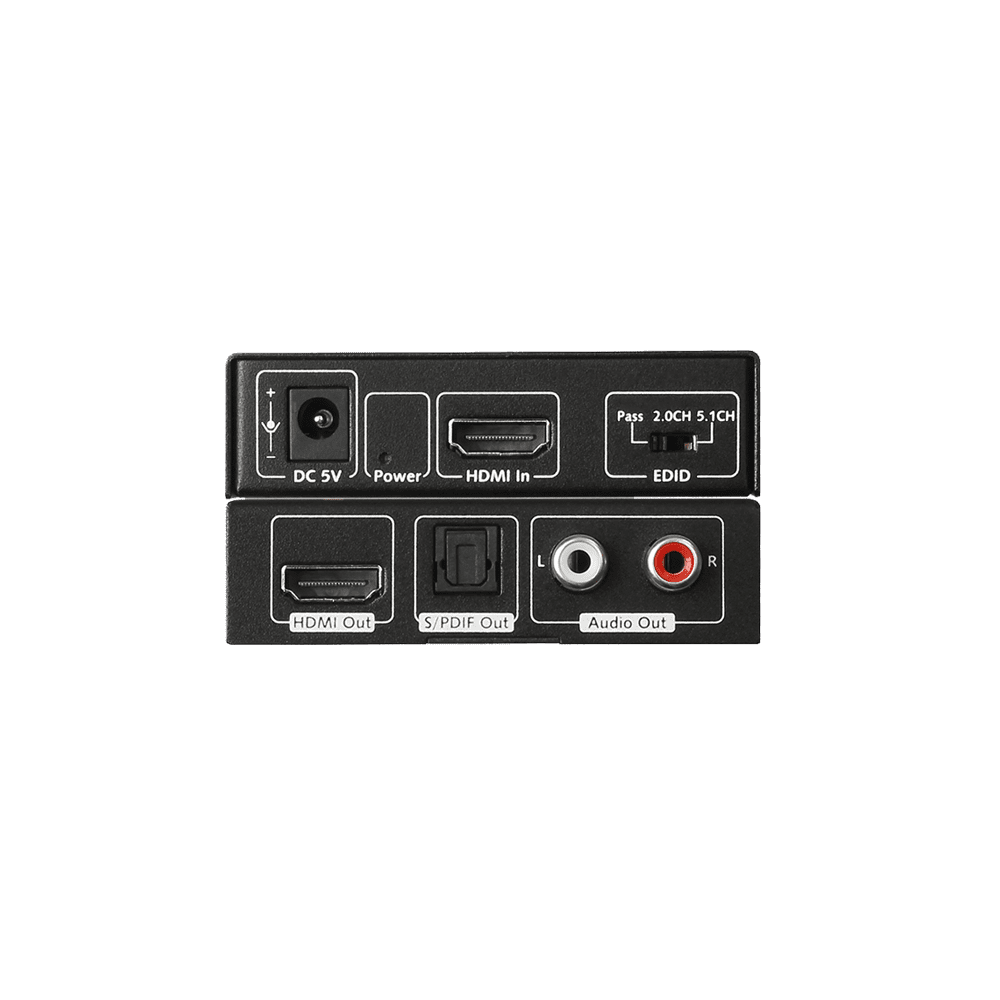

  • HDMI in and HDMI out, HDMI 2.0 up to 4k@60Hz (4:4:4);
  • Supports HDCP 2.2 pass through;
  • HDMI audio de-embedded out with SPDIF (Toslink) and L/R audio (RCA, white and red);
  • SPDIF supports: PCM2.0, up to Dolby Digital and DTS 5.1;
  • L/R output supports: PCM2.0 only;
  • Compact appearance, and easy to install;
  • Third-gear slide switch for audio setting in EDID: pass-through, 2.0ch and 5.1ch;
  • Built in CEC controller from HDMI out;
  • Automatic input cable equalization and signal regeneration compensation.
  • HDMI input and output transmission distance up to 16ft/5m + 16ft/5m at 4K@60Hz 4:4:4 24bpp, and up to 49ft/15m + 49ft/15m at 1080P@60Hz 36bpp.
Technical
Video Signal Type                         HDMI up to 4K@60Hz (4:4:4 8-bit) with HDCP 2.2
Input Signal TypeHDMI: HDMI 2.0 / HDCP 2.2
Input Resolution SupportedVESA: 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608, 1280x10248, 1360x7688
1366x7688, 1440x9008, 1600x9008
1600x12008, 1680x10508, 1920x12008

SMPTE:
720x480P7,8, 720x576P6, 1280x720P6,7,8
1920x1080P6,7,8, 3840x2160P2,3,5,6,8
4096x2160P2,3,5,6,8

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz;
Output Resolution SupportedVESA: 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608, 1280x10248, 1360x7688
1366x7688, 1400x10508,1440x9008
1600x9008, 1600x12008, 1680x10508
1920x12008

SMPTE:
720x480P8, 720x576P6, 1280x720P6,8
1920x1080P1,2,3,4,5,6,7,8
3840x2160P2,3,5,6,8, 4096x2160P2,3,5,6,8
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz;

Maximum Data Rate18Gbps
Audio FormatSPDIF: PCM 2.0, up to Dolby Digital and DTS 5.1
L/R Output: PCM 2.0
HDMI In/Out: PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature-20°C to 70°C (-4°F to 158°F)
Humidity10% to 90%, non-condensing
Power Consumption2K Full load Power Consumption: 2.16W
4K Full load Power Consumption: 2.88W
Device Dimensions
(W x H x D)
3.15'' x 3.54'' x 0.87''
/80mm x 90mm x 22mm
Product Weight0.51lb/0.23kg
  • Product Manual







HDMI Audio Extraction

This device can extract audio from a digital HDMI signal and convert it to an optical Toslink SPDIF audio output or high-quality analog 2-channel stereo output. It also supports video resolution up to 4K@60Hz 4:4:4, delivering ultra-HD visual feast.






Excellent Audio Enjoyment

The HDMI extractor supports audio formats such as Dolby Atmos, DTS: X, DTS-HD Master Audio, PCM7.1 and Dolby True HD, so that you can enjoy excellent audio effect. It supports HDCP 2.2/1.4 to prevent audio/video content from copying.






High Compatibility

The extractor is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. No more hesitation on choosing HDR or 4K@60hz for you could have both.







Slim Size & Wide Applications

With its compact and exquisite design, the extractor can be used in any AV applications, such as homes, offices, digital entertainment centers, control centers, conference rooms and other locations which need HDMI audio extraction.
