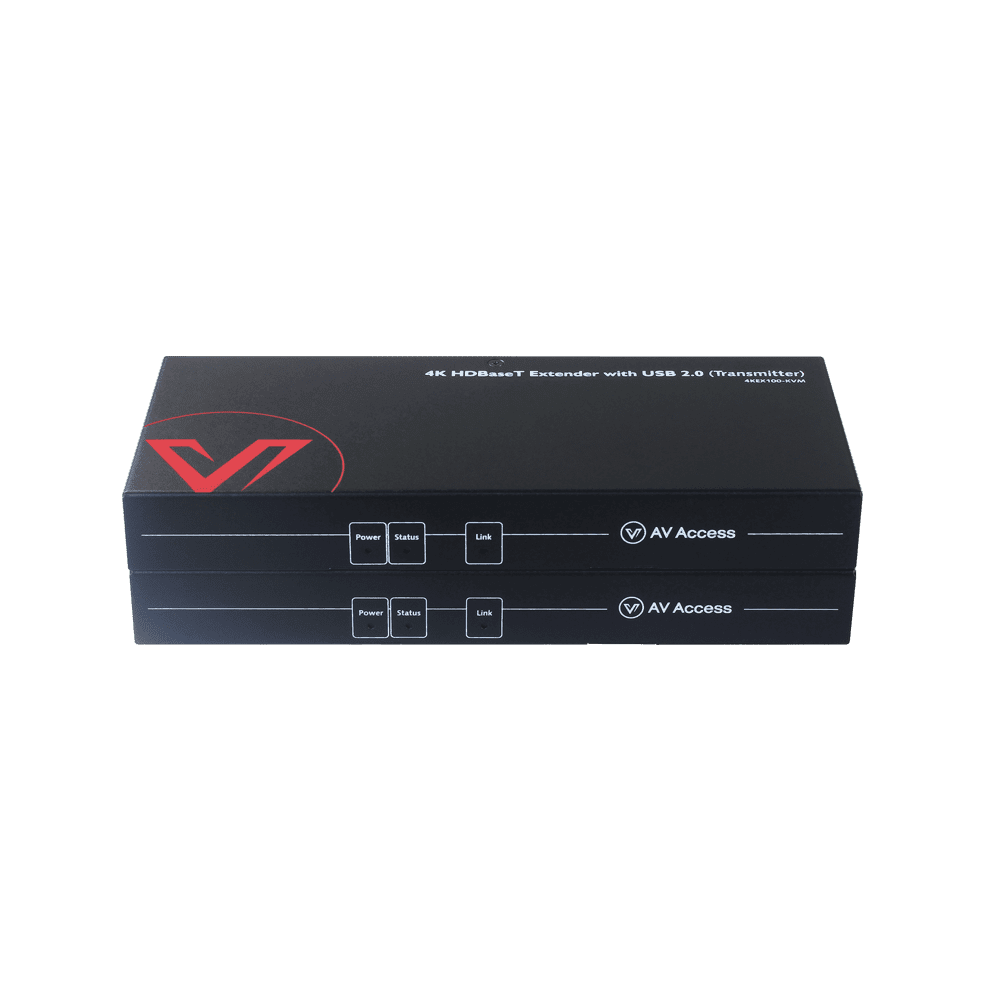

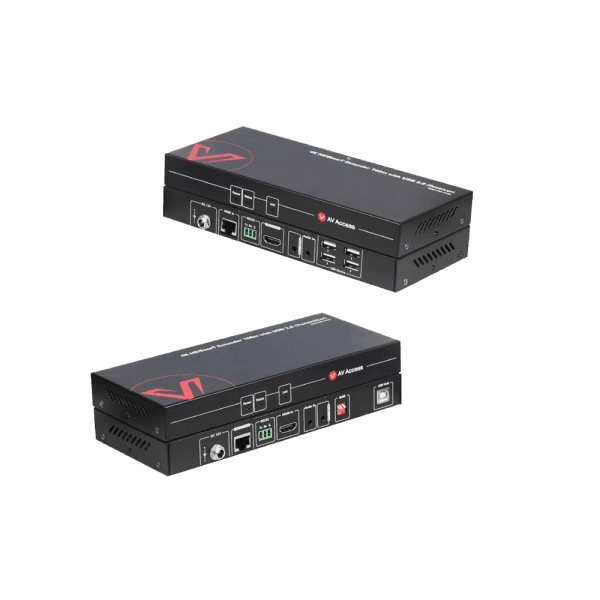

Zero-Latency 4K HDMI KVM Extender, 100m/330ft HDBaseT Extender w/ 4-Port USB 2.0 for PC Control, 1080P@120Hz, PoH & RS232
SKU: 4KEX100-KVM$239.99
Partner Discounts | Free Quote
4K UHD & Zero Latency:
Transmits 4K@60hz HDMI signal up to 100m/330ft over single CAT6/7 cable, along with stereo audio and USB 2.0 extension. Also supports 1080P@120hz, ideal for PC game control.
USB 2.0 up to 480Mbps:
1x USB host port on the transmitter, 4x USB device port on the receiver; easily control remote PC/NVR with keyboard, mouse and other USB 2.0 peripherals.
Bi-Directional Stereo/RS232:
This HDBaseT 2.0 extender supports bi-directional 3.5mm stereo pass-through and RS232 pass-through; also supports one-way PoH. Built-in DIP switch for EDID management.
Highly Reliable:
Certificated by CE, FCC. Built-in surge/lightning protection. Superior ESD protection. Comes with mounting ear for easy installation
In stock
ZERO-LATENCY 100M/330FT 4K KVM EXTENDER w/ HDMI 1.4
Main Features:
- Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft, 1080P@60Hz up to 100m/330ft
- Via Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz up to 100m/330ft
- HDMI 1.4 with 4k@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDBT 2.0 compliance
- One-way POH, TX (PSE) with PSU to power both TX and RX (PD)
- USB 2.0 pass through, USB-Host connector built in TX and 4 x USB-Device connector built in RX
- High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to 100m/330ft
- Bi-directional Analog Stereo, and RS232 pass-through over HDBaseT
- Independent DIP switch for EDID management
- Does not support HDCP
ZERO-LATENCY 100M/330FT 4K KVM EXTENDER w/ HDMI 1.4
Main Features:
- Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft, 1080P@60Hz up to 100m/330ft
- Via Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz up to 100m/330ft
- HDMI 1.4 with 4k@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDBT 2.0 compliance
- One-way POH, TX (PSE) with PSU to power both TX and RX (PD)
- USB 2.0 pass through, USB-Host connector built in TX and 4 x USB-Device connector built in RX
- High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to 100m/330ft
- Bi-directional Analog Stereo, and RS232 pass-through over HDBaseT
- Independent DIP switch for EDID management
- Does not support HDCP
4K@60 Ultra HD Video
This high-end HDBaseT 2.0 KVM extender supports up to 4K@60Hz (4:2:0) resolution. It can extend ultra HD image up to 100m/330ft with zero signal loss or delay. It also supports 1080P@120hz, ideal for PC game control.
Effortless KVM Extension
The HDMI KVM extender provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps passes through over HDBaseT with zero delay.
Effortless KVM Extension
The HDMI KVM extender provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps passes through over HDBaseT with zero delay.
Wonderful Gaming Experience with 1080P@120hz
For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the player’s performance. The HDMI KVM extender supports 1080P@120Hz video input, ensuring your game sources can be effectively extended. Thus, you can have an unprecedentedly smooth and seamless gaming experience.
One-Way PoH
With 48V PoH integrated inside, this HDMI KVM extender only requires one power supply connected to the transmitter to power both units. Its 12V power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.
Comparison Chart of Related Products
HDEX60-DM | HDEX80-KVM | 4KEX50-KVM | 4KIP100-KVM | 4KEX100-KVM | 4KEX100-DP-KVM | |
Product Type | Dual Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor |
Video Interface | 2x HDMI in, 2x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x DisplayPort in, 1x DisplayPort out |
HDMI Version | 1.3 | 1.3 | 2.0 | 1.4 | 1.4 | No, DP 1.2 |
HDCP Version | 1.4 | 1.4 | 2.2 | 1.4 | doesn't support HDCP | 1.4 |
Supported Video Resolution | Up to 1080p@60Hz | Up to 1080p@60Hz | up to 4K@60Hz 4:4:4 | up to 4K@30Hz; 1080P@120Hz | up to 4K@60Hz (4:2:0 8bit); 4K@30Hz 4:4:4, 1080P@120hz | up to 4K@30Hz, 1080P@120hz |
HDMI Audio Channel | Stereo | Stereo | 5.1 Channel | 7.1 Channel | 7.1 Channel | 7.1 Channel |
Maximum Transmission Range | 197ft (60m) | 260ft (80m) | 164ft (50m) | 395ft (120m) | 330ft (100m) | 330ft (100m) |
USB Ports | 4x USB 2.0 port | 2x USB 2.0 port | 4x USB 2.0 port | 3x USB 2.0 port | 4x USB 2.0 port | 2x USB 2.0 port |
POE/POH/POC | Uni-Direction (RX to TX) | Bi-Direction | Uni-Direction (RX to TX) | No | Uni-Direction (TX to RX) | Uni-Direction (TX to RX) |
RS232 | No | No | No | No | Yes | Yes |
IR | No | No | No | No | No | No |
Router/Ethernet Switch Compatibility | No, point to point | No, point to point | No, point to point | Yes, up to 16 sets of TX and RX | No, point to point | No, point to point |
Plug & Play | Yes | Yes | Yes | Yes | Yes | Yes |
One-Way PoH
With 48V PoH integrated inside, this HDMI KVM extender only requires one power supply connected to the transmitter to power both units. Its 12V power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.
Specifications
Transmitter
Video | |
Input Signal Type | HDMI 1.4 with 4K |
Input Resolution Support | 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p |
Maximum Pixel Clock | 297MHz |
Output Signal Type | HDBT 2.0 |
Output Resolution Support | 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p |
Audio | |
Audio input | 3.5mm Mini jack, stereo |
Audio output | 3.5mm Mini jack, stereo |
Control | |
Control method | 1x RS232, 1x USB-Host; |
General | |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 10% to 90%, non-condensing |
ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
Surge Protection | Voltage: ±1 kV (Ten times respectively for the positive and negative voltage) |
Electrical Fast Transient/Burst | Data communication cord: 1 kV Power cord: 2 kV |
Power Supply | DC 12V 2A |
Power Consumption (Maximum) | ≤12 W (pair) |
Device Dimensions (W x H x D) | 210mm x 25mm x 90.2mm / 8.27’’ x 0.98’’ x 3.55’’ |
Product Weight | 0.44kg/0.97lb |
Receiver
Video | |
Input Signal Type | HDBT 2.0 |
Input Resolution Support | 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p |
Maximum Pixel Clock | 297MHz |
Video | |
Output Signal Type | HDMI 1.4 with 4K |
Output Resolution Support | 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p |
Audio | |
Audio input | 3.5mm Mini jack, stereo |
Audio output | 3.5mm Mini jack, stereo |
Control | |
Control method | 1x RS232, 4x USB Device |
General | |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 10% to 90%, non-condensing |
ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
Surge Protection | Voltage: ±1 kV (Ten times respectively for the positive and negative voltage) |
Electrical Fast Transient/Burst | Data communication cord: 1 kV Power cord: 2 kV |
Power Supply | DC 12V 2A |
Power Consumption (Maximum) | ≤12 W (pair) |
Device Dimensions (W x H x D) | 210mm x 25mm x 90.2mm / 8.27’’ x 0.98’’ x 3.55’’ |
Product Weight | 0.46kg/1.01lb |

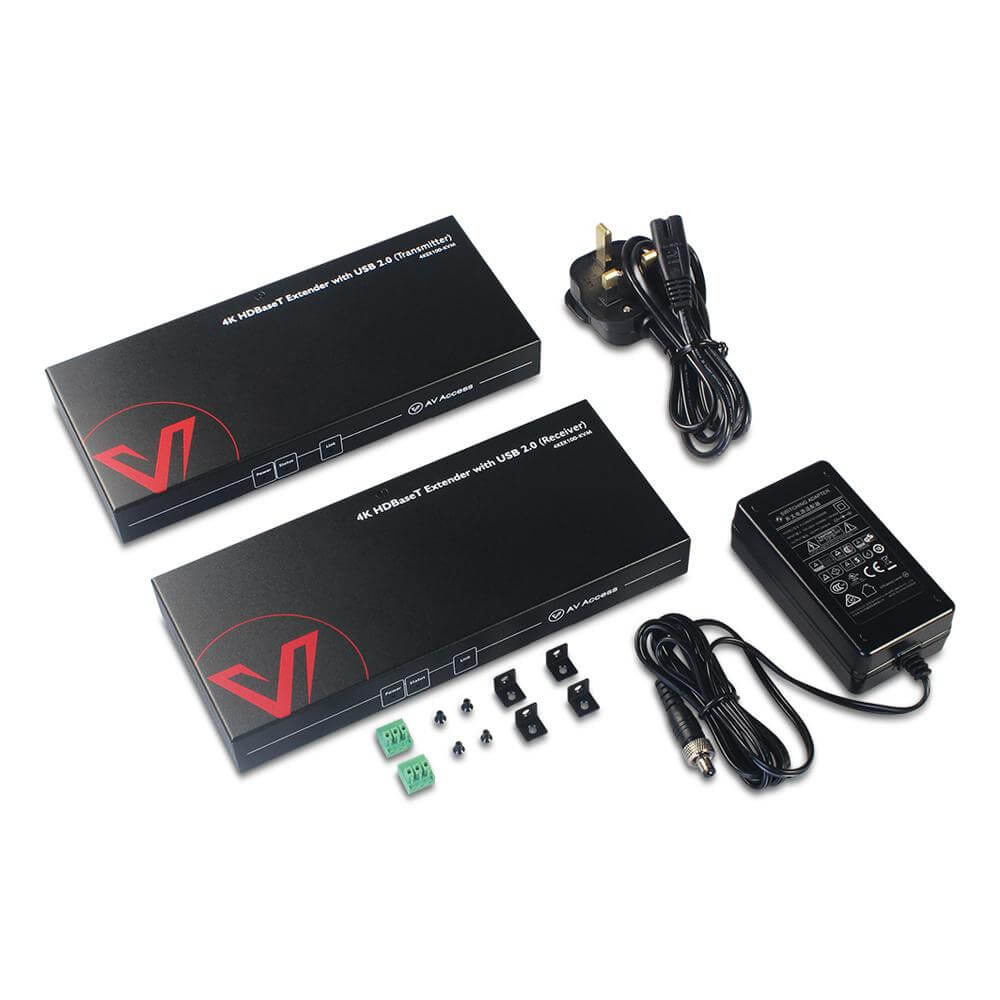

In the Box
- Transmitter 4KEX100-KVM x 1
- Receiver 4KEX100-KVM x 1
- 12 VDC 2A Power Supply x 1
- Phoenix Male Connector (3.5 mm, 3 pins) x 2
- USB 2.0 Type-B to Type-A Cable (L=1.5m) x 1
- Mounting Brackets (Pair, with Screws) x 2
- User Manual x 1
Documents & Softwares
Troubleshooting FAQ
- Check if you have connected the transmitter to your PC via a USB cable.
- Try connecting the USB cable to another USB port on your PC.
- Try connecting the USB devices to the PC directly without using the KVM extender. Then check if the USB connection works.
- Try plugging in your USB devices if they have an independent power supply.
- Check if the USB devices are compliant with USB 2.0 specification.
- The total USB bandwidth has an upper limit. Please try connecting less USB devices to the receiver.
- Disable the HDCP of your PC’s graphics card.
- Toggle the DIP switch (for EDID setting) on the transmitter to 4K30 or 1080P resolution according to the user manual.
- Check if you have chosen the right HDMI input channel on your display device.
- Check if the “Link” LED indicator is solid on. If not, please check your Cat cable connection.
- Try connecting the PC to the display device directly via an HDMI cable. Then check if there is any video output.
- Check if you have plugged in the transmitter with the included power adapter. This KVM extender supports one-way PoH, so the receiver can be powered by the transmitter.
- Use a new Cat cable, or check if the connectors at both ends of the cable meet the IEEE T568B standard.
- It is recommended to use a Cat5E/6/6A/7 cable, instead of Cat5 or flat cable.
- Check if the total length of your cable is within 100m/330ft.
- Check if the connectors at both ends of the cable meet the IEEE T568B standard.
- Try crimping your Cat cable connectors according to the IEEE T568B standard.
- If you need to use patch cables at both ends, the length should be as short as possible, no more than 5m/16ft. Please note that the total length of the patch cables and the Cat cable should not be over 100m/330ft.
- This KVM extender can only pass through stereo from the local “Audio in” port to the remote “Audio out” port. It doesn’t support audio de-emedding from the HDMI port.
- Please note that the KVM extender can only pass through stereo. It doesn’t support microphone input.
- Check if the connection method of the RS232 cable between the KVM extender and the control/controlled device is correct. It should be “TX-RX, RX-TX, GND-GND”.
- Perform an RS232 loopback test to see if the KVM extender’s RS232 pass-through function can work normally.
- Try connecting the control device and the controlled device directly without using the KVM extender. Then check if the RS232 connection works.
Other FAQ
This product supports video up to 4k@60Hz (chroma sub-sampling 4:2:0 8-bit).
Yes, you can connect USB devices other than keyboard and mouse as long as they are USB 2.0 standard.
Yes. It does work with a KVM switch.
No, this product supports direct connection only. This KVM extender over IP 4KIP100-KVM will work with an Internet switch and you can deploy multiple sets through DIP switch.
As the product works point to point, we only sell them in pair.
Yes. You can connect your USB device using a Bluetooth adpater.
No. The product is an HDBaseT KVM extender and supports only point-to-point connection. You might be looking for a KVM extender over IP.
As the KVM extender supports HDMI passthrough, it supports HDMI signals of ultrawide resolutions as well (as long as there is enough bandwidth).
