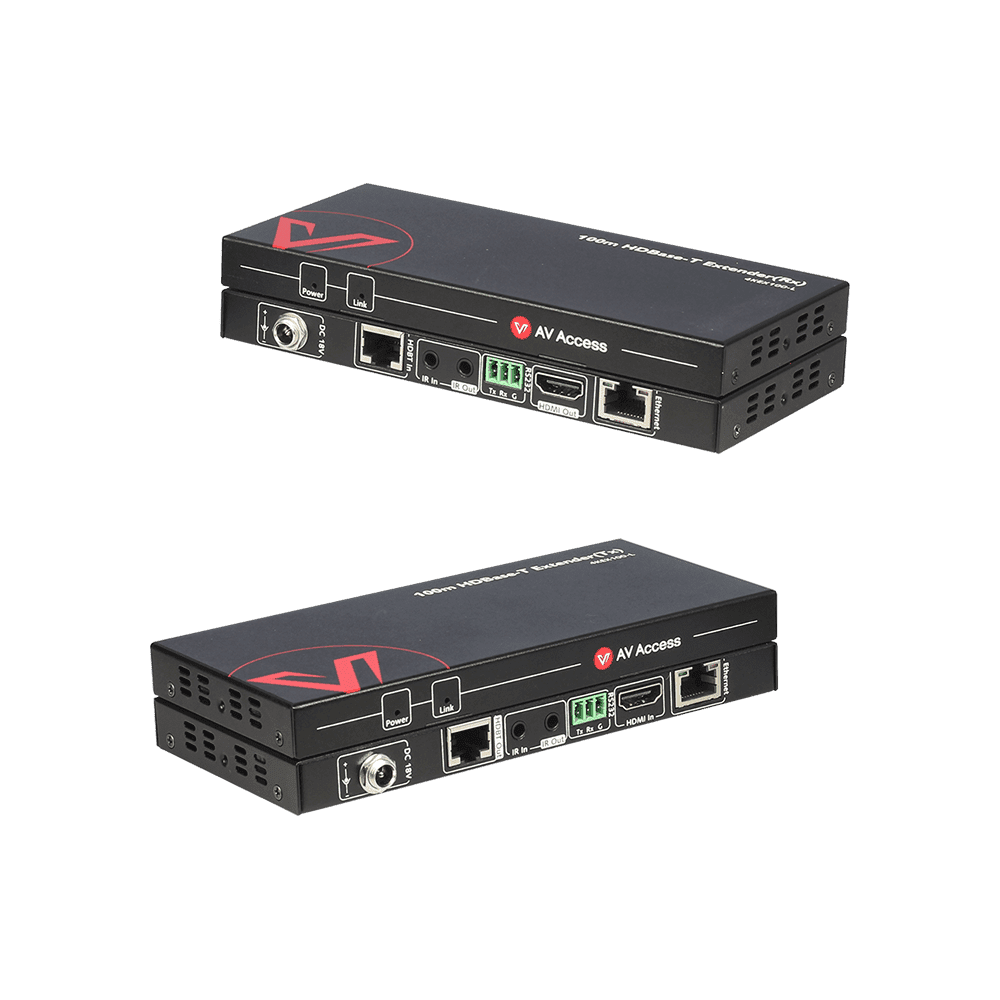

4K HDMI over HDBaseT Extender up to 100m/330ft with Bi-directional PoE/IR/RS232
SKU: 4KEX100-L$219.00
Partner Discounts | Free Quote
4K@60Hz up to 100m/330ft:
HDMI audio supports stereo, LPCM 5.1/7.1, Dolby True HD, DTS-HD Master Audio.
Internet Relay Along with HDMI Signal:
100M ethernet signal extension with 4K HDMI signal over signal CATX cable.
Bi-directional PoE/IR/RS232:
Flexible use of multiple applications or work with third party`s control systems.
Notes:
Please use CAT5e or above cables for better performance. And this extender does not support ARC function. Search: [4KEX70-ARC-H2] for ARC extender.
In stock
High-End 100m/330ft 4K HDMI Extender over HDBaseT
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
Main Features:
- Slim profile, space saving and easy-to-install
- Slim appearance and space saving.
- Support bi-directional PoE.
- Transfer bi-directional infrared control signal together with the HDMI signal.
- Use a pair of Transmitter and Receiver to extend HDMI signals without additional settings.
- HDMI 1.4 with 4K2K.
- HDCP 2.2 compliant.
- Support RS232 ports for firmware upgrading or signal controlling.
- Support Ethernet pass-through.
- Use a single Cat 5e/6/6a/7 cable, following the standard of IEEE-568B, to extend 4K signals up to 70m/230ft via Cat 5e/6 cable and 100m/330ft via Cat 6a/7 Cable, extend 1080P signals up to 100m/330ft via Cat 5e/6/6a/7 cable.
High-End 100m 4K@60 HDMI Extender
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
Main Features:
- Slim profile, space saving and easy-to-install
- Slim appearance and space saving.
- Support bi-directional PoE.
- Transfer bi-directional infrared control signal together with the HDMI signal.
- Use a pair of Transmitter and Receiver to extend HDMI signals without additional settings.
- HDMI 1.4 with 4K2K.
- HDCP 2.2 compliant.
- Support RS232 ports for firmware upgrading or signal controlling.
- Support Ethernet pass-through.
- Use a single Cat 5e/6/6a/7 cable, following the standard of IEEE-568B, to extend 4K signals up to 70m/230ft via Cat 5e/6 cable and 100m/330ft via Cat 6a/7 Cable, extend 1080P signals up to 100m/330ft via Cat 5e/6/6a/7 cable.
4K@60 Ultra HD Video
With HDMI technology which supports up to 4K@60Hz (4:2:0) resolution, the extender brings ultra-high definition picture with more vivid visual effect.
Excellent Audio Enjoyment
The extender supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master and LPCM 7.1CH, so it can work perfectly with AV receiver, home cinema, speaker, amplifier, etc.
Excellent Audio Enjoyment
The extender supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master and LPCM 7.1CH, so it can work perfectly with AV receiver, home cinema, speaker, amplifier, etc.
Bi-Directional PoE/IR
The extender provides bi-directional PoE, enabling only one power adapter connected to either transmitter or receiver to power both units. Bi-directional IR pass through allows you to control the source at the display location or control the display at the source location with ease.
Specifications
Technical | |
---|---|
Video Signal Type | HDMI 1.4, HDCP 2.2 |

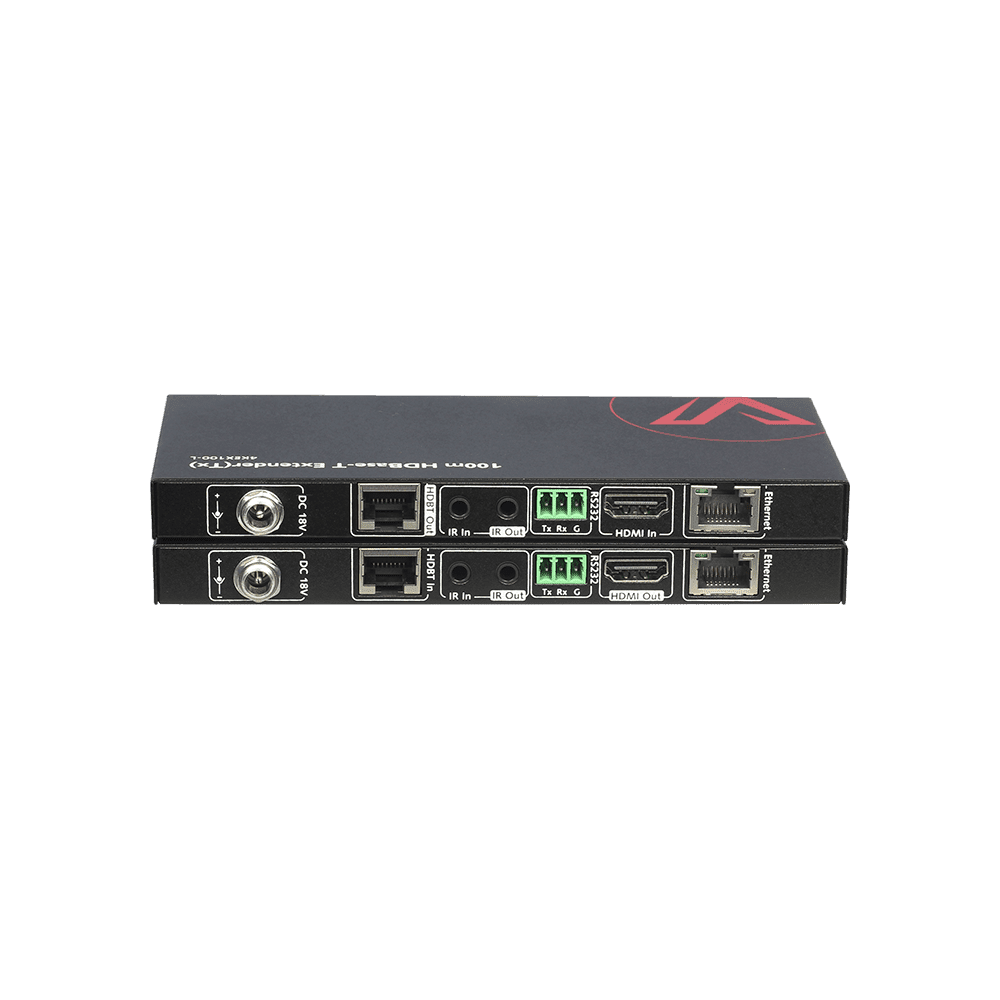

Input/Output Port | Input: 1x HDMI IN, 1x HDBT IN Output: 1x HDBT OUT, 1x HDMI OUT |
Input/Output Resolution Support | 4096 x 2160@60/50/30/25/24hz, 3840 x 2160@60/50/30/25/24hz, 1080p@60/50/30/25/24hz, 1080i, 720p, 576p, 576i, 480p, 480i |
Audio Format Supported | Stereo, LPCM 5.1, LPCM 7.1, Dolby True HD, DTS HD Master Audio |
Maximum Data Rate | 10.2 Gbps |
General | |
Operating Temperature | 0°C to 45°C (32°F to 113 °F) |
Storage Temperature | -20°C to 70°C (-4°F to 158 °F) |
Humidity | 10% to 90%, non-condensing |
Power Consumption | 11W (Pair) |
Product Weight | Transmitter/Receiver: 0.25kg/0.55lb |
Device Dimensions | 162 mm × 15 mm ×74.2 mm/ 6.38” x 0.59” x 2.92” |

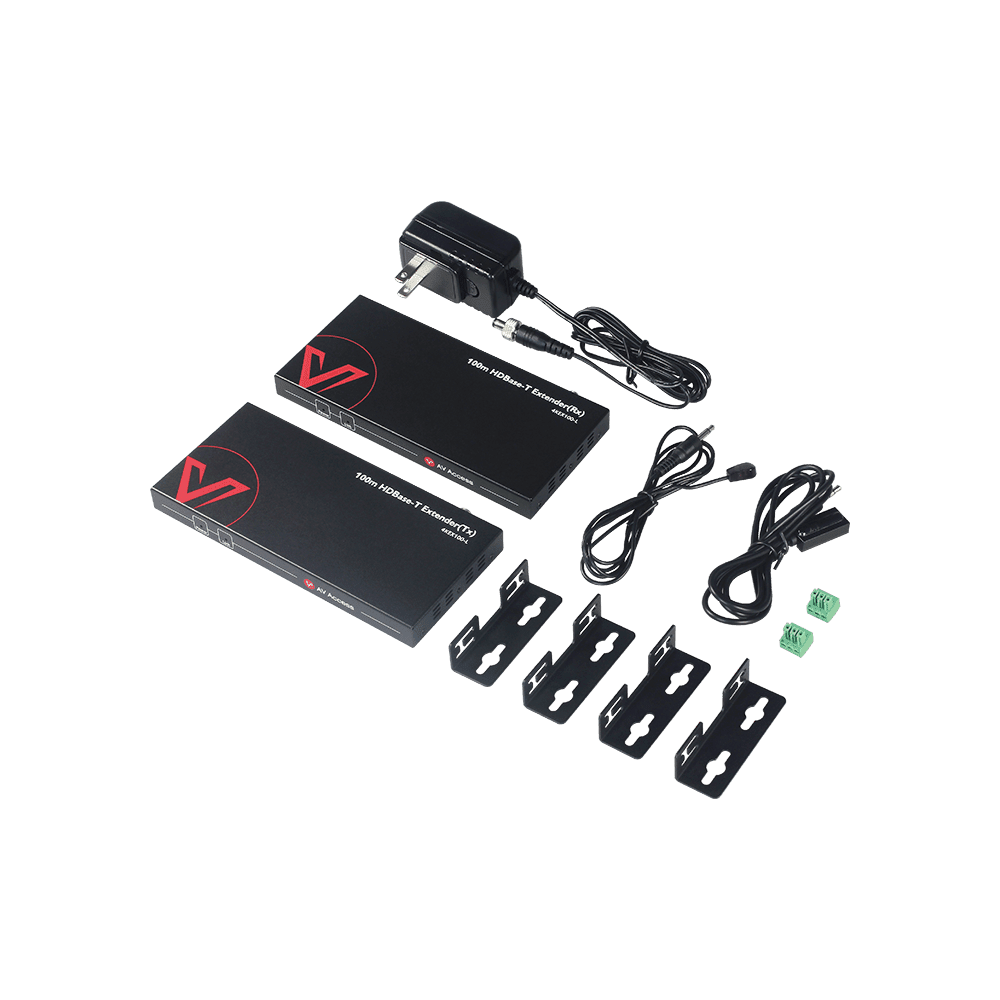

In the Box
- Transmitter x 1
- Receiver x1
- Power Adapter (DC 18V 1A) x1
- IR Emitter x1
- Wide-Band IR Receiver (30 KHz ~ 50 KHz) x1
- Phoenix Male Connectors (3.5mm, 3 Pins) x 2
- Mounting Brackets (with Screws) x 2
- User Manual x 1
Documents & Softwares
FAQ
HDBaseT is a connectivity standard for transmission of video, audio, Ethernet, USB 2.0, IR and other communication signals via a CAT cable. Here to learn more about What’s HDBaseT and whether you shall choose an HDBaseT extender.
Yes, the model supports 3D for 1080p@60hz.
This unit only supports direct connection from transmitter to receiver with a single ethernet cable. So it won’t work if you connect it to a switch. See if this is what you are looking for – HDMI over IP extender.
HDCP stands for High-bandwidth Digital Content Protection. This protocol is formed to protect digital audio and video content from being copied and distributed. This product supports HDCP 2.2 passthrough. Here to learn more about HDCP 1.4 &2.2.
No. This product contains one transmiter and one receiver. We don’t sell them seperately and they can only work through one-to-one direct connection. If you are connecting one source to multiple displays or multiple sources to the same display, you may be looking for an HDMI splitter/HDMI switch.
Yes, the HDMI extender supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master and LPCM 7.1CH.
(If this information is not helpful to you, you can raise your question in our community.)
RESOURCES
You May Also Like
Comparison Chart of Related Products
HDMI2.0 Cable | 4KEX60-H2 | 4KEX70-H2 | 4KEX70-ARC-H2 | 4KEX100-L | 4KEX100-H2 | 4KEX300-F | HDIP100E/HDIP100D | |
Supported Video Resolution | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:2:0 8bit), 4K@30Hz 4:4:4, 1080p @60Hz | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 4K@60Hz (4:4:4 8bit), 4K@60Hz (4:2:0 10bit), 1080p@60Hz, 3D | 1080p@60Hz |
Transmission Range | 1m/2m/3m | 164ft (50m): 1080P. 115ft (35m): UHD 4K@60Hz 4:4:4 | 230ft (70m): 1080P. 130ft (40m): UHD 4K@60Hz 4:4:4 | 230ft (70m): 1080P. 130ft (40m): UHD 4K@60Hz 4:4:4 | 330ft (100m): 1080P. 330ft (100m): UHD 4K@60Hz 4:2:0 | 330ft (100m): 1080P. 330ft (100m): UHD 4K@60Hz 4:4:4 | 1000ft(300m):4K & 1080P | 394ft(120m): 1080P |
HDMI | 2.0a | 2.0b | 2.0a | 2.0a | 1.4 | 2.0a | 2.0a | 1.3 |
HDCP | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 1.4 |
POE/PoC | / | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | No | Can be powered by PoE switch |
IR Control | / | Uni-Direction | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | Bi-Direction | No |
RS232 | / | No | Yes | Yes | Yes | Yes | Yes | Yes |
HDR | 4K60Hz | 4K60Hz | 4K60Hz | 4K60Hz | No | 4K60Hz | 4K60Hz | No |
ARC | Yes | No | No | Yes | No | No | No | No |
Router/Ethernet Switch Compatibility | No | No | No | No | No | No | No | Yes |
