Best Seller: 4K@60 HDBaseT Extender Kit, 70m/230ft HDMI Extender w/ Bi-directional IR, PoE & RS232SKU: 4KEX70-L
4K@60Hz 4:2:0 8bit HDR:
Transmits uncompressed 4K@60Hz video up to 40m/130ft, and 1080P@60hz up to 70m/230ft over Cat5e/6a/7 cable. Also supports Dolby Atmos, DTS:X, Dolby True-HD, DTS-HD Master, LPCM 2.1/ 5.1/7.1 CH.
Multi-Functional HDBaseT Extender:
Supports bi-directional PoE, IR and RS232, as well as automatic EDID management. HDMI 1.4/HDCP 2.2 compliant with HDR (4K@60 4:2:0 chroma subsampling only).
Slim Design & Excellent Compatibility:
Compact and portable, as small as a smartphone. Works perfectly with PCs, game consoles and most HDMI devices, ideal for digital signage, home theater, boardroom, classroom, meeting room, gaming, etc.
Certificated by CE, FCC. Built-in surge/lightning protection and superior ESD protection. Comes with mounting ears for easy installation.
BEST-SELLING 70M/230FT 4K HDMI EXTENDER

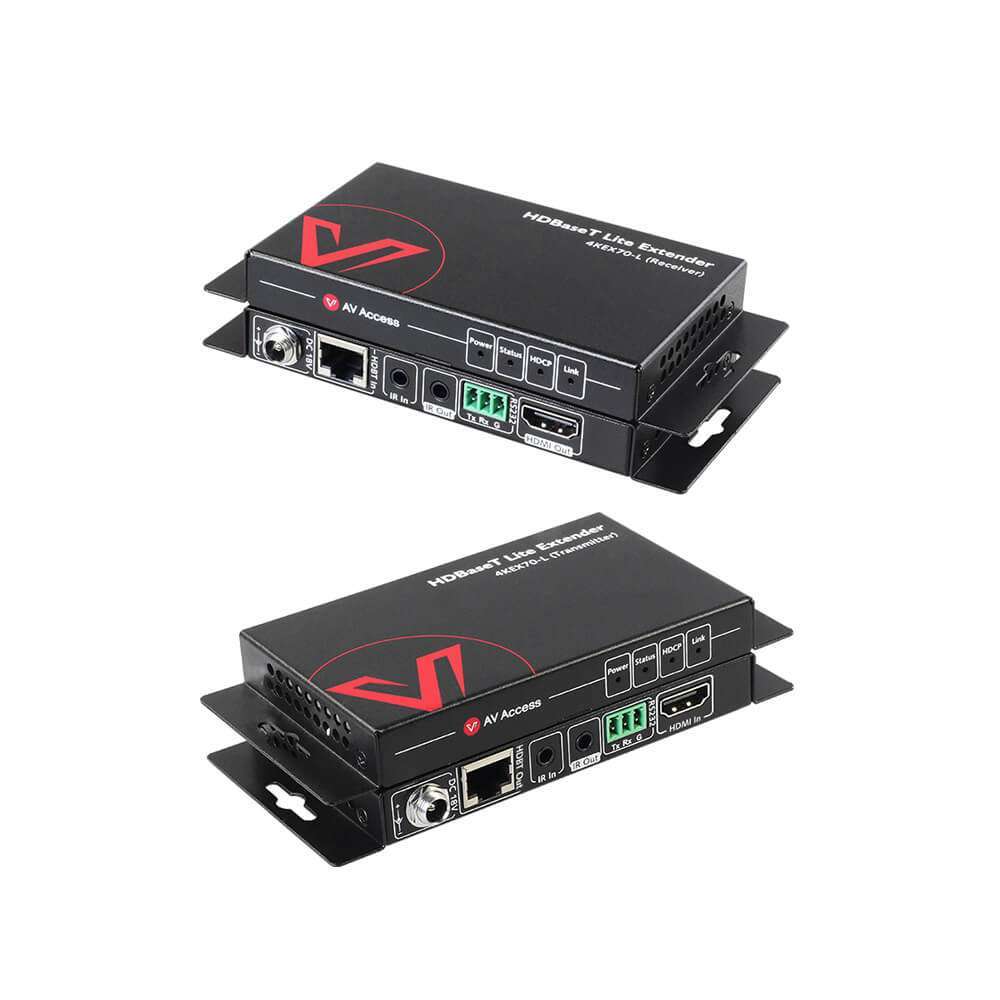

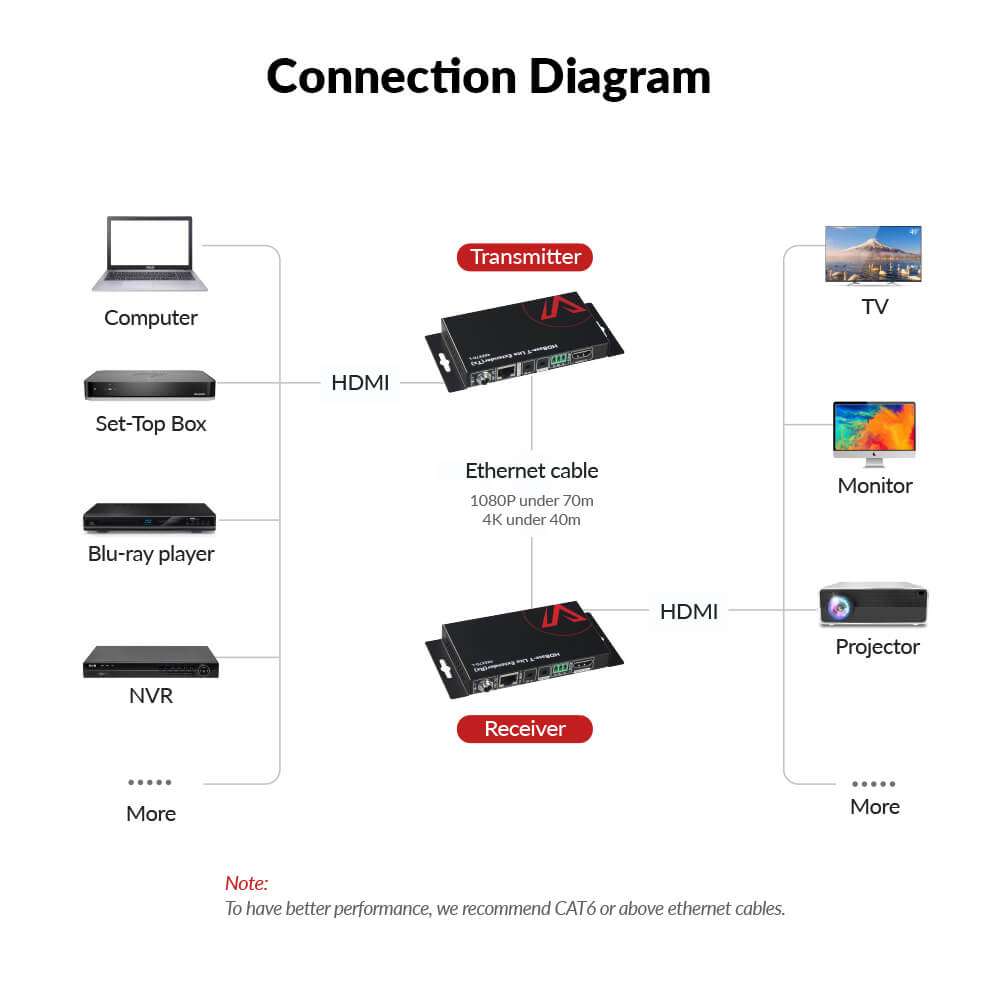

The 4KEX70-L 4K HDMI extender is a slim transmitter/receiver pair, which is designed to extend 1080P@60Hz HDMI signal up to 70m/230ft and 4K@60Hz signal up to 40m/131ft via a single Cat 6a/7 cable. The transmitter and receiver are easy to install and space-saving, ideal for home, office, digital entertainment center, control center, conference room, school and corporate training environment, etc.
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
- Slim appearance and space saving
- Bi-directional POE, when either side (transmitter or receiver) is plugged in the power, both sides are powered on.
- Transfers bi-directional infrared control signal together with the HDMI signal
- Use the transmitter and receiver pair to extend HDMI signals without additional settings
- Via Cat 6a/7 cables, 4Kx2K@60Hz (4:2:0) output up to 40m/131ft, 1080P@60Hz up to 70m/230ft
- Via Cat 5e cable, 4Kx2K@60Hz (4:2:0) output up to 35m/115ft, 1080P@60Hz up to 60m/197ft
- HDMI 1.4 with 4K and HDCP 2.2 compliant
- Supports Bi-directional RS232 pass through
4K@60 Ultra HD Video
This HDBaseT extender can transmit 4K@60Hz (4:2:0) HDMI signal up to 40m/130ft, and 1080P@60hz up to 70m/230ft over Cat5e/6a/7 cable. It brings ultra-high definition picture with more vivid visual effect and no signal loss or delay.
Excellent Audio Enjoyment
This HDMI extender supports audio formats like Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master and LPCM 2.1/5.1/7.1CH. It can work perfectly with AV receiver, home cinema, speaker, amplifier, etc.
Ultra-Slim Design & Plug-n-Play

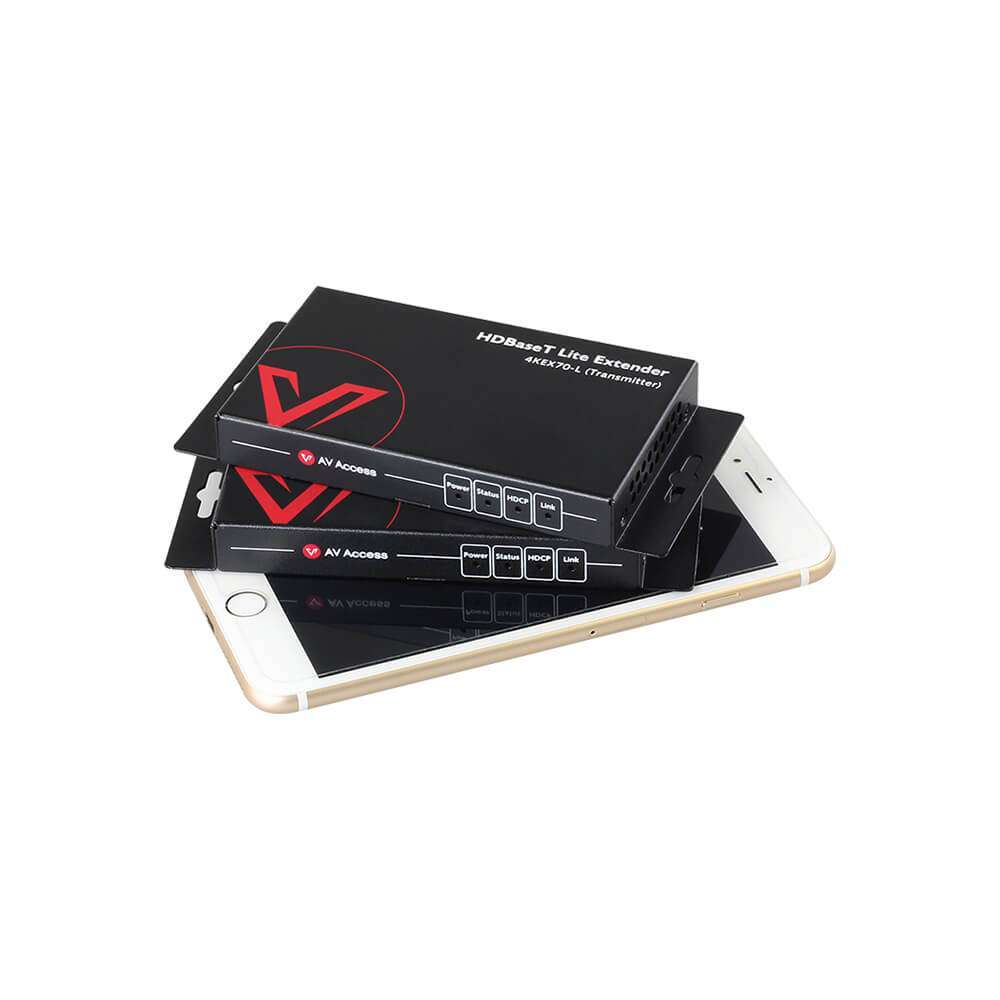

The transmitter and receiver are compact and portable, as small as a smartphone. They are easy to install and space-saving; you can almost place them everywhere in your house. This HDMI extender kit is plug and play, no additional software driver required.
Bi-Directional PoE, IR & RS232
This HDMI extender supports bi-directional PoE function, so only one power supply is needed at TX or RX side for hassle-free installation. Besides, it also supports bi-directional IR and RS232 signal transmission. You can easily control the source from the display’s location or control the display from source’s location.
The HDBaseT extender can work perfectly with PC, PS4, X Box, DVD Player, Apple TV, Satellite Box, Cable Box and most sources. It is ideal for digital signage, home theater, boardroom, workshop, seminar, classroom, conference, gaming, video production, etc.
|Video Signal Type||HDMI 1.4, HDCP2.2|
|Audio Format||Stereo, PCM 2.1/5.1/7.1, DTS, Dolby, pass through|
|Input/Output Resolution Support||SMPTE:
1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8
800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz;
4096×2160/3840×2160@50Hz/60Hz is based on chroma sub-sampling 4:2:0 8-bit only
|Maximum Data Rate||10.2Gbps|
|Operating Temperature||0°C to 45°C (32°F to 113°F)|
|Storage Temperature||-20°C to 70°C (-4°F to 158°F)|
|Humidity||10% to 90%, non-condensing|
|ESD Protection||±8kV (Air-gap discharge)/
±4kV (Contact discharge)
|Surge Protection||Voltage: ±1 kV|
|≤8.88 W (Pair)|
(W x H x D)
|108.8 mm ×15 mm ×64.2 mm
4.29” x 0.59” x 2.52”
|Product Weight||Transmitter: 0.18kg/0.40lb
- Check if the “Link” LED indicator is solid on. Also, check if the “HDCP” LED indicator is solid on or blinking.
- Make sure the source device and the display device are powered on. And make sure the source device is outputting video signal while the correct HDMI input channel is selected on the display device.
- Connect the source device to the display device directly via an HDMI cable, then set the source resolution to 4K@30Hz or 4K@60Hz 4:2:0. If these two resolutions are not available, then set to 1080P. After you set the default resolution, please re-connect the source device and the display device to the HDMI extender.
- Make sure all of your HDMI cables work normally. You can connect the source to the display device directly via one of these HDMI cables, to check if video can be shown normally on the display.
- It is recommended to use a Cat5E/6/6A/7 cable, instead of Cat5 or flat cable.
- Please make sure the total length of your cable is less than 70m/230ft for 1080P, 40m/131ft for 4K resolution.
- Please make sure the connectors at both ends of the cable meet the IEEE T568B standard.
- Use a new cable, or try crimping your Cat cable connectors according to the IEEE T568B standard.
- If you need to use patch cables at both ends, the length should be as short as possible, no more than 5m/16ft. Please ensure all connectors meet the same standard (IEEE T568B). Also, please note that the total length of the patch cables and the Cat cable should not be over 70m/230ft.

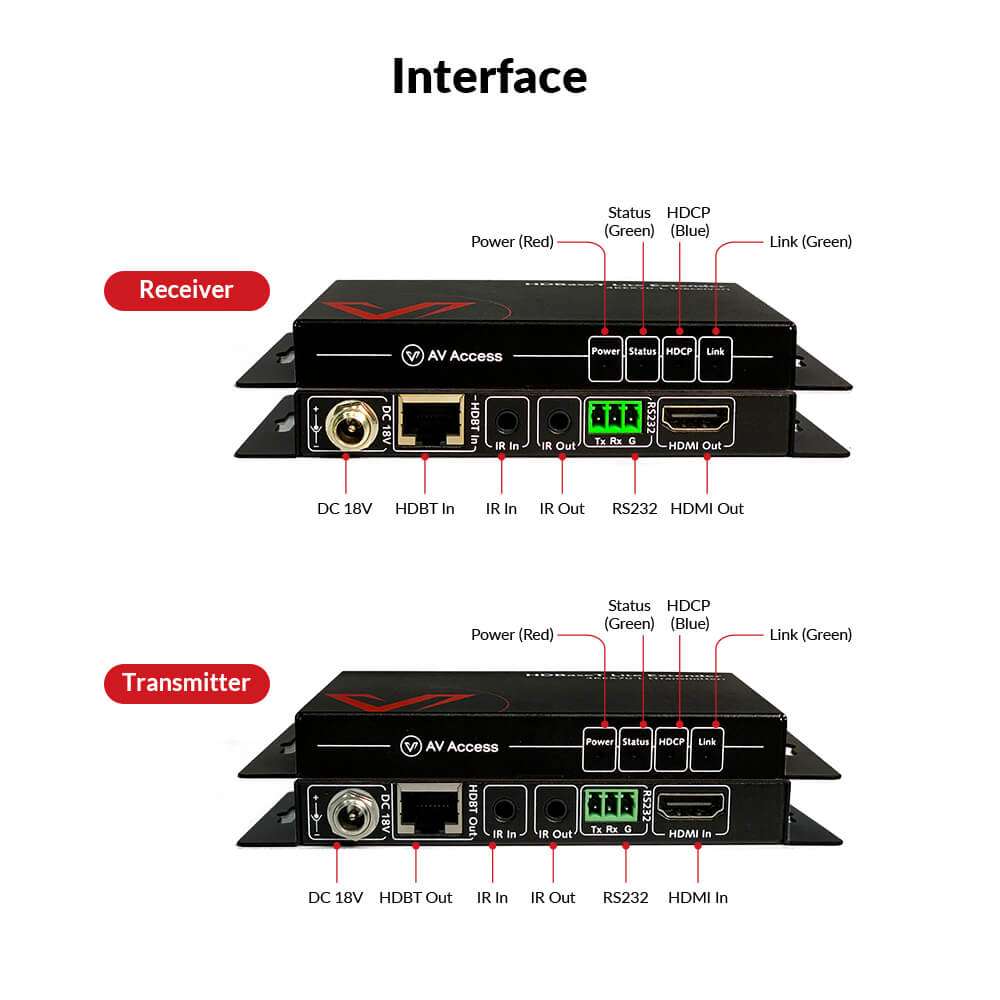

- Check if your IR connection method is correct. The IR receiver cable needs to be connected to the “IR In” port at one end, and the IR emitter cable needs to be connected to the “IR Out” port at the other end. Please note that the 3.5mm cable connectors need to be fully inserted into the IR ports.
- Check if you use the remote controller correctly and if you place the IR emitter head correctly. When you use the remote controller, it needs to be directly facing the IR receiver head. Besides, the IR emitter head should be placed closely to the IR receiving window of the controlled device.
- Try controlling the source device directly via your remote controller, without using the HDMI extender. Then check if the IR connection works.
- Check if the connection method of the RS232 cable between the HDMI extender and the control/controlled device is correct. It should be “TX-RX, RX-TX, GND-GND”.
- Perform an RS232 loopback test to see if the HDMI extender’s RS232 pass-through function can work normally.
- Try connecting the control device and the controlled device directly without using the HDMI extender. Then check if the RS232 connection works.
HDBaseT is a connectivity standard for transmission of video, audio, Ethernet, USB 2.0, IR and other communication signals via a CAT cable.
No. They work only in pair via direct connection and are sold in a set.
Yes. The model supports bi-directional IR control.
No. This product contains one transmiter and one receiver. We don’t sell them seperately and they can only work through one-to-one direct connection. You may check our HDMI splitters, HDMI switches or extenders over IP (have to work with a network switch).
Yes, it does support CEC passthrough.
This model supports bi-directional PoE. You can put the adapter on one end and the other end will be powered too.
HDCP stands for High-bandwidth Digital Content Protection. This protocol is formed to protect digital audio and video content from being copied and distributed. Here to learn more about HDCP 1.4 & HDCP 2.2.
Yes, this product supports HDCP 2.2 passthrough.
(If this information is not helpful to you, you can raise your question in our community.)
