4K HDMI/ HDBaseT Receiver Stander 48V PoE, 2-Way IR,RS232
SKU: 4KEX70-RX-PSE
$99.00
Partner Discounts | Free Quote
UHD 4K HDBaseT Receiver:
1080P up to 70m/230ft, 4K up to 35m/1150ft. Auto EDID. Support HDCP 2.2.
Standard PoE & Bi-directional IR:
Able to power other standard PoE transmitter in the market, supports wide brand IR control(30-55kHz).
Easy Installation：
Perfect for in-wall wiring. Space saving with threaded power adapter to provide stable performance.
Important Note：
This is receiver only, recommend to work with transmitter: 4KEX70-W
Out of stock

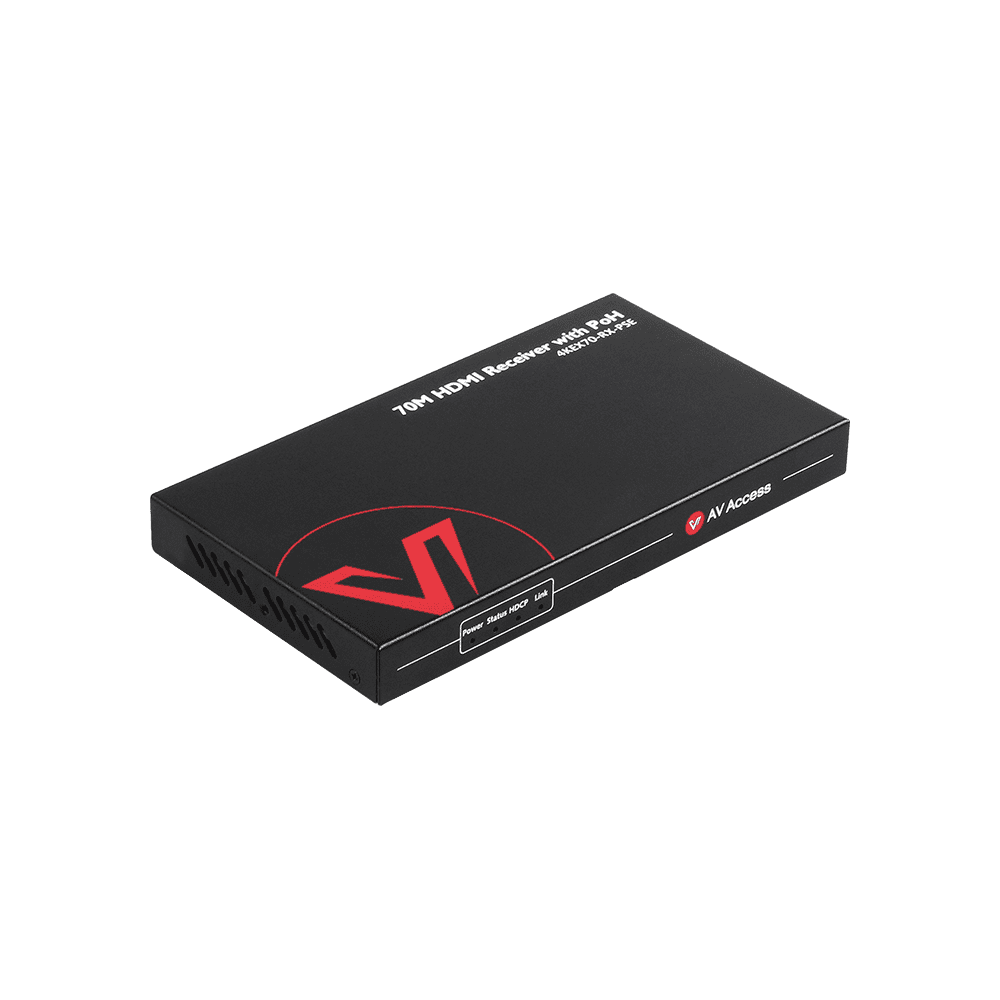

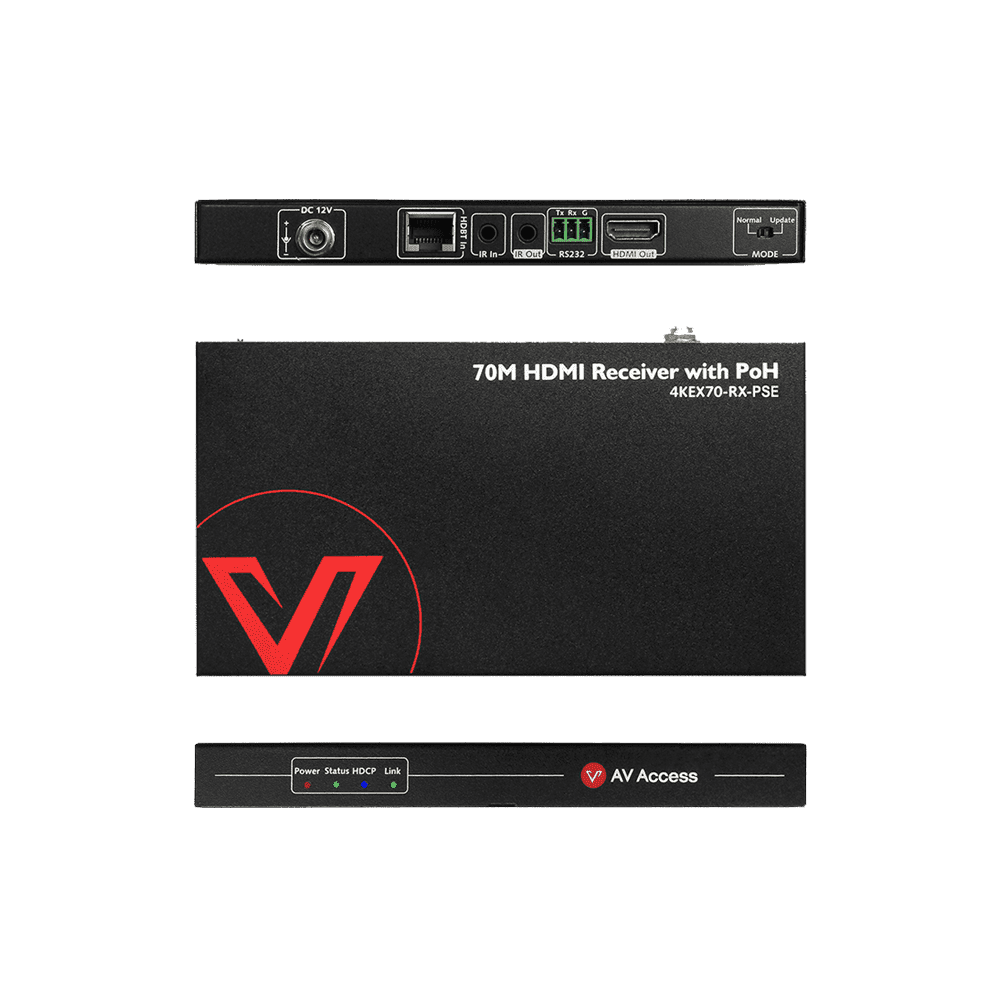

High-Efficiency 4K HDMI Receiver with PoH
The 4KEX70-RX-PSE is an HDMI receiver designed to work with an HDBaseT transmitter, such as the 4KEX70-W, to extend HDMI signal up to 230ft (70m) at 1080P and 131ft (40m) at 4K@60Hz 4:2:0 8bit over a Cat 6a/7 cable, up to 197ft (60m) at 1080P@60Hz and 115ft/35m at 4K@60Hz 4:2:0 8bit over a Cat 5e/6 cable.
Being able to work with any HDBaseT transmitter, 4KEX70-RX-PSE provides a simple and perfect solution in a variety of applications, such as homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments, where require the distribution of an HDMI source signal to a single HDMI display over long distance.
Notes:
This product is a receiver only. It is recommended to use it with 4KEX70-W HDBT transmitter for HDMI extension.
Main Features:
- Slim profile, space saving and easy-to-install
- Supports resolutions up to 4K@60Hz 4:2:0 8bit
- HDCP 2.2 compliant
- Supports HDMI output up to 49ft/15m with standard HDMI cable
- Over a Cat 6a/7 cable, HDMI signal transmission distance up to 230ft/70m at 1080P@60Hz and 131ft/40m at 4K@60Hz 4:2:0 8bit
- Over a Cat 5e/6 cable, HDMI signal transmission distance up to 197ft/60m at 1080P@60Hz and 115ft/35m at 4K@60Hz 4:2:0 8bit
- Transmission over Cat X cable with HD Audio/Video, IR, RS232 and power
- Supports one-way PoH with built-in PSE module to power connected HDBaseT transmitter with PD module
- Supports bi-directional IR pass-through
- RS232 port for firmware update and serial communication.
4K@60 HDMI Signal Extension
The receiver can work perfectly with an HDMI transmitter, like 4KEX70-W wallplate transmitter to extend 4K@60 4:2:0 HDMI signal up to 131ft/40m and 1080P@60 HDMI signal up to 230ft/70m over a Cat 6a/7 cable.
High Compatibility
The receiver is compatible with the latest display devices, such as Apple TV 4K, Amazon Fire TV 4K, Vizio TV, etc. No more hesitation on choosing HDR or 4K@60hz for you could have both.
Built-in PoH Function
This receiver can power the 4KEX70-W transmitter via PoH function with a single power supply (no power required at 4KEX70-W). It also supports bi-directional IR pass-through function, enabling you to either control the source at the display location or control the display at the source location.
Note: We recommend you use it with AV Access 4KEX70-W HDMI transmitter. If you use it with other HDBaseT transmitters, both the transmitter and our receiver must be powered by adapter.
Specifications
| Technical | |
| Video Signal Type | HDMI 1.4, HDCP 2.2 |
| Output Resolution Support | SMPTE: 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8 VESA: 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz NOTE: 4096×2160/3840×2160@50Hz/60Hz is based on chroma sub-sampling 4:2:0 8-bit only. |
| Audio Format | Stereo, PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | ±8kV(Air-gap discharge)/ ±4kV(Contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Power Consumption (Maximum) | 5.78 W |
| Device Dimensions (W x H x D) | 6.83” x 0.71’’ x 3.73” (173mm x 18mm x 94.8 mm) |
| Product Weight | 0.88lb/0.4kg |

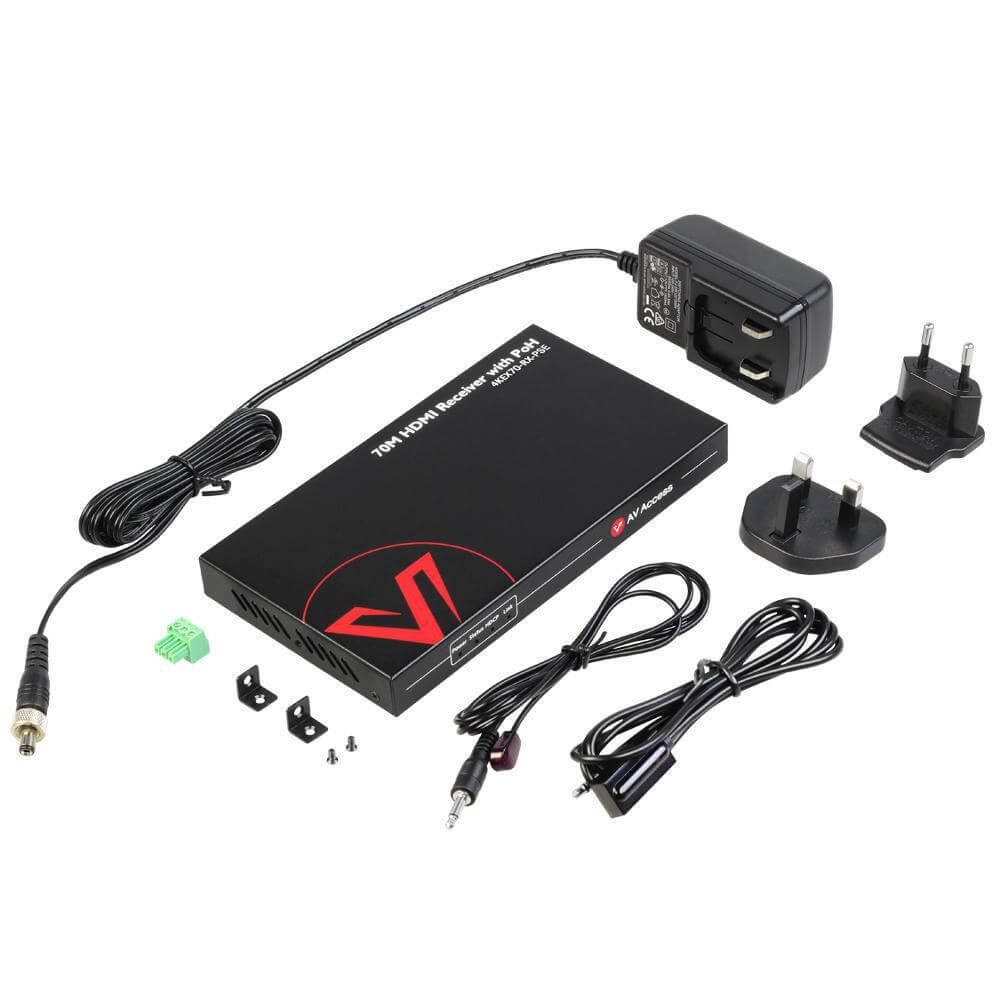

In the Box
- Receiver 4KEX70-RX-PSE x1
- Power Supply (DC 12V 1.5A) x1
- Phoenix Male Connector (3.5mm, 3 Pins) x1
- IR Emitter x1
- Broadband IR Receiver (30-50 KHz) x1
- Mounting Brackets x2
- User Manual x1
