4K HDMI KVM Extender over IP/TCP, 1080P@120Hz, Plug & Play, up to 16 Sets with DIP Setting

$159.99
4K@30Hz and 1080P@120Hz:
High refresh rate for gaming and audio passthrough supports up to 7.1ch. Direct connection supports up to 120m/390ft.

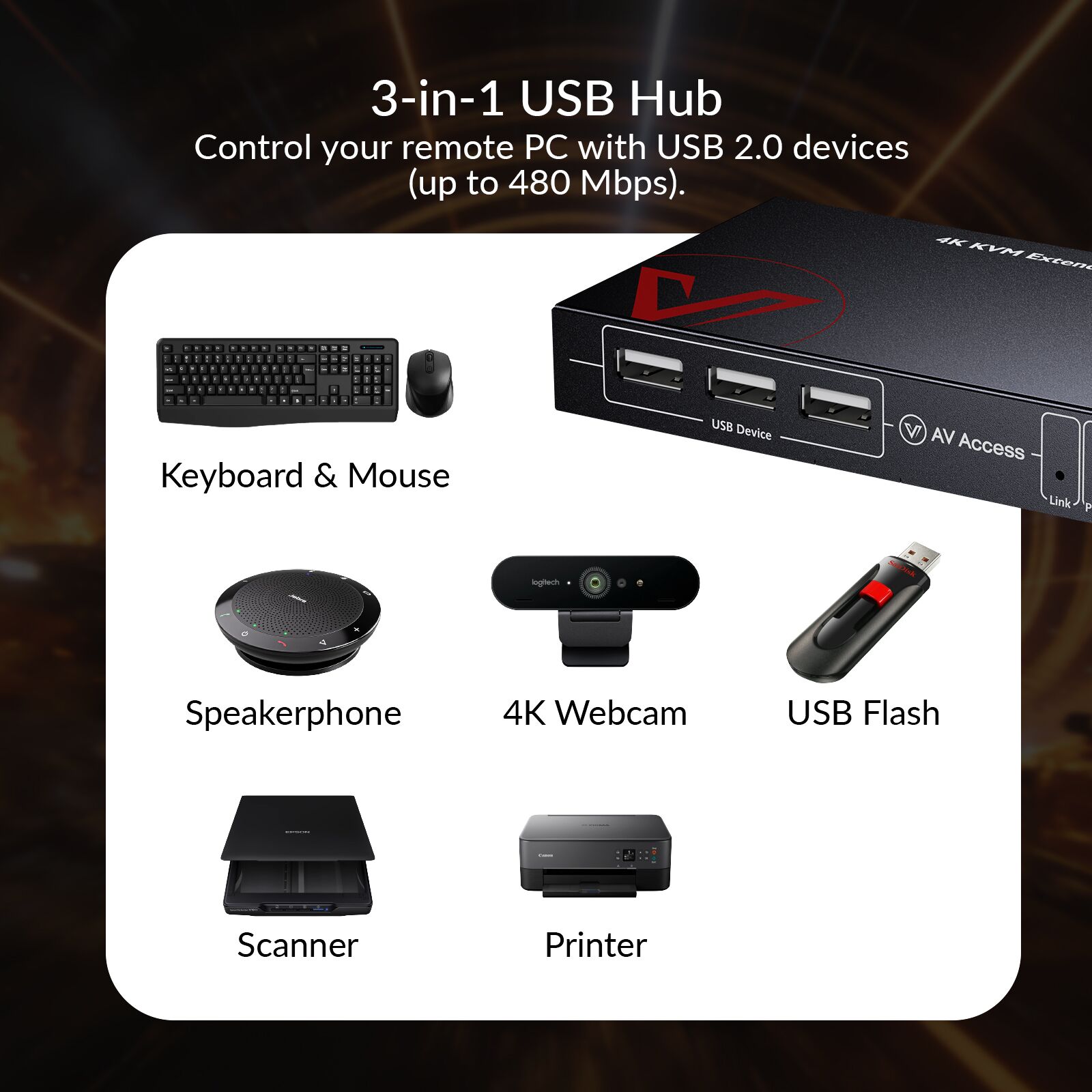

3 Ports USB 2.0 Hub:
Up to 480Mbps on receiver side, without driver, perfect for office and gaming.
Supports up to 16 Sets Working in the Same Network:
Toggle each DIP switch in RX to the same position of TX. Make sure repower both sides so changes will take effect.
Excellent Compatibility:
Remote control your PC or game consoles with USB devices, data transmission and USB streaming; Supports all operation systems.
Gigabit Switch Required When Using More Than Two Sets:
To provide enough bandwidth for the data transmission and stable performance.

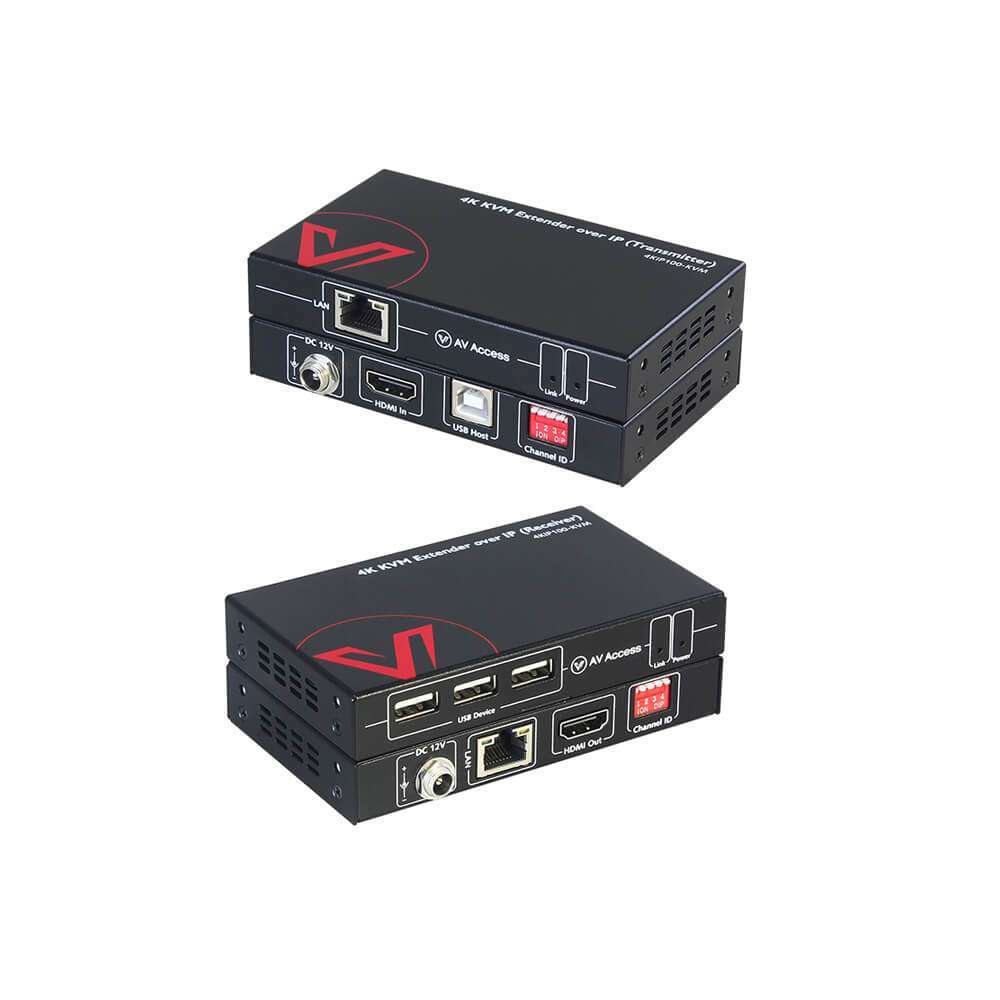

4KIP100-KVM is a 4K IP based KVM Extender. It can extend 4K@30hz video (with zero latency) and USB 2.0 signals over single Cat5e/6 cable up to 120m/390ft. It also supports 1080P@120Hz, 7.1-channels audio, HDCP 1.4 specification, etc. Multiple sets of transmitter and receiver can work together to build an IP matrix where audio, video, USB signal can be easily distributed or switched.

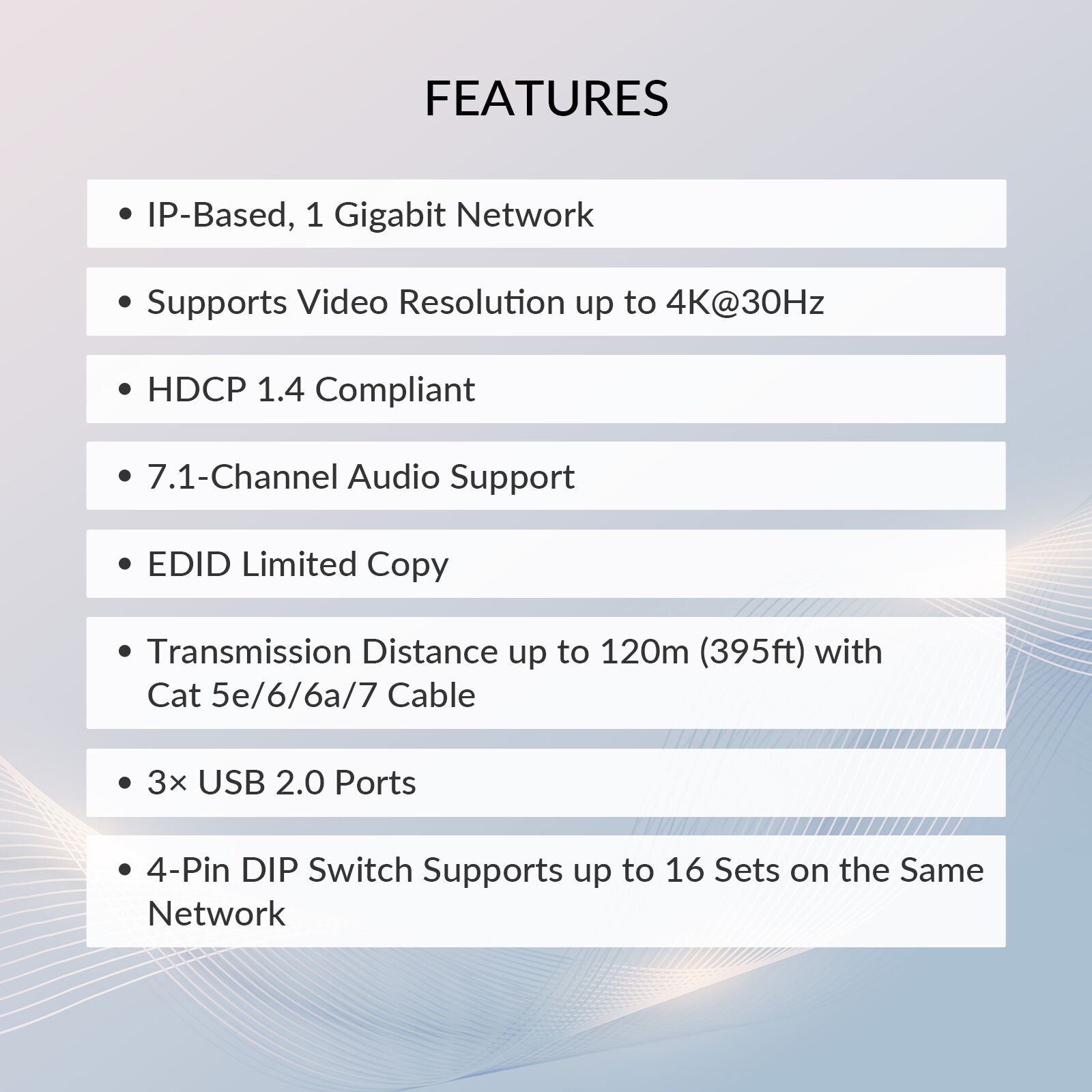

  • IP based, 1 Gigabit network support 4K video
  • Supports video resolution up to 4K@30Hz
  • Supports HDCP 1.4
  • Supports 7.1-channels audio
  • Supports EDID limited copy
  • Supports the distance up to 120m (395ft) with Cat 5e/6/6a/7 cable, with network switch, the distance will be extended unlimitedly
  • Supports 3 USB 2.0 for full feature USB 2.0 applications
  • Supports 4-Pin DIP switch for more sets works in a same network, up to 16 sets

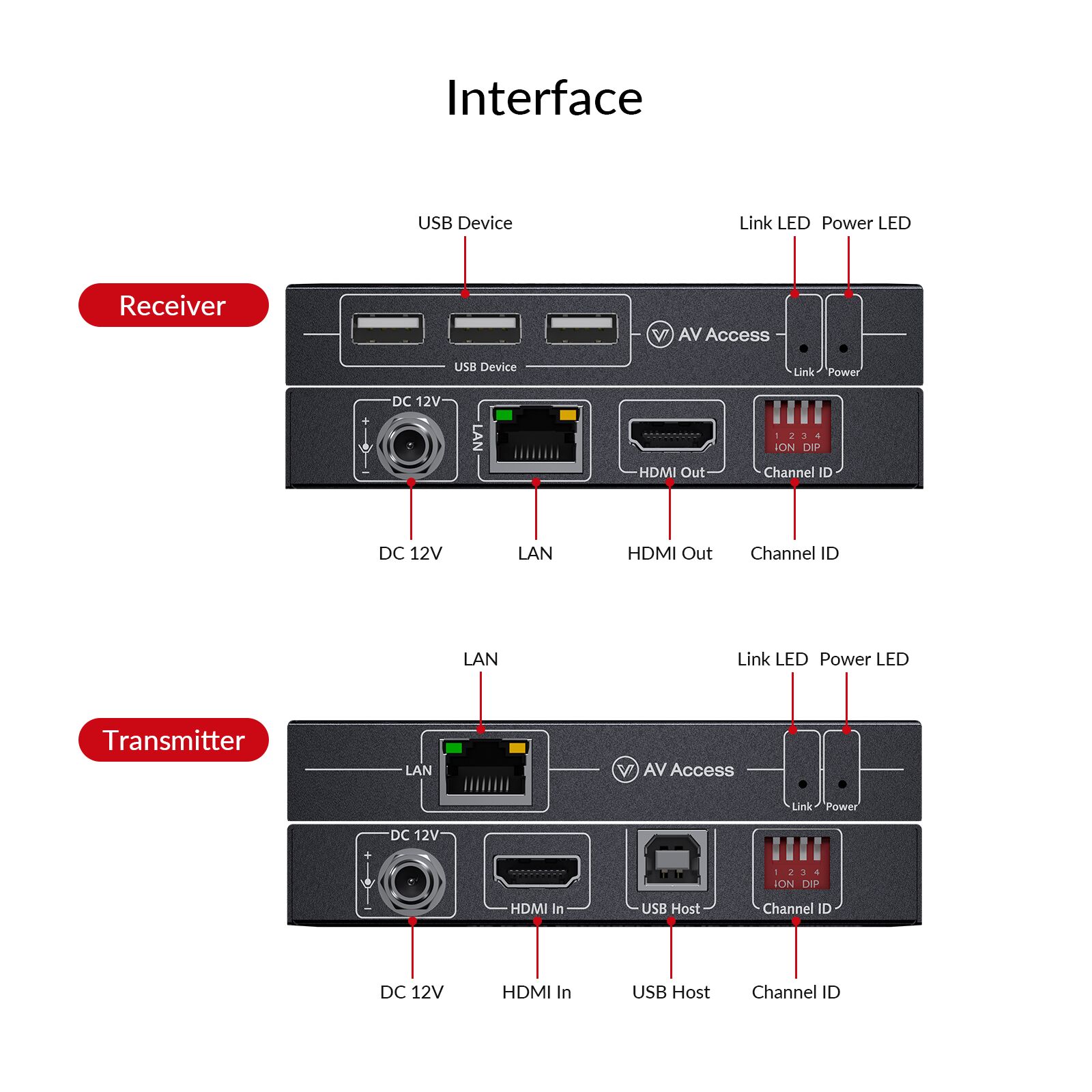

Transmitter
Technical
Input/Output                                                                                 1 x HDMI IN (19-pin female HDMI Type-A)
1 x USB HOST (female USB Type-B)
1 x 4-Pin DIP Switch
1 x DC 12V connector with locking
1 x LAN (RJ45)
Input Signal TypeHDMI 1.4b
Input Resolution Supported640x4808, 800x6008,10, 1024x7688,10,
1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,
1280x9608,10, 1280x10248,10, 1360x7688,
1366x7688, 1440x9008,10, 1600x9008,
1600x12008, 1680x10508,10,
1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,
3840x21602,3,5, 4096x21602,3,5
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Input Audio Format SupportedPCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD High Resolution Audio, DTS-HD Master Audio
Maximum Data Rate9 Gbps
Maximum Pixel Clock300 MHz
Output Signal TypeCompressed IP streams
Transmission DistanceCat 5e or above: 120m/395ft
HDMI: 15m/49ft
General
Operating Temperature0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature-20 to +70°C (-4 to +158 °F), 10% to 90%, non-condensing
ESD ProtectionHuman Body Model:
±8kV (air-gap discharge)/
±4kV (contact discharge)
Power SupplyDC 12V 1A
Power Consumption<2.5 W
Unit Dimensions
(W x H x D)
112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ × 2.57’’
Unit Weight
(without accessories)
0.18kg/0.40lb
Receiver
Technical
Input/Output1 x LAN (RJ45)
1 x HDMI OUT (19-pin female HDMI Type-A)
3 x USB DEVICE (female USB Type-A)
1 x 4-Pin DIP Switch
1 x DC 12V connector with locking
Input/Output Signal Type
Output Resolution Supported640x4808, 800x6008,10, 1024x7688,10,
1280x7206,7,8,9,10, 1280x7688,10, 1280x8008,10,
1280x9608,10, 1280x10248,10, 1360x7688,
1366x7688, 1440x9008,10, 1600x9008,
1600x12008, 1680x10508,10,
1920x10801,2,3,4,5,6,7,8,9,10, 1920x12008,
3840x2160P2,3,5, 4096x2160P2,3,5
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Output Audio Format SupportedPCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD High Resolution Audio, DTS-HD Master Audio
Maximum Data Rate9 Gbps
Maximum Pixel Clock300 MHz
Transmission DistanceCat 5e or above:120m/395ft
HDMI: 15m/49ft
USB ConsumptionRecommended no more than 0.5A per USB port
Transmission DistanceCat 5e or above:120m/395ft
HDMI: 15m/49ft
USB ConsumptionRecommended no more than 0.5A per USB port
General
Operating Temperature0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature-20 to +70°C (-4 to +158 °F), 10% to 90%, non-condensing
ESD ProtectionHuman Body Model:
±8kV (air-gap discharge)/
±4kV (contact discharge)
Power SupplyDC 12V 1A
Power Consumption< 4W (without USB Consumption)
Unit Dimensions
(W x H x D)
112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ × 2.57’’
Unit Weight
(without accessories)
0.18kg/0.40lb
  • Product Manual







4K UHD & Zero Latency

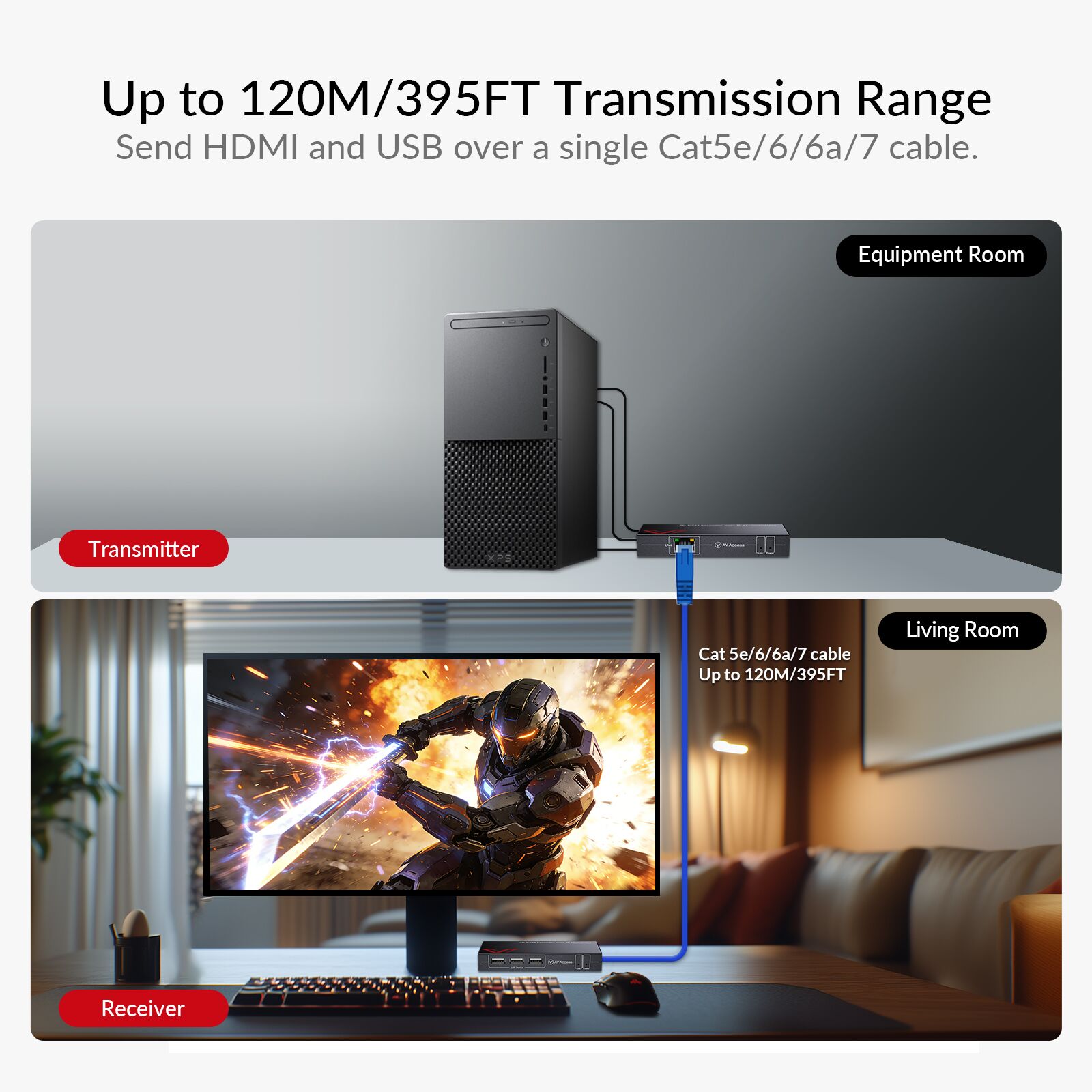

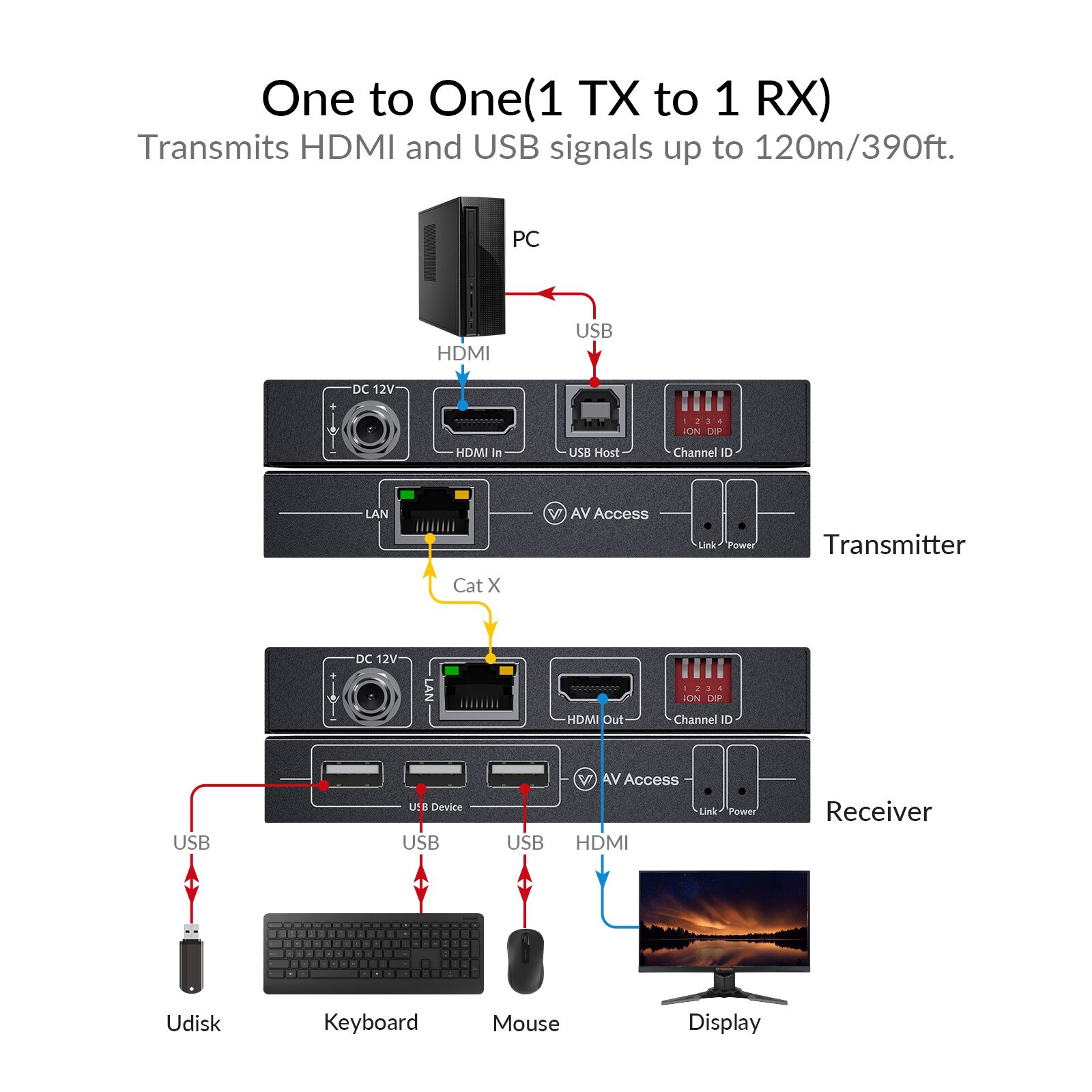

A pair of transmitter and receiver can extend 4K@30hz video over single Cat5e/6 cable up to 120m/390ft with zero latency. It transmits high-quality picture without any video loss and time delay.




Flexible Networking & IP Matrix

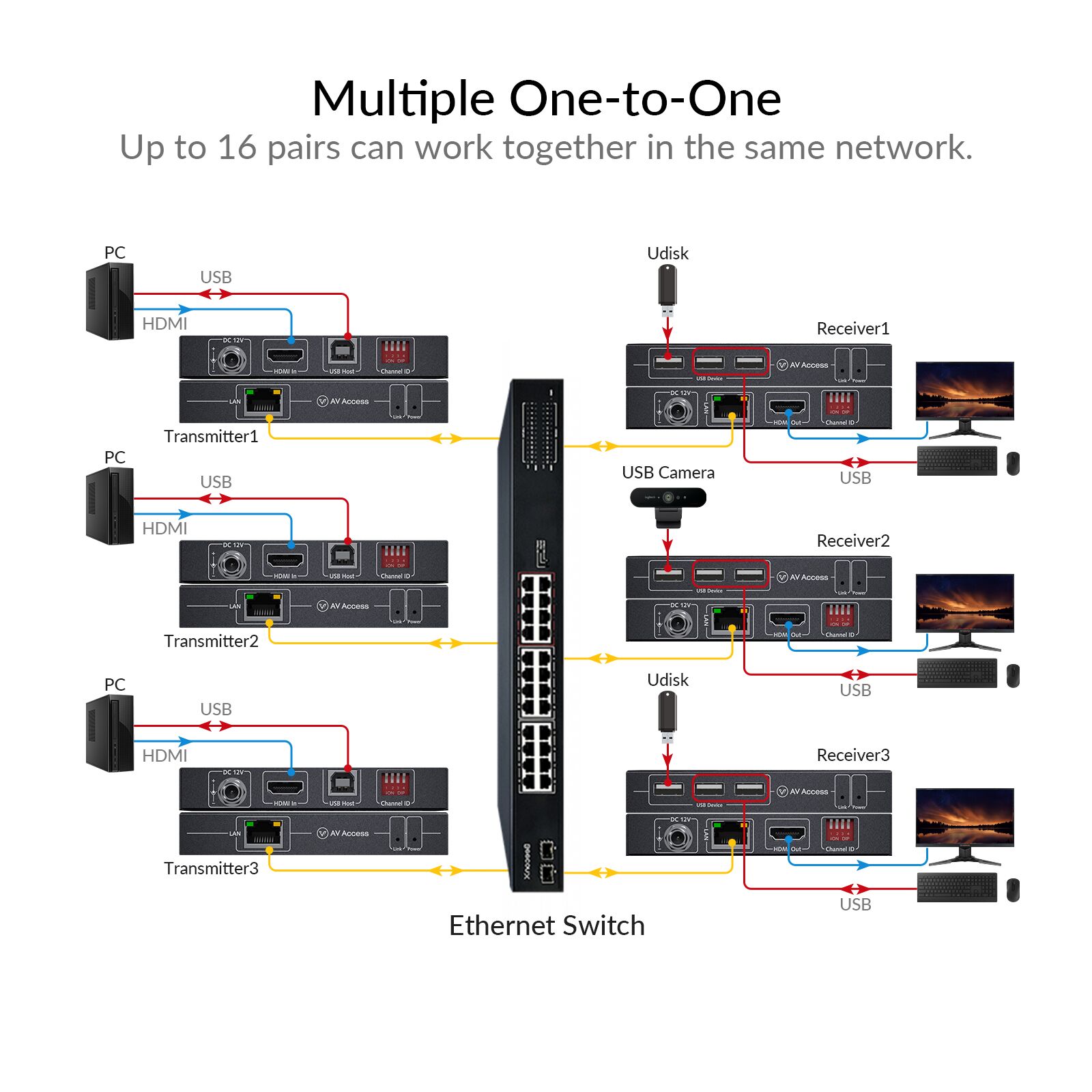

Multiple sets of transmitter and receiver can work together to build an IP matrix where audio, video, USB signal can be easily distributed or switched. Up to 16 extender sets can be connected via ethernet switch in a same network without the VLAN settings.

Note: When linking two or more pairs of 4KIP100-KVM, to guarantee constant 800M high bandwidth, please use a gigabit switch instead of a hundred-megabyte switch.







Ideal for KVM Applications

You can remotely control PC, PS or Xbox with up to three USB2.0 peripherals, such as keyboard, mouse, microphone, camera, etc. The extender can transmit high-speed USB2.0 signal up to 120m/390ft via single Cat X cable.







Excellent Audio Enjoyment

The IP extender supports audio formats such as PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby True HD, DTS 5.1 ch, DTS-HD Master Audio, etc., so you can get fantastic audio experience.
