Zero-Configuration 4-in-1 4K H.265 AV over IP Encoder, Works with 4KIP200D for IP Matrix & Video Wall, Ideal for Sports Bar
SKU: 4KIP204E
$919.99
Partner Discounts | Free Quote
We provide high profit margin for partners..
● New 4-in-1 Design: Supports one-to-one direct connection. Only one Ethernet cable is required to transmit 4x 4K HDMI signals to a 4KIP200D decoder up to 394ft/120m away.

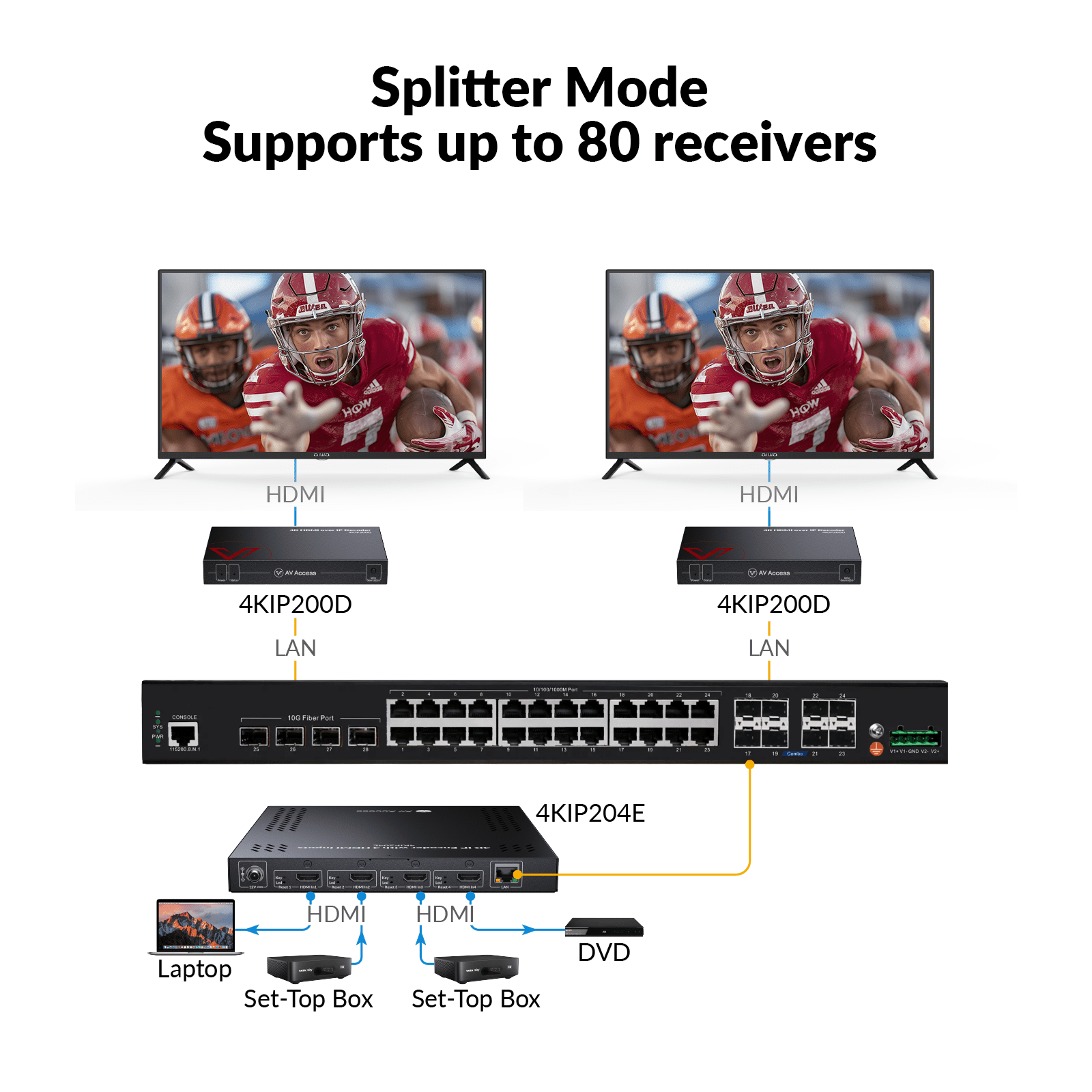

● Zero Configuration: Works with multiple 4KIP200D decoders for one-to-many and many-to-many connection via a universal Ethernet switch. There’s no need to configure IGMP. Set up within minutes, just plug and play. Ideal for sports bars, restaurants, houses of worship, etc.

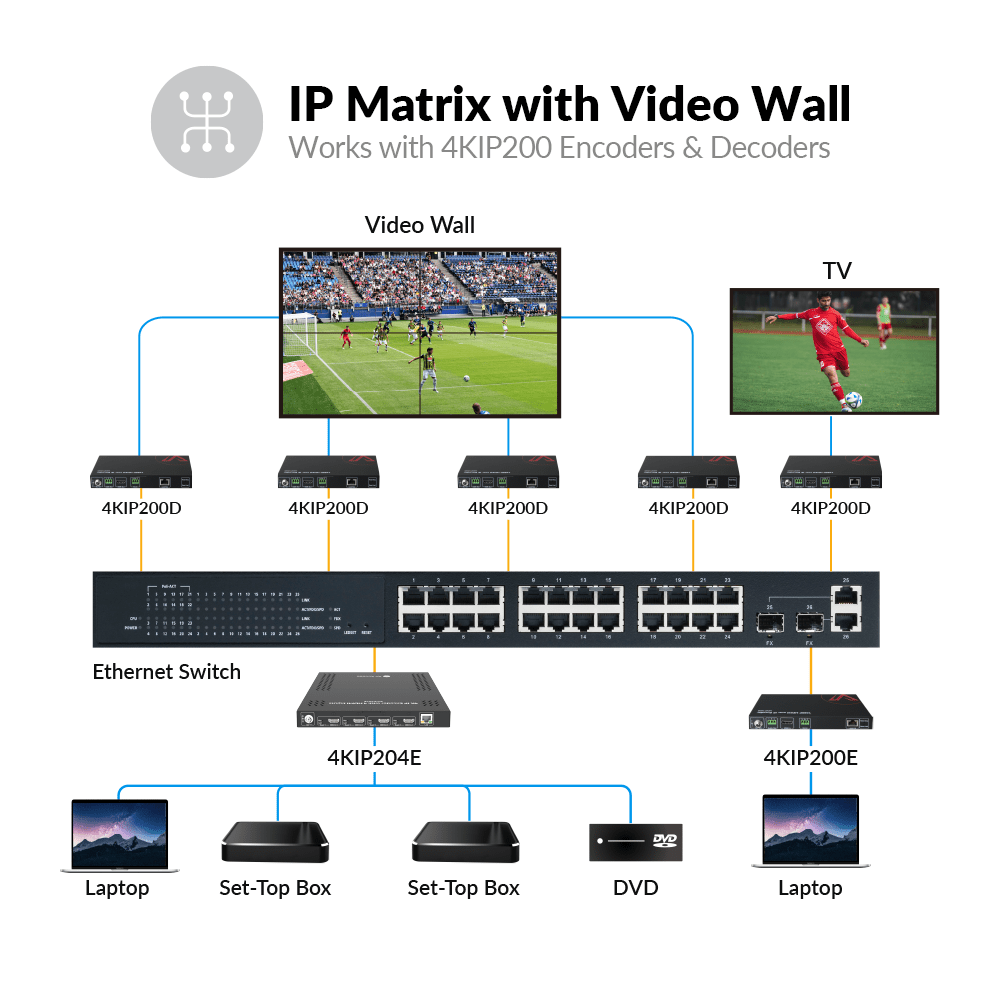

● Space-Saving & Budget-Friendly: Easier than ever to build a distributed 4K IP matrix with video walls up to 8×8. With its compact and integrated design, it can simplify installation by utilizing fewer switch ports and taking up less rack space, thus saves you more time and cost.
● Effortless Visual Control: Install the “VDirector” App on your smartphone, tablet or computer to manage all encoders simultaneously.
● Additional Button Control: The built-in “Source to All” buttons allow you to distribute one source to all decoders at once. Also designed with two control buttons to turn on/off all the remote display devices.
● Important Notes: This product can’t be used alone. It must be used with one or more 4KIP200D decoders (up to 50 units). It doesn’t support PoE.
If you’re not satisfied, we’ll refund your payment. No hassle, no risk.
In stock
Typical Applications
No matter it’s a sports bar, retail store, house of worship, casino or other scenario, the 4KIP204E 4K HDMI over IP encoder can work with 4KIP200D decoders to build a distributed IP matrix with video walls.
Sports Bar & Restaurant
Install the 4KIP204E & 4KIP200D IP codecs in your sports bar, ideal for multiple HDMI signal extension, distribution, switching, video wall and mobile centralized control. It ensures your patrons enjoy the best screen viewing experience possible.
House of Worship & Church
Utilize the powerful 4KIP204E & 4KIP200D HDMI over IP solution to distribute 4x HDMI source to multiple displays in your church. It can grant your priest or pastor with a seamless and user-friendly setup to communicate content and information to your parish.
LEARN MORE
Shopping Mall & Retail Store
Install 4KIP204E & 4KIP200D in an equipment room of a shopping mall or retail store, and distribute all advertisements to every corner/corridor in your shop. With the dazzling video walls, the solution helps boost your business with superior video and sound.
LEARN MORE
No Configuration Required, Friendly to All Users
The 4KIP204E AV over IP encoder can work flawlessly with a universal Ethernet switch, both managed and unmanaged. Don’t need to spend so much time configuring IGMP any more, as it is truly plug-n-play. Whether you are an installer or end-user, you can effortlessly complete installation, even if you were not exposed to any IP knowledge before.
Important Notes before Purchasing:
1. This IP encoder can’t be used alone; it must be used with one or more 4KIP200D decoders for HDMI signal extension or splitting. One encoder can distribute an HDMI signal to maximum 50 units of decoder simultaneously.
2. It can’t work with the HDIP100 encoders/decoders in the same network.
3. This IP encoder doesn’t support PoE.

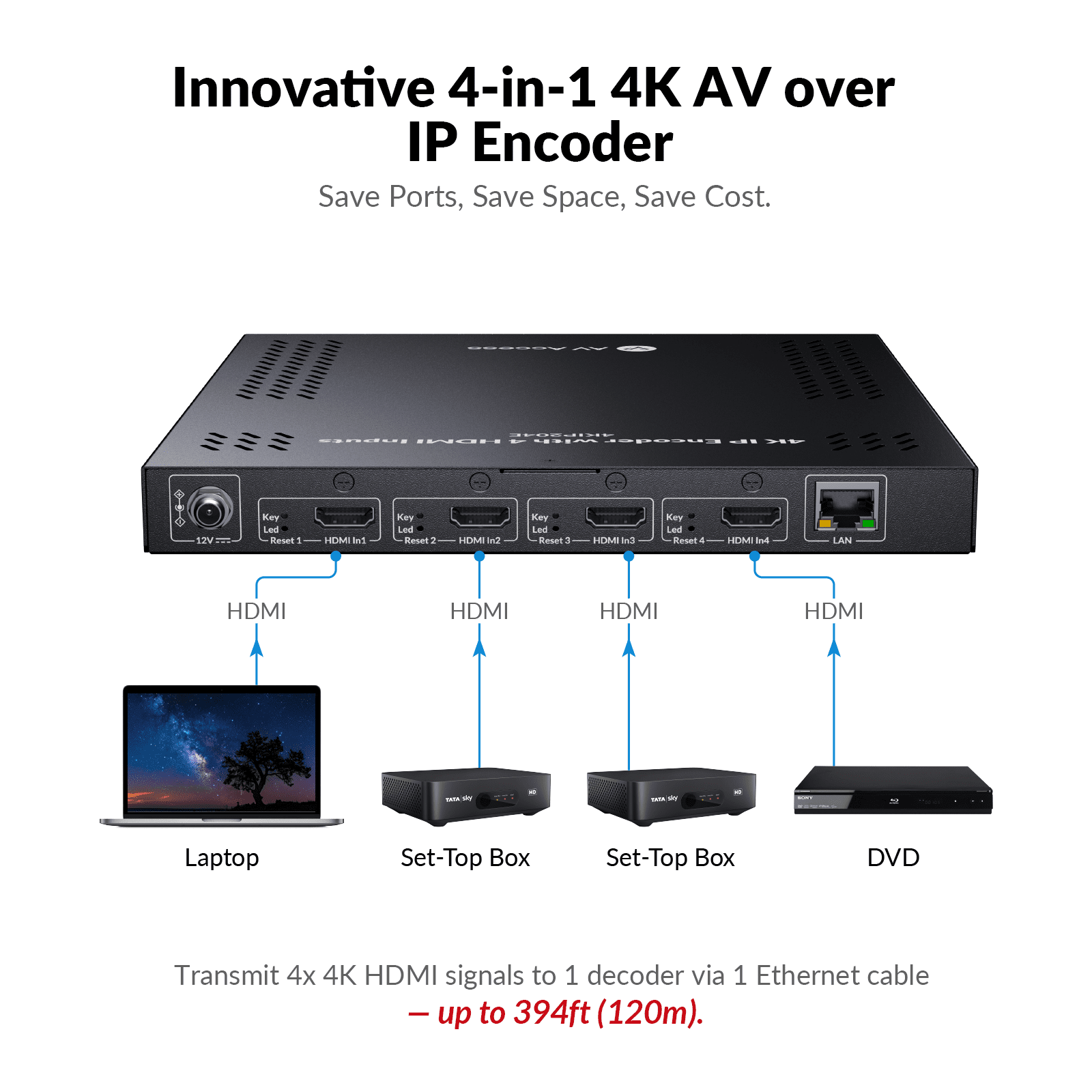

Innovative 4-in-1 Design
You can connect up to 4x HDMI source to this compact encoder, then transmit 4K UHD HDMI signals to a 4KIP200D decoder up to 394ft/120m away. With this integrated design, it can greatly simplify your installation, and save more space for your equipment rack. Compared with 4x 4KIP200E IP encoders, it also saves you more cost.
Easy Visual Control on Your Palms
With the visualized and user-friendly VDirector App, you can perform the settings below:
- Preview all sources and preset different scenarios;
- Switch any source to any or all displays;
- Drag-and-drop to perform matrix switching;
- Create/Delete a video wall up to 8×8 within 15 seconds;
- Enable CEC function to turn on/off all connected displays;
- Adjust the volume of each connected display device;
- Rotate the first row of the images within a video wall by 180 degree;
- Divide all 4KIP200D decoders into different groups.
Please check out the video tutorial on the right to learn more.

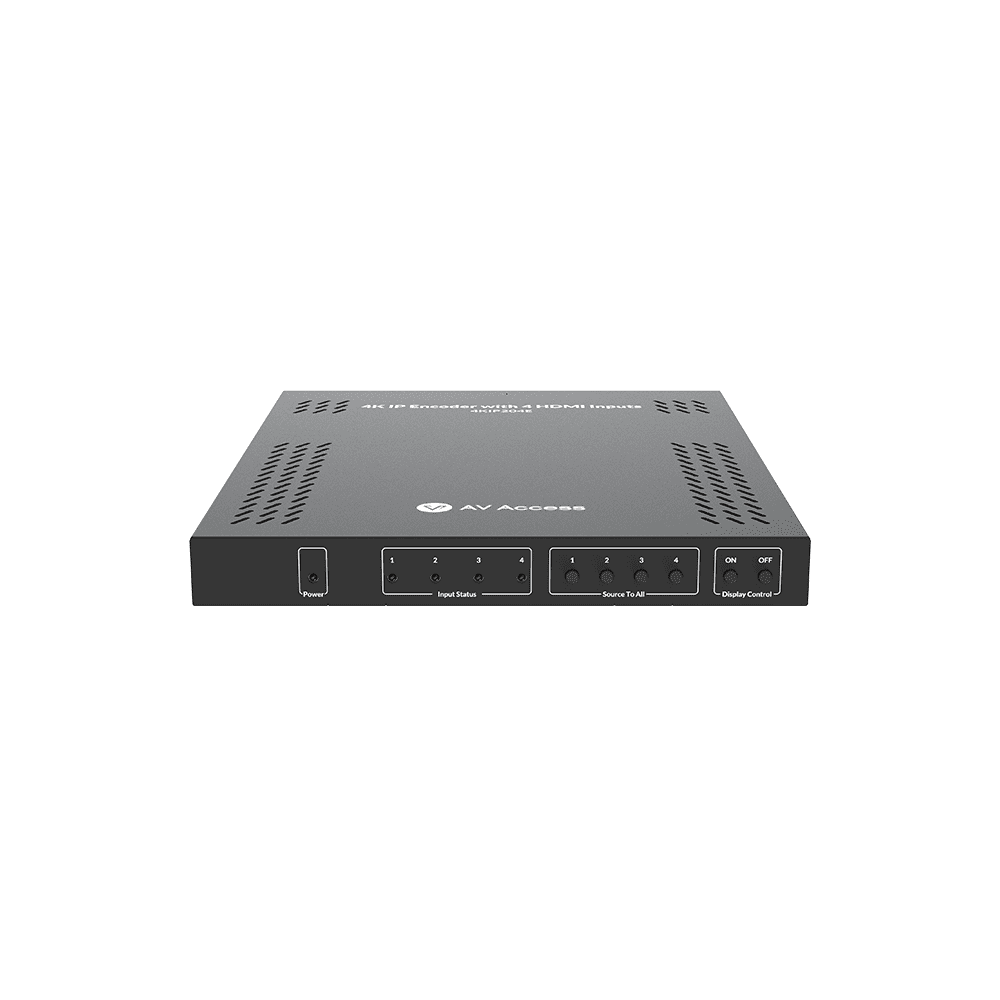

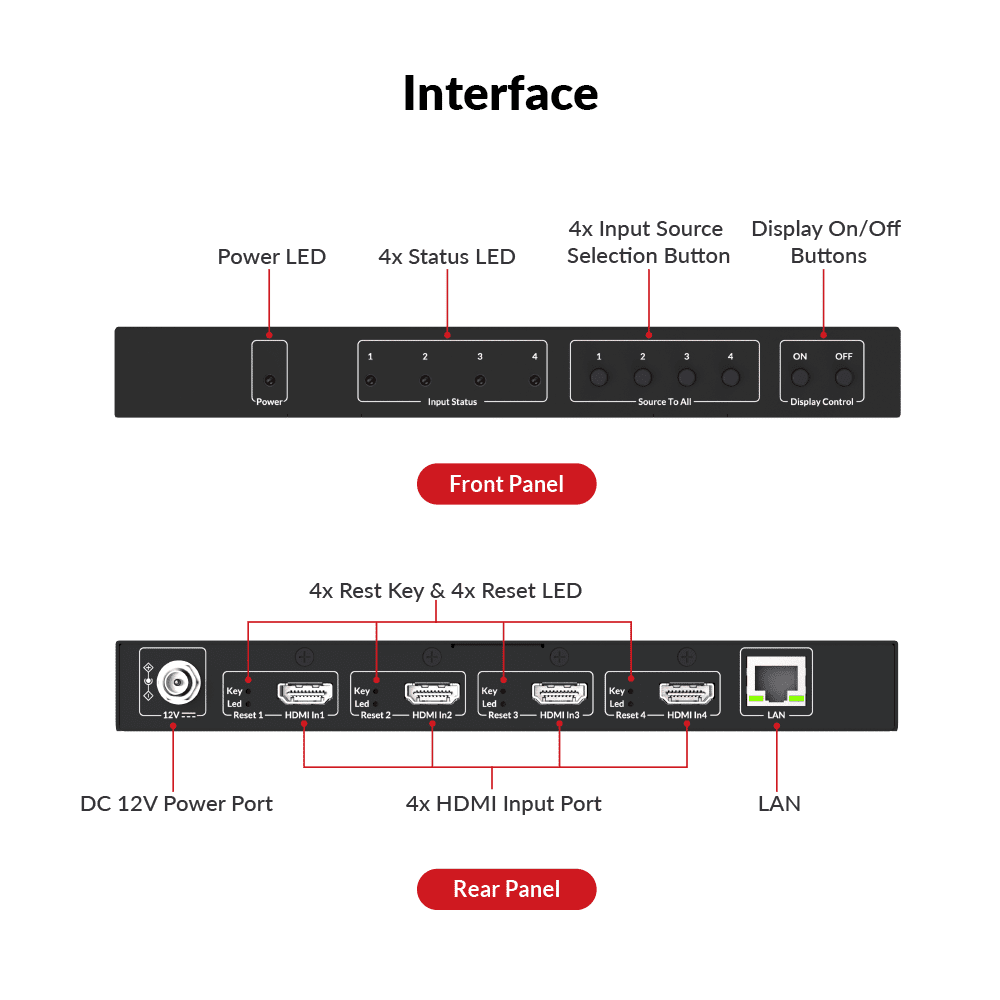

Intuitive Panel Control Buttons
This new 4K HDMI over IP encoder is built with 4x “Source to All” button on the front panel, so you can easily distribute one source to all decoders at once. Besides, the built-in display on/off buttons allow you to turn on/off all the connected remote display devices in your bars. No need to install any software. No complicated settings. Just press a button with confidence.
Compatible with Various Devices
You can install the “VDirector” App on your mobile devices for visual control, including iPhone and iPad, Android smartphone and tablet, Windows PC and tablet, etc. Now it is easier than ever to build a distributed IP matrix just on your palms.
Notes:
1. For visual control on your smartphone/tablet, you need to install an additional wireless router for signal transmission.
2. For the visual control app, you can input and search “VDirector” in App Store or Google Play to install the iOS/Android version. You can also scan the QR code in the user manual to download. For Windows version, please click this link to download.
Specifications
| Video | |
| Input Port | 4 x HDMI |
| Input Resolutions | up to 3840x2160p@30Hz |
| Output Port | 1 x LAN |
| Output Resolutions | up to 3840x2160p@30Hz |
| Video Protocol | H.265 |
| Audio | |
| Input Port | 4 x HDMI |
| Output Port | 1 x LAN |
| Audio Format | MPEG4-AAC Stereo |
| Control | |
| Control Method | Front Panel Buttons, VDirector App (IOS/Android/Windows Version) |
| General | |
| Power Supply | DC12V 3A |
| Power Consumption | 14W (Max) |
| Dimensions (W x H x D) | 215mm x 25mm x 260.2mm/ 8.46” x 0.98” x 10.24” |
| Net Weight | 1.40kg/3.08lbs |
| Video | |
| Input Port | 4 x HDMI |
| Input Resolutions | up to 3840x2160p@30Hz |
| Output Port | 1 x LAN |
| Output Resolutions | up to 3840x2160p@30Hz |
| Video Protocol | H.265 |
| Audio | |
| Input Port | 4 x HDMI |
| Output Port | 1 x LAN |
| Audio Format | MPEG4-AAC Stereo |
| Control | |
| Control Method | Front Panel Buttons, VDirector App (IOS/Android/Windows Version) |
| General | |
| Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C), 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing |
| Power Supply | DC12V 3A |
| Power Consumption | 14W (Max) |
| ESD Protection | Human body model: ±8kV (air-gap discharge)/±4kV (contact discharge) |
| Dimensions (W x H x D) | 215mm x 25mm x 260.2mm/ 8.46” x 0.98” x 10.24” |
| Net Weight | 1.40kg/3.08lbs |

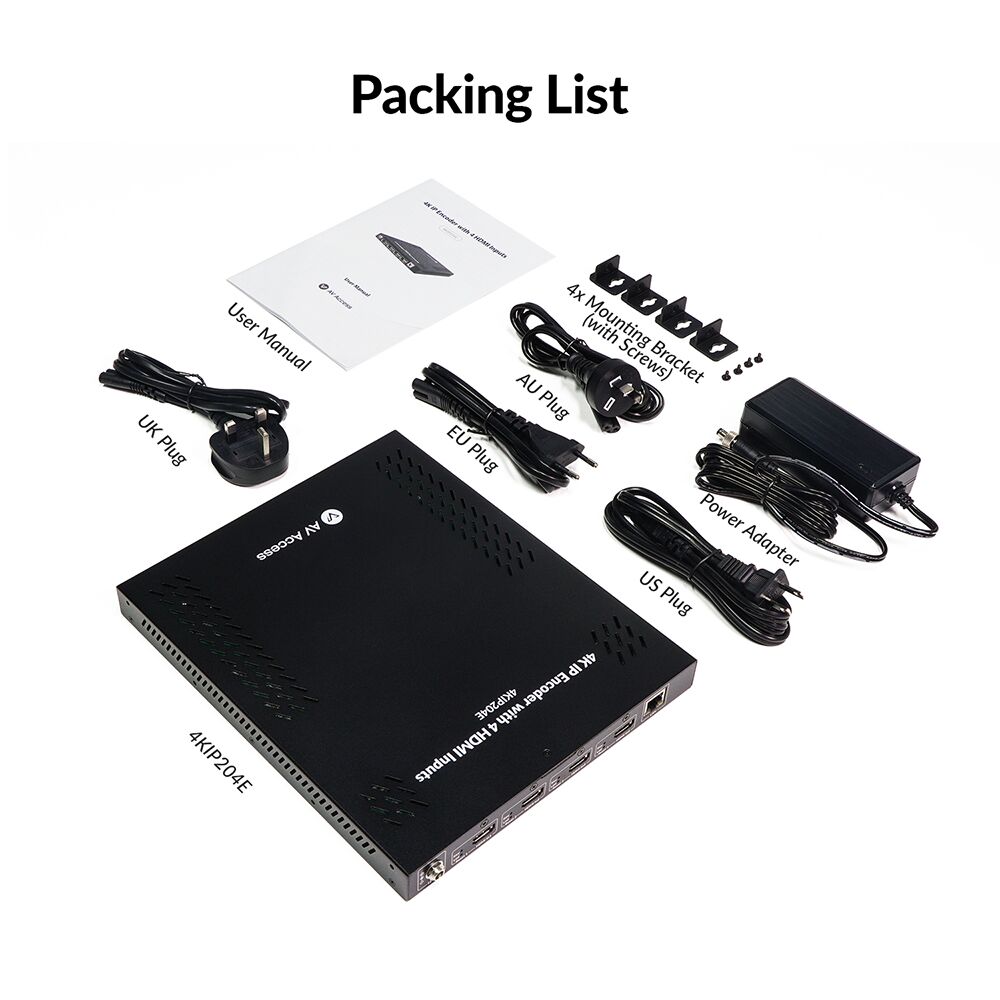

In the Box
- 1x HDMI over IP Encoder
- 1x Power Adapter (DC12V 3A)
- 4x Mounting Brackets with Screws
- 1x User Manual
Frequently Asked Questions
1. What is AV over IP?
AV over IP stands for “Audiovisual over Internet Protocol”. It is the transmission of audio, video and control signals over a network cable infrastructure, like WAN, LAN or the Internet. Different from conventional analogue AV environments, AV over IP commonly refers to the use of standard network equipment to switch and transmit audio/video signals.
2. What are the benefits of AV over IP?
Compared with traditional AV solutions, AV over IP solutions boast more flexibility and scalability. The number of sources and displays attached is no longer limited. Even when physical ports run out, multiple IP switches can be connected to expand. They also break the distance barriers and allow you to have better ratio of inputs to outputs.
To learn more, please refer to the blog “What Are the Benefits of AV over IP? How Secure Is It?”.
3. What is the main difference between 4KIP204E and 4KP200E HDMI over IP Encoder?
Different from 4KIP200E 4K IP encoder, 4KIP204E supports 4x HDM Input, so you can distribute four 4K HDMI signals to a 4KIP200D decoder up to 394ft/120m away.
4. What are the main features of the 4KIP204E IP encoder?
This 4K HDMI over IP encoder is easy-to-use and plug-n-play. It can work easily with any universal managed or unmanaged Ethernet switch on the market. It features 4-in-1 design, easy visual control, H.265 codec, intuitive panel control buttons, etc.
5. Where can I use this 4KIP204E AV over IP encoder?
This easy-to-use and plug-n-play 4KIP204E & 4KIP200D AV over IP solution features matrix switching, video wall and visual control. It is ideal for wide applications like sports bar, restaurant, shopping mall, retail store, house of worship, casino, college and university, etc.
6. What Is HDMI over Ethernet?
HDMI over Ethernet, also know as HDMI over IP, is a technology that allows users to extend HDMI signals over long distances using Ethernet cables.
It is a method of transmitting audio and video signals over a network. It involves sending HDMI signals from a source device, such as a Blu-ray player or computer, to a display, such as a TV or projector, through an Ethernet cable.
