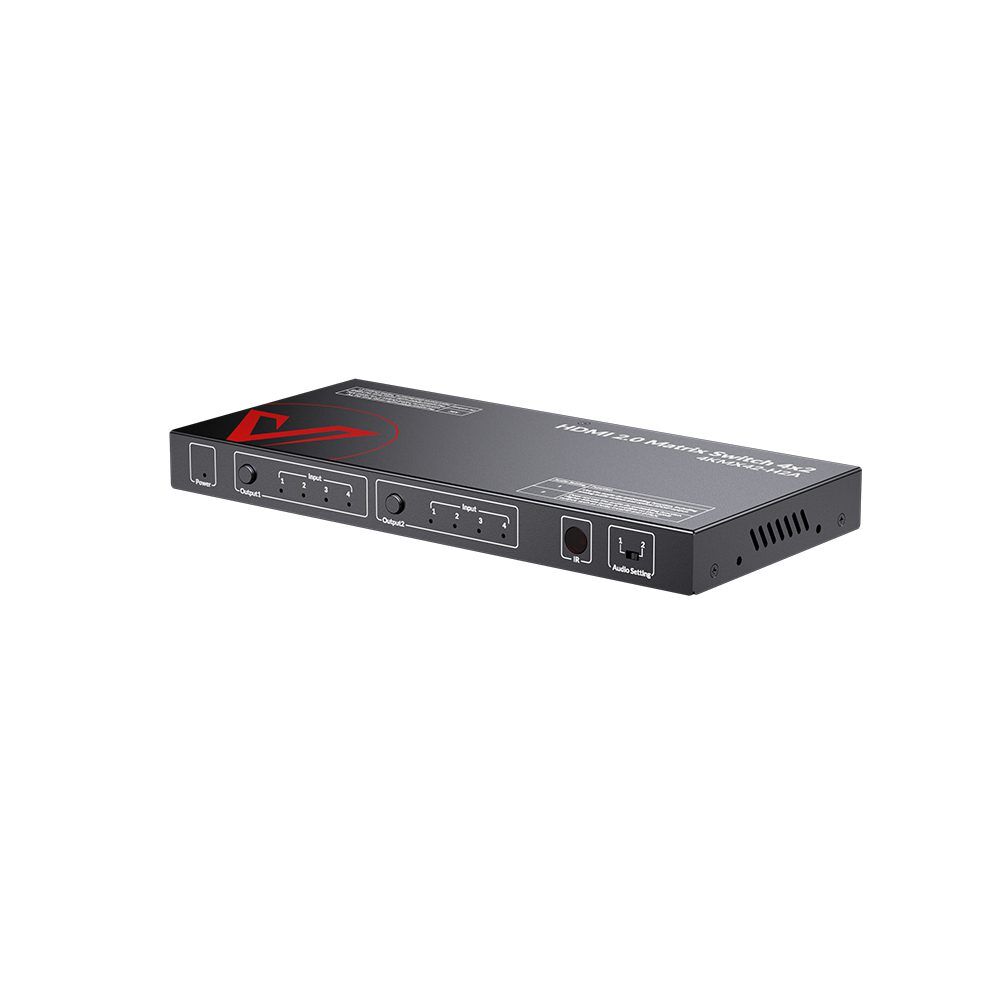

4×2 4K HDMI Matrix with Latest Scaler Technology, ARC and Audio Extraction
SKU: 4KMX42-H2A$99.99
Partner Discounts | Free Quote
4 IN 2 OUT with 4K@60Hz:
Send any of 4 HDMI inputs to output 1 and/or output 2. Two outputs’ videos can be different or the same. Support HDR10 & Dolby Vision & HLG (Hybrid Log Gamma).
ARC & Audio Extraction:
Audio DIP switch on output2: ARC & De-embed allows ARC function or Audio extract accordingly. S/PDIF OUT: Support PCM 2.0/5.1, Dolby digital and DTS up to 5.1 CH.
Each output supports scaling from 4K to 1080P independently:
To get Dolby Atmos and Dolby Vision in sync, please ensure TV and Receiver supports them both. Automatic/manual CEC control to TURN ON/OFF the TV.
Easy Control:
Include button controls and IR remote, RS-232. If user need to control the matrix through RS232 serial communication. Complete documented API provided on manual.
In stock
Newest 4×2 4K HDMI Matrix Switch with ARC Function

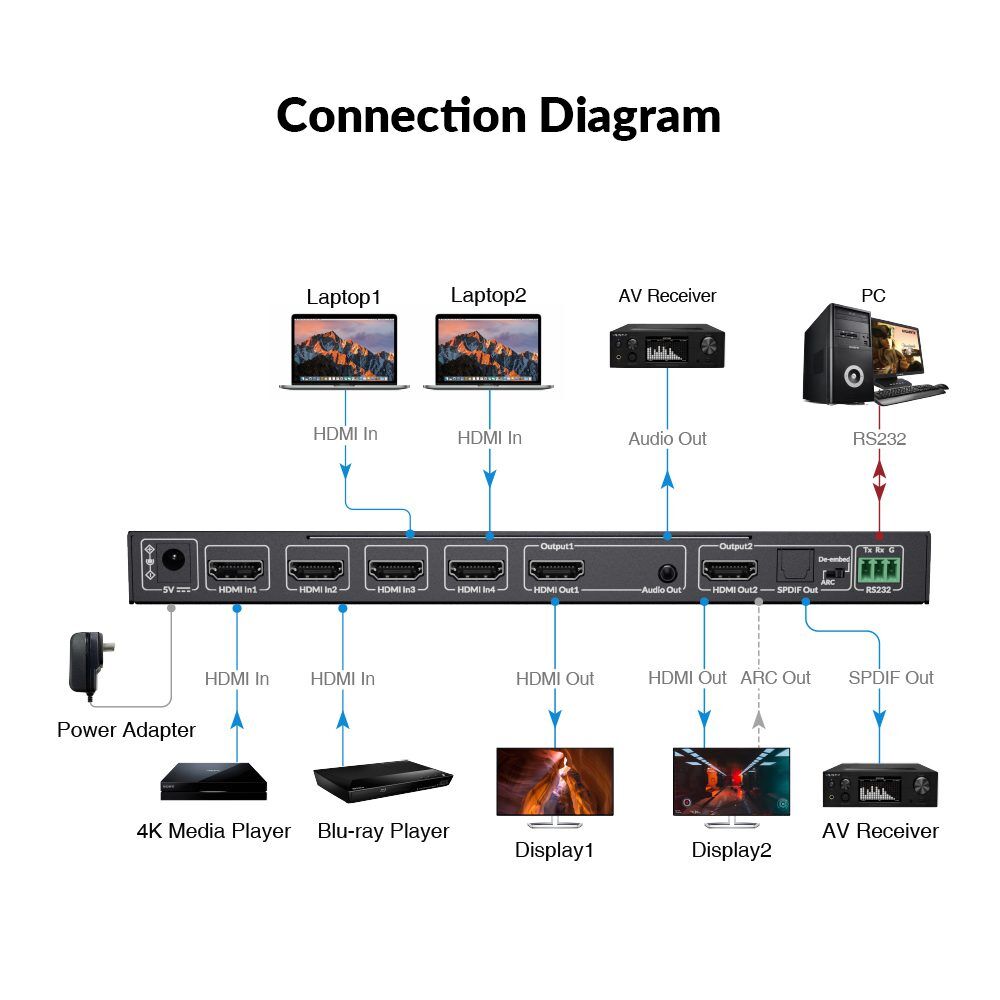

4KMX42-H2A is a 4×2 4K HDMI matrix switch with HDCP 2.2 compatibility, it allows up to four Ultra HD 4K sources to be independently routed to two Ultra HD displays. It features resolutions up to 4K@60Hz 4:4:4 8-bit. It supports digital optical audio de-embedding from output 2 and analog audio de-embedding from ouput1. The switcher also supports ARC function on output2. It supports matrix switching control through IR and API commands, EDID management via RS232 interface is also provided, it also allows automatic/manual CEC control to TURN ON/OFF the connected display by input signal status detection.
Main Features:
- Routes four HDMI sources to two 4K HDR Ultra HD displays
- HDCP 2.2 compliant
- Supports up to 4K Ultra HD and DCI resolutions(4096×2160@60Hz)
- Each output supports scaling from 4K to 1080P independently
Analog audio de-embedded from output 1 - Digital audio de-embedded from HDMI output 2 or HDMI ARC from TV
- Supports 12-bit Deep Color, 3D, Lip Sync and loss-less HD audio formats pass through
- Rich control options, include RS-232, IR and push button controls
Newest 4×2 HDMI Matrix Switcher with ARC Function
4KMX42-H2A is a 4×2 HDMI matrix switcher with HDCP 2.2 compatibility, it allows up to four Ultra HD 4K sources to be independently routed to two Ultra HD displays. It features resolutions up to 4K@60Hz 4:4:4 8-bit. It supports digital optical audio de-embedding from output 2 and analog audio de-embedding from ouput1. The switcher also supports ARC function on output2. It supports matrix switching control through IR and API commands, EDID management via RS232 interface is also provided, it also allows automatic/manual CEC control to TURN ON/OFF the connected display by input signal status detection.
Main Features:
- Routes four HDMI sources to two 4K HDR Ultra HD displays
- HDCP 2.2 compliant
- Supports up to 4K Ultra HD and DCI resolutions(4096×2160@60Hz)
- Each output supports scaling from 4K to 1080P independently
Analog audio de-embedded from output 1 - Digital audio de-embedded from HDMI output 2 or HDMI ARC from TV
- Supports 12-bit Deep Color, 3D, Lip Sync and loss-less HD audio formats pass through
- Rich control options, include RS-232, IR and push button controls
4K Ultra-HD Image
With four input ports and two output ports, the matrix switcher reliably distributes four HDMI source signals to up to two HDMI displays. It supports resolutions up to 4K@60Hz (4:4:4) 18Gbps, delivering ultra-HD visual feast.
Audio Return Channel

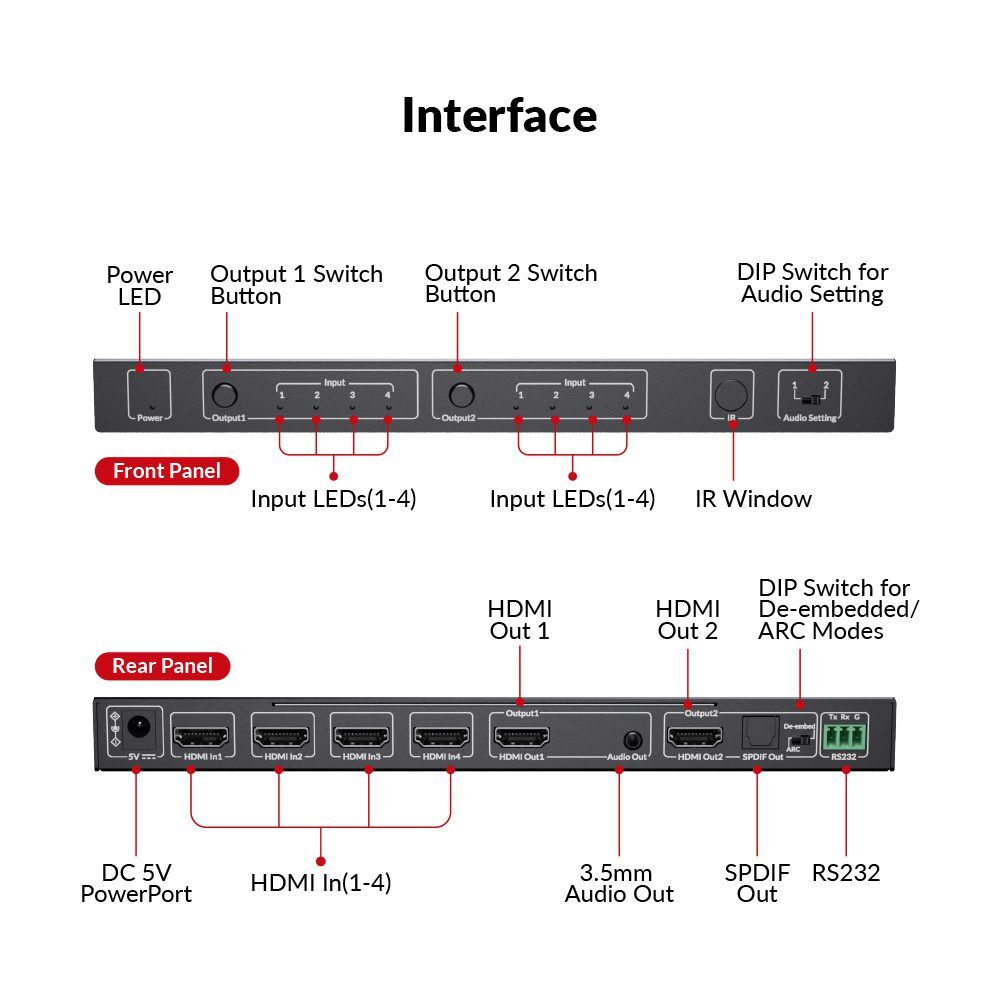

With the DIP switch on the device, you can configure the ARC channel fed by TV (with ARC support). It can save you money, reduce your cable clutter and simplify your installation.
Note: Only output 2 supports ARC mode.
Audio Return Channel
With the DIP switch on the device, you can configure the ARC channel fed by TV (with ARC support). It can save you money, reduce your cable clutter and simplify your installation.
Note: Only output 2 supports ARC mode.
Excellent Audio Enjoyment
The matrix switcher supports PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS HD Master Audio and DTS:X, etc., so it can work perfectly with AV receiver, home cinema, speaker, amplifier, etc. to bring you wonderful audio experience.
4K-to-1080P Downscaler
Route your 4K video sources to 4K displays and 1080P displays simultaneously via downscaling. Mixed output resolutions offer you the flexibility to distribute your display economically and save more cost.
4K-to-1080P Downscaler
Route your 4K video sources to 4K displays and 1080P displays simultaneously via downscaling. Mixed output resolutions offer you the flexibility to distribute your display economically and save more cost.
Wide Applications
With its compact and handy design, the matrix switcher is ideal for wide applications, such as offices, schools, conferences rooms, shopping malls, hotels or museums, which require the distribution of an HDMI source signal to multiple displays.
Comparison Chart of Related Products
4KMX42 | 4KMX42-H2A | 4KMX44-H2 | |
Number of input/output ports | 4x2 | 4x2 | 4x4 |
Supported Max Video Resolution | 4K@30Hz | 4K@60Hz (4:4:4 8bit) | 4K@60Hz (4:4:4 8bit) |
HDMI | 1.4 | 2 | 2 |
HDCP | 1.4 | 2.2 | 2.2 |
IR Control | Yes | Yes | Yes |
RS232 | No | Yes | Yes |
HDR | No | 4K60Hz | 4K60Hz |
CEC | Yes | Yes | Yes |
ARC | No | Yes | No |
Specifications
Technical | |
Input | 4 x HDMI IN (Type-A female connector) |
Output | 2 x HDMI OUT (Type-A female connector) |
Video Signal Type | HDMI with 4K@60 4:4:4, HDR 10, HLG & Dolby Vision, HDCP 2.2 |
Input/Output Resolution Supported | VESA: 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008 SMPTE: 720x576P6, 1280x720P6,7,8, 1920x1080P2,5,6,7,8, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8 2 = at 24 Hz, 3 = at 25 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz |
Audio Format Supported | HDMI IN/OUT: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTSHD Master Audio and DTS:X AUDIO OUT: Only support PCM 2.0; S/PDIF OUT: Support PCM 2.0/5.1, Dolby digital and DTS up to 5.1 Channel. |
Maximum Data Rate | 18 Gbps |
Control Method | IR, RS232, Front Panel Button |
General | |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 10% to 90%, non-condensing |
ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
Power Supply | DC 5V 1A |
Power Consumption (Maximum) | 3.3W |
Device Dimension (W x H x D) | 220mm x 21mm x 100.2mm/ 8.66’’ x 0.83’’ x 3.94’’ |
Product Weight | 0.48kg/1.06lb |

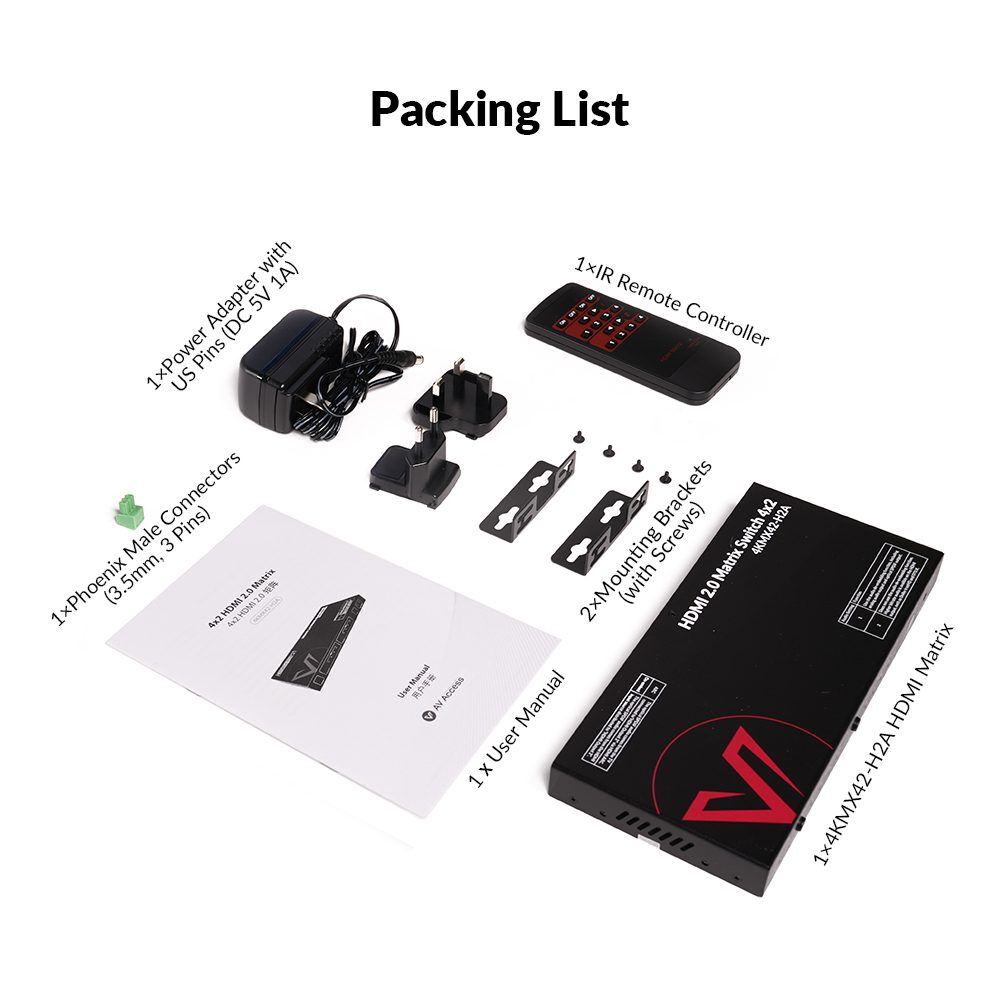

In the Box
- 1 x 4KMX42-H2A
- 1 x Power Adapter with US Pins (DC 5V 1A)
- 1 x IR Remote
- 1 x Phoenix Male Connectors (3.5mm, 3 Pins)
- 2 x Mounting Brackets (with Screws)
- 1 x User Manual
Documents & Softwares
Troubleshooting FAQ
- Check if the corresponding “HDMI Out 2” port is outputting sound. If not, you need to check if there is any sound transmitted from the input source.
- If there is sound from “HDMI output 2” port, try setting the corresponding input source’s audio format to PCM or DD 5.1.
- Check if you have connected the corresponding “HDMI Out 2” port to the TV via its HDMI ARC port.
- Check if you have selected an external device as the TV’s speaker.
- Try setting the TV’s audio format to PCM or DD 5.1.
- Check if your soundbar has an extra independent HDMI input port, in addition to the common HDMI ARC port. If it has one, you can try connecting to this independent HDMI input port. If it doesn’t have one, you can connect your TV to the “HDMI Out 2” port first, then connect the soundbar to the TV via HDMI ARC port. Please don’t connect the soundbar to the matrix switch directly via HDMI ARC port, as this port can only be connected to a TV.
- Please note that the matrix switch, through its “HDMI Out 2” port, can only output HDMI (both audio and video) signal to the soundbar, but cannot output HDMI ARC signal to the soundbar.
- This is how the matrix switch’s HDMI ARC function works: The TV connected to the “HDMI Out 2” port returns audio back to the matrix switch via HDMI ARC, then the audio can be de-emdeded to the S/PDIF output port.
- Check if the corresponding input source has been switched to the corresponding output port.
- Try restarting the matrix switch to check if it helps.
- Check your HDMI cables, or use new cables.
- Try connecting the source to the display device directly, without using the matrix switch. Then check if there is any video output.
- Swap the HDMI cables for the two output ports to check if it helps.
- Set the input source’s resolution to 1080P.
- Check if the corresponding “HDMI Out 1” port is outputting sound. If not, you need to check if there is any sound transmitted from the input source.
- If there is sound from “HDMI output 1” port, try setting the corresponding input source’s audio format to “PCM”.
- Check if the battery has run out of power.
- Check if the battery is installed correctly and on the right position.
- When you use the remote controller, it needs to be directly facing the IR receiving window on the front panel of the matrix switch.
- Try using a pin to press the “System Code Switch” button on the bottom right corner of the remote controller to modify the IR system code.
- Please note that the ON/OFF buttons on the remote controller are used to control the on/off of the two connected TVs, instead of the matrix switch itself.
- Check if the connection method of the RS232 cable between the matrix switch and the control PC/system is correct. It should be “TX-RX, RX-TX, GND-GND”.
- Try restarting the matrix switch to check if you can receive restarting feedback from the device. In this way, you can check if the RS232 settings are correct.
- Check if you can add the terminators “CR”and “NL” in the command sender.
- Ensure you have inputted the correct command.
Other FAQ
An HDMI matrix switch is a device that can distribute and control HDMI audio and video signals from one or more input sources (such as PCs, Blu-ray players and surveillance cameras) to one or more output sources (such as TVs, monitors and projectors).
With four HDMI inputs and two HDMI outputs, the 4KMX42-H2A 4×2 matrix switch is ideal for many home and work applications. For example, switch between 1-4 channels of playback content in your living room and bedroom as you wish. Or you can use it for work/study/play computer switching.
By interface, we have 4×2 matrix switches and 4×4 matrix switches.
Yes, the 4KMX42-H2A 4×2 matrix switch is compatible with HDCP 2.2.
Yes, with the DIP switch on the device, you can configure the ARC channel fed by TV. But only the output 2 supports ARC mode.
