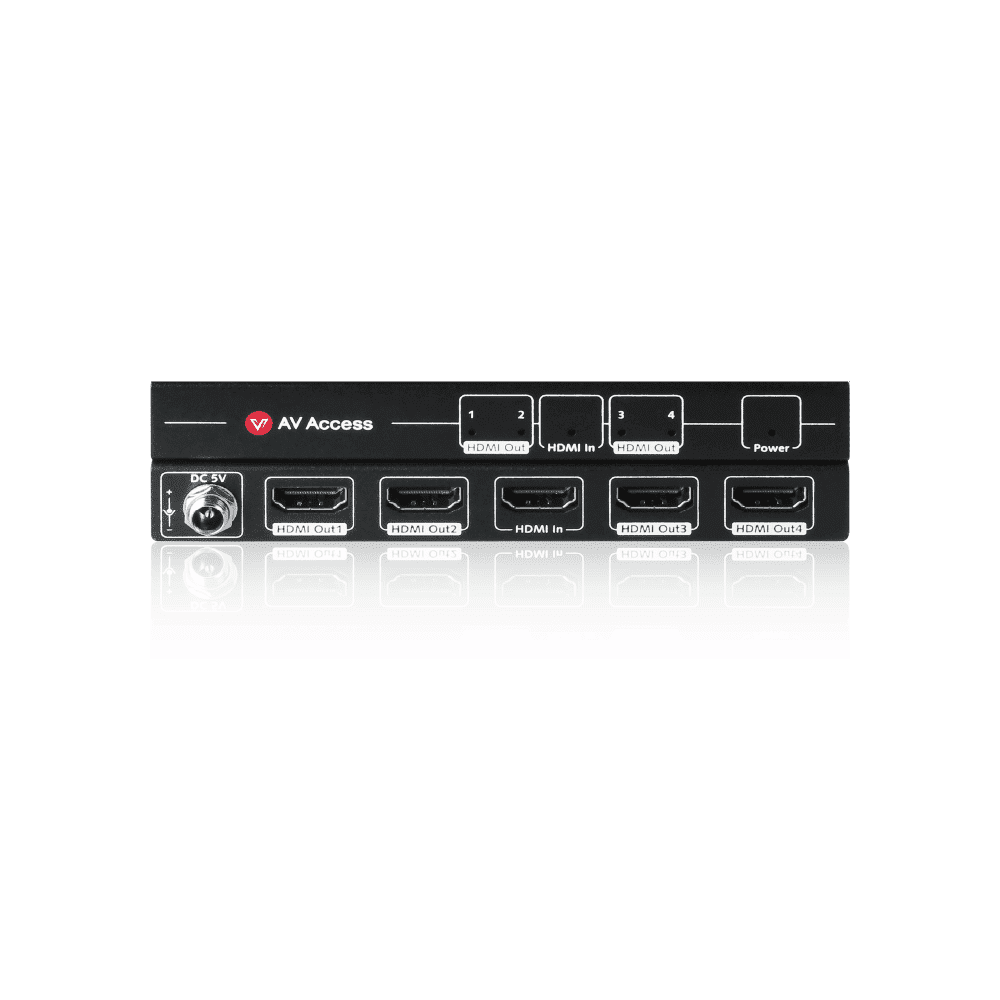

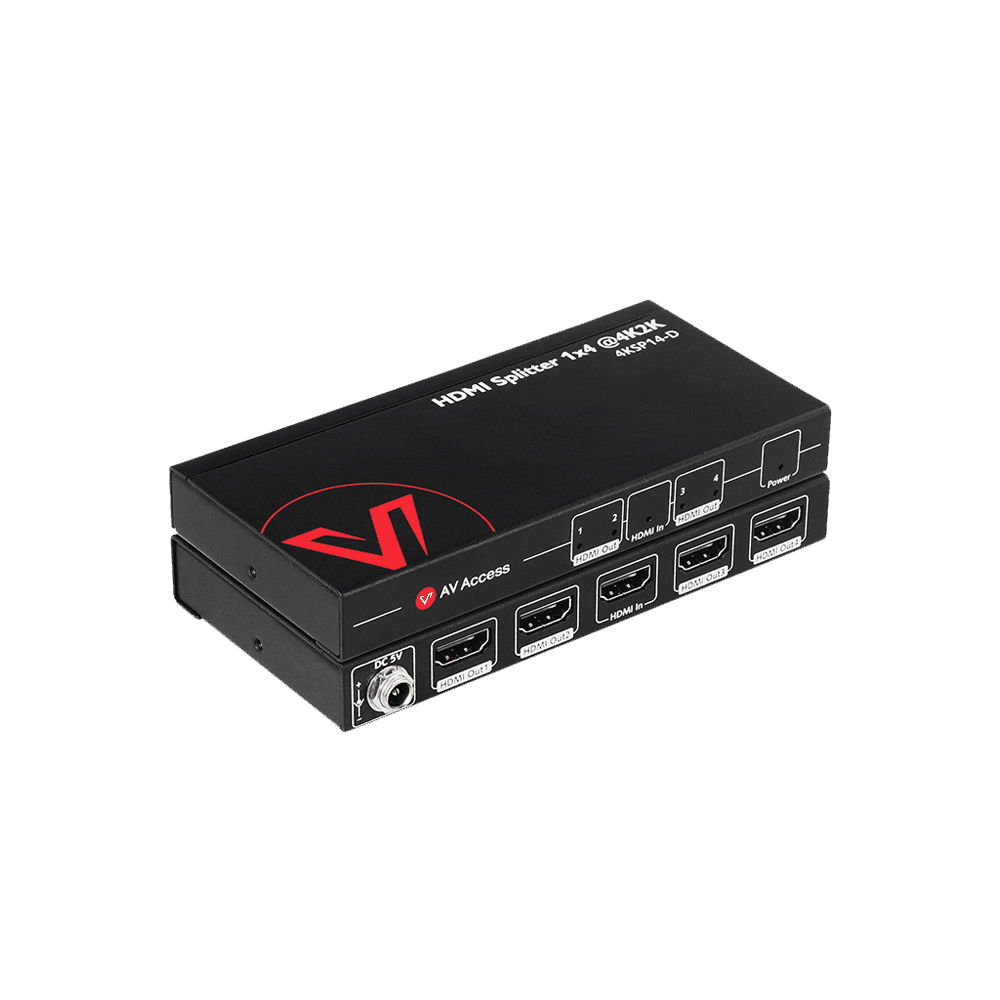

4K HDMI Splitter 1 In 4 Out, 3D, Auto EDID, Highly Quality Threaded Power Supply
SKU: 4KSP14-D
$35.99
Partner Discounts | Free Quote
Distributes One HDMI Signal to Four Displays Simultaneously:
Only out put the lowest resolution that all connected devices support. If you need 4K signal, all displays must be 4K.
Excellent 4K Video & Audio:
Supports up to 4K@30Hz with automatic EDID management. Audio supports Dolby DTS 2.1/5.1/7.1CH, PCM7.1, Dolby True-HD, DTS-HD Master Audio.
Delicate Design and Easy Installation：
Small metal casing with threaded power adapter and mounting ear makes it fit in anywhere.
In stock
Economical 1×4 4K HDMI Splitter
The 4KSP14-D is a 1×4 4K HDMI splitter, which reliably distributes one HDMI input signal to four outputs at resolutions up to 4K@30hz. It follows HDCP 1.4 and HDMI 1.4a specifications, and supports PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio. With its compact design and reliable performance, it is an ideal device for video distribution in both home and business applications.
Main Features:
- Slim design, space saving
- Smart EDID management
- Standard 4 layers PCB design
- Supports HD resolutions up to 4K@30Hz
- Superior ESD protection
4K Ultra-HD Image
With one input port and four output ports, the compact HDMI splitter reliably distributes one HDMI input signal to four outputs at resolutions up to 4K@30Hz, delivering ultra-HD visual feast.
Excellent Audio Enjoyment
The splitter supports audio formats such as PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio, so you can get fantastic audio experience.
High Compatibility
The splitter supports HDCP1.4, so it is compatible with different popular HDMI devices, such as PS3/ PS4, Blu-ray DVD, Apple TV, Xbox one, Roku 4 Media Player, UHD TV, etc.
Specifications
| Model | 4KSP14-D |
|---|---|
| Technical | |
| Input/Output Signal Type | HDMI 1.4a, 3D, DVI 1.0, HDCP 1.4 |
| Input/Output Resolution Supported | 4096 x 2160@24Hz, 3840 x 2160@30Hz, 1920 x 1080@30/60Hz, 1280 x 720@60Hz, 720 x 576@30/60Hz, 640 x 480@30/60Hz |
| Audio Format | Stereo, PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio |
| Maximum Data Rate | 10.2Gbps |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113 °F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158 °F) |
| Humidity | 10% to 90%, non-condensing |
| Power Consumption (Maximum) |
1080P: 1.4 W; 4K: 2W |
| Power Input | DC 5 V 1A |
| ESD Protection | ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
| Device Dimensions | 6.56″ x 0.71″ x 2.58″/ 166mm × 18mm × 65.2mm |
| Product Weight | 0.57lb/0.26kg |

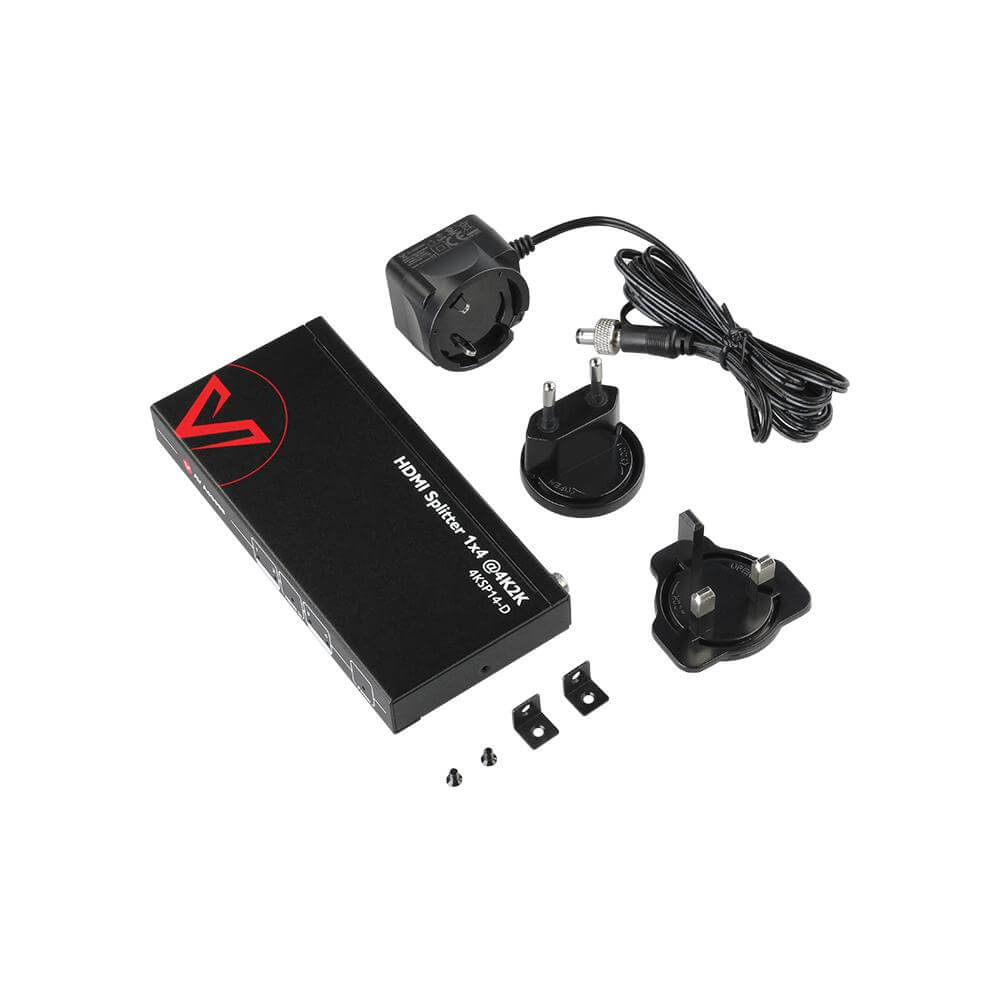

In the Box
- 1x 4KSP14-D HDMI Splitter
- 1x Power Adapter (DC 5V 1A)
- 2x Mounting Brackets (with Screws)
- 1x User Manual
1. What is an HDMI splitter?
An HDMI splitter is a device that can split the signal from a single source device to facilitate simultaneous connection to multiple displays.
2. Does the 4KSP14-D HDMI splitter support HDCP?
Yes, the 4KSP14-D HDMI splitter is compatible with HDCP 1.4.
3. What are the main differences between 4KSP14-S and 4KSP14-D?
The 4KSP14-S supports resolutions up to 4K@60Hz 4:4:4, follows HDCP 2.2 and HDMI 2.0b specifications, and has auto-scaling capabilities. The 4KSP14-D supports resolutions up to 4K@30Hz, follows HDCP 1.4 and HDMI 1.4a specifications, and does not feature auto-scaling.
4. What are the differences between an HDMI splitter and an HDMI switch?
The HDMI splitter is used to connect a single signal source and output it to multiple displays. And the HDMI switch is used to distribute and control multiple sources to a single display.
5. Where can I use HDMI splitters?
When you want to display the output of one audio/video device to multiple devices, you can use an HDMI splitter. If your TVs are in different rooms, or if you have a TV for daytime viewing and a projector for nighttime viewing in the same room, you can use an HDMI splitter. If the distance is long, you can use it with an HDMI extender.
6. Does the 4KSP14-D HDMI splitter support CEC passthrough to both output ports?
Sorry it does not support CEC.
7. What's EDID?
EDID is like an identity of a display that records information such as the display dimensions/screen size, original resolution, color properties, frequency range limits, etc. When the source device gets this information, it can deliver the image of certain specs accordingly. Learn more about EDID.
Kelly.W –
1×4 HDMI Splitter, great quality and highly recommended!
1×4 HDMI Splitter, great quality and highly recommended!
AV Access 1×4 HDMI Splitter
AUDIO/VIDEO EQUIPMENT:
1) Sony KDL-55HX701 55″ Bravia LCD 1080P HDTV (240Hz)
2) Vizio M49C1 49” 4K Ultra HDTV (120Hz)
3) Comcast/Xfinity X1 DVR Cablebox
4) Sony PS3 “Fat” (backwards comptatible) and PS3 “Slim”
5) HTPC with GTX 750Ti / ASUS Bluray Optical / Corel Bluray Software
6) Sony STR-DA5700ES A/V Receiver
TESTING METHODOLOGY:
I tested about 16 hours total over the weekend and another 12 hours total during the weekdays. Multiple versions of 1.4 thru 2.0 HDMI cables were used (Amazon and Monoprice brands).
In using this 1×4 HDMI splitter, every single piece of A/V equipment not only worked, but worked well. The signal looked clean on 4K and 1080P HDTVs, didn’t see any pixilation and didn’t notice any poor picture quality. I watched HD content on the Comcast/Xfinity Cablebox, both recorded on DVR and live shows. The picture quality seemed equally good whether a splitter was used or not. Same result watching bluray movies and streaming HD-content from YouTube, Netflix, and Crunchyroll on my custom-built HTPC (hard-wired Cat7 ethernet cable). There were absolutely no problems to report in terms of picture quality.
Although, I should mention that at one point the screen went black when I unplugged the PS3 “Fat” and connected the PS3 “Slim”. But after I turned off the A/V receiver and HDTV (just to be safe), then turned both back on about 30 seconds later, it started working again. This was the only minor issue that arose during my testing. Funny, tried to duplicate the black screen problem by unplugging the PS3 “Slim” and connecting the PS3 “Fat” again with both the TV and receiver still powered on, but it detected the device and started working right away. Go figure.
CONCLUSION:
After extensive testing, I feel that this HDMI splitter is a high-quality product. It has good weight to it, feels solidly-built, low-profile (so can be easily hidden from view), works as advertised, and I highly recommend this splitter! Also, I’ve received excellent customer service through email communication whenever I needed to contact AV Access.
If anything else occurs, I’ll update this product review. Thanks for taking the time to read my review.
