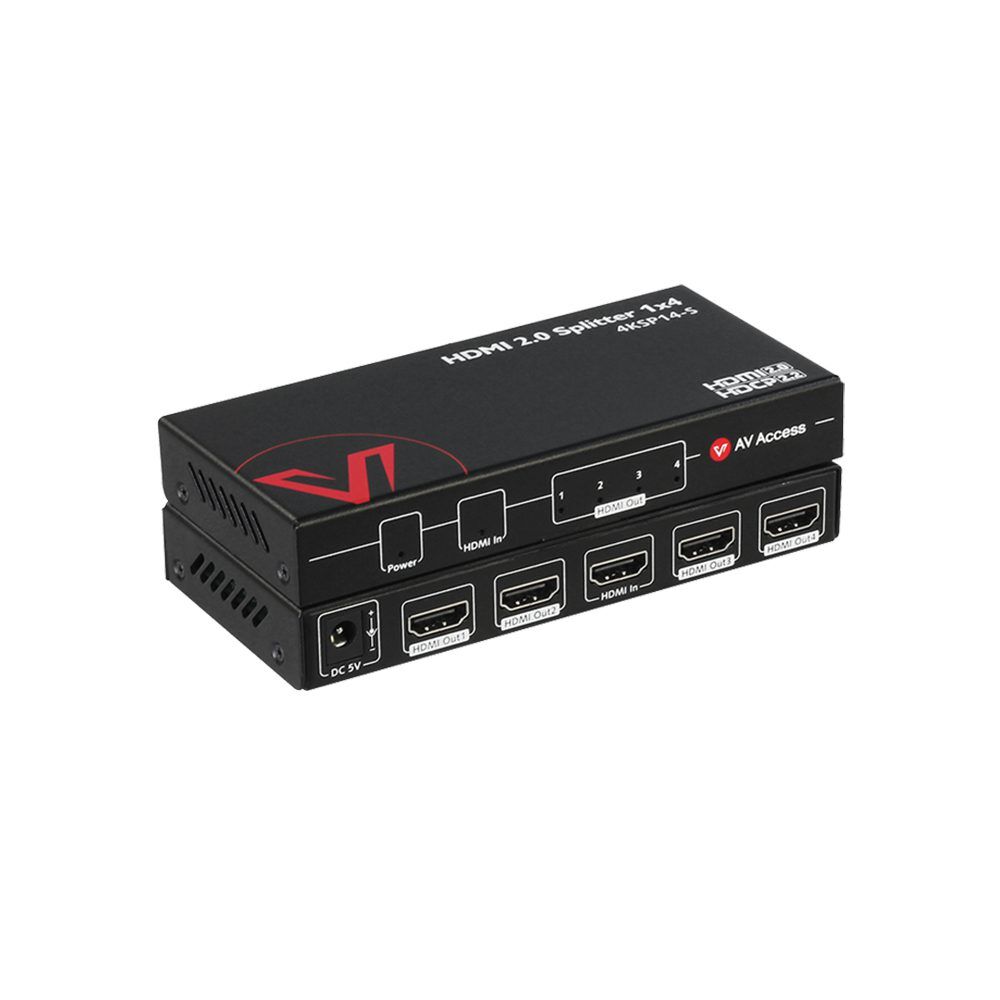

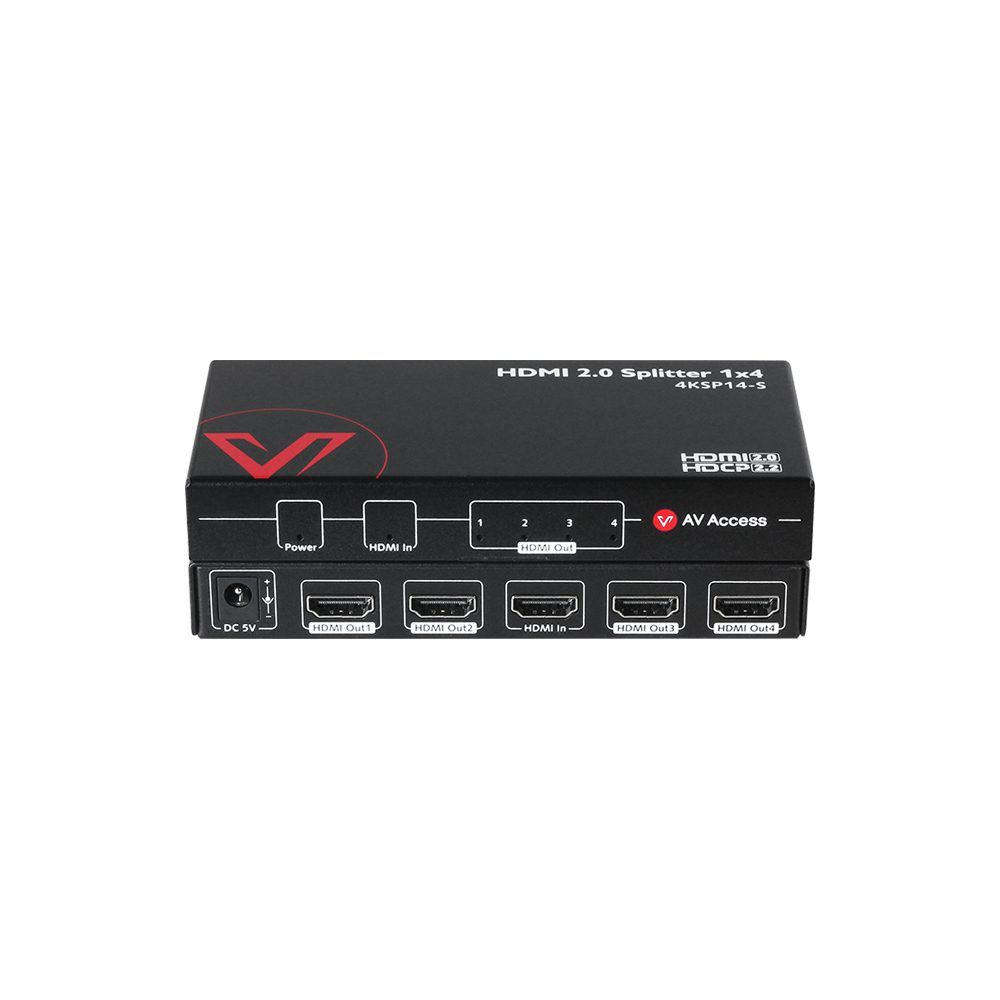

The 4KSP14-S is a 1 x 4 HDMI splitter with scaler, reliably distributes one HDMI input signal to four outputs at resolutions up to 4K@60Hz 4:4:4 chroma subsampling. It follows HDCP 2.2 and HDMI 2.0b specifications, including supported data rates up to 18 Gbps, HDR (high dynamic range), 3D and HD lossless audio formats.
With the built-in scaler, when connected to different displays, the corresponding HDMI output is capable of scaling down automatically (down to 1080P) to feed an optimal output signal to its attached display.
The splitter provides HDCP management which continuously authenticates HDCP encryption between all devices, ensuring correct source content is output to each display. It also features automatic input cable equalization, actively conditions input HDMI signals to compensate for signal loss when using long cables or cascading multiple units.
- Distributes one HDMI input signal to four HDMI displays
- Supports HDMI 2.0b Specifications, including:
Data rates up to 18.0 Gbps ,3D
HDR
- HD lossless audio formats
- HDCP 2.2 compliant
- Each HDMI output supports scaling down to 1080P individually (fps will not change during scaling down from 4K to 1080P)
- HDMI Input and output cable length up to 10m/33ft + 15m/50ft for 4Kx2K@30Hz, up to 5m/16ft +5m/16ft for 4Kx2K@60Hz

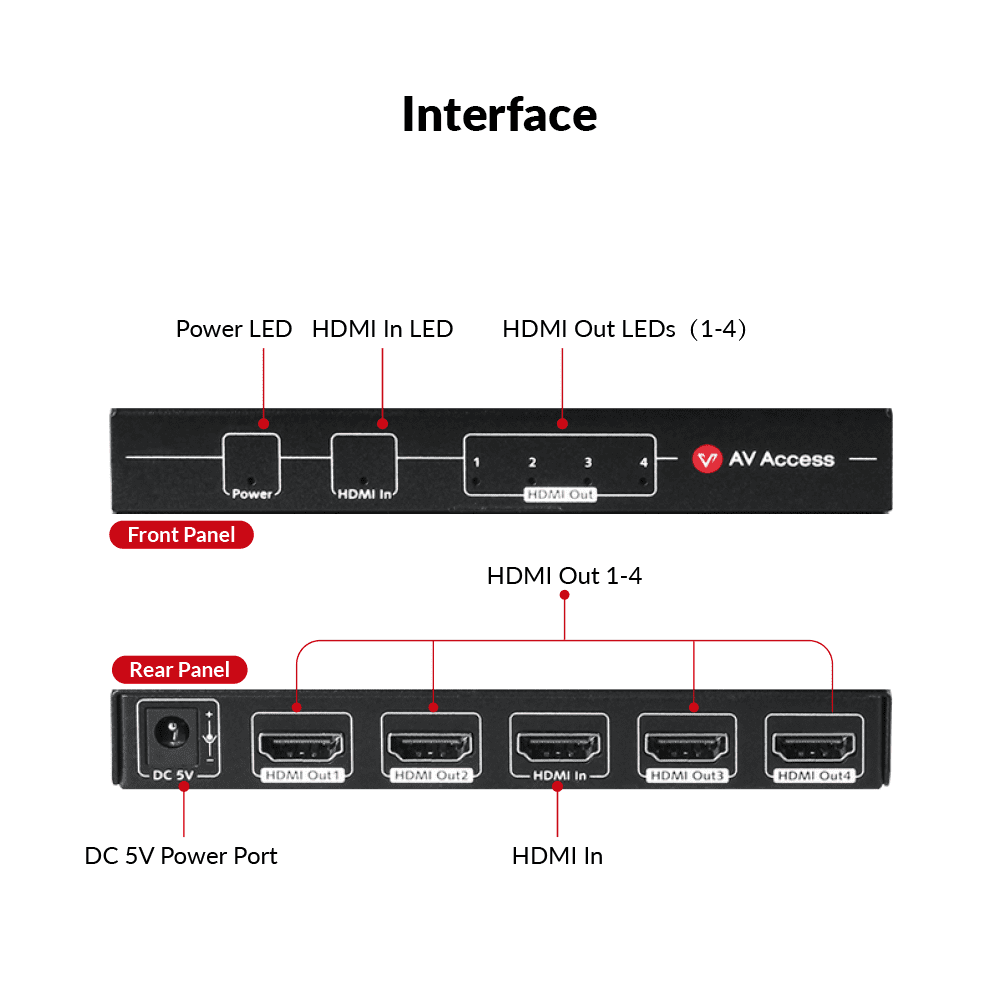

- Front panel LED indication for I/O and Power connectivity
- Automatic input cable equalization for signal regeneration compensation
| Technical | |
|---|---|
| Input | 1 x HDMI IN (Type-A female connector) |
| Output | 4 x HDMI OUT (Type-A female connector) |
| Video Signal Type | HDMI2.0, HDCP 2.2 |
| Input/Output Resolution Supported | VESA:
800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1600x9008, 1600x12008, 1680x10508, 1920x12008 SMPTE: 720x480P7,8, 720x576P6, 1280x720P6,7,8, 1920x1080P6,7,8, 3840x2160P2,3,5,6,8, 4096x2160P2,3,5,6,8 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz,6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz |
| HDR Format Supported | HDR 10, Dolby Visionbps |
| Audio Format Supported | PCM2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio |
| Maximum Data Rate | 18 Gbps |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | ±8kV (Air-gap discharge)/
±4kV (Contact discharge) |
| Power Supply | DC 5V 1A |
| Power Consumption
(Maximum) | 4K: 1.8W
1080P: 1.1W |
| Device Dimension
(W x H x D) | 140mm x 20mm x 65.2mm/
5.5’’ x 0.8’’ x 2.6’’ |
| Product Weight | 0.24kg/0.53lb |
- Product Manual
PEOPLE LOVE US
The Pixleyfly TRIO Core is so amazing! The Pixleyfly TRIO Core is so amazing!The Pixleyfly TRIO Core is so amazing!
Jamie Shelton
The Pixleyfly TRIO Core is so amazing! The Pixleyfly TRIO Core is so amazing! The Pixleyfly TRIO Core is so amazing! The Pixleyfly TRIO Core is so amazing! The Pixleyfly TRIO Core is so amazing!
Jessie Nguyen
The Pixleyfly TRIO Core is so amazing! The Pixleyfly TRIO Core is so amazing! The Pixleyfly TRIO Core is so amazing! The Pixleyfly TRIO Core is so amazing! The Pixleyfly TRIO Core is so amazing!
Martin Jackman
4K Ultra-HD Image
With one input port and four output ports, the compact HDMI splitter reliably distributes one HDMI input signal to four outputs at resolutions up to 4K@60Hz 4:4:4, delivering ultra-HD visual feast.
4K-to-1080P Downscaler
Route your 4K video sources to 4K displays and 1080P displays simultaneously via downscaling. Mixed output resolutions offer you the flexibility to distribute your display economically and save more cost.
Excellent Audio Enjoyment
The splitter supports audio formats such as Dolby Atmos, DTS: X, DTS-HD Master Audio, PCM7.1 and Dolby TrueHD, so that you can enjoy 3D and HD lossless audio effect. It supports HDCP 2.2/1.4 to prevent audio/video content from copying.
High Compatibility
The splitter is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. No more hesitation on choosing HDR or 4K@60hz for you could have both.

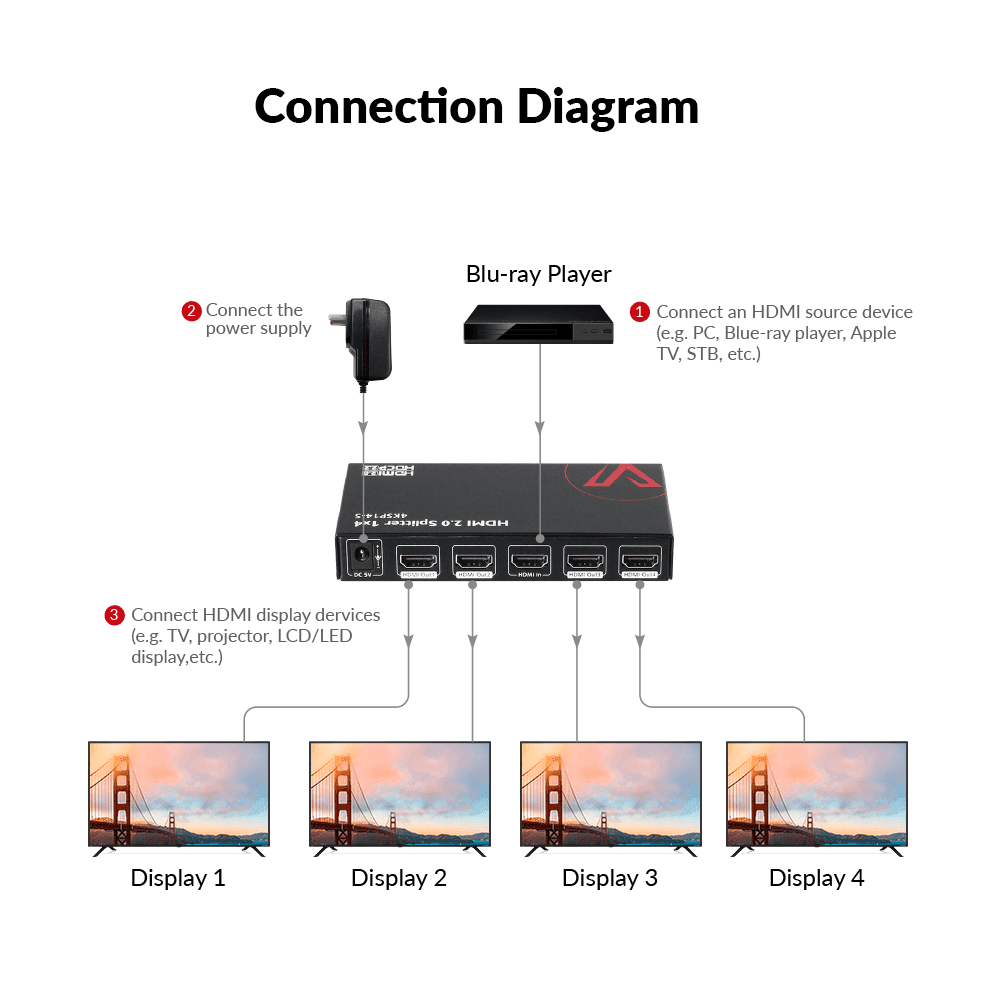

Here's a video tutorial which shows you how to install the product. Let's check it out!
