Best-Selling 2×1 4K Dual Monitor HDMI KVM Switch w/ 4x HDMI Cables, Built-in USB 3.0 Hub, Hotkey Switching, 1080P@240hz & 2560×1440@144hz, Ideal for Home office & Gaming
SKU: 4KSW21-DM-C
$159.99
Partner Discounts | Free Quote
● 2×1 Dual Monitor KVM Switch: Control two PCs with only one set of keyboard, mouse and two monitors (extended or mirror mode). It allows you to view extra screens, boosting your productivity in office work, gaming or learning.
● Two Application Modes: In addition to the “KVM mode” mentioned above, you can also toggle the switch to “USB Mode” to stream two different video sources onto the two monitors simultaneously. It lets you handle multiple tasks on two screens easily.
● Built-in USB 3.0 Hub: The two PCs can share up to three USB 3.0 peripherals like a 4K webcam, speakerphone, printer, scanner and hard disk, with a data transfer rate up to 5Gbp/s.
● 4K UHD & High Refresh Rate: Supports up to 4K@60Hz (4:4:4) 18Gbps input/output. Also supports 1080P@240Hz/165Hz/144Hz/120Hz/60Hz, and 2560×1440@144Hz/120Hz/60Hz, perfect for switching between game consoles.
● Fast and Flexible Switching: Supports switching via the front button and keyboard hotkey. Switch faster with the automatic PC wake-up and EDID emulation functions.

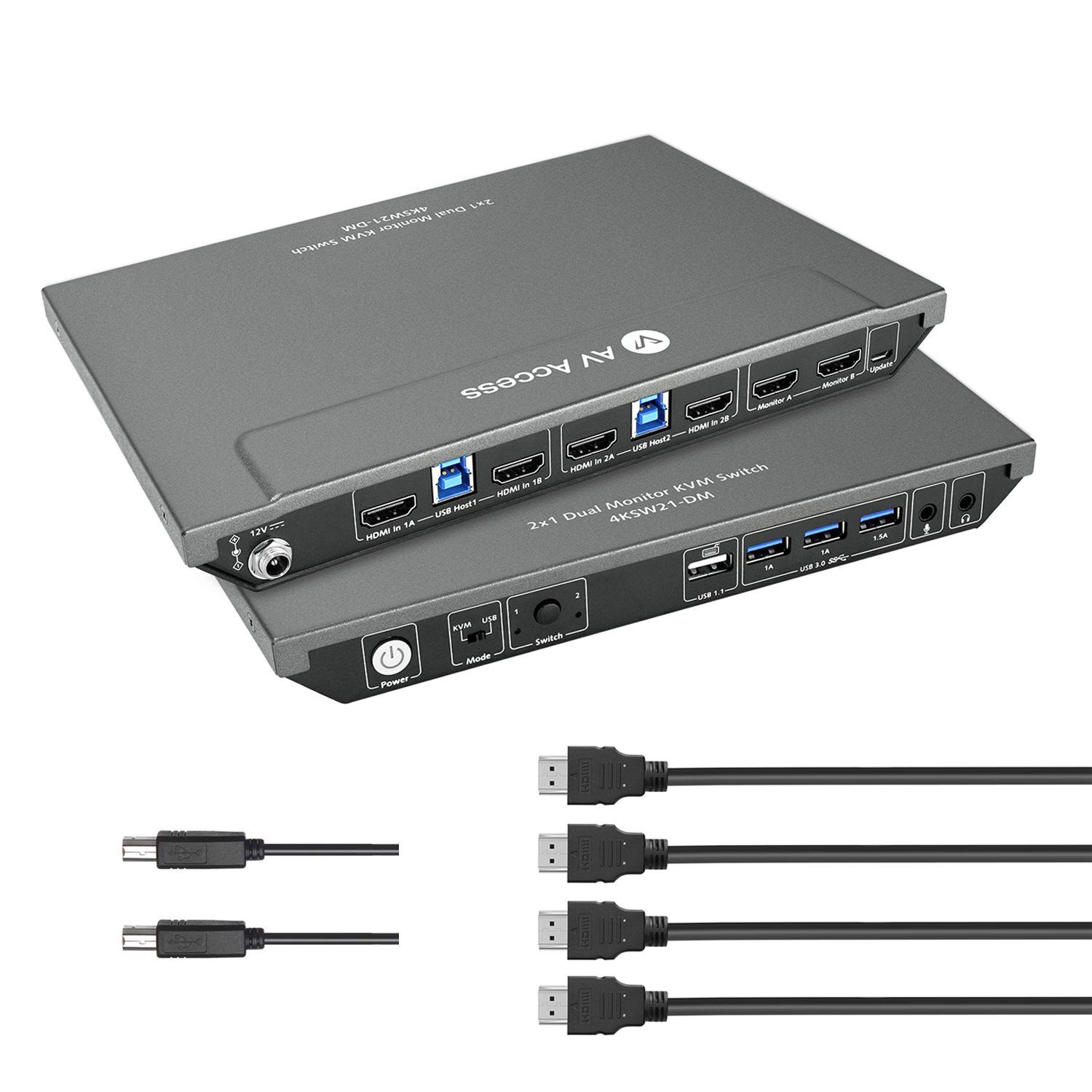

● Important Notes: This product kit is composed of 1x 4KSW21-DM KVM switch and 4x HDMI 2.0 cables (1.5m/5ft). If you don’t need HDMI cables, please refer to 4KSW21-DM.
If you’re not satisfied, we’ll refund your payment. No hassle, no risk.
Out of stock
Brand-New 2×1 4K Dual Monitor HDMI KVM Switch w/ USB 3.0 Hub and Hotkey Switching
4KSW21-DM dual monitor HDMI KVM switch is specially designed for users who have more than one PC and one monitor. It is plug and play, perfect for home office, gaming and learning. The KVM switch allows you to control two PCs with only one set of keyboard, mouse and two monitors at the same time. With just a press of the front button or a tap on the keyboard hotkey, you can easily switch between two PC sources. The two PCs can share up to three USB 3.0 peripherals. Whether in office work, gaming or learning, the dual monitor KVM switch allows you to view extra screens and maximize your productivity.
Notes:
1. If you need keyboard hotkey switching, please connect a keyboard to the KVM switch via the dedicated USB 1.1 port.
2. The KVM switch supports two application modes: KVM mode and USB mode. It can be set through DIP switch on the front panel. The device is in KVM mode by default.
Main Features:
- Dual-channel design; two input groups (each group is built with two HDMI ports).
- Video, analog audio, mouse, keyboard and other USB peripherals can be switched all at the same time.
- Built-in 3x USB 3.0 port; supports high-speed data transfer rate up to 5Gbp/s.
- Supports two application modes: KVM mode and USB mode.
- HDMI 2.0 & HDCP 2.2 compliant; support video resolution up to 4K@60Hz 4:4:4 8bit.
- Supports all HDR format, such as HDR 10, HLG, HDR 10+ and Dolby Vision.
- Supports high refresh rate, like 1080P@120hz and 2560×1440@144hz.
- Supports new-generation automatic PC wake-up function.
- Supports fast switching, based on the virtual interaction function.
- Supports front button switching and hotkey switching.
- 2x 3.5 mm audio jack for microphone input and headphone output.
- Supports CEC trigger on HDMI outputs.
- Works with various operating systems, like windows 10/8/7/XP, Mac OS and Linux.
- No driver required, plug and play.
Brand-New Dual Channel Design
The dual monitor KVM switch is built with four HDMI input ports (two HDMI in one group) and two HDMI output ports, so you can easily switch between your work PC and gaming PC, and view two monitor screens at the same time. Whether in office work, gaming or learning, it allows you to view extra screens and maximize your productivity.
Two PCs Share Three USB 3.0 Devices
The HDMI KVM switch can works as a USB 3.0 hub. It allows you to control two PCs with only one set of USB devices, such as mouse, keyboard, USB flash, 4K webcam, speakerphone, printer, scanner or other USB 3.0 devices. The data transfer rate can reach up to 5Gbp/s, 10 times faster than USB 2.0. Thus, you can easily build a powerful workstation while working from home.
Wake up Your “Sleeping” PC
You might set your personal PC to sleep or hibernate mode when it is not in use. When you switch to the PC, you don’t have to move your mouse or type on the keyboard to wake it up. The HDMI KVM switch is designed with a new-generation wake-up engine, so it can automatically wake up the PC with no manual operation required.
Switch Faster with Virtual Interaction
The dual monitor KVM switch also boasts the advanced virtual interaction function. It can automatically simulate the EDID and HDCP information of the two connected monitors. Whenever you switch between two PC sources, the virtual interaction function allows you to switch faster and work more efficiently.
Enjoy the Finest Image and Sound
With HDMI 2.0 and HDCP 2.2 compatibility, the HDMI KVM switch supports video input/output resolution up to 4K@60Hz 4:4:4 8bit. It also supports fantastic audio formats like PCM 7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X.
Wonderful Gaming Experience with 120Hz & 144Hz
For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the player’s performance. The KVM switch supports 1080P@120Hz and 2560×1440@144Hz video input/output, ensuring your game sources can be effectively switched. With the KVM switch, you can have an unprecedentedly enjoyable gaming experience.
Connection Diagram
Notes:
1. The device is in KVM mode by default.
2. When you switch to group 1, the displays connected to “Monitor A port” and “Monitor B port” will output video from HDMI In 1A and HDMI In 1B respectively. When you switch to group 2, the display connected to “Monitor A port” and “Monitor B port” will output video from HDMI In 2A and HDMI In 2B respectively.
3. You can press the front switch button or use your keyboard hotkey for both HDMI and USB signal switching.
Notes:
1. You can also toggle the switch to “USB Mode”.
2. When using this mode, you must connect your two PC sources respectively to the “HDMI in 1A” port and the “HDMI in 2A” port. The KVM switch does not support matrix switching. “Monitor A” port can only output the source connected to the “HDMI in 1A” port. Likewise, “Monitor B” port can only output the source connected to the “HDMI in 2A port”.
3. You can press the front switch button or use your keyboard hotkey for USB signal switching. HDMI signal switching is not supported in this USB mode.
Specifications
| Technical | |
| Video Signal | HDMI: HDMI with 4K@60Hz 4:4:4, HDCP 2.2 |
| USB Data | USB 3.0, up to 5Gbps data transfer rate. With one high- power of 5V/1.5A port included. |
| Input/Output Resolution Supported | SMPTE: 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9, 2560×10809, 3840×10809, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8 VESA: 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2560×144010 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz |
| HDR Format Supported | All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision |
| Audio Format Supported | HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X MIC IN: Stereo LINE OUT: Stereo |
| Max Data Rate | 18 Gbps |
| General | |
| Operating Temperature | 0°C to + 45°C (32 to + 113 °F) |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F) |
| Humidity | 20% to 90%, non-condensing |
| Power Consumption (Maximum) | 3.6W |
| Device Dimensions (W x H x D) | 230mm x 26.2mm x 142.6mm/ 9.06’’ x 1.03’’ x 5.61’’ |
| Product Weight | 0.83kg/1.83lbs |
In the Box
- 1x Dual Monitor HDMI KVM Switch
- 4x HDMI 2.0 Cable (1.5m/5ft)
- 1x Power Adapter (DC 12V 3A)
- 1x AC Power Cord with US Pins
- 1x AC Power Cord with EU Pins
- 1x AC Power Cord with UK Pins
- 2x USB 3.0 Type-A to Type-B Cable (L=1.8m)
- 1x User Manual
Documents & Softwares
Troubleshooting FAQ
1. What can I do if there is no video output?
- Check if the power button on the front panel is turned on with light.
- Check if you have chosen the right HDMI input channel on your display device.
- Make sure all of your HDMI cables work normally. You can connect the source to the display device directly via one of these HDMI cables, to check if video can be shown normally on the display.
2. HDMI video can work, but USB connection is not working. What should I do?
- Please ensure you connect the PC to the “HDMI In” Ports and “USB Host” Port in the same group.
- Please ensure you connect your USB devices to the right three blue USB 3.0 ports on the front panel of the KVM switch.
- Try connecting the USB host cable to another USB port on your PC.
- Try connecting the USB devices to the PC directly without using the KVM switch. Then check if the USB connection works.
3. What can I do if HDMI signal can’t be switched?
- Please ensure the KVM switch is toggled to “KVM mode”. If it is in “USB mode”, only USB signal can be switched.
4. What can I do if the hotkey is not working?
- Please ensure your keyboard is connected to the left white USB 1.1 port (with a keyboard icon above).
- Quickly press one of the four hotkeys twice (Tab/Caps Lock/Left Ctrl/Right Ctrl) on your keyboard to activate it or switch to it. The default hotkey is “Tab”. For example, if you want to use “Left Ctrl” as a hotkey, press the “Left Ctrl” key twice quickly to switch the hotkey to it, then other hotkeys will be invalid.
- Ensure you operate the hotkey in a correct way. For example, if the present default hotkey is “Tab”, you can press “Tab”+ “1”/“Tab”+“2”” to switch to HDMI input group 1/2 respectively. You can also press “Tab” + “→”/ “Tab”+ “←” to switch to the next or the previous input source group.
5. What can I do if I can’t wake up my PC with the mouse/keyboard?
- Try connecting the keyboard/mouse to your PC directly without using the KVM switch. Ensure they can wake up your PC when in sleep or hibernate mode.
- When you use the mouse to wake up your PC, you need to click the mouse, not just moving it.
6. What can I do if the USB connection is intermittent and not stable?
- Check your USB cable connection, or try using shorter USB cables with better quality.
- Try connecting the USB devices to the PC directly without using the KVM switch. Then check if the USB connection works.
- Power on the KVM switch once again to check if it can help.
7. What can I do if there is no audio output from the 3.5mm audio port?
- Check your headset’s 3.5mm audio jack. It should have 3 pins instead of 4 pins to match the KVM switch’s audio port.
- Check if you have selected the headset as an audio output device on your PC.
Other FAQ
1. What is a dual monitor KVM switch?
A dual monitor KVM switch is a special type of KVM switch, which allows you to control two PCs with two monitors and one set of USB devices. It allows you to view extra screens, boosting your productivity in office work, gaming or learning.
2. What are the main features of the 4KSW21-DM KVM switch?
The dual monitor KVM switch is HDMI 2.0 and HDCP 2.2 compliant, and supports video resolution up to 4K@60Hz 4:4:4 8bit. It boasts a brand-new dual HDMI design, built-in 3x USB 3.0 port, high refresh rate like 1080P@120hz and 2560×1440@144hz, the new-generation automatic PC wake-up function, the virtual interaction function, etc.
3. What are the main differences between 4KSW21-DM and 4KSW21-KVM?
The 4KSW21-DM KVM switch is built with four HDMI input ports (two HDMI in one group) and two HDMI output ports, so you can easily switch between two PCs, and view two monitor screens at the same time. The 4KSW21-KVM KVM switch is built with two HDMI input ports and one HDMI output port. You can switch between two PCs, but only view one monitor screen.
4. Where can I use the dual monitor KVM switch?
The dual monitor KVM switch is ideal for office work, gaming, learning and other scenarios where you need to switch between two PCs. It allows you to view extra screens and maximize your productivity.
5. How does the dual monitor KVM switch work?
The dual monitor KVM switch is built with four HDMI input ports (two HDMI in one group) and two HDMI output ports, so you can easily switch between two PCs, and view two monitor screens at the same time. Built with two USB host ports and three USB 3.0 device ports, it also allows you to control two PCs with only one set of USB devices, such as mouse, keyboard, USB flash, 4K webcam, speakerphone, printer, scanner or other USB 3.0 devices.
6. Can the dual monitor KVM switch work with AV Access's HDMI splitters or HDMI extenders?
Yes, the dual monitor KVM switch can work with AV Access’s HDMI splitters and HDMI extenders.
7. Is this switch compatible with Macintosh system?
Yes. It does support Macintosh.
8. Can I set up the hotkey to switch from a Bluetooth keyboard?
Yes, you can use the hotkey via a Bluetooth keyboard.
