4KSW21-KVM

4K KVM Switch Sharing 3x USB 2.0 Port, Works with 2x PC, Supports 120hz & 144hz, Ideal for Home office or Gaming

$49.99
Ask for a Quote
HDMI 2.0 4K@60Hz with USB 2.0:
Supports latest HDR & Dolby Vision with fantastic audio performance. Also supports 1080P@120Hz and 2560x1440@144Hz, ideal for gaming, working from home or any entertainment.
Switch Between Two Sets of Computer with 3 USB Ports:
One HDMI out for the display and by push button on the front panel, the HDMI input and USB input are switched simultaneously.
High Compatibility with Audio In/Out:
Works for most popular devices and provides excellent audio.
Two Ways to Switch:

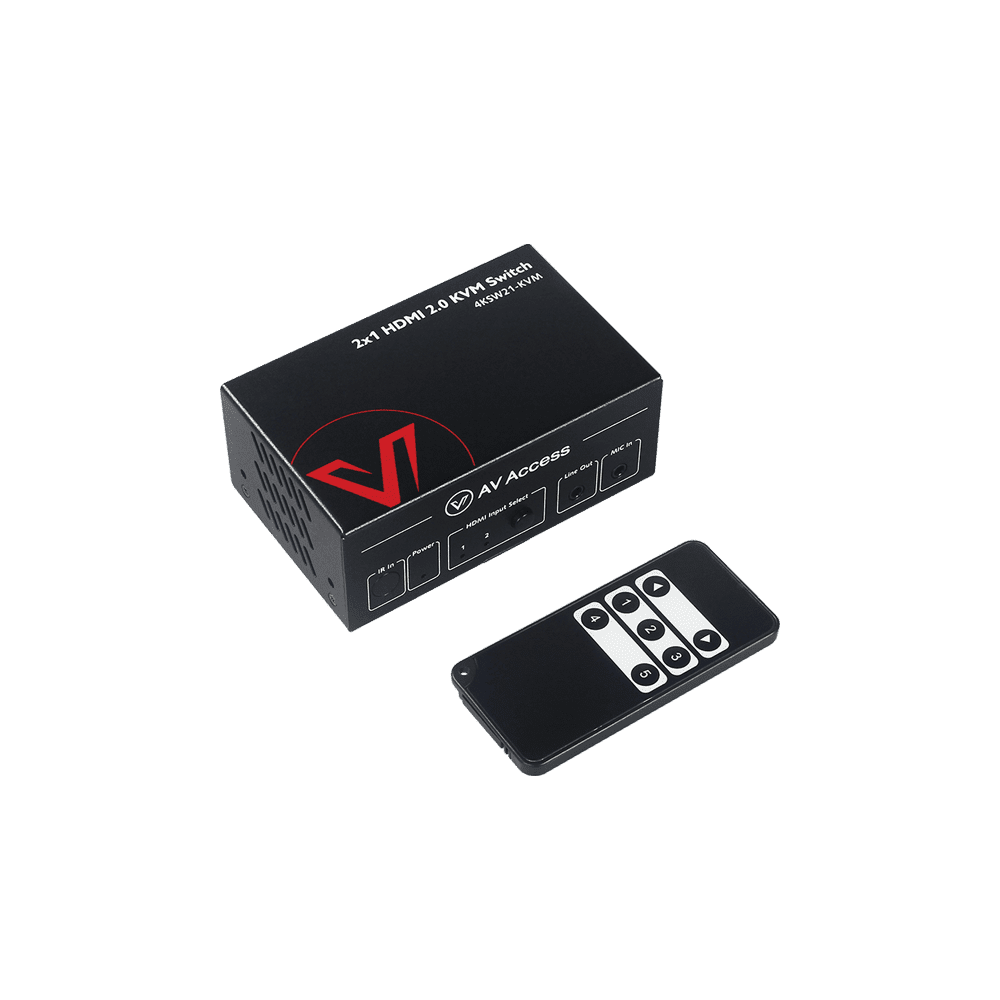

Remote control and front panel button switch supported
User Tips:
The USB cables must be connected to the right port so it could switch along with HDMI.
Does not support USB 3.0 devices.

Economical 2x1 4K KVM Switch

4KSW21-KVM is a 2x1 HDMI KVM Switch with HDMI and HDCP2.2 compatibility. It supports resolutions up to 4K@60Hz 4:4:4, multi-channel audio and automatic HDCP 2.2/1.4 compatibility. It also supports 1080P@120Hz and 2560x1440@144Hz, ideal for video switching of game sources. The switch allows users control two USB source devices/computers with only one set of USB devices (e.g. USB mouse, USB keyboard, USB flash and other USB2.0 compliant devices). 4KSW21-KVM supports switching by buttons on the front panel or IR remote, and provides a wide compatibility choice for different operating systems, such as Windows, Mac OS and Linux, no driver required and simple plug and play.

  • 2x1 HDMI KVM switcher with HDMI and HDCP2.2 compliant;
  • Full 18G bandwidth, up to 4K/UHD @60Hz with 4:4:4 chroma sampling;
  • Supports three USB-A port for USB keyboard, USB mouse and other USB2.0 devices to control one of the two computers;
  • Supports switching the KVM input port by push button on the front panel, the HDMI input and USB input are switched simultaneously;
  • Supports one microphone input and one headphone output for audio application;
  • Wide compatibility with Windows 10/8/7 XP, Mac OS and Linux;
  • No driver required and simple plug and play.
Video
Input/Output Signal TypeHDMI with 4K@60Hz 4:4:4, HDCP 2.2; USB: USB2.0
Input/Output Resolution Supported
Up to 4096 x 2160@60Hz, 4:4:4 8bit, including 4K@60Hz/4K@30Hz/1080P/ 1080i/720P

Maximum Data RateHDMI: 18Gbps; USB: 480Mbps
Maximum Pixel Clock600MHz
Control MethodFront Panel, IR Remote
Audio
Audio format supported                             Fully supports audio formats in HDMI 2.0 specification, including PCM, Dolby TrueHD,
Dolby Atmos, DTS-HD Master Audio, DTS:X
General
Operating Temperature0°C to 45°C (32°F to 113°F)
Storage Temperature-20°C to 70°C (-4°F to 158°F)
Humidity10% to 90%, non-condensing
ESD ProtectionHuman-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Power SupplyDC 5V 1A
Power Consumption  6.5W
Device Dimension
(W x H x D)
105mm × 42mm × 65.2mm / 4.13’’ × 1.65’’ × 2.57’’
Net Weight0.40kg/0.88lb
  • Product Manual
4KSW21-KVM_ top banner
4KSW21-KVM-4K60 Ultra HD

HDMI2.0/HDCP2.2 Compliant

HDMI 2.0 standard provides high resolution up to 4K@60Hz (4:4:4) 18Gbps; Fantastic audio formats are also supported like Atmos, DTS: X, Dolby True-HD and PCM7.1 pass through.

Wonderful Gaming Experience with 120 Hz & 144 Hz

For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the player's performance. The KVM switch supports 1080P@120Hz and 2560x1440@144Hz video input, ensuring your game sources can be effectively switched. With the KVM switch, you can have an unprecedentedly enjoyable gaming experience.

4KSW21-KVM-Effortless KVM Switching
4KSW21-KVM_audio-out

High Compatibility with Audio in/out

With mic input and audio output ports, the switcher works perfectly with popular devices such as X box one X, PS4 Pro, Apple 4K TV, Roku 4, Amazon Fire TV, Nintendo Switch, etc.

Effortless KVM Switching

You can connect up to two PCs to the switcher and control any one of them via keyboard, mouse and other USB2.0 devices. Simply pressing the buttons on the front panel or using the included IR remote, you can simultaneously switch the HDMI input and USB input.

4KSW21-KVM-Effortless KVM Switching
