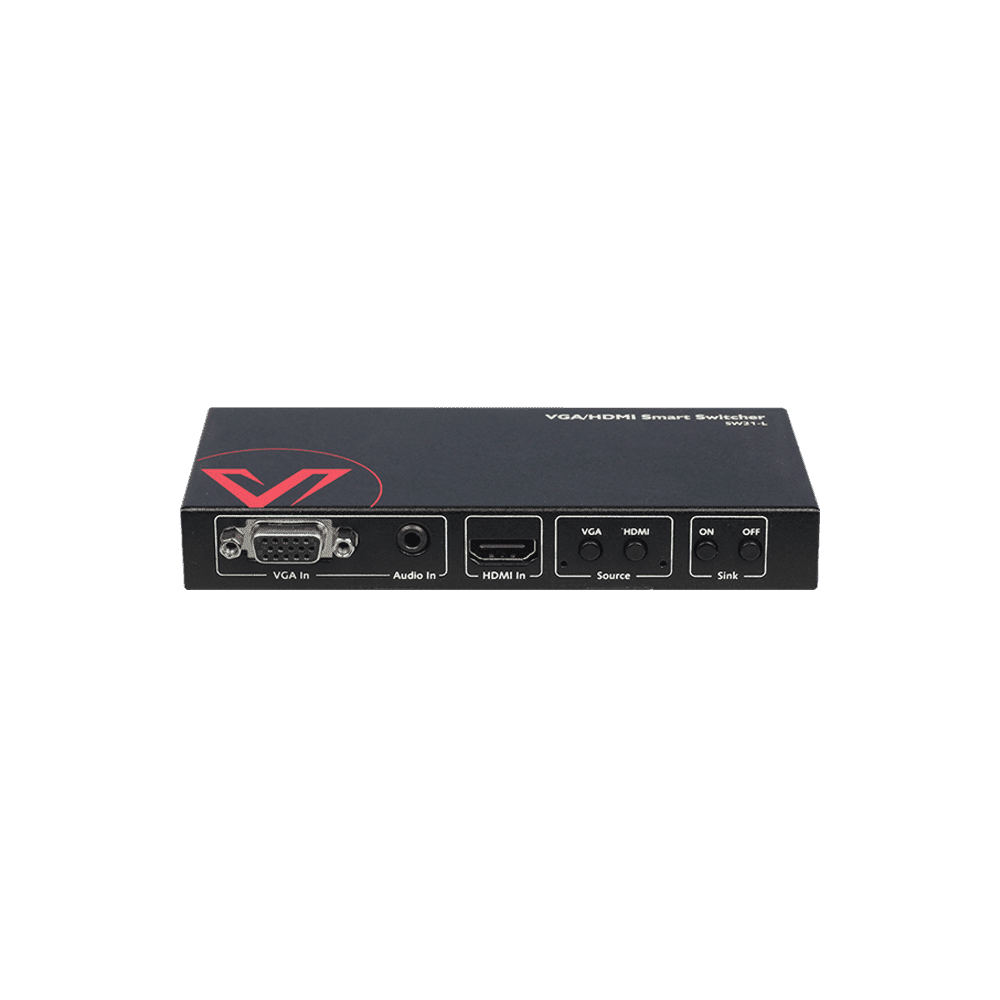

4KSW21-L is a VGA/HDMI Smart Switcher with direct CEC control, offering one HDCP compliant HDMI input, a VGA with analog stereo audio input, and an HDMI output up to 4K@60Hz (Chroma sub-sampling 4:2:0 8-bit only) without scaler.

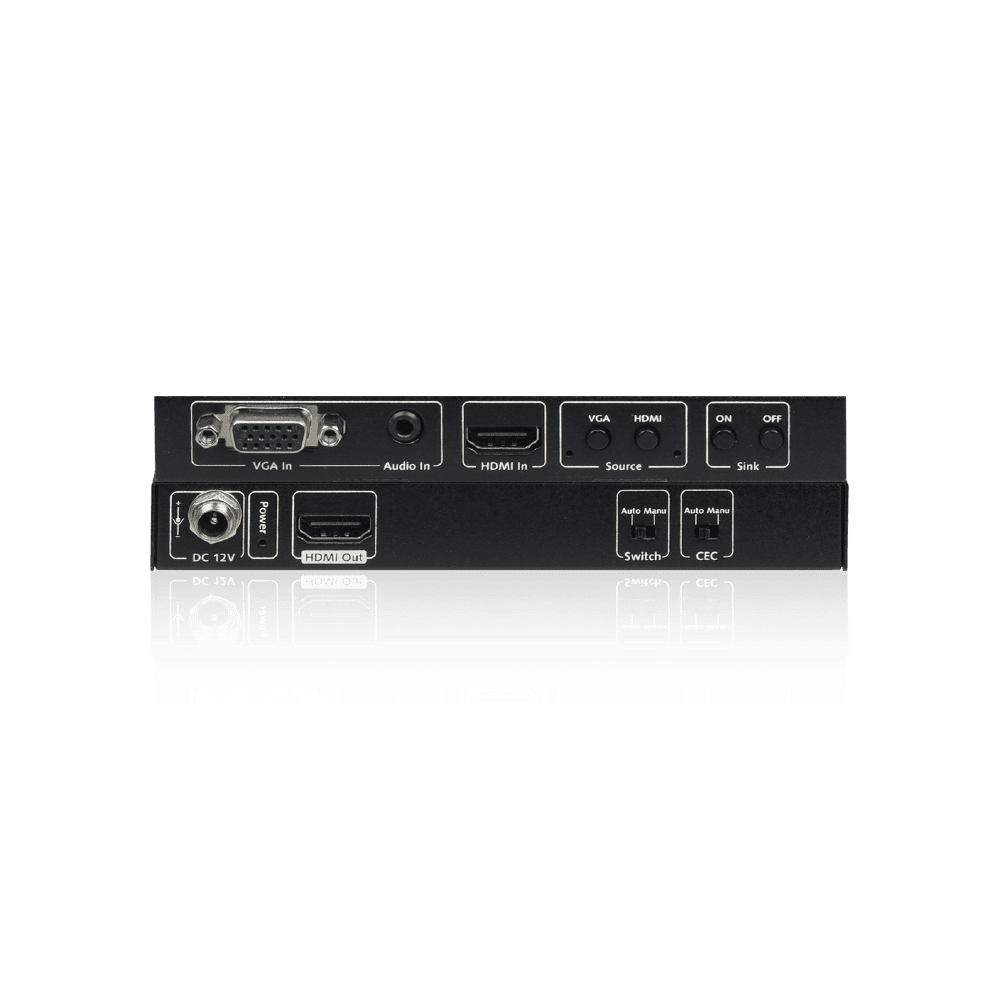

Its built-in CEC controller allows user to directly switch the power status of CEC-supported display device, such as TV or projector, eliminating the need of IR Remote. Select buttons in the front panel help users to choose input sources, or power on/off display device.
- 1 x VGA + 3.5mm stereo audio input, up to 1920x1200@60Hz.
- 1 x HDMI input, up to 4k@60Hz (Chroma sub-sampling 4:2:0 8-bit only).
- Auto-sense and switching. VGA has higher priority over HDMI if both are connected.
- CEC controller built in to power on/standby sink device by auto-detecting the source status
- Switch source devices or power on/ standby of display devices via select buttons.
- Adjust the working mode via “Switch” and “CEC” DIP switch.
| Video | |
|---|---|
| Input | 1 x HDMI , 1 x VGA |
| Input Signal Type | HDMI: HDMI1.4 with HDCP , VGA: VESA |
| Input Resolution Support | HDMI:
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080P, 1080I, 720P, 576p, 576i, 480p, 480i; VGA: 1920x1200/1920x1080/1680x1050/1600x1200/1600x900/1400x1050/1440x900/1366x768/ 1280x102 4/1280x800/1280x768/1280x720/ 1024x768/800x600/640x480@60Hz |
| Maximum Pixel Clock | 600MHz |
| Output Signal Type | HDMI: 340MHz
VGA: 165MHz |
| Input Audio Format | 1 x HDMI |
| Output Audio Port | HDMI: HDMI 1.4 with HDCP |
| Output Audio Format | HDMI:
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080P, 1080I, 720P, 576p, 576i, 480p, 480i; VGA: 1920x1200/1920x1080/1680x1050/1600x1200/1600x900/1400x1050/1440x900/1366x768/ 1280x1024/1280x800/1280x768/1280x720/ 1024x768/800x600/640x480@60Hz |
| Audio | |
|---|---|
| Input | Digital audio: Embedded in HDMI inputs
Analog audio: Stereo |
| Input Signal Type | Digital audio: Stereo, LPCM 5.1, LPCM 7.1; Dolby True HD, DTS-HD Master Audio
Analog audio: Stereo |
| Output | Digital audio: Embedded in HDMI outputs |
| Output Signal Type | Same as input |
| Control | |
|---|---|
| Control Method | Front Panel Button, CEC |
| General | |
|---|---|
| Operating Temperature/ | 0°C ~ 45°C (32°F ~ 113 °F), |
| Humidity | 10% ~ 90%, non-condensing |
| Storage Temperature/ | Digital audio: Embedded in HDMI outputs |
| Humidity | -20°C ~ 70°C (-4°F ~158 °F), |
| Power Supply | 12V 0.5A |
| Power Consumption | 220g/0.48lb |
| Device Dimension
(W x H x D) | 141.8mm x 64.2mm x 20mm/5.58’’ x 2.53’’ x 0.79’’ |
| Net Weight | ±8kV(Air-gap discharge)/
±4kV(Contact discharge) |
- Product Manual
4K Ultra-HD Image
The 2x1 switcher supports HDMI video signal up to 4K@60Hz (4:2:0 8bit) and VGA up to 1920x1200@60Hz with 3.5mm stereo audio input. It allows two sources to be switched to one Ultra HD display, delivering ultra-HD visual feast. Automatic switching is also supported for perfect user experience.
Excellent Audio Enjoyment
The HDMI/VGA switcher supports audio formats such as PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio, so you can get fantastic audio experience.
Mini Size & Wide Applications
With its compact size and delicate design, the switcher is an ideal solution to switch HDMI or VGA source to one HDMI display, for home theaters, offices, schools, conferences rooms, shopping malls, hotels, museums, etc.
