4KSW41-H2

4K HDMI 2.0 Switch 4 In 1 Out, IR Remote, HDR, Dolby Vision, HDCP2.2

$39.99

Excellent Video and Multiple Audio Format:
4K@60Hz (4:4:4 8-bit) supports HDR and Dolby vision.
Audio supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master, LPCM 2.1/ 5.1/ 7.1CH.
Plug & play with Flexible Control:
IR remote control and "Switch" button on front panel, no driver needed.
Delicate Design:
Small open vents on the sides which should ensure adequate ventilation to keep it cool.
Certificated by CE, FCC.

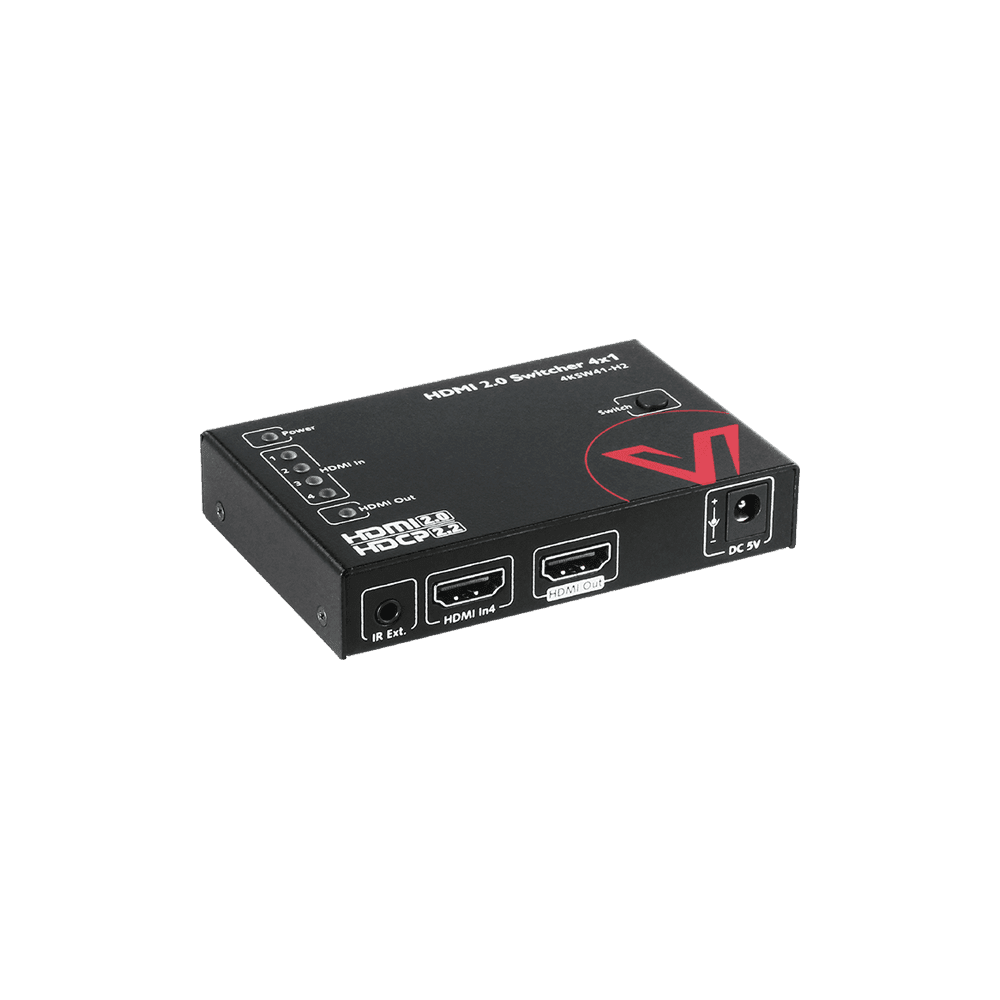

4KSW41-H2 Switcher features HDMI 2.0 and HDCP 2.2 compatibility and supports resolutions up to 4K@60Hz 4:4:4 8bit, enabling four Ultra HD sources to be switched to one Ultra HD display. It also allows control through top panel button, IR remote and automatic switch. Designed for simple installation and compact size, 4KSW41-H2 offers the convenience of future-ready Ultra HD AV switching, and the reliability of cutting-edge HDMI 2.0 and HDCP 2.2 compatibility.

  • Cost effective 4 to 1 HDMI switcher
  • Fully compliant with HDMI 2.0 and HDCP 2.2
  • HDMI inputs and output support up to 4K@60Hz 4:4:4 8bit
  •  HDMI input and output cable length up to 49ft/15m + 49ft/15m for 1080P, and up to 10ft/3m + 16ft/5m for 4K@60Hz 4:4:4
  • Compact size and easy-to-install
Model                                                                                                            4KSW41-H2
Technical
Video Signal Type
HDMI 2.0, HDCP 2.2
Input/Output Resolution SupportedVESA:
640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608, 1280x10248, 1360x7688, 1366x7688, 1400x10508, 1440x9008, 1600x9008, 1600x12008, 1680x10508, 1920x12008

SMPTE:
720x480P8, 720x576P8, 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8, 3840x21602,3,5,6,8, 4096x21602,3,5,6,8

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz
Audio Format SupportedPCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio
Maximum Data Rate18Gbps
Control MethodIR control; Switch button control
General
Audio format supported                                      Fully supports audio formats in HDMI 2.0 specification, including PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
Product SupplyDC 12V/2A
Operating Temperature0°C to 45°C (32°F to 113°F)
Audio Format Supported-20°C to 70°C (-4°F to 158°F)
Humidity10% to 90%, non-condensing
ESD Protection±8kV(Air-gap discharge)/
±4kV(Contact discharge)
Surge ProtectionVoltage: ±1 kV
Power Consumption
(Maximum)
1.735W
Device Dimension
(W x H x D)
3.93” x 0.77’’ x 2.61”/
100mm x 19.5mm x 66.2mm
Product Weight0.49lb/0.22kg
  • Product Manual







4K Ultra-HD Image

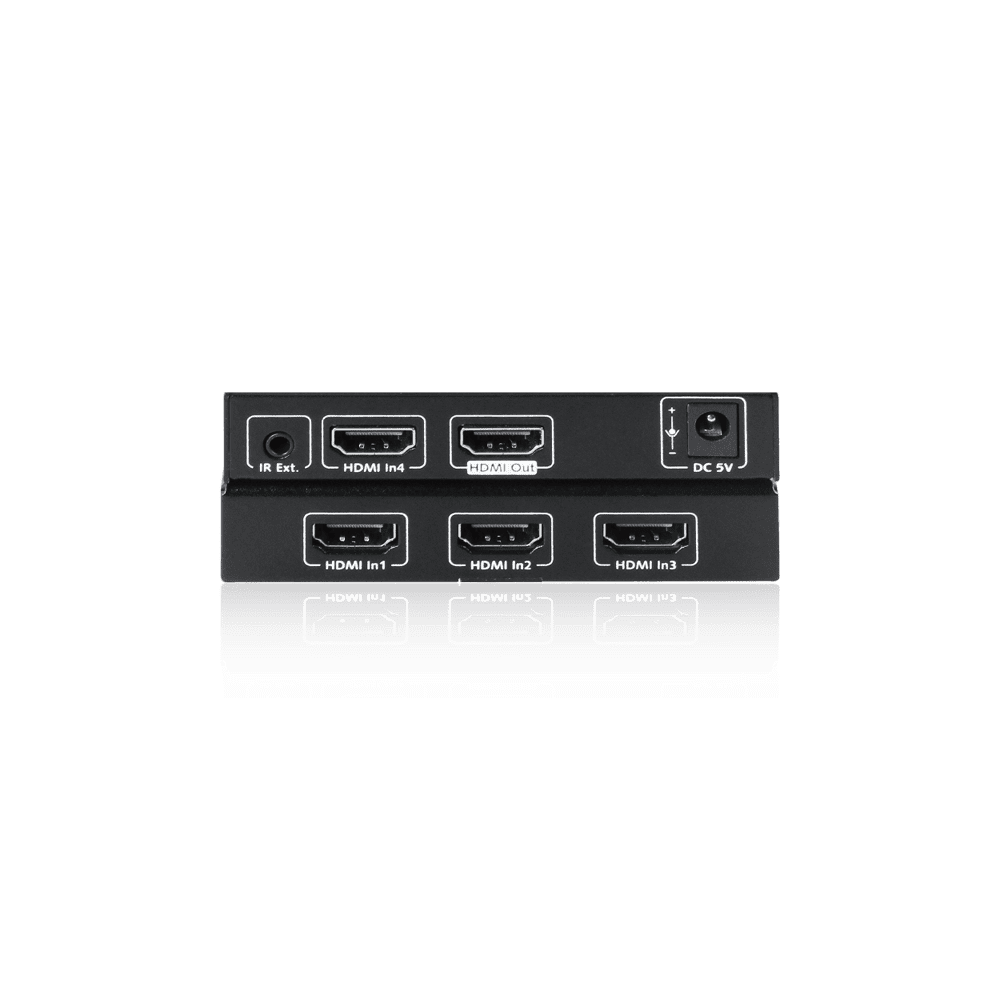

With four input ports and one output port, the compact HDMI switcher allows four Ultra HD sources to be switched to one Ultra HD display at resolutions up to 4K@60Hz 4:4:4 8bit, delivering ultra-HD visual feast.







Excellent Audio Enjoyment

The HDMI switcher supports audio formats such as PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio, so you can get fantastic audio experience.






High Compatibility

The HDMI switcher is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. No more hesitation on choosing HDR or 4K@60hz for you could have both.







Slim Size & Wide Applications

With its compact and exquisite design, the HDMI switcher can be used in any A/V applications, such as homes, offices, control centers, conference rooms and other locations which need A/V switching.





Here's a video tutorial which shows you how to install the product. Let's check it out!
