Upgraded 4×1 4K KVM Switch with Hotkey Switching, Sharing 3x USB Port, Works with 4x PC, Supports 1080P@240hz & 2560×1440@144hz, Ideal for Home office and Gaming
SKU: 4KSW41-KVM-Pro$109.99
Partner Discounts | Free Quote
Effortless KVM Switching:
Four PCs can share up to three USB peripherals, like mouse, keyboard, USB flash and other USB2.0 devices.
Added Hotkey Switching:
Apart from switching via front buttons and IR remote, hotkey switching on the keyboard is also supported for better user experience.
Excellent Image and Sound Quality:
HDMI2.0/HDCP2.2 compliant; supports UHD video resolution up to 4K@60Hz (4:4:4) 18Gbps; supports Dolby Atmos, DTS:X, Dolby True-HD, PCM7.1, etc.
High Refresh Rates:
Also supports 1080P@240Hz/165Hz/144Hz/120Hz/60Hz, and 2560×1440@144Hz/120Hz/60Hz, ideal for gaming, working from home, or any entertainment.
High Compatibility:
Works with different operating systems, like Windows 10/8/7/XP, Mac OS and Linux. No driver is required; just plug and play.
In stock
Upgraded 4×1 4K KVM Switch with Hotkey Switching
4KSW41-KVM-Pro is an upgraded 4×1 HDMI KVM switcher with hotkey switch. With HDMI 2.0/HDCP 2.2 compatibility, it supports video resolution up to 4K@60Hz 4:4:4 8bit. It also supports 1080P@120Hz and 2560×1440@144Hz, ideal for video switching of game sources. It allows users to control four source devices/PCs with only one set of USB devices. It also supports various switching methods like front panel button, IR remote and hotkey through keyboard. With its exquisite design and reliable quality, it is an ideal device for homes, offices, bars or other locations where you need KVM switching.
Main Features:
- 4 In 1 Out HDMI KVM switcher with HDMI2.0 and HDCP2.2 compliant.
- Full 18Gbps bandwidth supports 4K@60Hz 4:4:4 chroma sampling with HDR.
- Supports refreshing rate up to 1080P@120Hz.
- One USB 1.1 port for keyboard and two USB 2.0 ports for USB devices.
- Supports button switch, IR remote switch, and hotkey switch (Keyboard must be connected to USB1.1 port).
- Supports microphone input and headphone output for audio application.
- Compatible with Windows 10/8/7 XP, Mac OS and Linux.
- No driver required, plug and play
Upgraded 4×1 4K KVM Switch with Hotkey Switching
4KSW41-KVM-Pro is an upgraded 4×1 HDMI KVM switcher with hotkey switch. With HDMI 2.0/HDCP 2.2 compatibility, it supports video resolution up to 4K@60Hz 4:4:4 8bit. It also supports 1080P@120Hz and 2560×1440@144Hz, ideal for video switching of game sources. It allows users to control four source devices/PCs with only one set of USB devices. It also supports various switching methods like front panel button, IR remote and hotkey through keyboard. With its exquisite design and reliable quality, it is an ideal device for homes, offices, bars or other locations where you need KVM switching.
Main Features:
- 4 In 1 Out HDMI KVM switcher with HDMI2.0 and HDCP2.2 compliant.
- Full 18Gbps bandwidth supports 4K@60Hz 4:4:4 chroma sampling with HDR.
- Supports refreshing rate up to 1080P@120Hz.
- One USB 1.1 port for keyboard and two USB 2.0 ports for USB devices.
- Supports button switch, IR remote switch, and hotkey switch (Keyboard must be connected to USB1.1 port).
- Supports microphone input and headphone output for audio application.
- Compatible with Windows 10/8/7 XP, Mac OS and Linux.
- No driver required, plug and play
Four PCs Share Three USB Devices
The KVM switcher allows you to control four PCs with only one set of USB devices, such as mouse, keyboard, USB flash and other USB2.0 devices.
Additional Hotkey Switching
Apart from switching via front buttons and IR remote, hotkey switching on the keyboard is also supported, which offers you simple, fast and convenient user experience.
Additional Hotkey Switching
Apart from switching via front buttons and IR remote, hotkey switching on the keyboard is also supported, which offers you simple, fast and convenient user experience.
Enjoy the Finest Image and Sound
HDMI 2.0 standard provides high resolution up to 4K@60Hz (4:4:4) 18Gbps; Fantastic audio formats are also supported like Dolby Atmos, DTS:X, Dolby True-HD and PCM7.1.
Wonderful Gaming Experience with 120 Hz & 144 Hz
For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the player’s performance. The KVM switch supports 1080P@120Hz and 2560×1440@144Hz video input, ensuring your game sources can be effectively switched. With the KVM switch, you can have an unprecedentedly enjoyable gaming experience.
Wonderful Gaming Experience with 120 Hz & 144 Hz
For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the player’s performance. The KVM switch supports 1080P@120Hz and 2560×1440@144Hz video input, ensuring your game sources can be effectively switched. With the KVM switch, you can have an unprecedentedly enjoyable gaming experience.
Better Compatibility, More Fun
The switcher works with different operating systems, such as Windows 10/8/7/XP, Mac OS and Linux. No driver is required; just plug and play.
Comparison Chart of Related Products
4KSW21-DK | 4KSW21-DM | 4KSW31C-DM | 8KSW21DP-DM | 4KSW41C-KVM | 4KSW41-KVM-Pro | 8KSW21-KVM | |
Product Type | Dual Monitor | Dual Monitor | Dual Monitor | Dual Monitor | Single Monitor | Single Monitor | Single Monitor |
Video Interface | 1x HDMI in, 1x DP in (HDMI & DP in 1 Group), 1x USB-C in, 2x HDMI out | 4x HDMI in, 2x HDMI out (2 HDMI in 1 Group) | 4x HDMI in, 2x HDMI out (2 HDMI in 1 Group), 1x USB-C in | 4x DP in, 2x DP out (2 DP in 1 Group) | 3x HDMI in, 1x USB-C in, 1x HDMI out | 4x HDMI in, 1x HDMI out | 2x HDMI in, 1x HDMI out |
USB-C Support | Yes, USB-C MST | No | Yes, USB-C MST | No | Yes | No | No |
Supported Video Resolution | up to 4K@60Hz 4:4:4 | up to 4K@60Hz 4:4:4 | up to 4K@60Hz 4:4:4 | up to 8K@60hz | up to 4K@60Hz 4:4:4 | up to 4K@60Hz 4:4:4 | up to 10K@120hz 4:2:0 |
USB Peripheral Interface | 3x USB-A 3.0, 2x USB-A 2.0, 1x USB-C (also built with 1x SD card port, 1x LAN, 1x Toslink out) | 3x USB 3.0, 1x USB 1.1 | 3x USB 3.0, 1x USB 2.0, 1x USB 1.1 (also built with 1x LAN) | 3x USB 3.0, 1x USB 2.0, 1x USB 1.1 | 2x USB 3.0, 1x USB 2.0, 1x USB 1.1 | 2x USB 2.0, 1x USB 1.1 | 4x USB 3.0, 1x USB 1.1 |
HDMI | 2.0 | 2.0 | 2.0 | No, DP 1.4 | 2.0 | 2.0 | 2.1 |
HDCP | 2.2 | 2.2 | 2.2 | 2.3 | 2.2 | 2.2 | 2.3 |
Switching Method | Panel Button | Panel Button, Keyboard Hotkey | Panel Button, Keyboard Hotkey, IR Remote | Panel Button, Keyboard Hotkey, IR Remote | Panel Button, Keyboard Hotkey, IR Remote | Panel Button, Keyboard Hotkey, IR Remote | Panel Button, Keyboard Hotkey |
Automatic PC Wake-up | Yes | Yes | Yes | Yes | Yes | No | Yes |
EDID Emulation | Yes | Yes | Yes | No | Yes | Yes | Yes |
Specifications
Technical | |
Video Signal | HDMI with 4K@60Hz 4:4:4, HDCP 2.2 |
Input/Output Resolution Support | SMPTE: 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9, 2560×10809, 3840×10809, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8 VESA: 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2560×144010 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz |
Audio Format Supported | HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X MIC IN: Mono LINE OUT: Stereo |
Max Data Rate | 18 Gbps |
General | |
Operating Temperature | 0°C to + 45°C (32 to + 113 °F) |
Storage Temperature | -20 to +70°C (-4 to + 158 °F) |
Humidity | 20% to 90%, non-condensing |
Power Consumption (Maximum) | 5.27W |
Device Dimensions (W x H x D) | 230mm x 26.2mm x 142.6mm/ 9.06’’ x 1.03’’ x 5.61’’ |
Product Weight | 0.83kg/1.83lb |

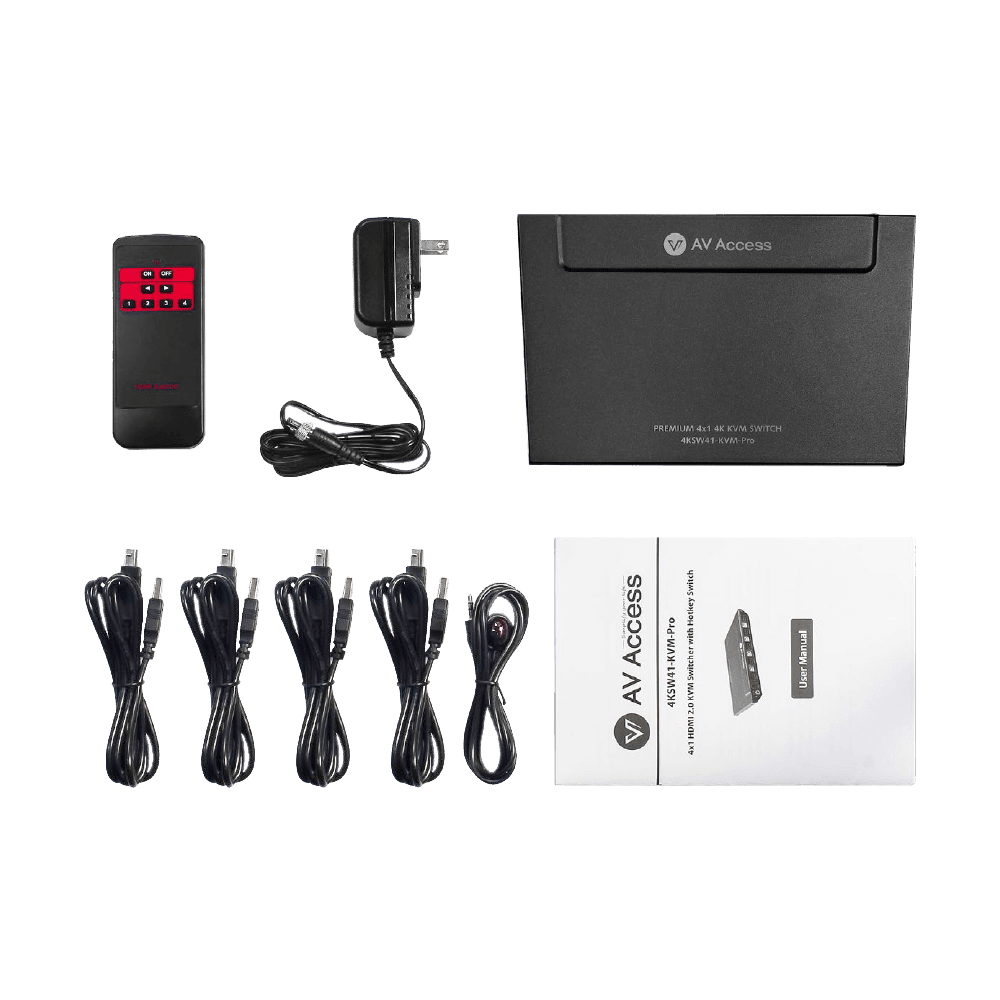

In the Box
- 1 x Switcher
- 1 x Power Adapter (DC 12V 1A) with US Pins
- 1 x IR Remote
- 1 x IR Receive Cable (L=1.2m)
- 4 x USB 2.0 Type-B to Type-A Cable (L=1.5m)
- 1 x User Manual
Documents & Softwares
Troubleshooting FAQ
- Check if you have chosen the right HDMI input channel on your display device.
- Make sure all of your HDMI cables work normally. You can connect the source to the display device directly via one of these HDMI cables, to check if video can be shown normally on the display.
- Please ensure you connect the PC to the “HDMI In” Port and “USB Host” Port in the same group.
- Please ensure you connect your USB devices to the right two USB 2.0 ports on the front panel of the KVM switch.
- Try connecting the USB host cable to another USB port on your PC.
- Try connecting the USB devices to the PC directly without using the KVM switch. Then check if the USB connection works.
- Please ensure your keyboard is connected to the left white USB 1.1 port (with a keyboard icon below).
- Quickly press one of the four hotkeys twice (Tab/Caps Lock/Left Ctrl/Right Ctrl) on your keyboard to activate it or switch to it. The default hotkey is “Tab”. For example, if you want to use “Left Ctrl” as a hotkey, press the “Left Ctrl” key twice quickly to switch the hotkey to it, then other hotkeys will be invalid.
- Ensure you operate the hotkey in a correct way. For example, if the present default hotkey is “Tab”, you can press “Tab”+ “1”/“Tab”+“2”/“Tab”+“3”/“Tab”+“4” to switch to HDMI input 1/2/3/4 respectively. You can also press “Tab” + “→”/ “Tab”+ “←” to switch to the next or the previous input source.
- Check your USB cable connection, or try using shorter USB cables with better quality.
- Try connecting the USB devices to the PC directly without using the KVM switch. Then check if the USB connection works.
- Power on the KVM switch once again to check if it can help.
- Check your headset’s 3.5mm audio jack. It should have 3 pins instead of 4 pins to match the KVM switch’s audio port.
- Check if you have selected the headset as an audio output device on your PC.
- Check if the battery has run out of power.
- Check if the battery is installed correctly and on the right position.
- When you use the remote controller, it needs to be directly facing the receiver head of the IR extension cable, or facing the IR receiving window on the front panel of the KVM switch.
Other FAQ
A KVM switch is a device that allows you to use multiple computers with a single set of keyboard, monitor and mouse. The 4KSW41-KVM-Pro KVM switch supports controlling four computers with one set of USB devices and one monitor.
The 4×1 4KSW41-KVM-Pro KVM switch is ideal for gaming applications. It helps you quickly switch between gaming devices such as PC, PS4, and Xbox. You can also use it for multimedia teaching and home office.
Yes, the HDMI KVM switch can work with AV Access’s KVM extenders. We recommend using it in combination with the 4KIP100-KVM or 4KEX100-KVM.
Yes, the 4×1 4KSW41-KVM-Pro KVM switch supports 2560×1440@144hz.
Yes, the 4 in 1 out KVM switch supports hotkey switching on the keyboard. Press “Tab + 1/2/3/4”, then you can switch to the corresponding signal source.
