4KSW51

4K Economic HDMI Switch 5 In 1 Out, IR Remote, HDCP 2.2

$35.99

4K@60Hz with 5 Inputs and 1 Output:
Audio supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master, LPCM 2.1/ 5.1/ 7.1CH, provides great picture and fantastic audio.
Flexible Control:
IR remote control and "Switch" button on front panel.
No need an external Power supply:
Direct power-on from HDMI CABLE is safe and simple.
Excellent Reliability:
Small open vents on the sides which should ensure adequate ventilation to keep it cool. No driver needed.

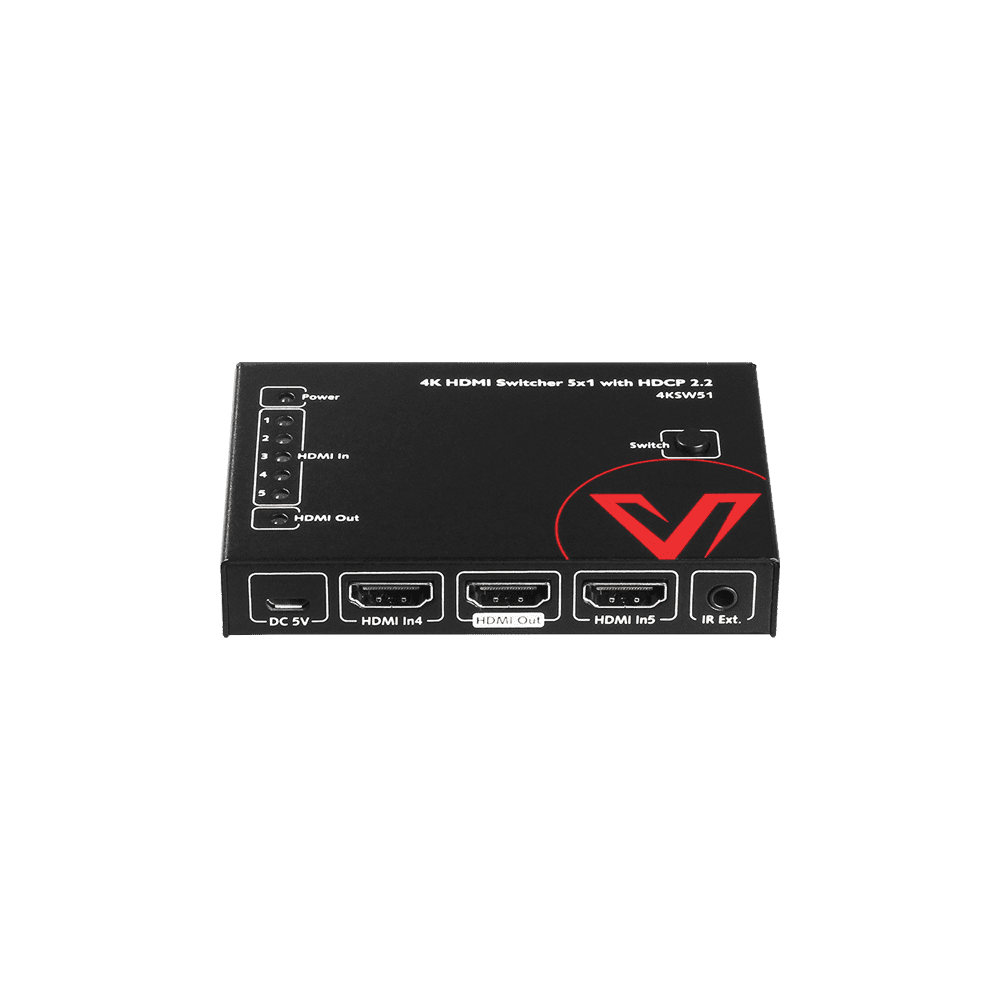

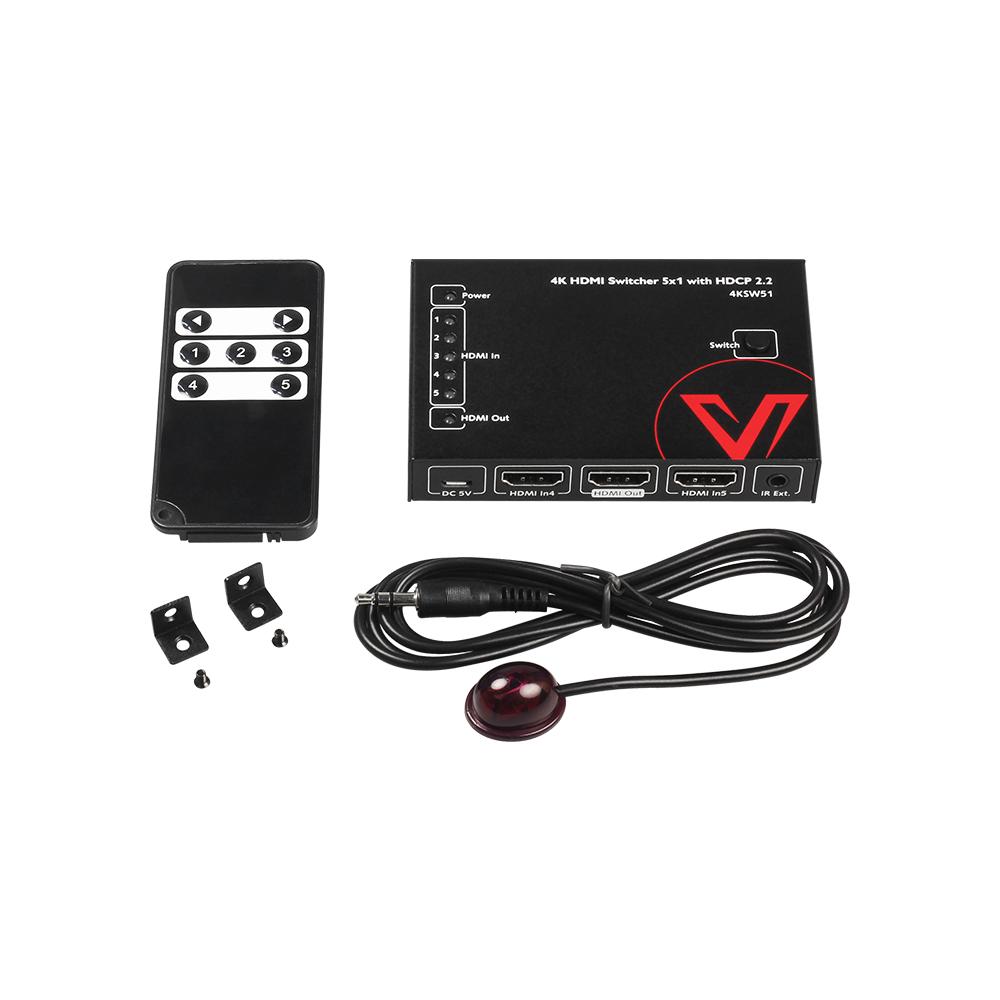

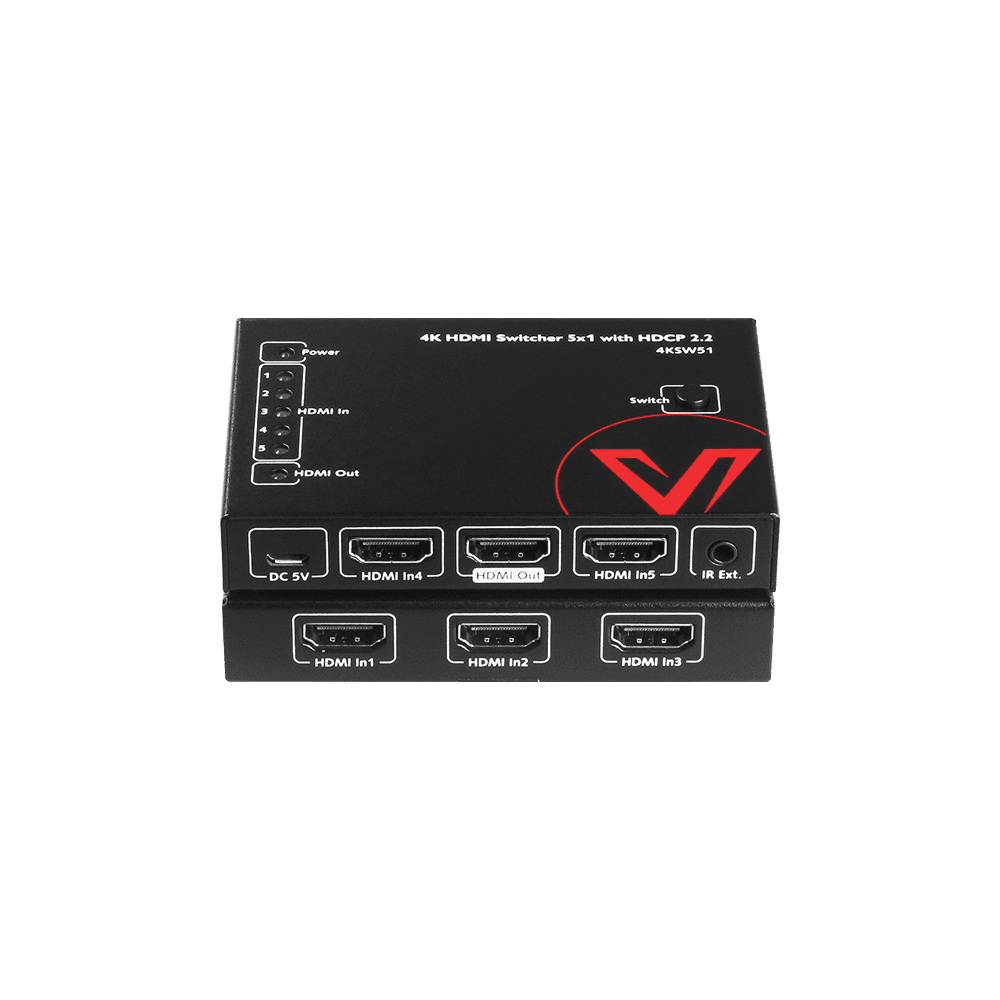

4KSW51 is a 5-to-1 4K HDMI switcher. It is HDCP 2.2 compliant and supports resolutions up to 4K@60Hz 4:2:0 8bit. It provides auto switch, remote control and button control on top panel, offering you flexible choice in switching. With its compact and exquisite design, the HDMI switcher can be used in any A/V applications, such as homes, offices, control centers, conference rooms and other locations which need A/V switching.

  • Cost effective 5 to 1 4K HDMI switcher
  • Supports up to 4K@60 Hz 4:2:0 8bit
  • HDCP 2.2 compliant
  • HDMI input and output transmission distance up to 16ft/5m +16ft/5m at 1080P@60Hz, and up to 10ft/3m +10ft/3m at 4K@60Hz 4:2:0 8bit
  • Can be powered by HDMI source devices
  • Multi-channel PCM, Dolby and DTS HD audio supported up to 7.1
  • Supports manual and auto switch
  • Compact size for hidden installation
Technical
Video Signal type                                                                                       HDMI with HDCP 2.2
Input/Output Resolution Supported                           SMPTE:
1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8, 3840x21602,3,5,6,8,4096x21602,3,5,6,8
VESA:
 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608, 1280x10248, 1360x7688, 1366x7688, 1400x10508, 1440x9008, 1600x9008, 1600x12008,  1680x10508,    1920x12008
 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at  59.94 Hz, 8      = at 60 Hz

 NOTE:4096x2160/3840x2160@50Hz/60Hz is based on chroma sub-sampling 4:2:0 8- bit only.
Audio FormatPCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio
TMDS Impedance100Ω
Control Method IR remote control, Top panel switch button control
General
Power Consumption                     0.25 W (Max)
Operating Temperature32°F to 113°F (0°C to 45°C)
10% to 90%, non-condensing
Storage Temperature-4°F to 158°F (-20°C to 70°C)
10% to 90%, non-condensing
Dimensions
(W x D x H)
3.94" x 2.61" x 0.71"
(100mm x 66.2mm x 18mm)
Weight0.40lb (0.18kg)
  • Product Manual







4K Ultra-HD Image

With five input ports and one output port, the compact HDMI switcher allows five Ultra HD sources to be switched to one Ultra HD display at resolutions up to 4K@60Hz 4:2:0 8bit, delivering ultra-HD visual feast.







Excellent Audio Enjoyment

The HDMI switcher supports audio formats such as PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio, so you can get fantastic audio experience.







Flexible Control Options

The 5x1 HDMI switcher provides auto switch, IR remote control and button control on top panel, offering you flexible choice in switching. Now it is easier than ever to perform any A/V switching for your home or business.






High Compatibility

The HDMI switcher is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. No more hesitation on choosing HDR or 4K@60hz for you could have both.
