New High-End 2×1 8K KVM Switch w/ HDMI 2.1 & USB 3.0 Hub, Supports 10K@120hz, 8K@120hz, 1080P@240hz & 2560×1440@144hz, Ideal for Gaming
SKU: 8KSW21-KVM
$149.99
Partner Discounts | Free Quote
● Immersed in 10K UHD: HDMI 2.1 & HDCP 2.3 compliant. Supports up to 10K resolution, HDR 10, Dolby Vision, VRR, FVA, ALLM, etc.
● Ultra-High Refresh Rate: Enjoy wonderful gaming experiences as it supports 10K@120hz, 8K@120hz, 5K@120hz, 4K@120hz, 2560×1440@165hz/144hz/120hz, and 1080P@240hz/165hz/144hz/120hz.
● High-Performance Transmission: Built with a cutting-edge chipset for stable and reliable HDMI 2.1 signal transmission. No screen shuttering or flickering.
● Universal Compatibility: Works perfectly with different operating systems and game consoles like PS4/5, Xbox Series X/S, Nintendo Switch, etc.

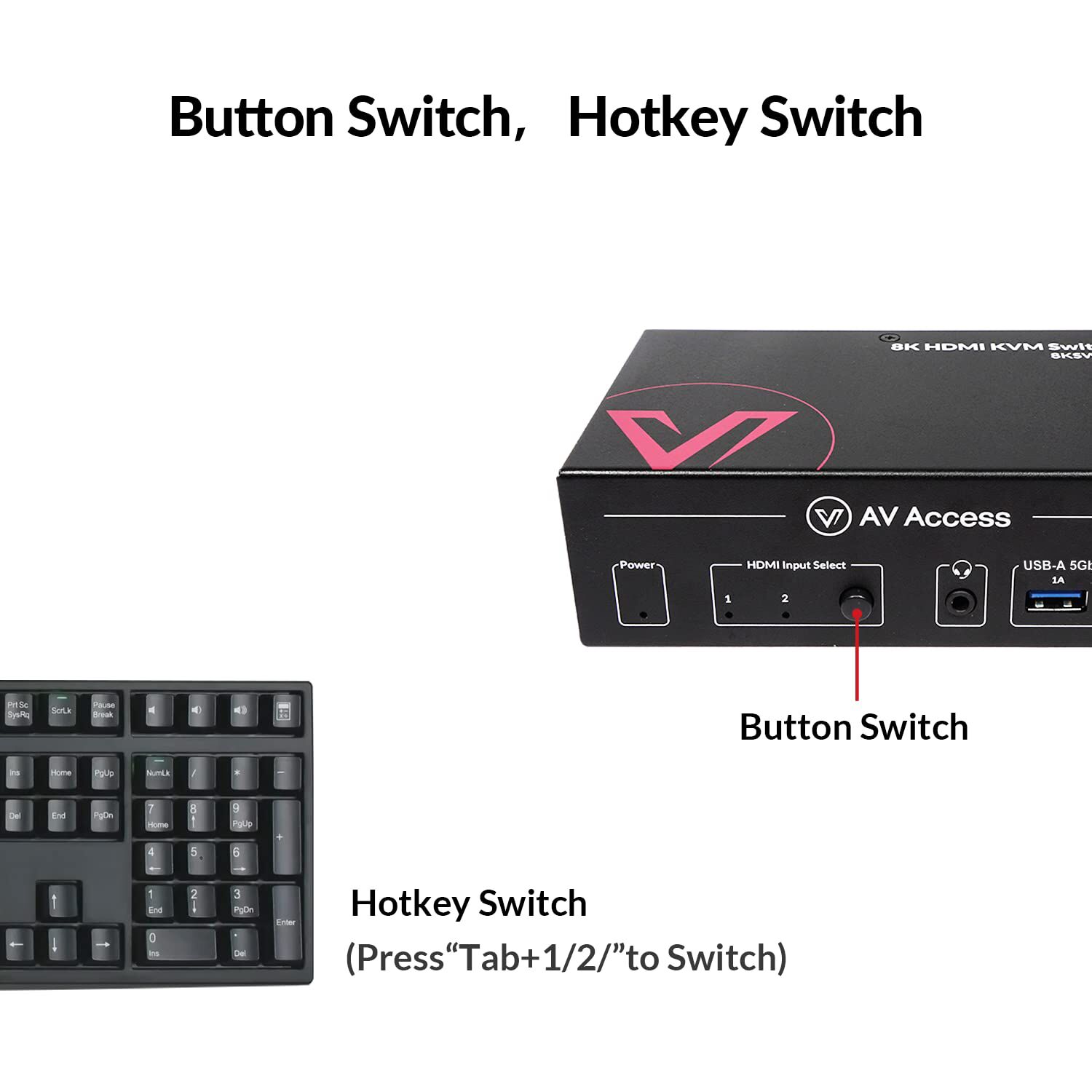

● Flexible and Fast Switching: Supports switching via the front button or keyboard hotkey. Switch faster with the automatic PC wake-up function and EDID emulation.
● Built-in USB 3.0 Hub: Your two PCs/game consoles can share up to 4x USB 3.0 peripherals like a 4K webcam, speakerphone, keyboard, mouse, game controller, etc.
● Plug and Play: No extra driver or software required, totally hassle-free installation. Comes with 2x ultra-high-speed HDMI Cable (1.5m/5ft).
If you’re not satisfied, we’ll refund your payment. No hassle, no risk.
In stock
Designed for Professional Gamers and WFHer
AV Access 8KSW21-KVM 8K KVM switch is plug-n-play and easy-to-use. It boasts up to 10K video resolution, advanced gaming chipset, high refresh rates like 10K/8K@120hz, and a 4-in-1 USB 3.0 hub. Let’s check out the video on the left to learn how it can be your best choice.

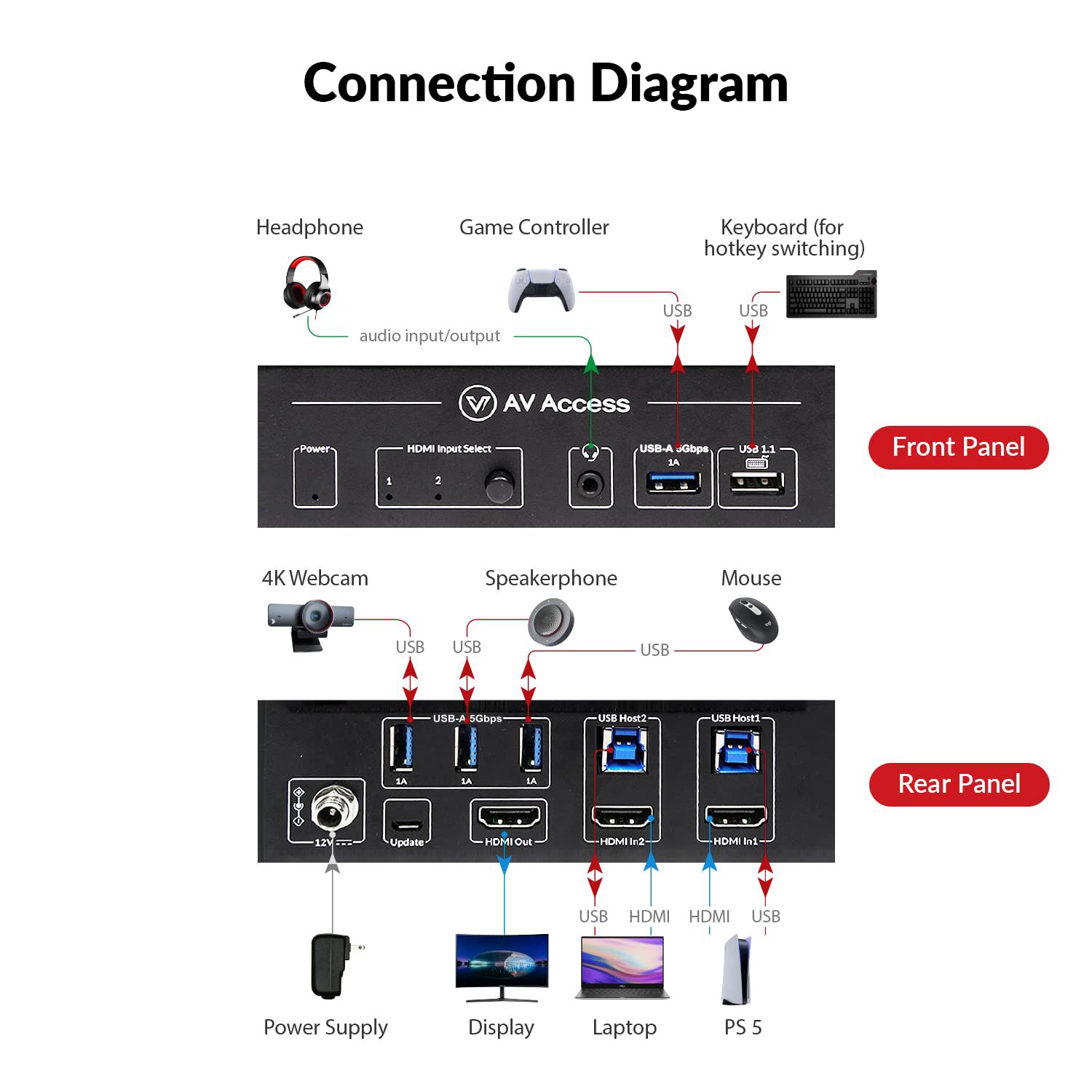

Typical Applications
Whether it’s home office or gaming, the 8K KVM switch allows you to effortlessly control two PCs with one set of monitor, keyboard, mouse, etc. Some of its applications are as follows:
Home Office
Connect your workstation PC and Macbook to the 8K HDMI switch. You can control them with only one set of USB 3.0 devices, like a 4K webcam, speakerphone, keyboard, mouse, printer, scanner, removable hard disk, etc. Whether you are a software programmer or engineering designer, you can set up a perfect home office.
Gaming
Switch to your PS5, Xbox Series X, or Nintendo Switch in your leisure time. Control them easily with a set of keyboard, mouse or game controller. Also, connect a headphone to add external commentary in your game live broadcast. With high refresh rates like 4K@120hz, 2560×1440@165hz/144hz or 1080P@240hz/165hz, the HDMI 2.1 switch allows you to enjoy an ultra-smooth and amazing gaming experience.
Immersed in 10K UHD Resolution
This brand-new 8K KVM switch is HDMI 2.1 and HDCP 2.3 compliant. It supports video resolution up to 10K@120hz 4:2:0, offering you an immersive viewing experience. It also supports the full range of uncompressed HDMI 2.1 specification features, like HDR 10, Dolby Vision, VRR, FVA, ALLM, etc.
2x PCs Share 4x USB 3.0 Devices
The HDMI 2.1 switch can work as a USB 3.0 hub. It allows you to control two PCs/game consoles with only one set of USB devices, such as mouse, keyboard, USB flash, 4K webcam, speakerphone, printer, scanner or other USB 3.0 devices. The data transfer rate can reach up to 5Gbp/s, 10 times faster than USB 2.0. Thus, you can easily build a powerful workstation while working from home.
Switch Faster with EDID Emulation
AV Access’s new KVM switches are all built with an EDID emulator in each input port. Whenever you switch between different sources, it ensures stable communications between the video sources and the display device. No screen flickering, no desktop icon rearrangement. It only takes you about 3 seconds to complete switching!
Wake up Your “Sleeping” PC
You might set your personal PC to sleep or hibernate mode when it is not in use. When you switch to the PC, you don’t have to move your mouse or type on the keyboard to wake it up. The 8K KVM switch is designed with a new-generation wake-up engine, so it can automatically wake up the PC with no manual operation required.
Specifications
| Technical | |
| Input / Output Signal Type | Up to 8K@60Hz 4:2:0 10bit in FRL mode and up to 10K@120Hz 4:2:0 12bit in DSC mode, HDCP 2.3 |
| Input / Output Resolution | Up to 10240 x 4320P@120hz Note: Resolutions beyond 8K@60Hz require both the source and display device to support DSC 1.2 compression. |
| Maximum Data Rate | FRL Mode: 40Gbps TMDS Mode: 18Gbps |
| Audio Format | HDMI In/Out: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X Headset: Stereo |
| General | |
| Power Supply | DC 12V 3A |
| Power Consumption | 14W |
| Dimensions (W x H x D) | 140mmx42mmx80.2mm/5.51”x1.65”x3.16” |
| Product Weight | 0.45kg/0.99lb |
| Technical | |
| Input / Output Signal Type | Up to 8K@60Hz 4:2:0 10bit in FRL mode and up to 10K@120Hz 4:2:0 12bit in DSC mode, HDCP 2.3 |
| Input / Output Resolution | Up to 10240 x 4320P@120hz Note: Resolutions beyond 8K@60Hz require both the source and display device to support DSC 1.2 compression. |
| Maximum Data Rate | FRL Mode: 40Gbps TMDS Mode: 18Gbps |
| Audio Format | HDMI In/Out: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X Headset: Stereo |
In the Box
- 1x 8K KVM Switch
- 2x Ultra-high-speed HDMI Cable (1.5m/5ft each)
- 2x USB 3.0 Type-B to Type-A Cable
- 1x DC12V Power Adapter with US/EU/UK Plugs
- 2x Mounting Bracket (with Screws)
- 1x User Manual
Frequently Asked Questions
1. What is a KVM switch?
A KVM switch is a device that allows you to control multiple computers with a single set of keyboard, monitor and mouse. This 8K KVM switch supports controlling two PCs with one set of USB devices and one monitor.
To learn more, please refer to the blog: Everything You Should Know Before Buying a KVM Switch.
2. What are the main features of this 8K KVM switch?
This 8K HDMI switch is plug-n-play and easy-to-use. It boasts a built-in USB 3.0 hub, high refresh rates like 4K@120hz and 1080P@240hz/165hz, and hotkey switching.
3. What makes this 8K KVM switch different from other similar products?
The distinctive features of this 8K HDMI switch are high fresh rates and a built-in USB 3.0 hub. You can enjoy wonderful gaming experiences as it supports 4K@120hz, 2560×1440@144hz and 1080P@240hz/165hz. Also, Your two PCs can share up to 4x USB 3.0 peripherals like a 4K webcam, speakerphone, keyboard, mouse, etc
4. Does this 8K KVM switch support 120hz and 144hz?
Yes, this 8K HDMI switch supports 4K@120hz, 256×1440@144hz, 1080P@240hz and 1080P@165hz, ensuring your game sources can be effectively switched.
5. Where can I use this 8K KVM switch?
This HDMI 2.1 switch is ideal for home office and gaming. You can effortlessly control two PCs with one set of monitor, keyboard, mouse, etc.
6. What is a high-speed HDMI cable?
A high-speed HDMI cable is a type of HDMI cable that supports higher bandwidth and can transmit higher quality video and audio signals than standard HDMI cables. High-speed HDMI cables are necessary for transmitting 4K, 3D, and HDR video signals. They also support Ethernet and Audio Return Channel (ARC) functions.
Resources
Want to learn more about our highly reliable and cost-effective KVM switch? Here are some guides for your reference.
