8K DisplayPort KVM Switch for Two Computers, Supports Dual Monitors & 144hz/165hz/240hz High Refresh Rate Gaming
SKU: 8KSW21DP-DM
$154.99
Partner Discounts | Free Quote
In stock in US & CN warehouse. CA is expected to begin shipping on Sept. 20th.
● New Dual Monitor Design: Built with 4x DisplayPort (DP) input port (2 in 1 group) and 2x DP output port. Switch easily between your workstation and gaming PC, and view two monitor screens simultaneously.
● Immersed in 8K UHD: DisplayPort 1.4 & HDCP 2.3 compliant, with up to 13.5Gbps data transmission rate. Supports up to 8K@60Hz, and all DP features, like MST, VRR, HDR10, HLG, Dolby Vision, etc.
● Ultra-High Refresh Rate: Supports 4K@165hz/144hz/120hz, 3440×1440@165Hz/144Hz/120Hz, 2560×1440@165hz/144hz/120hz, and 1080P@240hz/165hz/144hz/120hz, Ideal for sports programs, action movies, high-speed racing games, etc.
● High-Speed USB 3.0: The two PCs can share up to 3x USB 3.0 and 1x USB 2.0 peripheral like a 4K webcam, speakerphone, keyboard, mouse, printer, scanner and hard disk, with a data transfer rate up to 5Gbp/s.
● Super Fast Switching: With the automatic PC wake-up function, it only takes you 2-3 seconds to switch between your PC sources. Supports switching via panel button and IR remote. Also works flawlessly with various kinds of keyboards for hotkey switching.
● Important Notes: It is required to use the included 6x DP 1.4a cables for video input/output. If you encounter screen flickering while outputting certain video resolutions, like 8K@60Hz and 4K@165/144Hz, it is recommended to replace the cables with certified DP 2.0-compliant ones. All accessories are not sold separately. The product does not support EDID emulation at present.
If you’re not satisfied, we’ll refund your payment. No hassle, no risk.
In stock

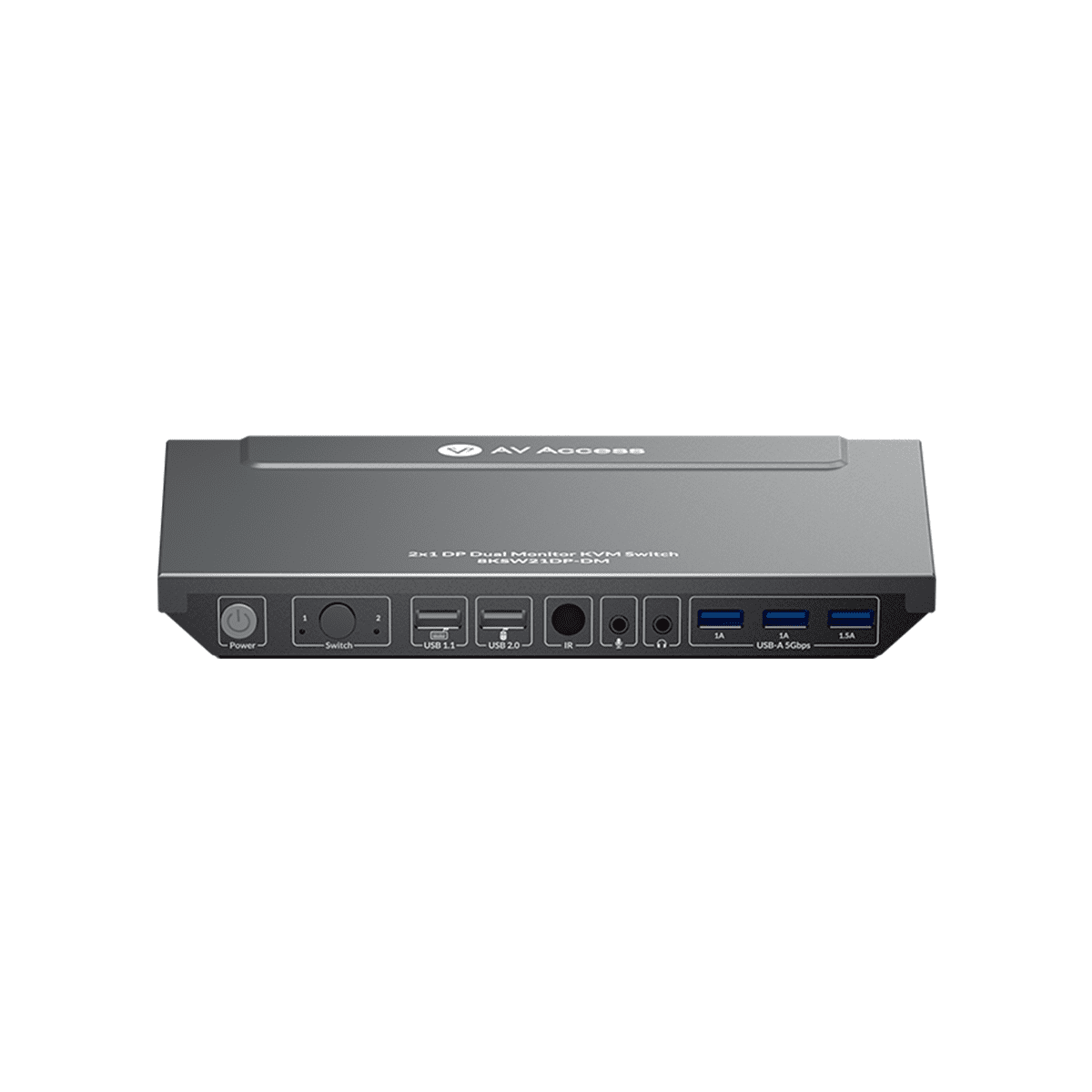

New 2×1 8K Dual Monitor DisplayPort KVM Switch
Double It up with Two Screens
New DP KVM switch with up to 8K@60hz and high refresh rates. Control your desktop/laptop easily with two monitors and one set of USB devices.
Get Partner Discounts Ask for Quote8K KVM Switch for a Dual Monitor Setup
Are you tired of constantly switching between two different computers and monitors? Do you require a DisplayPort KVM for 8K videos or high refresh games? Look no further!
In the left video, you can explore the wonders of a DisplayPort KVM switch that allows you to control two PCs with dual monitors, all while enjoying 8K resolution. let’s dive in and learn how to maximize your productivity with this magic gadget.
Typical Applications
AV Access 8KSW21DP-DM is specially designed for users who have more than one PC and one monitor. It boasts brand-new DP ports, dual monitor channel, maximum 8K resolution, ultra-high refresh rates, and a built-in USB 3.0 hub. Some of its applications are as follows:
Home Office
With this powerful 8K dual monitor KVM switch, you can control your desktop/laptop with two monitors and only one set of keyboard, mouse, or other devices. Whether you are a video editor or engineering designer, it allows you to view extra screens, boosting your productivity in office work or learning.
Gaming
Switch to your gaming PC in your leisure time, and control it easily with a set of keyboard, mouse or game controller. Also, connect a headphone to add external commentary in your game live broadcast. With high refresh rates like 4K@165hz/144hz, 2560×1440@165hz/144hz, or 1080P@240hz, this 8K DisplayPort KVM switch allows you to enjoy an ultra-smooth and amazing gaming experience.
Brand-New Dual Monitor Design

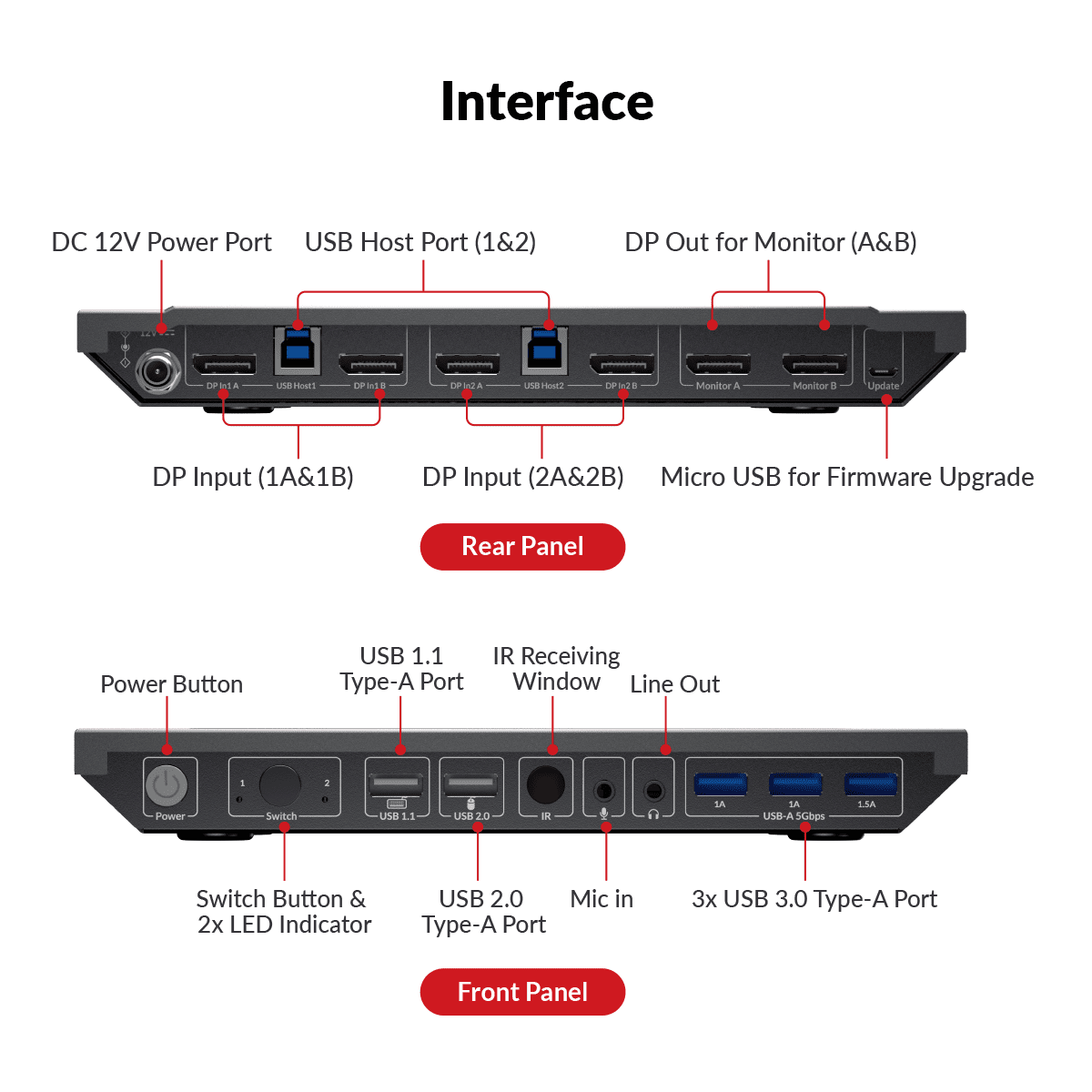

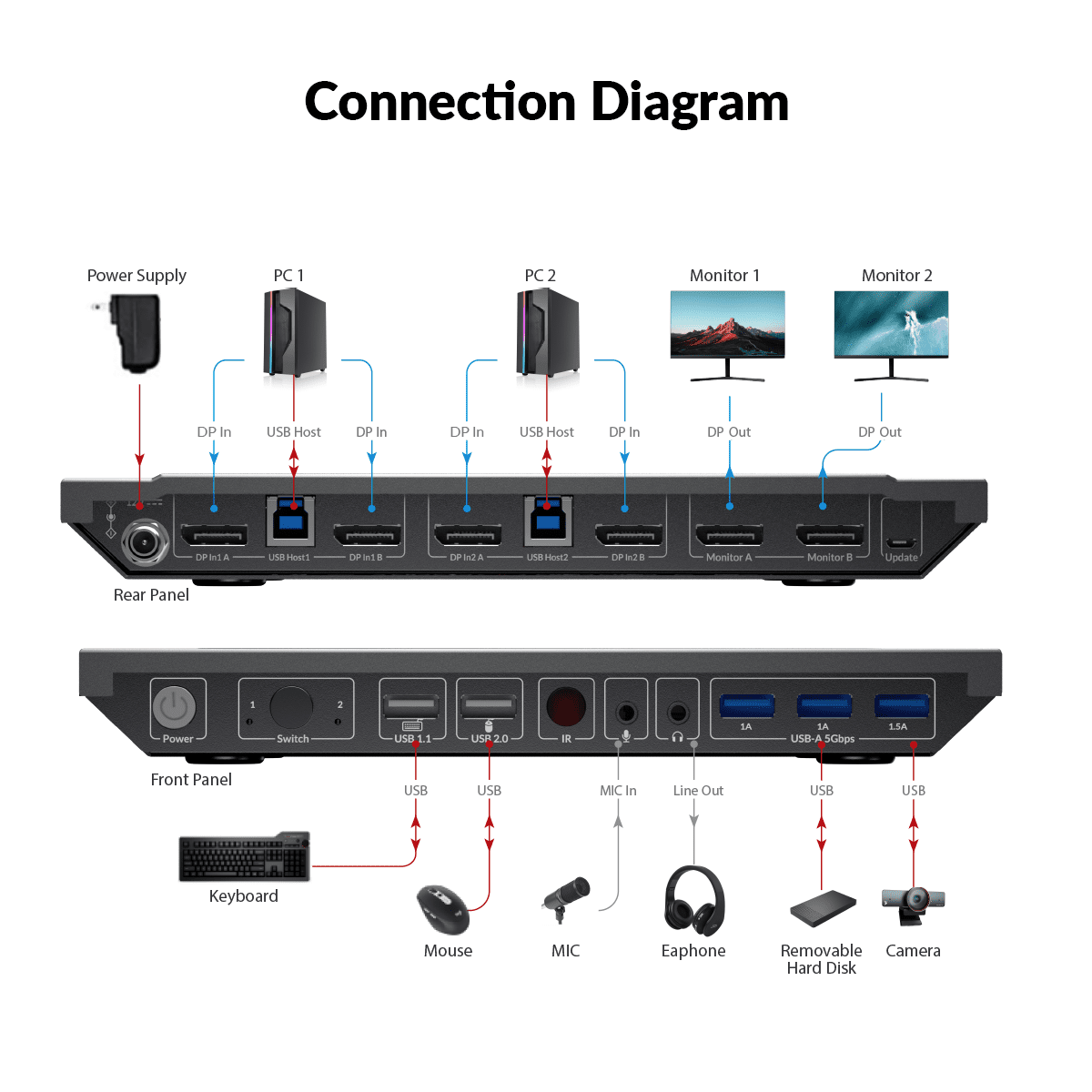

This 8K dual monitor KVM switch is built with 4x DP input ports (2 in 1 group) and 2x DP output ports. Thus, you can easily switch between your workstation and gaming PC, and view two monitor screens at the same time. No matter office work, gaming or learning, it allows you to view extra screens and maximize your productivity.
Notes:
1. When you switch to group 1, the displays connected to “Monitor A port” and “Monitor B port” will output video from DP In 1A and DP In 1B respectively. When you switch to group 2, the display connected to “Monitor A port” and “Monitor B port” will output video from DP In 2A and DP In 2B respectively.
2. If you need to use the KVM switch’s DP MST function, please ensure your desktop/laptop also supports DP MST.
3. This DP KVM switch does not support EDID emulation at present. Please refer to 8KSW21-KVM if you need a 8K KVM switch with this function.
Immersed in 8K UHD Resolution
This brand-new DisplayPort KVM switch is DP 1.4a and HDCP 2.2 compliant. It supports video resolution up to 8K@60hz, offering you an immersive viewing experience. It also supports the full range of DP features, like MST, VRR, HDR10, HLG, Dolby Vision, etc.
Note: It is required to use the included 6x DP 1.4a cables for video input/output. If you encounter screen flickering while outputting certain video resolutions, like 8K@60Hz and 4K@165/144Hz, it is recommended to replace the cables with certified DP 2.0-compliant ones.
High Refresh Rates, Amazing Gaming Experience
For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the player’s performance. This dual monitor KVM switch supports 4K@165hz/144hz/120hz, 3440×1440@165Hz/144Hz/120Hz, 2560×1440@165hz/144hz/120hz, and 1080P@240hz/165hz/144hz/120hz, ensuring your game sources can be effectively switched. Now it is easier than ever to obtain an unprecedentedly enjoyable gaming experience.
2x PCs Share 3x USB 3.0 Peripherals
This 8K DP KVM switch is built with 5x USB type-A port (3x USB 3.0, 1x USB 2.0, 1x USB 1.1), so you can control two PCs with only one set of USB devices, like mouse, keyboard, USB flash, 4K webcam, speakerphone, printer, scanner, etc. Stay confident that all peripherals connect to this KVM switch perfectly, as it supports up to 12V/2A power consumption.
Works Perfectly with Various Keyboards
This 8K KVM switch with DisplayPort boasts better compatibility with keyboard hotkeys than other similar products on the market. Engineered with the fully pass-through mode and newly upgraded hotkey algorithm, it can work flawlessly with various types of keyboards, like wireless keyboard with receiver, gaming keyboard, mechanical keyboard, etc.
Wake up Your “Sleeping” PC
You might set your personal PC to sleep mode when it is not in use. When you switch to the PC, you don’t have to move your mouse or type on the keyboard to wake it up. This 8K KVM switch is designed with a new-generation wake-up engine, so it can automatically wake up your PC with no manual operation required.
3 Ways to Switch, As You Like
Apart from switching via the front panel buttons and the included IR remote, keyboard hotkey switching is also supported on this 8K DisplayPort KVM switch, so you can enjoy a simple, fast and convenient user experience. Just connect a keyboard to its dedicated USB 1.1 port and press “hotkey+1/2” (default hotkey: Tab) to switch to the desired source.
Specifications
| Technical | |
| Video Signal | DP in/out supports DP 1.4a standard, up to 8K@60Hz |
| USB Data | USB 3.0, up to 5Gbps data transfer rate. With one high – power of 5V/1.5A port included. |
| Input/Output Resolution Supported | Up to 8K@60Hz |
| HDR Format Supported | All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision |
| Audio Format Supported | DP: Fully supports audio formats in DP 1.4a specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X MIC IN: Stereo LINE OUT: Stereo |
| Max Data Rate | 8.1 Gbps per channel |
| General | |
| Power Consumption | 4.62W (Max) |
| Device Dimensions (W x H x D) | 230mm x 28.2mm x 142.6mm/ 9.06’’ x 1.11’’ x 5.61’’ |
| Product Weight | 0.83kg/1.83lbs |
| Technical | |
| Video Signal | DP in/out supports DP 1.4a standard, up to 8K@60Hz |
| USB Data | USB 3.0, up to 5Gbps data transfer rate. With one high-power of 5V/1.5A port included. |
| Input/Output Resolution Supported | VESA: 800 x 6006, 1024 x 7686, 1280 x 7686, 1280 x 8006, 1280 x 9606, 1280 x 10246, 1360 x 7686, 1366 x 7686, 1440 x 9006, 1600 x 9006, 1600 x 12006, 1680 x 10506, 1920 x 12006, 2048 x 11526, 2560 x 14406,7,8,9,10, 3440 x 14406,7,8,9,10
CTA: 1280x720P5,6, 1920x1080P1,2,3,4,5,6,7,8,9,10,11, 3840x2160P1,2,3,4,5,6,7,8, 4096x2160P1,2,3,4,5,6,7,8, 5120×28801,2,3,5,7680×43201,2,3,6 1 = at 24 (23.98) Hz, 2 = at 25 Hz, 3 = at 30 (29.97) Hz, 4 = at 48 Hz, 5 = at 50 Hz, 6 = 60 (59.94) Hz, 7 = at 100Hz, 8 = at 120Hz, 9 = 144Hz, 10 = 165Hz, 11 = 240Hz |
| HDR Format Supported | All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision |
| Audio Format Supported | DP: Fully supports audio formats in DP 1.4a specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X MIC IN: Stereo LINE OUT: Stereo |
| Max Data Rate | 8.1Gbps per channel |
| General | |
| Operating Temperature | 0°C to + 45°C (32 to + 113 °F) |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F) |
| Humidity | 20% to 90%, non-condensing |
| Power Consumption | 4.62W (Max) |
| Device Dimensions (W x H x D) | 230mm x 28.2mm x 142.6mm/ 9.06’’ x 1.11’’ x 5.61’’ |
| Product Weight | 0.83kg/1.83lbs |
In the Box
- 1x 8K KVM Switch
- 2x USB 3.0 Type-A to Type-B Cable
- 6x DisplayPort 1.4a Cable (1.5m/5ft for each)
- 1x Power Adapter (DC 12V/2A)
- 1x IR Remote
- 1x User Manual
Check out the unboxing & setup video to learn more.
Frequently Asked Questions
1. What is a DisplayPort KVM switch?
A DisplayPort KVM switch is a device that allows users to control multiple computers or devices with a single keyboard, video monitor, and mouse (KVM) setup using DisplayPort as the video interface.
2. Is DisplayPort better than HDMI?
DisplayPort and HDMI are both widely used digital video and audio interfaces. While both have their advantages, DisplayPort generally offers higher bandwidth, better support for multiple monitors, and is commonly found in professional and gaming setups. However, the choice between DisplayPort and HDMI depends on the specific requirements and devices being used.
3. Does DisplayPort carry audio?
Yes, DisplayPort supports the transmission of audio along with video signals. It can carry high-quality audio streams, including multi-channel audio, making it suitable for connecting monitors or devices that have built-in speakers or audio output capabilities.
4. What is DisplayPort MST?
DisplayPort MST (Multi-Stream Transport) is a feature that allows a single DisplayPort connection to drive multiple displays or monitors in a daisy-chain configuration. With MST, multiple monitors can be connected to a single DisplayPort output, simplifying cable management and reducing the need for additional video ports on the computer or graphics card.
5. What is a dual monitor KVM switch?
A dual monitor KVM switch is a device that enables users to control multiple computers using a single keyboard, video, and mouse setup, while also supporting dual monitors. It allows users to switch between computers and share peripherals, such as monitors, keyboards, and mice, between the connected systems, providing efficient multitasking and productivity.
6. Where can I use this dual monitor KVM switch?
This 8K dual monitor DisplayPort KVM switch is ideal for gaming and home office. You can effortlessly control your desktop & laptop with two monitors, and one set of keyboard, mouse and other USB peripherals.
