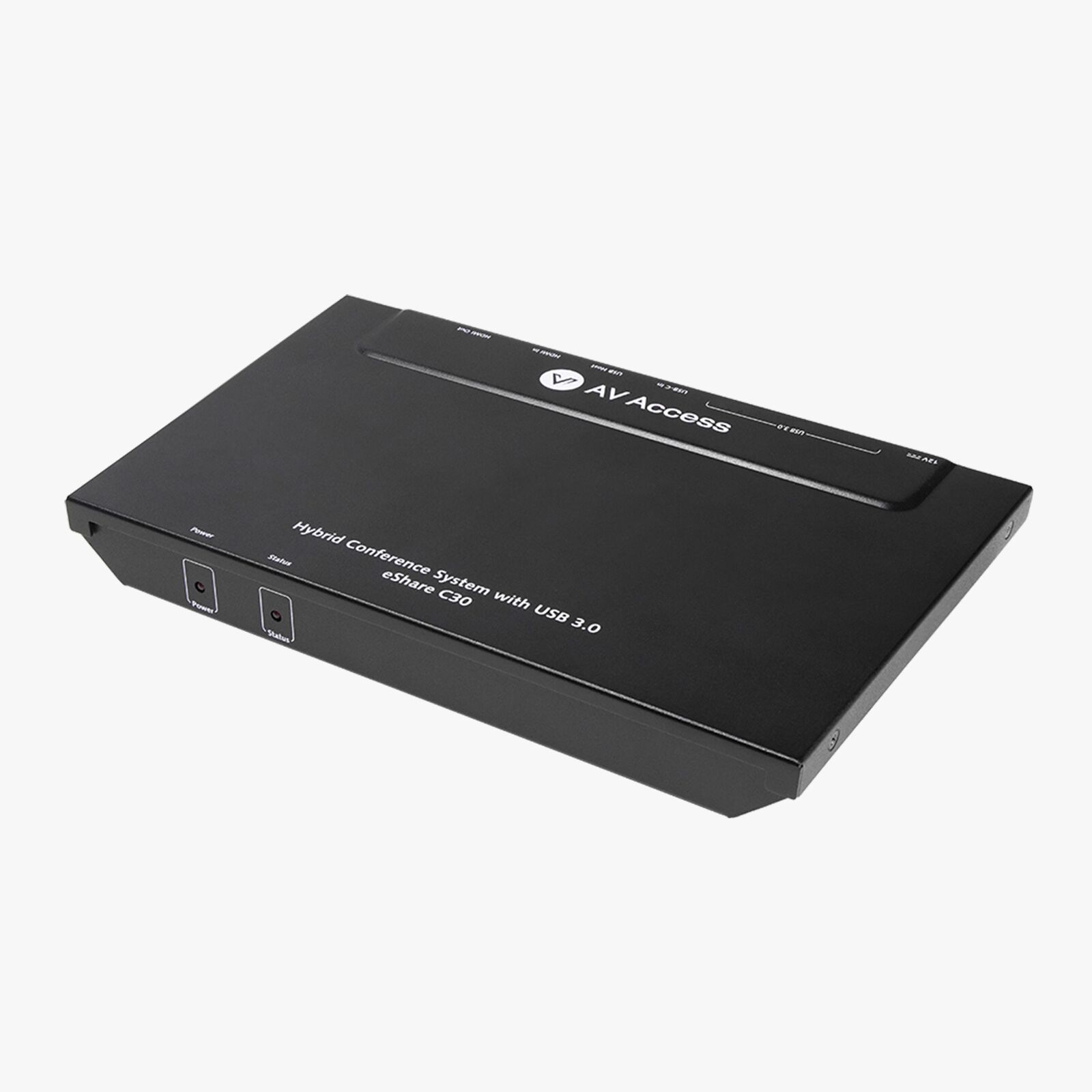

eShare C30 4K Presentation System w/ USB-C & HDMI Input, USB 3.0 Hub, 2×1 Hybrid Conference System for Small and Medium Meeting Room
SKU: eShare C30
$95.99
Partner Discounts | Free Quote

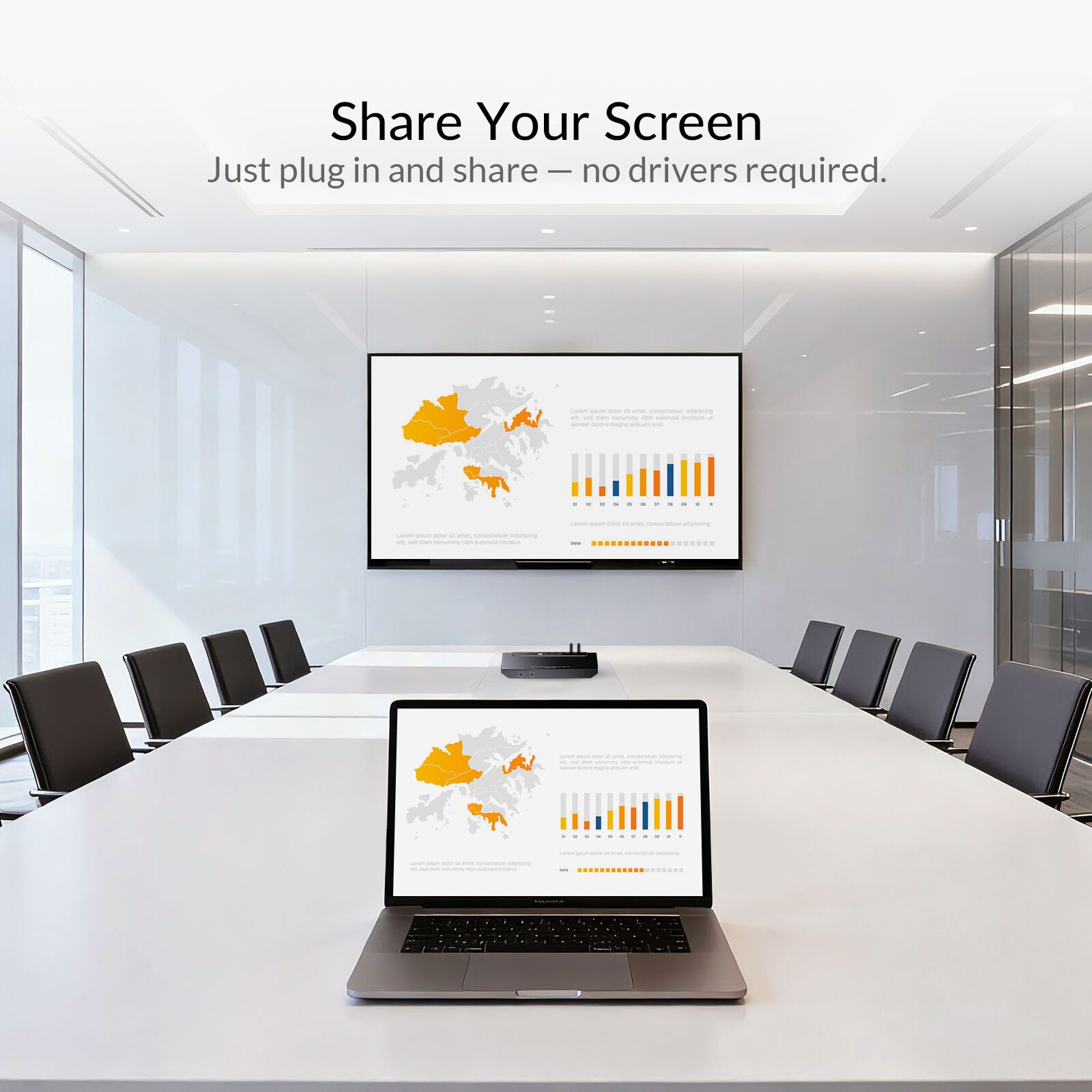

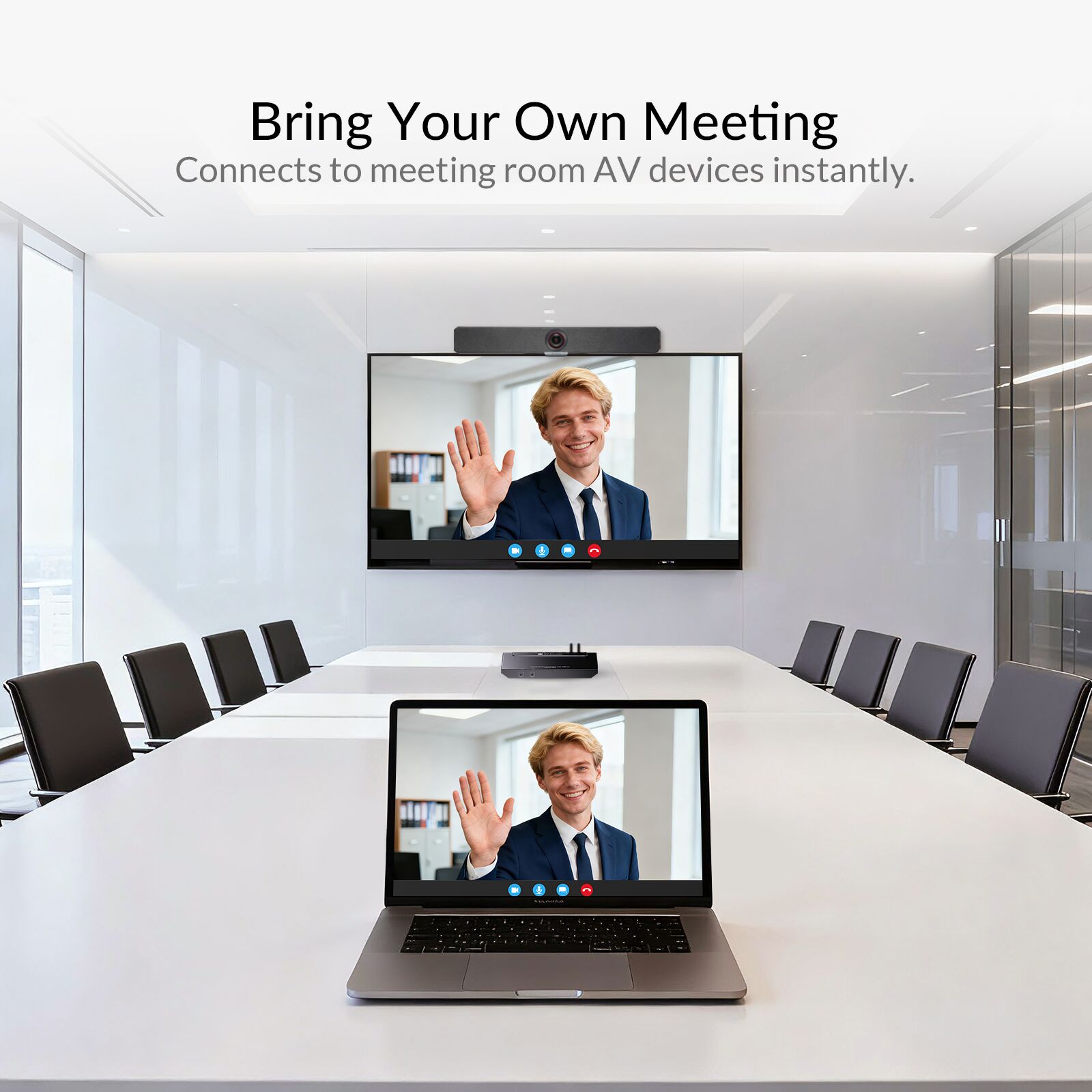

Seamless Meeting Experience:
No software or driver is required; just plug and play. Connect it to your room PC or laptop via USB-C/HDMI port. Make a wonderful local presentation or hold an efficient remote conference in your small/medium meeting room or huddle room.
3x High-Speed USB 3.0 port:
Works flawlessly with 4K webcam, speakerphone and other USB 3.0 peripherals, perfect for video conferencing. Capture sharp image and clear voice while giving your presentation in 4K ultra HD image.
Built-in Automatic Switching System:
Enjoy a quick and smooth presentation experience with auto switching. No extra manual operation is required. Save more time and focus more on your meeting.
Secure Under-Table Installation:
Comes with mounting brackets and self-drilling screws. Optimized single-sided cable connection designed for under-table installation. Also comes with lockable USB-C and HDMI cables for a more secure and stable meeting experience.
In stock
eShare C30 Hybrid Conference System w/ USB 3.0 & HDMI
AV Access eShare C30 is a professional wired presentation system via USB-C/HDMI inputs, specially designed for video presentation and collaboration in small/medium meeting rooms and huddle rooms. It is plug-n-play and quite easy to use. The presentation system boasts 4K@60hz 4:4:4 input/output, 3x USB 3.0 port, automatic switching and user-friendly design for under-table installation. It works perfectly with BizEye series webcams and AnyCo series speakerphones, meeting all your needs for a seamless and efficient hybrid meeting.
Main Features:
- Plug and play; easy to connect
- Supports USB-C/HDMI input
- Supports up to 4K@60hz 4:4:4 input/output
- Built-in 3x high-speed USB 3.0 port
- Supports automatic switching
- Optimized single-sided cable connection for under-desk installation
- Comes with lockable USB-C and HDMI cables
- Comes with mounting brackets and self-drilling screws

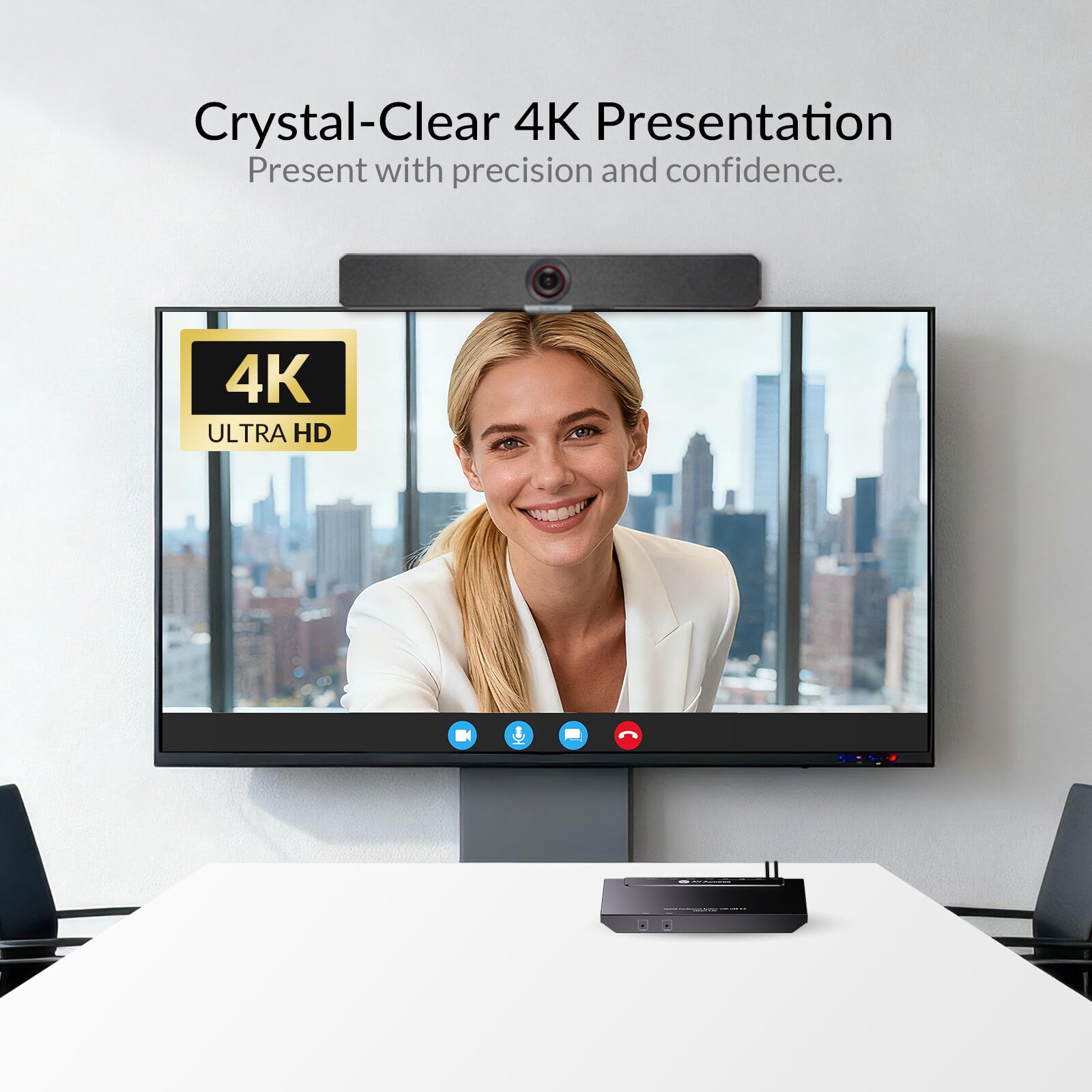

4K Ultra HD Input/Output:
This wired presentation system is built with an HDMI and a USB-C port, so you can easily connect it to your room PC or laptop. Supporting up to 4K@60Hz 4:4:4 video input and output, it allows you to present every tiny detail clearly with ultra HD image.

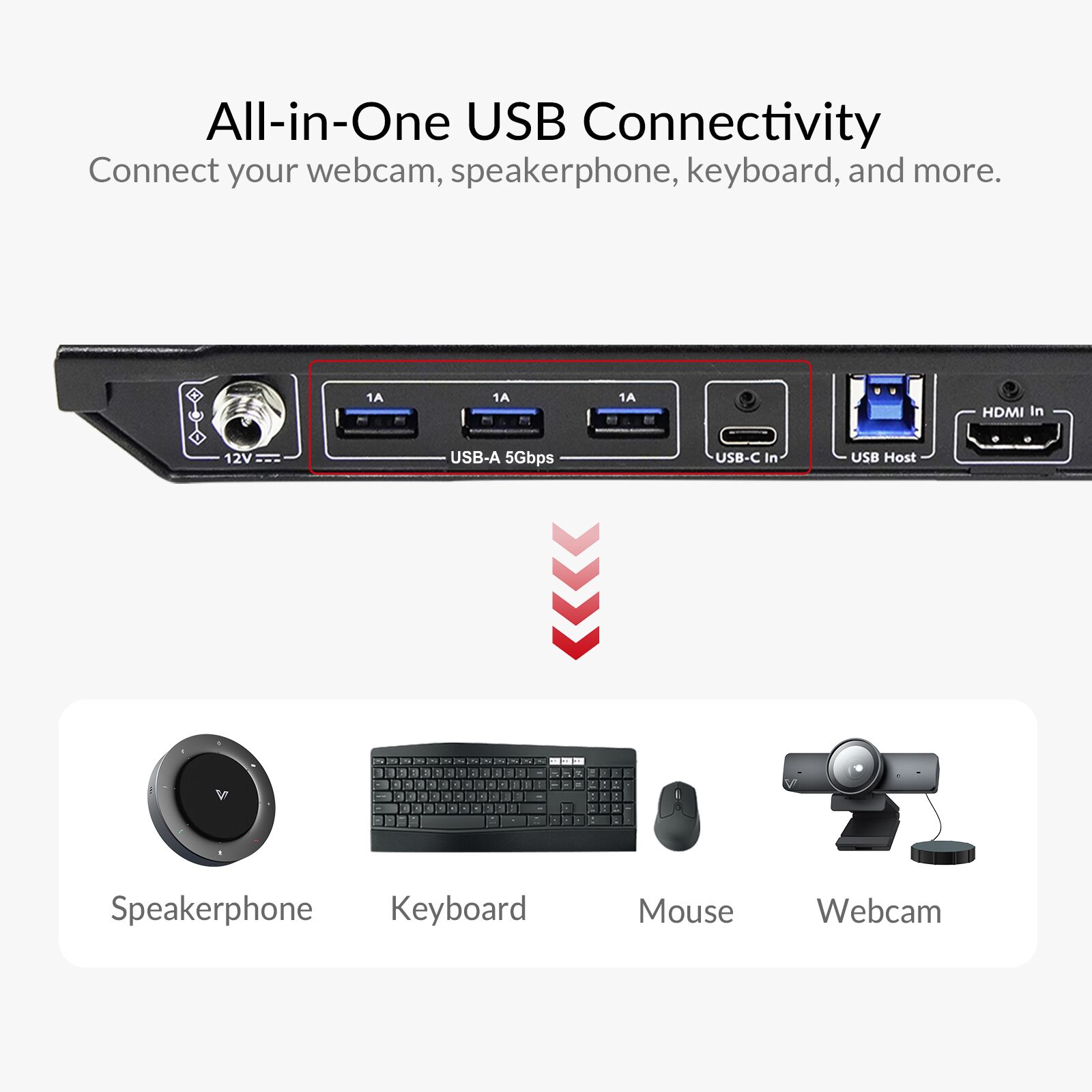

High-Speed USB 3.0 Ports
The wired presentation system is also designed with three USB 3.0 ports. The data transfer rate can reach up to 5Gbp/s, 10 times faster than USB 2.0. Compatible with a 4K webcam, speakerphone or other USB 3.0 conference device, the system allows you to hold a seamless and efficient video conference in front of your boss and colleagues.

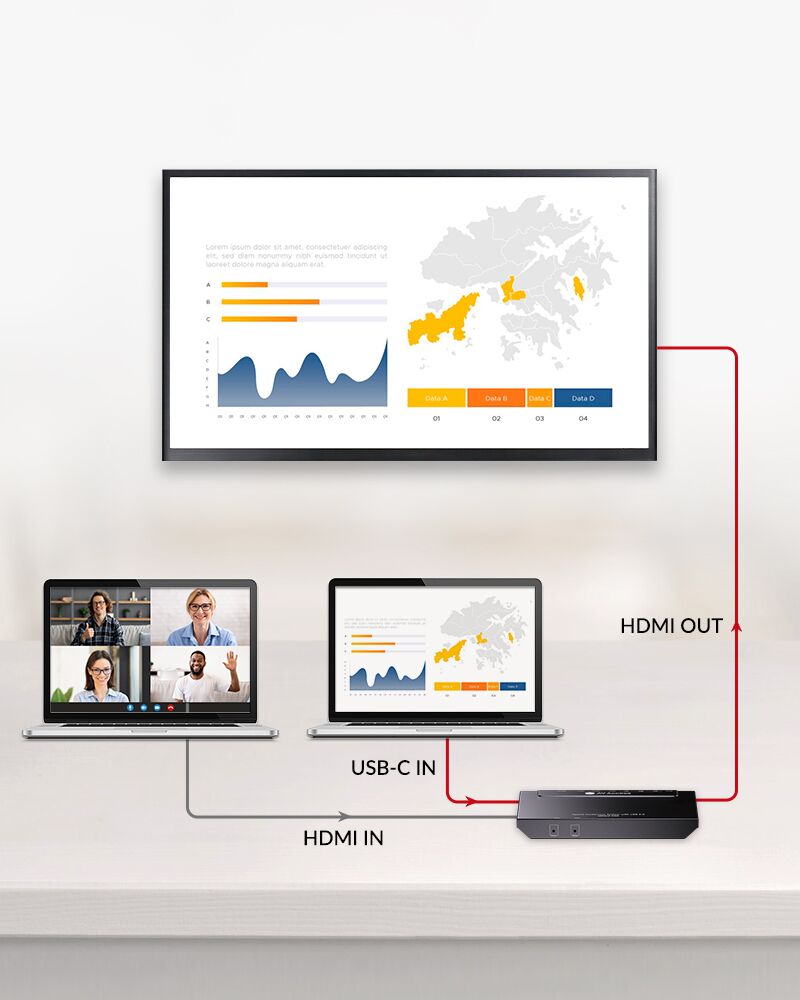

Automatic Switching Function
Once the system detects a new source input from its HDMI or USB-C port, it will automatically switch to that source. Don’t need to waste time pressing control buttons any more. All of your team members can enjoy a smooth presentation and collaboration experience.

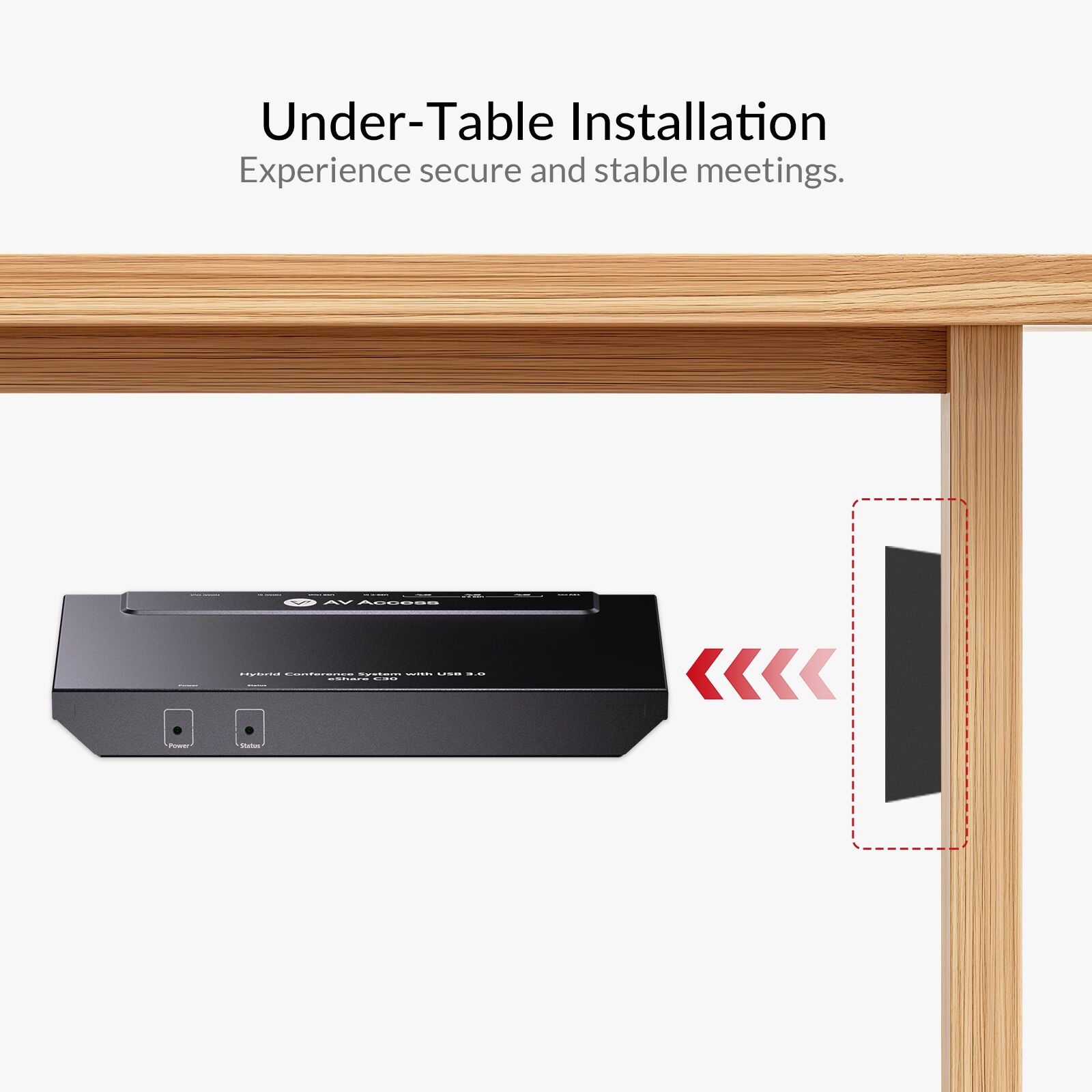

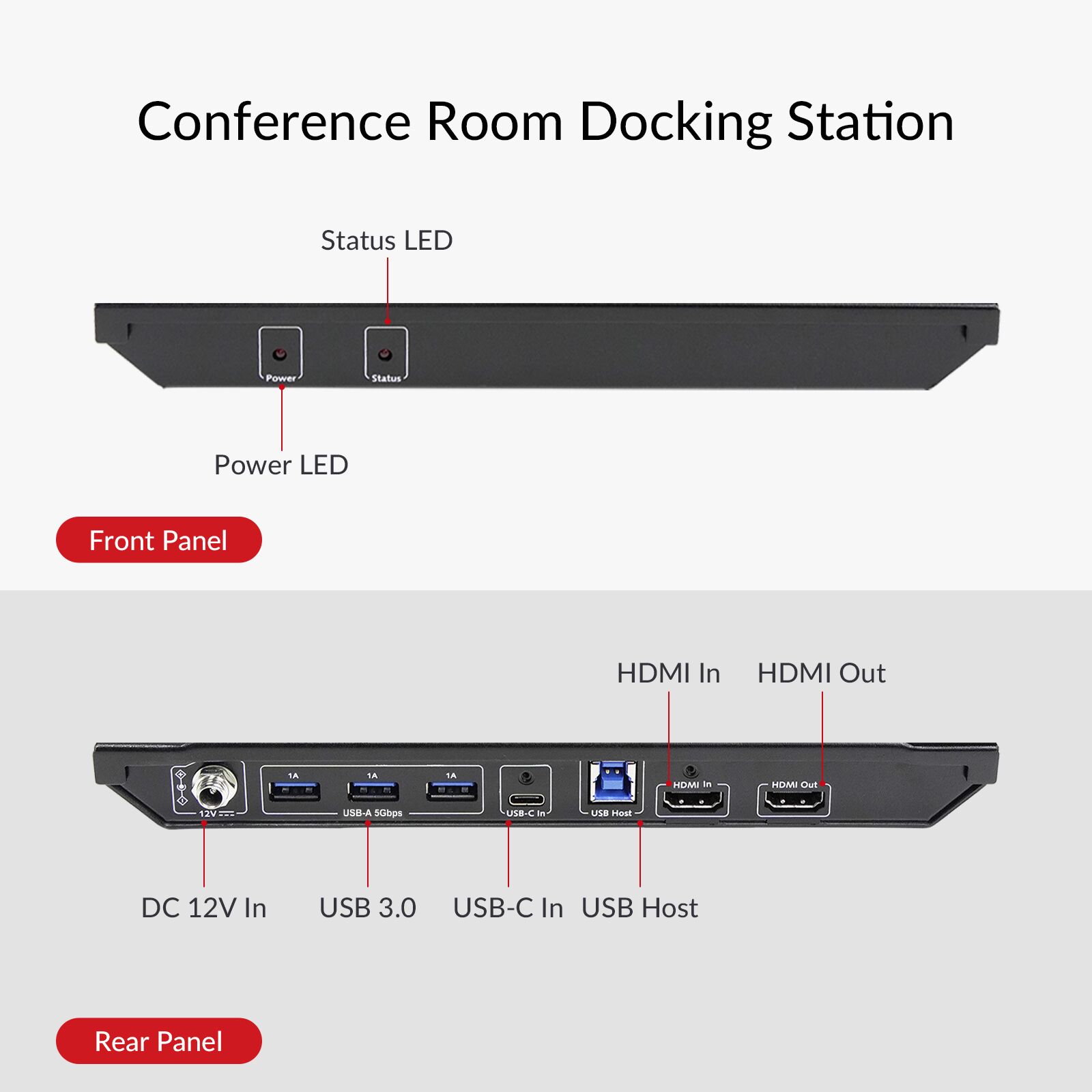

Designed for Under-Table Installation
Optimized single-sided cable connection design lets you install the device under the table effortlessly. Besides, all accessories you need are included in the package, like lockable USB-C and HDMI cables, mounting brackets and self-drilling screws. Just stay confident that you can have a secure and stable meeting experience.

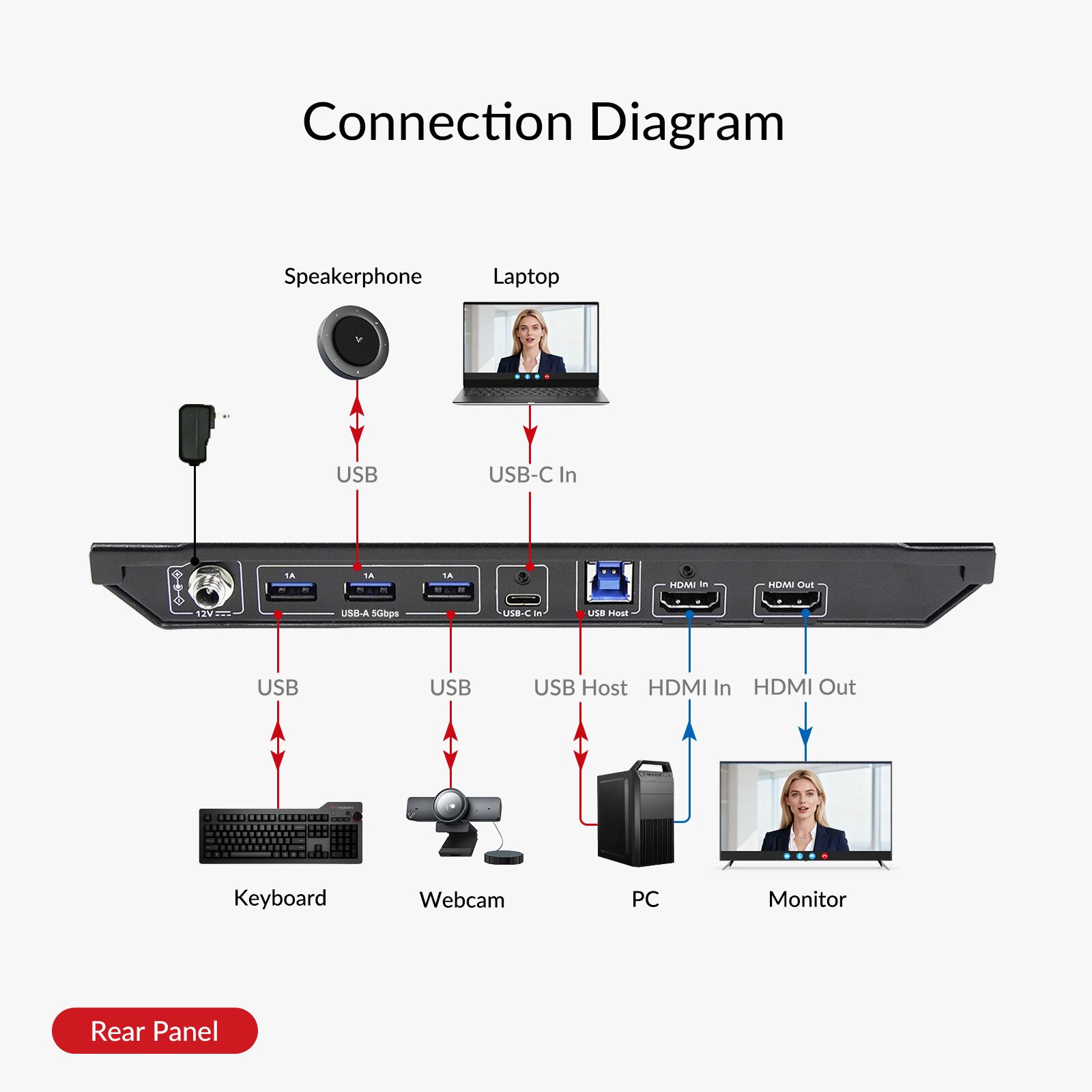

Connection Diagram
In this scenario, a room PC is connected to eShare C30 via its HDMI in and USB-B ports for video conferencing. When other attendees need to share contents, they can connect their laptop to eShare C30 via USB-C port. Then all USB peripherals and the display device will be switched to this laptop automatically.
In this scenario, all attendees can share contents by connecting their laptops to eShare C30 via USB-C port or HDMI In + USB-B ports. All USB peripherals and the display device will be automatically switched to the latest connected laptop source.
Specifications

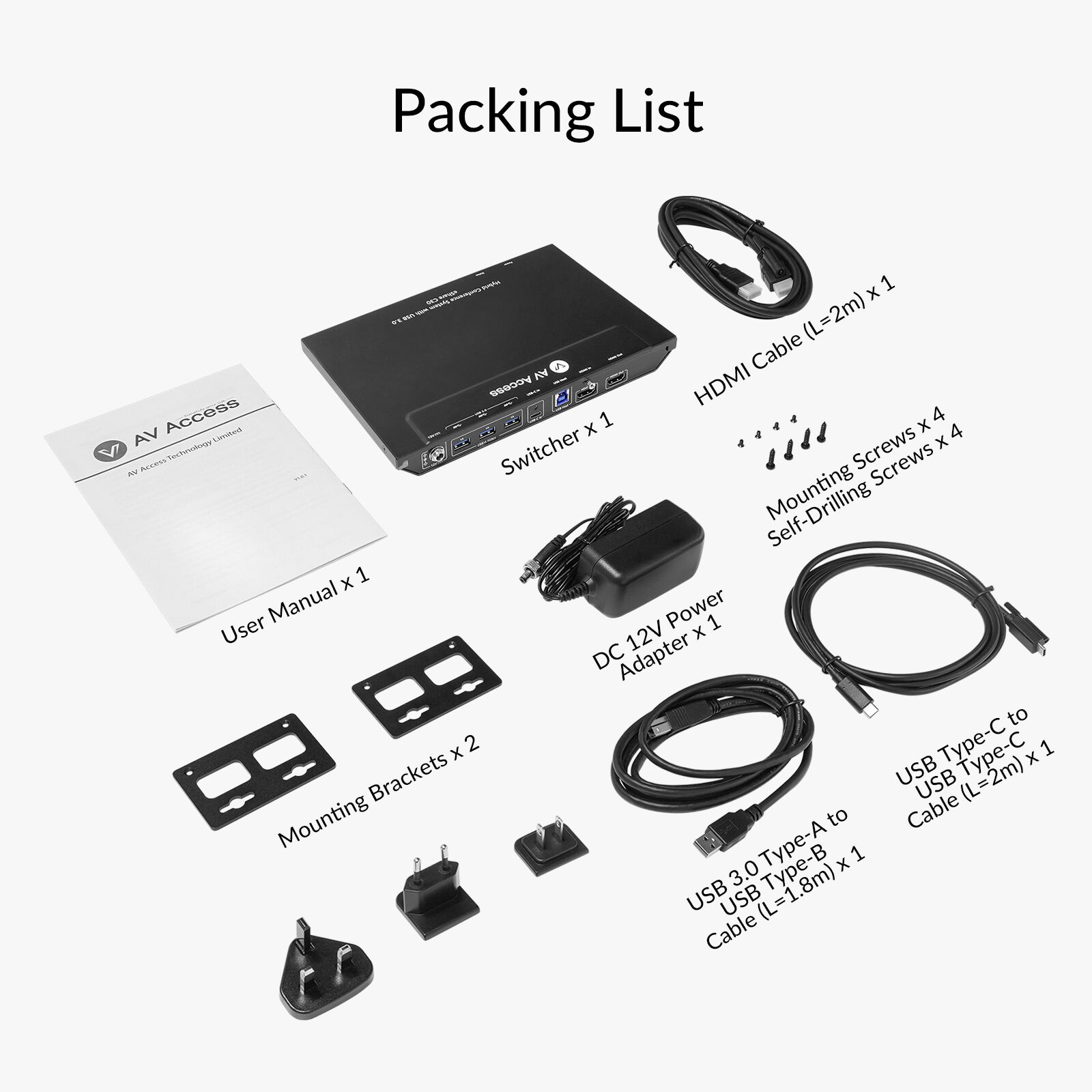

In the Box
- 1x eShare C30 Presentation System
- 1x DC 12V Power Adapter with US, EU and UK Pins
- 1x USB Type-C to USB Type-C Cable (L=2m)
- 1x USB 3.0 Type-A to USB Type-B Cable (L=1.8m)
- 1x HDMI Cable (L=2m)
- 2x Mounting Brackets
- 4x Mounting Screws
- 4x Self-Drilling Screws
- 1x User Manual
Documents & Softwares
1. What is a presentation system?
Presentation system is a device which allows you to transmit video signal from several sources to a connected projector or TV, so that you can make a smooth presentation in a meeting. Some of the brands include AV Access eShare C30/W50, Barco ClickShare CX-20, Barco ClickShare CX-30. eShare C30 is built with HDMI and USB-C ports, so you can connect your video source to it via an HDMI or USB-C cable, then cast the contents to a display device.
2. What are the main features of the eShare C30 presentation system?
The eShare C30 presentation system is plug-n-play and quite easy to use. It boasts 4K@60hz 4:4:4 input/output, 3x USB 3.0 port, automatic switching and user-friendly design for under-table installation. It works perfectly with BizEye series webcams and AnyCo series speakerphones, meeting all your needs for a seamless and efficient hybrid meeting.
3. What are the main differences between eShare W50 and eShare C30?
The eShare W50 presentation system supports both wired HDMI/USB-C and wireless connection, with up to 4K@30Hz 4:4:4 resolution. eShare C30 only supports wired HDMI/USB-C input with up to 4K@60hz 4:4:4 resolution. eShare C30 is only priced at $127.99 on our official site, offering you a more economical solution.
4. Where can I use the eShare C30 presentation system?
With the eShare C30 wired presentation system, you can make a wonderful local presentation or hold an efficient remote conference in your meeting room, including huddle room as well as small and medium-sized meeting room.
You can also apply it to your classroom teaching, connecting it to your laptop, DVD players, document camera, etc.
5. How does the eShare C30 presentation system work?
The eShare C30 presentation system is built with an HDMI input port, a USB-C input port and an HDMI output port. It can work as a video presentation switch, so you can connect your video source to it via an HDMI or USB-C cable, then transmit to the display device.
6. What is the maximum resolution eShare C30 supports?
The eShare C30 presentation system supports up to 4K@60Hz 4:4:4 resolution.
7. Does the presentation system support CEC?
Yes, the eShare C30 presentation system supports CEC. When it detects any video input signal, it can help turn on the connected TV automatically.
8. Can eShare C30 work with the eShare D10 USB-C dongle?
No, it doesn’t support wireless casting, so it cannot work with the eShare D10 USB-C dongle. Only the eShare W50 wireless presentation system can work with the dongle.
9. I find there is no control button on the device panel for switching video sources. How can I switch to a desired video source?
The eShare C30 presentation system supports automatic signal switching function, allowing you to output desired sources easily and quickly. This function follows “Last-In-First-Out“ rule. Whenever you connect a new video source to eShare C30, it will automatically show on the connected display device and replace the last source.
10. How can I install the presentation system?
It is recommended to install the presentation system under the meeting table. All accessories you need are included in the package, like lockable USB-C and HDMI cables, mounting brackets and self-drilling screws. For detailed steps on installation, please refer to the “Installation and Application” section in the user manual.
11. USB-A vs. USB-B vs. USB-C: What are the differences?
USB-A, USB-B, and USB-C are different types of connectors used for USB cables. USB-A is the most common connector, used for many devices including flash drives and keyboards. USB-B is used for larger devices like printers and external hard drives. USB-C is the newest and most versatile connector, used for charging and data transfer in devices like smartphones, laptops, and tablets.
