eShare D20 USB-C Casting Dongle, Works with eShare W80 for One-Click Wireless Conferencing, 4K UHD, No Software Required

Name: 4K USB-C Casting Dongle for Wireless Conferencing
SKU: eShare D20
Price: 207.20 USD
Availability: InStock

SKU: eShare D20

$207.20

Partner Discounts | Free Quote
We provide huge discounts for partners.

The shipment is expected to start in mid-Nov.

● Wireless Casting with 4K UHD Image: Works perfectly with eShare W80 presentation system. With just a click of the casting button, it allows you to share your laptop screen wirelessly with up to 4K@30Hz resolution, no software required.
● One-Click Wireless Conferencing: Works with eShare W80 to control a 4K webcam, speakerphone, or other USB 3.0 conferencing device wirelessly. Plug the dongle into your own device, click the “wireless conference” button and start your video conference in no time.
● Truly Plug and Play: Extremely easy to set up; no software driver or extra configuration required. No security issues, no cable hassles, no training required, quite friendly to all users.
● Auto and Quick Pairing: Plug it into eShare W80 hybrid conference system via USB-C port, and they can get paired automatically. It just takes you a few seconds!
● Universal Compatibility: Compatible with Windows 7/10/11, Mac OS, and Android OS. Bring your own laptop, smartphone or tablet, and share your screen easily.
● Important Notes: The dongle can’t be used alone; it needs to work with eShare W80 presentation system. Before using it for wireless casting, please ensure your laptop’s USB-C port supports video output.

If you’re not satisfied, we’ll refund your payment. No hassle, no risk.

In stock

Overview
Specs
Downloads
FAQ
Reviews

eShare D20 USB-C Dongle for Wireless Conferencing

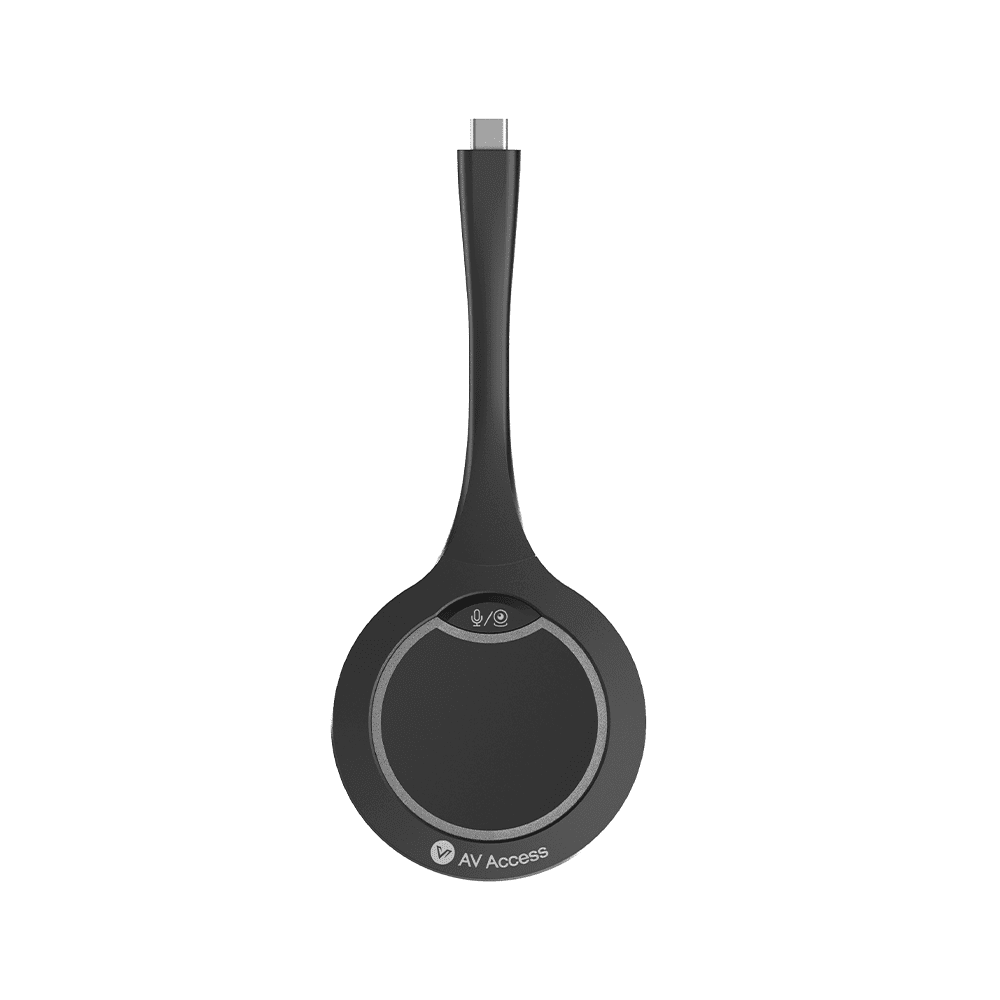

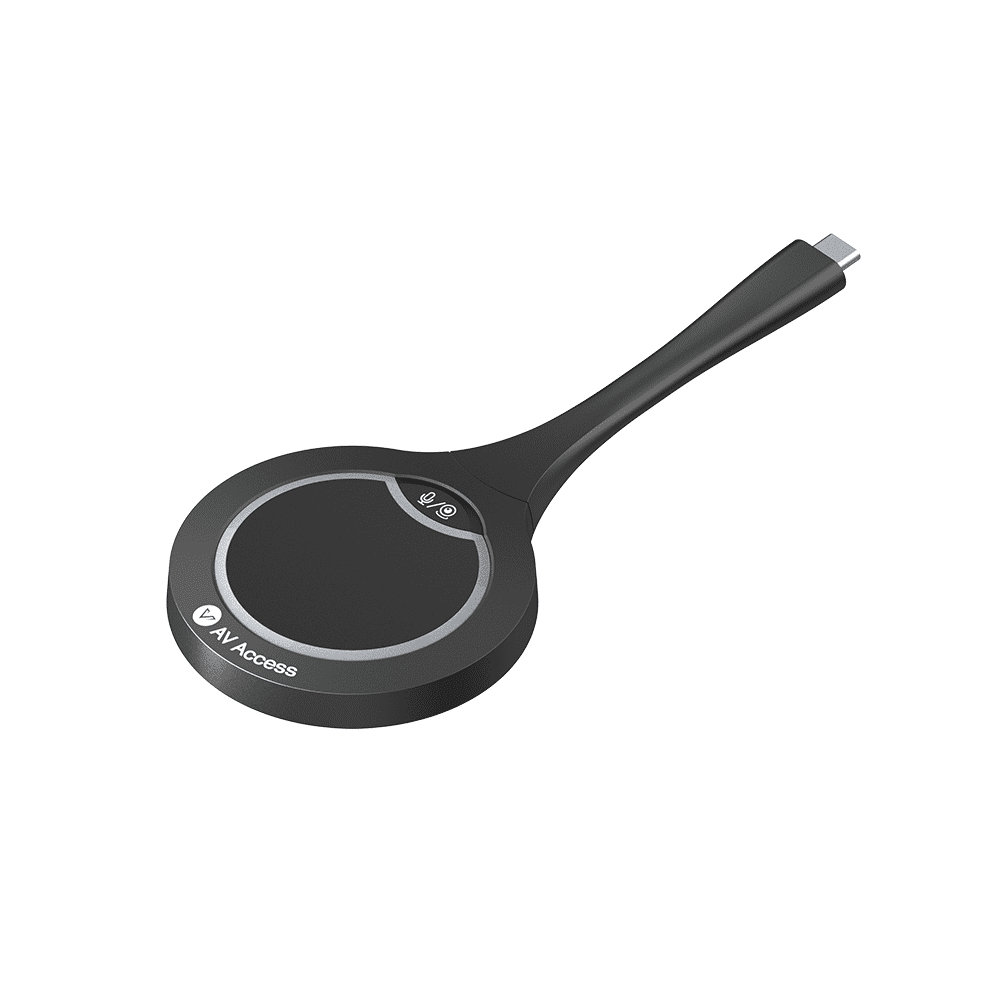

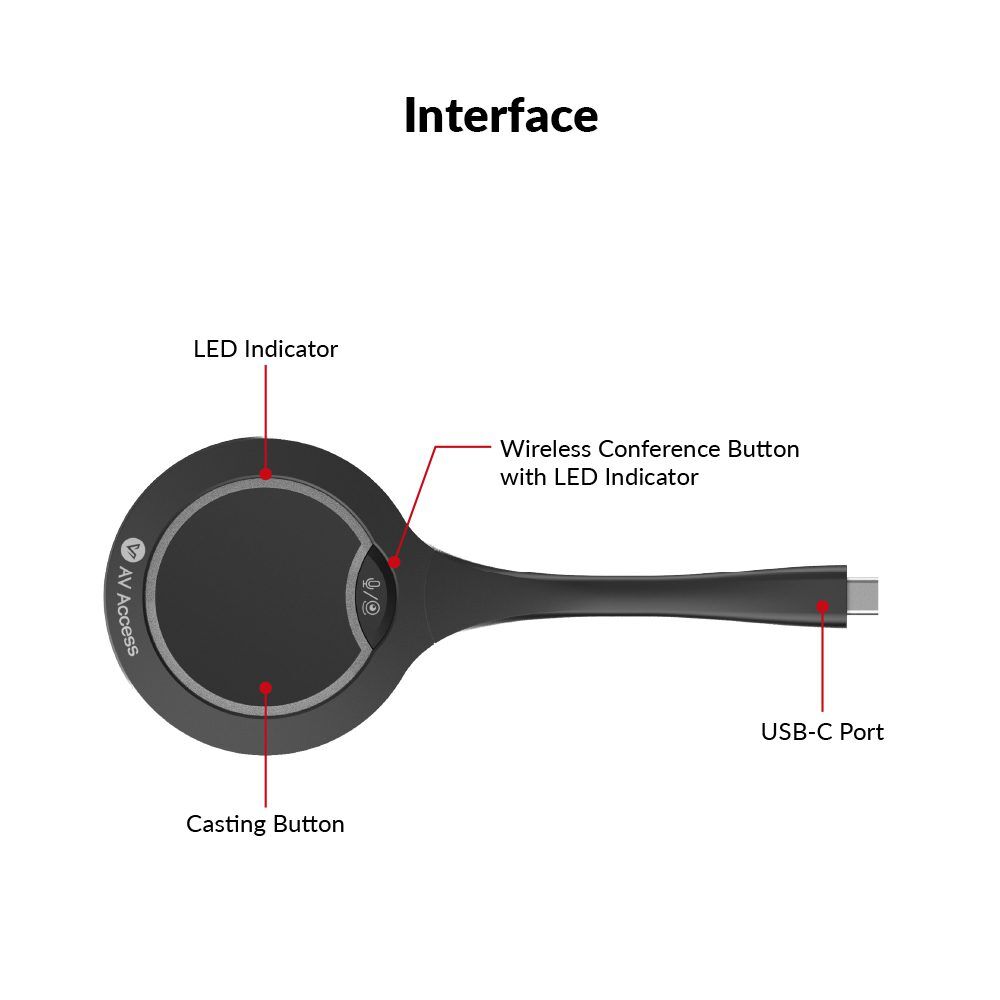

The eShare D20 USB-C dongle is designed with two control buttons: the casting button (the big one) and the “wireless conference” button (the small one with webcam/speaker icons).

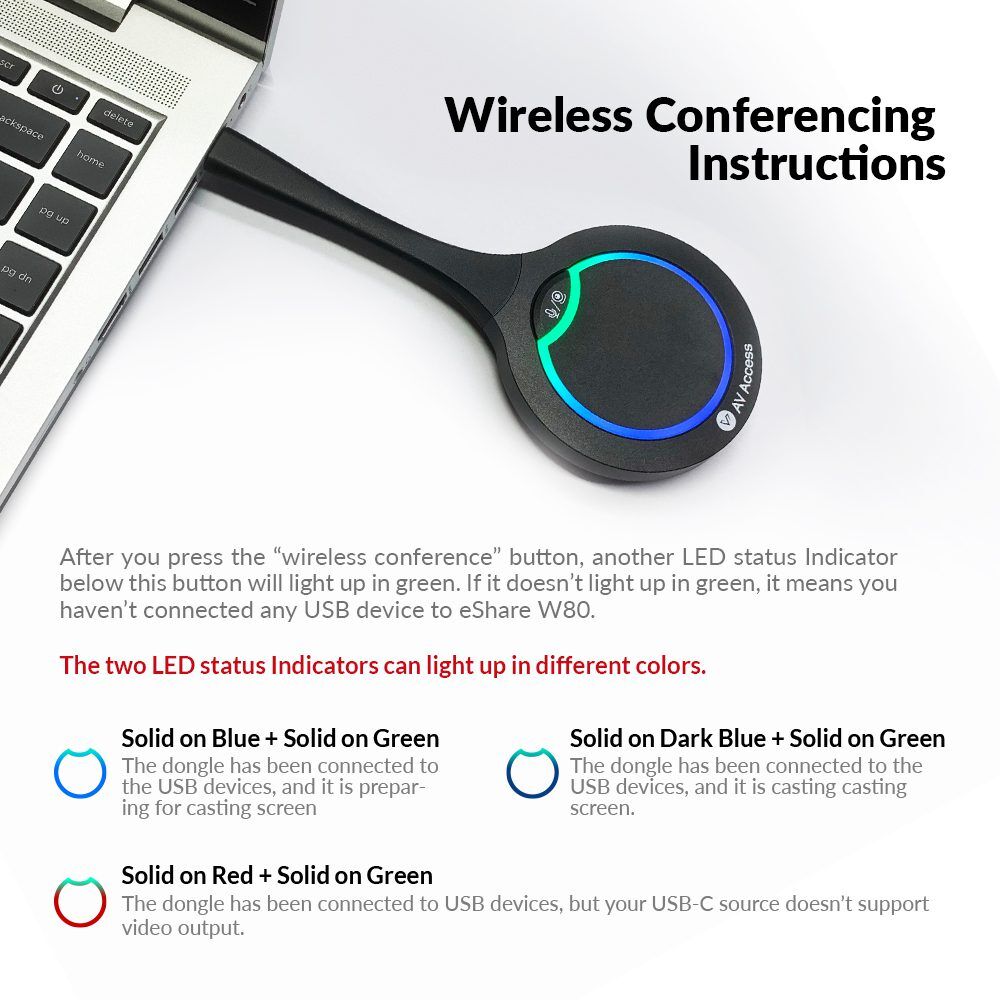

It supports one-click wireless conferencing. Once your USB conferencing devices are connected to eShare W80 presentation system, you can control them wirelessly with the “wireless conference” button on the dongle.

Besides, it can wirelessly cast screen from your laptop/smartphone/tablet to the TV connected to eShare W80 presentation system. One or more dongles can be automatically paired to eShare W80 via its front USB-C port. After pairing, you can plug it into your laptop and tap its casting button, then the contents will be readily mirrored on the TV.

Important Notes before Using:

1. This USB-C dongle can’t be used alone; it needs to work with eShare W80 presentation system.
2. Plug the dongle into eShare W80 via the front USB-C port, then they can get paired automatically. Once the pairing is completed, the prompt “Pairing Successful” will appear on the TV connected to eShare W80.
3. Please ensure your laptop’s USB-C port supports video output before using the dongle for wireless casting.

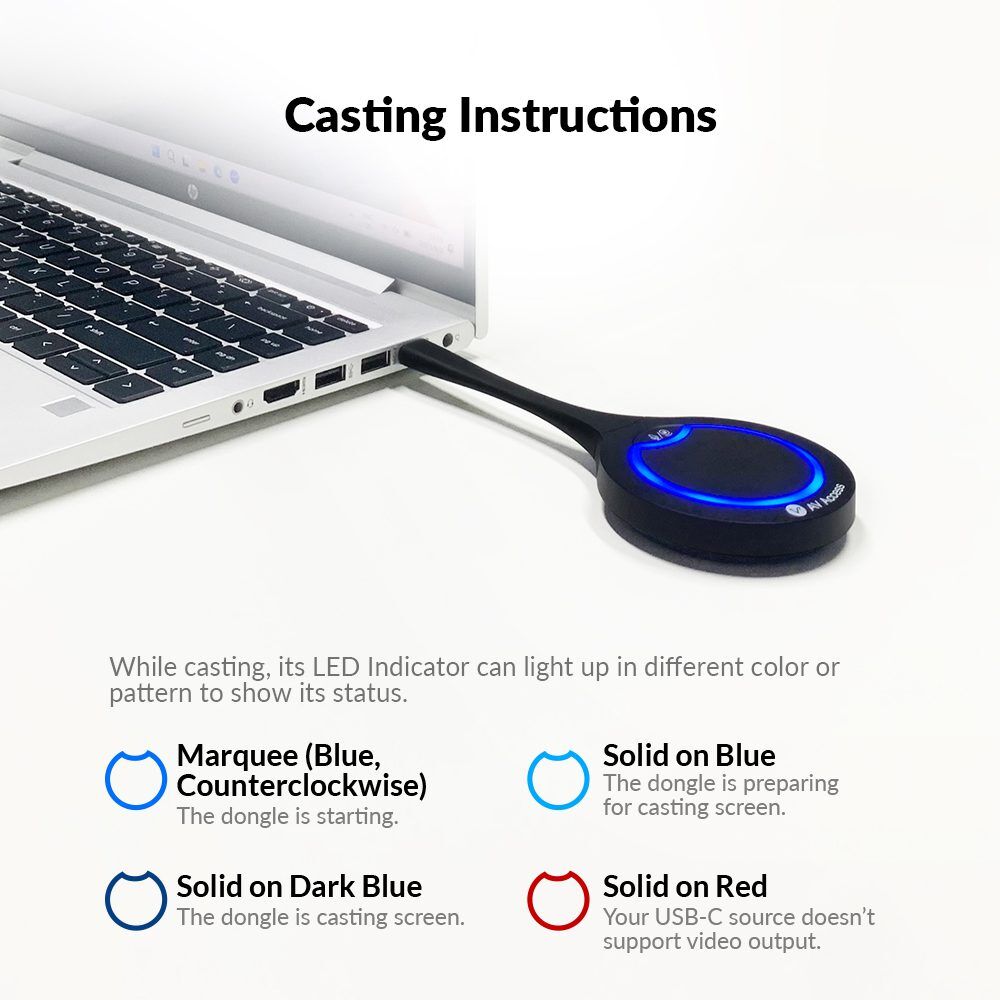

4. After inserting the dongle into your laptop’s USB-C port, please wait a few seconds until its LED indicator stops blinking and becomes solid on. Then, you can cast your screen instantly.
5. Short press the casting button once to start or stop casting. When you need to pause casting, please short press the button for two times.

Main Features:

Supports wireless casting with up to 4K@30hz resolution
Supports wireless conferencing (wireless control of USB peripherals)
Works with a laptop/smartphone/tablet, no cable hassles
No software or configuration needed, real plug and play
Compatible with Windows 7/10/11, Android OS and Mac OS
Start/Stop mirroring with just one-button press
Supports desktop duplicated screen and extended screen
As small as a palm, easy to carry

Technical
Max Resolution	4K @ 30fps
Terminal Type	1 x USB Type-C
Frequency	5GHz (default) and 2.4GHz
Wireless transmission protocol	IEEE 802.11 a/b/g/n, IEEE 802.11ac
Authentication protocol	WPA2-PSK or IEEE 802.1X

USB
Operate System	Windows 7/10/11, Mac OS, Android OS
USB Port	USB Type-C Port

General
Input Voltage	5V (Power over USB)
Power Consumption (Max)	2.7W
Product size (φ x h x l)	69mm x 15.34mm x 165.2mm/2.72” x 0.60” x 6.50”
Product Weight	60g/0.13lb (net weight)

Technical
Max Resolution	4K @ 30fps
Terminal Type	1 x USB Type-C
Frequency	5GHz (default) and 2.4GHz
Wireless transmission protocol	IEEE 802.11 a/b/g/n, IEEE 802.11ac
Authentication protocol	WPA2-PSK or IEEE 802.1X

USB
Operate System	Windows 7/10/11, Mac OS, Android OS
USB Port	USB Type-C Port

General
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
Input Voltage	5V (Power over USB)
Power Consumption (Max)	2.7W
Product size (φ x h x l)	69mm x 15.34mm x 165.2mm/2.72” x 0.60” x 6.50”
Product Weight	60g/0.13lb (net weight)

In the Box

1x eShare D20 USB-C Dongle
1x User Manual

Documents & Softwares

Download User Manual

Frequently Asked Questions

1. What is a USB-C dongle for wireless casting?

A USB-C dongle is a kind of screen-mirroring device, which can wirelessly transmit the contents of a laptop/smartphone/tablet to the display device connected to the paired wireless presentation system.

2. How can I pair the eShare W80 presentation system with the USB-C dongle?

Plug the USB-C dongle into eShare W80 wireless presentation system via the front USB-C port, then they can get paired automatically. Once the pairing is completed, the prompt “Pairing Successful” will appear on the TV connected to eShare W80.

3. Can I use the USB-C dongle independently?

This USB-C dongle can’t be used alone; it needs to work with the eShare W80 wireless presentation system.

4. Do I need to install any software/application to use the dongle?

No, you don’t have to install any software driver or application. Just pair the dongle with the eShare W80 wireless presentation system, insert it into you own device, click the button, then you can start your presentation right away.

5. I inserted the dongle into my laptop via USB-C port, but there is no video output on the TV screen. What can I do?

First of all, please check if your have paired the dongle with the eShare W80 wireless presentation system. If not, please pair them first. Second, please check if your laptop’s USB-C port supports video output. The USB-C port on some old computers may only carry USB signal. Besides, please wait a few seconds until the LED indicator stops blinking and becomes solid on. Then, you can cast your screen with one click of the button.

6. What is the maximum resolution the USB-C dongle supports?

The eShare D20 USB-C dongle supports transmitting up to 4K@30Hz video signal with audio.
