eShare W80 4K Wireless Presentation System, Works with Dongle for Wireless Conferencing, Dual HDMI out, Multiview, No Software Required
SKU: eShare W80
$259.00 – $1,290.10
Partner Discounts | Free Quote
We provide huge discounts for partners.
The shipment is expected to start in mid-Nov.
● One-Click Wireless Conferencing: Once your USB conferencing devices are connected to eShare W80, you can control them wirelessly with the eShare D20 USB-C dongle. Plug the dongle into your own device, click the button and start your video conference in no time. No cable hassles, no software needed, no training required.
● Dual HDMI Input/Output: eShare W80 boasts 2x HDMI input and 2x HDMI output ports. You can connect it to two HDMI wired sources, like a room PC and a laptop. And with two monitor screens, you can view presentation contents and see remote colleagues at the same time.
● Innovative Multiview function: When eShare W80 is connected to two sources and one monitor, the dual-view mode will be automatically enabled, so you can view up to 2 sources on the same screen, ideal for comparing different schemes.
● Wired or Wireless, up to You: eShare W80 allows you to share contents readily from your PC to a larger screen via an HDMI cable, or cast screen wirelessly with AirPlay, Miracast or eShare D20 USB-C dongle. Just bring your laptop, smartphone or tablet and ready to present.
● USB 3.0 Peripheral Control: Works flawlessly with BizEye series webcams, AnyCo series speakerphones, touch-screen panel or other USB 3.0 peripherals. Capture sharp image and clear voice while giving your presentation in 4K ultra HD image.
● Set up within Minutes: No software or driver is required, no security issues, just plug and play. Mount it under your table or place on the rack, plug in, and you can present instantly. Also designed with intuitive web UI and OSD to modify settings easily.
If you’re not satisfied, we’ll refund your payment. No hassle, no risk.
All-in-One and Cost-Effective Hybrid Conference Solution
One-Click Wireless Conferencing with USB-C Dongle
Wireless Conferencing
Just pick up the eShare D20 USB-C dongle on the table, plug it into your laptop and ready to share. Incredibly, you can also control the USB 3.0 conferencing devices wirelessly with the dongle!.
All-in-One Design
eShare W80 supports both wired and wireless connection, so you can share your screen either way you want. Besides, it is built with a 3-in-1 USB 3.0 hub, so you can integrate it with a webcam, speakerphone, touch-screen panel, etc.
Truly Plug & Play
No software or driver is required for both eShare W80 and the dongle, user-friendly to both employees and guests. It prevents the potential entry points for viruses, spyware, and other external threats.
Ultra-Low Cost
The original price of eShare W80 plus 2x eShare D20 dongles ($1617) is about 50% of that of Barco ClickShare CX-50 ($2950). Besides, we offer a huge discount for our partners. Register now and save big!
Dual HDMI Inputs & Outputs
The eShare W80 hybrid conference system is built with 2x HDMI input ports and 2x HDMI output ports, so you can effortlessly connect it to your room PC or laptop. Also, you can connect it to two TV screens in your meeting room, displaying your presentation contents while maintaining a crystal-clear view of your remote colleagues.
Wireless Conferencing Made Easier
Connect the eShare D20 USB-C dongle to your laptop, click on the casting button, then you can share your screen wirelessly in 4K ultra HD image. What’s more, you can control the USB peripherals wirelessly with the conferencing button on the dongle. No cable hassles, no software needed, no training required.
Note: Before using the dongle for wireless casting, please ensure your laptop’s USB-C port supports video output.
Bring Your Own Device
There is no need to install an external Wi-Fi router for wireless connection. Built with two Wi-Fi modules for transmitting stable and strong video signal, the eShare W80 presentation system allows you to wirelessly cast your screen, with no casting software required. Readily share contents from your laptop, smartphone or iPad via AirPlay/Miracast/dongle.
Works Perfectly with USB 3.0 Peripherals
Designed with 3x USB 3.0 ports, eShare W80 can work with 4K webcam, speakerphone, video bar, touch-screen panel or other conferencing device. With amazing interactive features like touch back, annotation, and blackboarding, you can captivate your audience with engaging online presentations using just a touch screen.
Innovative Multiview Function
When eShare W80 is connected to two sources and one monitor, the multiview (dual-view) mode will automatically be enabled. You can simultaneously view up to two sources on a single screen, perfect for comparing and analyzing different schemes side by side.
Intuitive Web UI & User-Friendly OSD
This hybrid conference system is built with user-friendly OSD to convey its basic information, like device name, Wi-Fi password, PIN code, etc. Besides, you can easily modify these settings and upgrade firmware via its intuitive web UI.

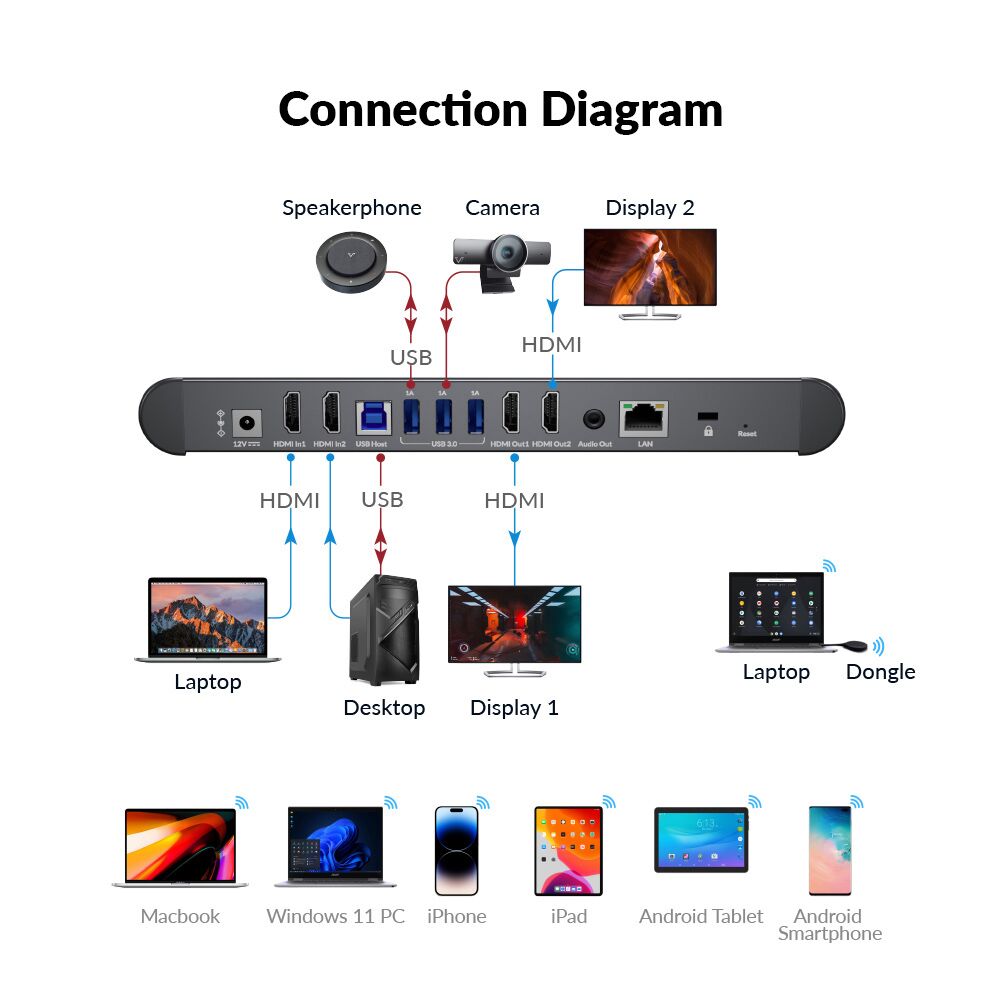

Connection Diagram
Specifications
| Technical | |
| Input Video Port | 2 x HDMI In; 1 x LAN, 10/100/1000Mbps Ethernet; 1 x WLAN |
| Input Video Signal | • HDMI: HDMI 1.4, HDCP 1.4 • LAN/WLAN: H.264 |
| Input Resolution | Up to 4K@30Hz |
| Output Video Port | 2 x HDMI |
| Output Video Signal | HDMI 1.4, HDCP 1.4 |
| Output Resolution | Up to 4K@30Hz |
| Audio | |
| Input Audio Port | 2 x HDMI; 1 x LAN; 1 x WLAN |
| Input Audio Signal | RAW PCM 2.0, 16 bit, 32/44.1/48KHz sps |
| Output Audio Port | 1 x HDMI OUT (HDMI OUT 1), 1 x Analog Audio OUT |
| Output Audio Signal | RAW PCM 2.0, 16 bit, 48KHz sps |
| Wi-Fi | |
| Standard | IEEE 802.11 a/b/g/n/ac |
| Frequency | Dual bands, 2.4~2.4835GHz, 5.0~5.8GHz |
| Security | WEP, TKIP, AES, WPA, WPA2 |
| Control | |
| Control Connector | 1 x RJ45, 10/100/1000Mbps Ethernet |
| Control Method | LAN (Web UI) |
| General | |
| Power Supply | 12V 3A DC |
| Power Consumption | 26.5W (Max) |
| Device Dimensions (W x H x D) | 242.6mm x 29.1mm x 142mm / 9.55” x 1.14” x 5.59” |
| Product Weight | 0.80kg/1.76lbs |
| Technical | |
| Input Video Port | 2 x HDMI In; 1 x LAN, 10/100/1000Mbps Ethernet; 1 x WLAN |
| Input Video Signal | • HDMI: HDMI 1.4, HDCP 1.4 • LAN/WLAN: H.264 |
| Input Resolutions | HDMI: 640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1400×10508, 1600×12008, 1680×10508, 1920×12008, 720×4808 (480p), 720×5766 (576p), 1280×7205 (720p30), 1280×7206 (720p50), 1280×7208 (720p60), 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21602(2160p24), 3840×21603(2160p25), 3840×21605(2160p30)
LAN/WLAN: H.264 encoding stream, up to 3840×21605 (2160p30) Note: The input resolution support for LAN or WLAN may vary according to the specific BYOD protocols and devices.
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz |
| Output Video Port | 2 x HDMI |
| Output Video Signal | HDMI 1.4, HDCP 1.4 |
| Output Resolutions | HDMI OUT1: 720×4808 (480p60), 720×5766 (576p60), 640×4808, 800×6008, 1024×7688, 1280×7206(720p50), 1280×7208 (720p60), 1280×8008, 1280×10248, 1366×7688, 1440×9008, 1600×12008, 1680×10508, 1920×12008, 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60), 3840×21603 (2160p25), 3840×21605 (2160p30) HDMI OUT2: 720×4808 (480p60), 720×5766 (576p60), 640×4808, 800×6008, 1024×7688, 1280×7206(720p50), 1280×7208 (720p60), 1280×8008, 1280×10248, 1366×7688, 1440×9008, 1600×12008, 1680×10508, 1920×12008, 1920×10802 (1080p24), 1920×10803 (1080p25), 1920×10805 (1080p30), 1920×10806 (1080p50), 1920×10808 (1080p60) 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz |
| Audio | |
| Input Audio Port | 2 x HDMI; 1 x LAN; 1 x WLAN |
| Input Audio Signal | RAW PCM 2.0, 16 bit, 32/44.1/48KHz sps |
| Output Audio Port | 1 x HDMI OUT (HDMI OUT 1), 1 x Analog Audio OUT |
| Output Audio Signal | RAW PCM 2.0, 16 bit, 48KHz sps |
| Wi-Fi | |
| Standard | IEEE 802.11 a/b/g/n/ac |
| Frequency | Dual bands, 2.4~2.4835GHz, 5.0~5.8GHz |
| Security | WEP, TKIP, AES, WPA, WPA2 |
| Control | |
| Control Connector | 1 x RJ45, 10/100/1000Mbps Ethernet |
| Control Method | LAN (Web UI) |
| General | |
| Operating Temperature | 0°C to + 45°C (32 to + 113 °F) |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/±4kV (Contact discharge) |
| Power Supply | 12V 3A DC |
| Power Consumption | 26.5W (Max) |
| Device Dimensions (W x H x D) | 242.6mm x 29.1mm x 142mm / 9.55” x 1.14” x 5.59” |
| Product Weight | 0.80kg/1.76lbs |

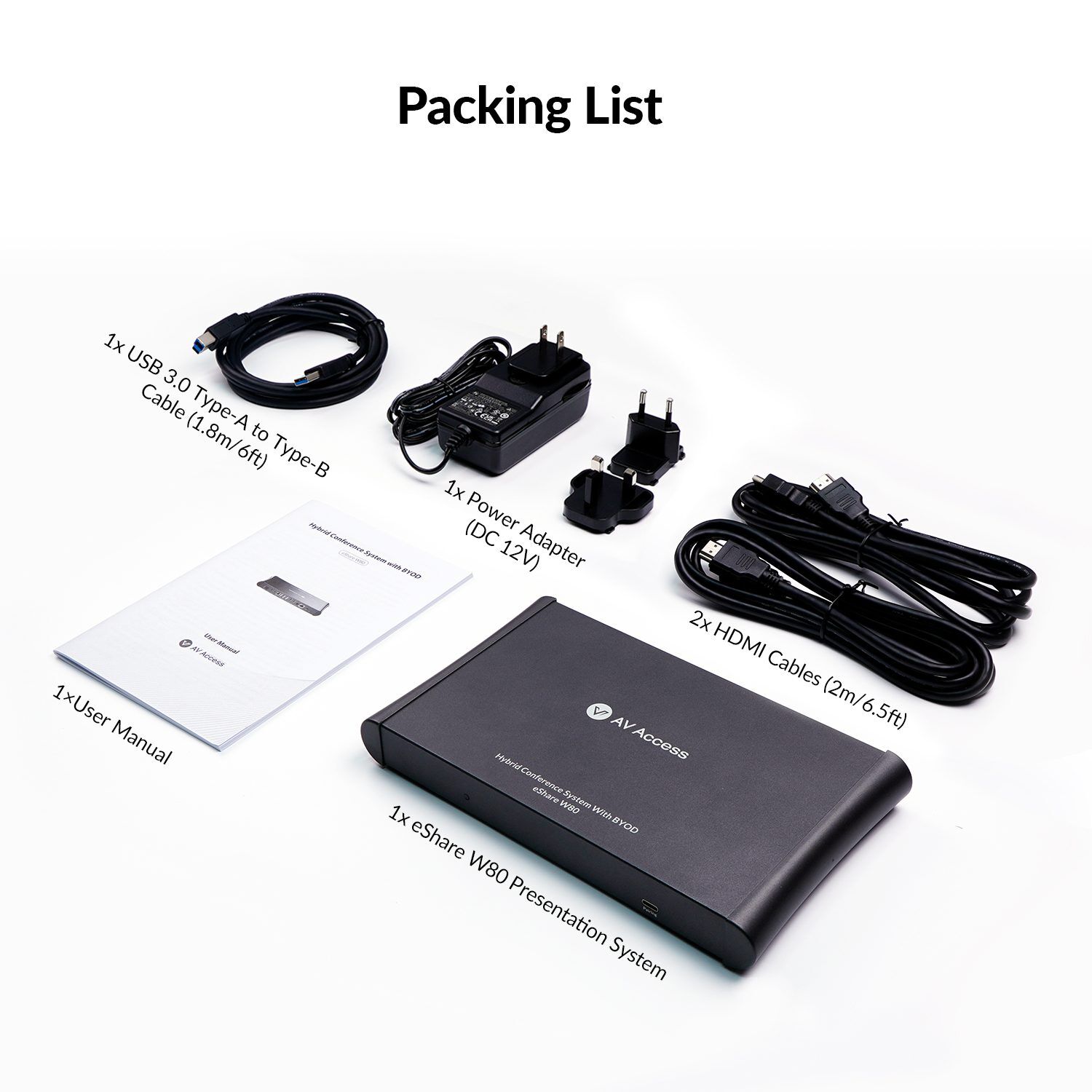

In the Box
- 1x eShare W80 Presentation System
- 1x DC 12V Power Adapter
- 2x HDMI Cables (1.8m)
- 1x USB 3.0 Type-A to Type-B Cable (1.8m)
- 1x User Manual
Documents & Softwares
1. How can I pair the eShare W80 presentation system with the eShare D20 USB-C dongle?
Plug the USB-C dongle into eShare W80 wireless presentation system via the front USB-C port, then they can get paired automatically. Once the pairing is completed, the prompt “Pairing Successful” will appear on the TV connected to eShare W80.
2. Does the hybrid conference system support CEC?
Yes, the eShare W80 presentation system supports CEC.
When it detects any video input signal, it can help turn on the connected TV automatically. When there is no video input, eShare W80 is outputting guide screen image by default.
If there is no video input for 60 seconds, a countdown timer with the time period of 60 seconds will appear on the guide screen. When the timer reaches zero, the connected display will enter standby mode if it is CEC-enabled.
3. Can I set a password for the wireless casting function?
Yes, through the web UI, you can set a PIN code for wireless casting, then you need to input the code for sharing your screen. Besides, you can also configure the Wi-Fi hotspot password for iPhone/iPad/Mac. When the PIN code and the Wi-Fi password are set, they will appear on the upper right corner of the connected display device.
4. I find there is no control button on the device panel for switching video sources. How can I switch to a desired video source?
The eShare W80 presentation system supports automatic signal switching function, allowing you to output desired sources easily and quickly. This function follows “Last-In-First-Out“ rule. Whenever you connect a new video source to eShare W80, it will automatically show on the connected display device and replace the last source.
5. How can I access the presentation system's web UI?
Step 1: Connect the LAN port of the eShare W80 presentation device to a local area network. Ensure there’s a DHCP server in the network so that the device can obtain a valid IP address.
Step 2: Connect a PC to the same network as the device.
Step 3: Input the device’s IP address in a browser and press “Enter”, then the login window will pop up. Input the password (default password: admin) and click “Login” to enter the main page.
