Dual Monitor KVM Extender, HDMI & USB over Ethernet up to 60m, No Latency, PoE
SKU: HDEX60-DM$199.99
Partner Discounts | Free Quote
Dual HDMI Design:
HDMI 1.3 & HDCP 1.4 compliant. Transmits dual 1080P full HD HDMI signal up to 60m/197ft over a single Cat 5e/6/6a/7 cable, with zero loss or delay. View extra screens and maximize your productivity.
Built-in USB 2.0 Hub:
Easily connect up to four USB 2.0 peripherals, like keyboard, mouse, speakerphone, webcam, hard disk, etc. Extend USB 2.0 signal (max 480Mbps) up to 60m/197ft with zero latency.
One-Way PoC:
The transmitter can be powered by the receiver via the Cat cable, so only one power adapter is required at the receiver side to power both units.
High Reliability & Universal Compatibility:
Certificated by CE & FCC. Comes with mounting brackets for hassle-free installation. No driver is required, just plug and play. Works with different operating systems, like Windows 10/8/7/XP, Mac OS and Linux.
In stock
Dual Monitor KVM Extender via CAT, 1080P HDMI & USB
AV Access HDEX60-DM is a brand-new dual monitor HDMI KVM extender kit. It can transmit dual 1080P HDMI signal along with USB 2.0 up to 60m/197ft over a single Cat 5e/6/6a/7 cable, with zero loss or dealy. With its plug-n-play feature, ultra-slim design and excellent performance, HDEX60-DM KVM extender is ideal for extending your desktop, workstation, gaming PC, etc. It allows you to view extra screens and maximize your productivity.
Main Features:
- Brand-New dual HDMI design;
- Supports 1080P@60Hz 4:4:4 8bit and HDCP 1.4;
- Extends HDMI and USB signals up to 60m/197ft with zero latency;
- 4x USB 2.0 ports with full bandwidth up to 480Mbps;
- Two USB device ports support 5V/1A higher current output;
- Supports one-way PoC;
- Plug and play, no driver needed;
- Ultra-Slim and portable design.
Dual Monitor KVM Extender via CAT, 1080P HDMI & USB
AV Access HDEX60-DM is a brand-new dual monitor HDMI KVM extender kit. It can transmit dual 1080P HDMI signal along with USB 2.0 up to 60m/197ft over a single Cat 5e/6/6a/7 cable. With its plug-n-play feature, ultra-slim design and excellent performance, HDEX60-DM KVM extender is ideal for extending your desktop, workstation, gaming PC, etc. It allows you to view extra screens and maximize your productivity.
Main Features:
- Brand-New dual HDMI design;
- Supports 1080P@60Hz 4:4:4 8bit and HDCP 1.4;
- Extends HDMI and USB signals up to 60m/197ft;
- 4x USB 2.0 ports with full bandwidth up to 480Mbps;
- Two USB device ports support 5V/1A higher current output;
- Supports one-way PoC;
- Plug and play, no driver needed;
- Ultra-Slim and portable design.

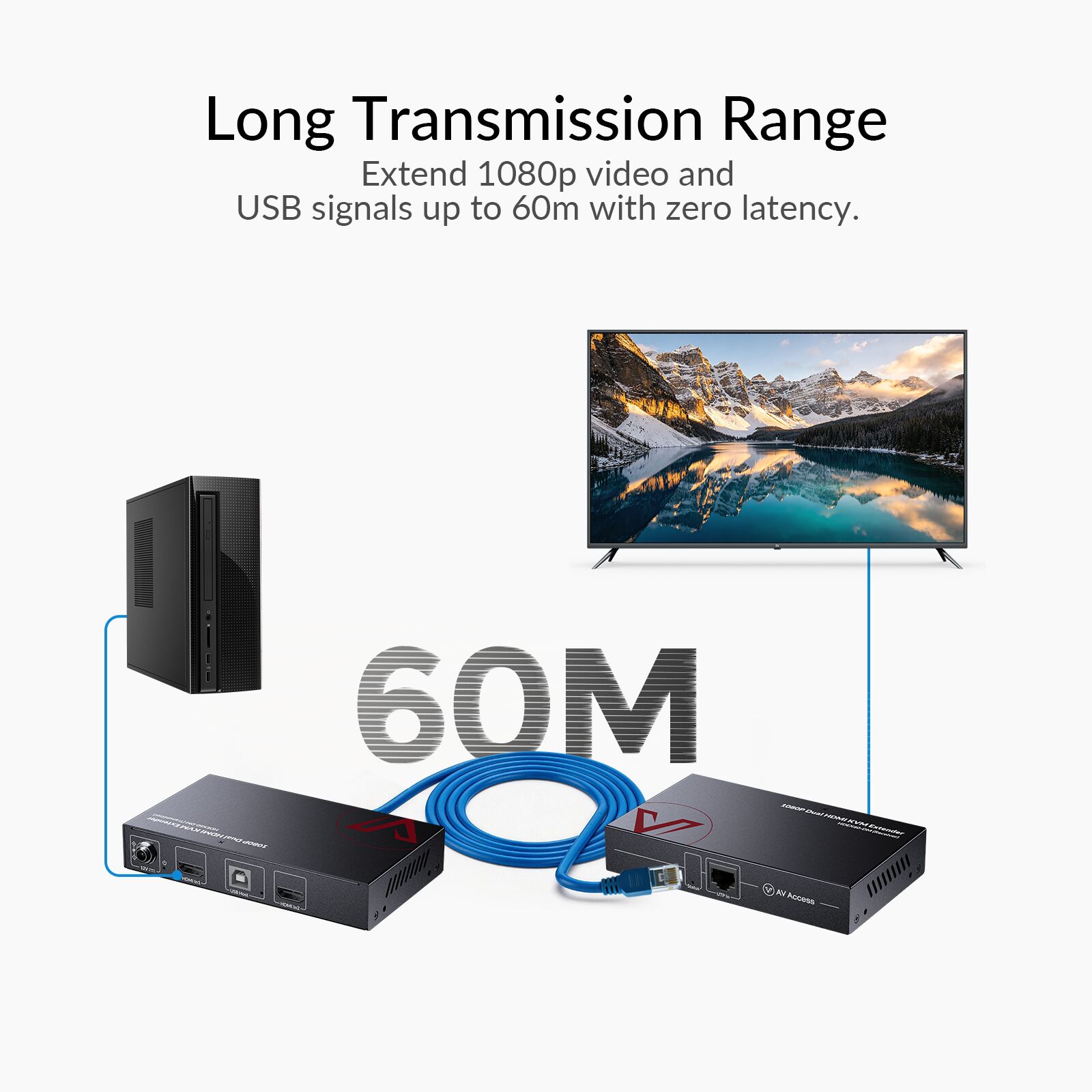

Brand-New Dual HDMI Design
The dual monitor KVM extender allows you to easily extend two full HD HDMI signals over a single Cat cable as it is built with two HDMI inputs/outputs on the transmitter and receiver respectively. Even if your desktop computer is placed in the basement or equipment room 60m/197ft away, you can view extra screens and maximize your productivity in your home studio.
Brand-New Dual HDMI Design
Built with two HDMI input ports on the transmitter and two HDMI output ports on the receiver, the dual monitor KVM extender allows you to easily extend two full HD HDMI signals over a single Cat cable. Even if your desktop computer is placed in the basement or equipment room 60m/197ft away, you can view extra screens and maximize your productivity in your home studio.

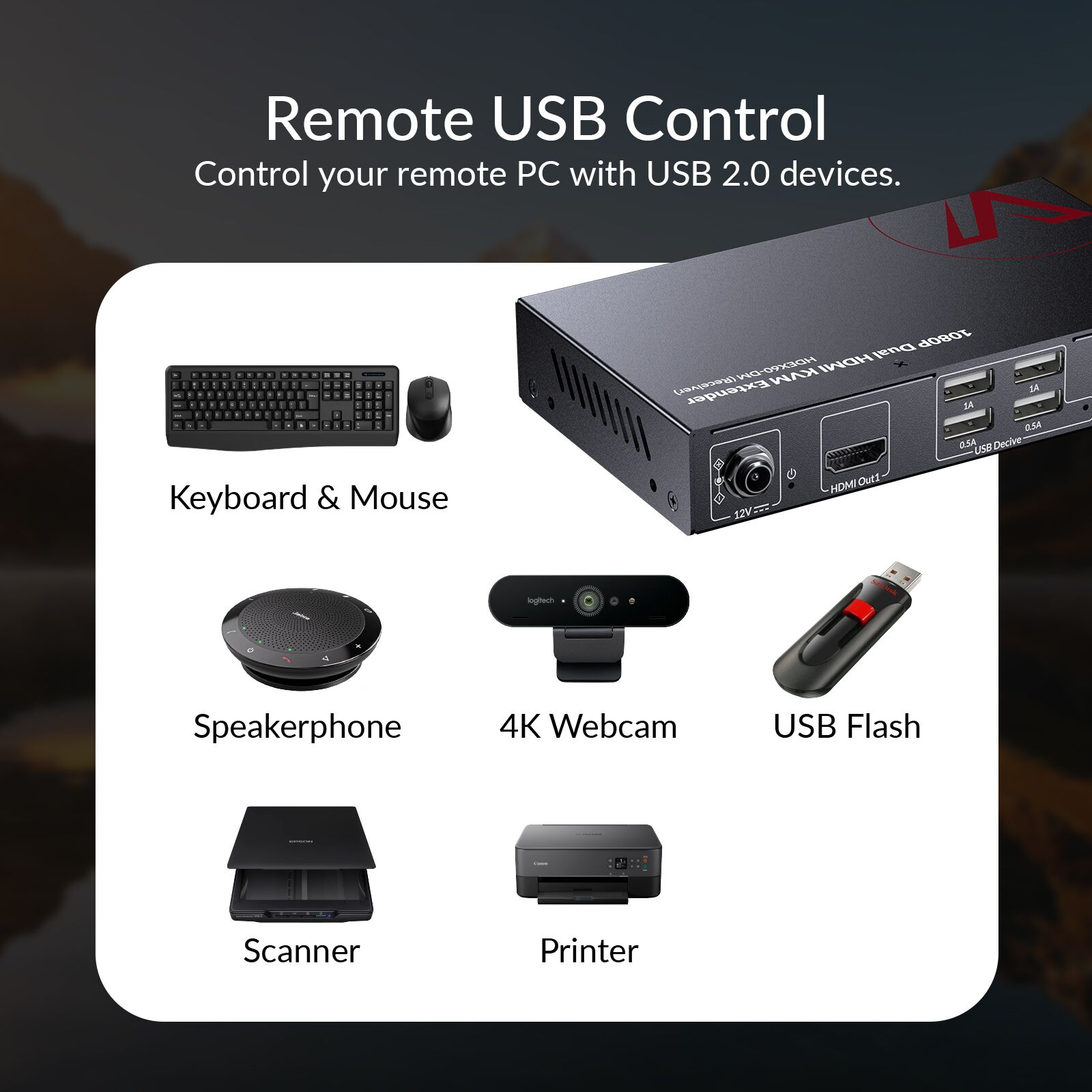

Effortless USB Signal Extension
Designed with four USB 2.0 device ports on the receiver, the HDMI KVM extender allows you to extend mouse, keyboard, printer, scanner or other USB 2.0 devices up to 60m/197ft. Two of the USB ports support 5V/1A higher current output, so you can easily connect high-power USB devices, such as USB camera or USB hard disk.

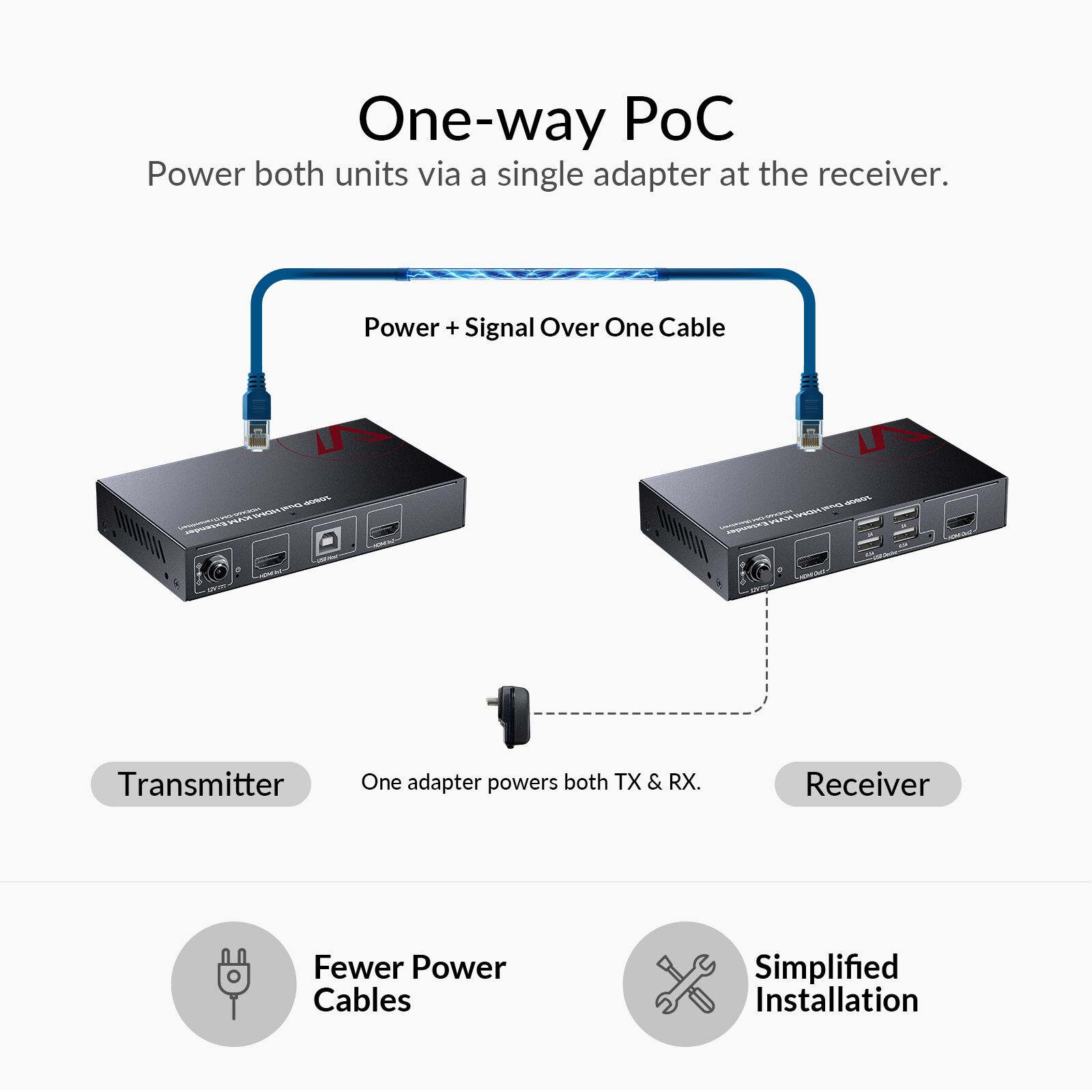

One-Way PoC Function
With the built-in PoC function, the transmitter can be powered by the receiver via a Cat cable, so only one power supply is needed at the receiver side to power both units. It offers you more convenience in installation at the source side.
One-Way PoC Function
With the built-in PoC function, the transmitter can be powered by the receiver via a Cat cable, so only one power supply is needed at the receiver side to power both units. It offers you more convenience in installation at the source side.

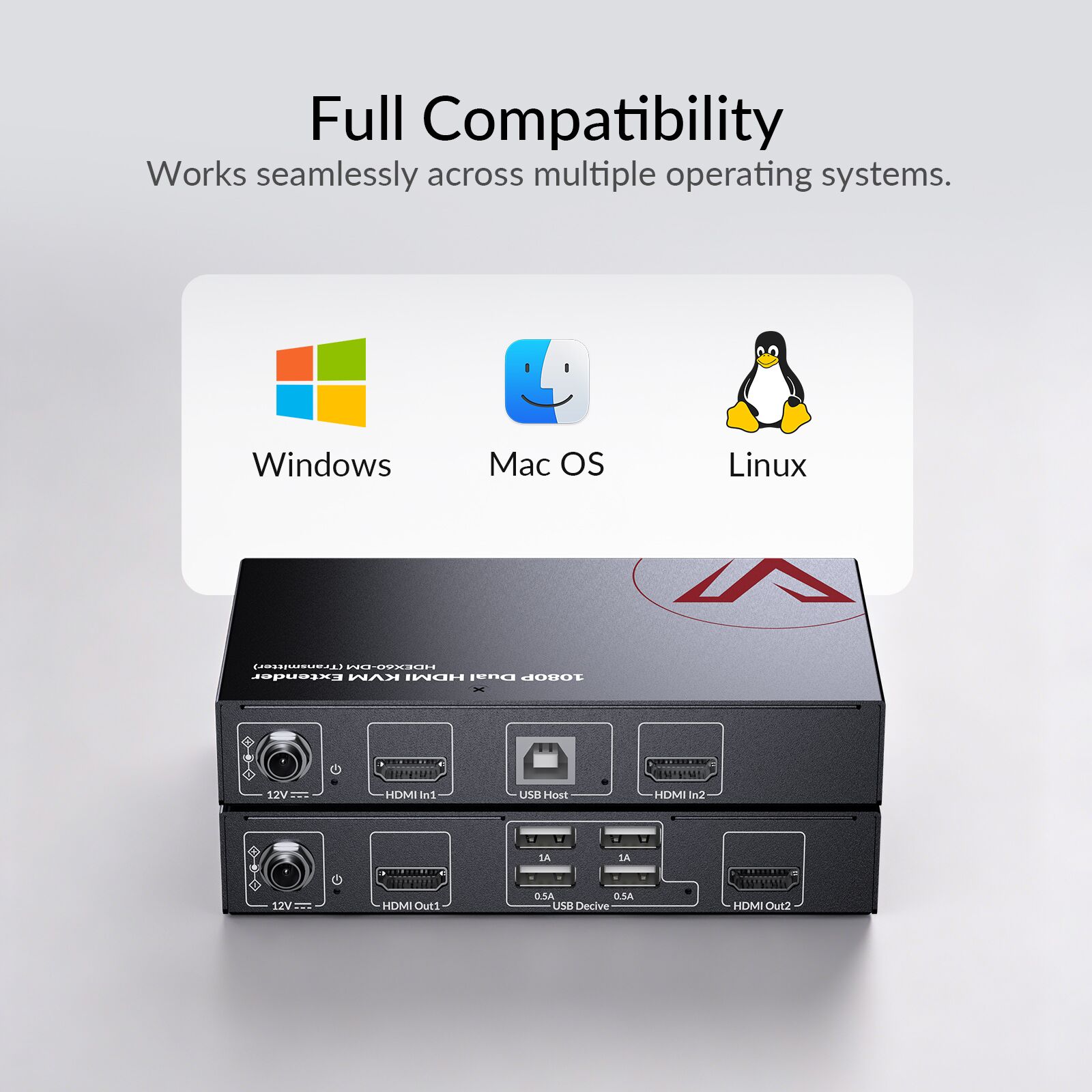

Plug & Play, Universal Compatibility
The dual monitor HDMI extender can work with all operating systems, including Windows 10/8/7/XP, Mac OS and Linux. No extra software or driver is required; just plug and play. Now it is easier than ever to extend your workstation or gaming PC.

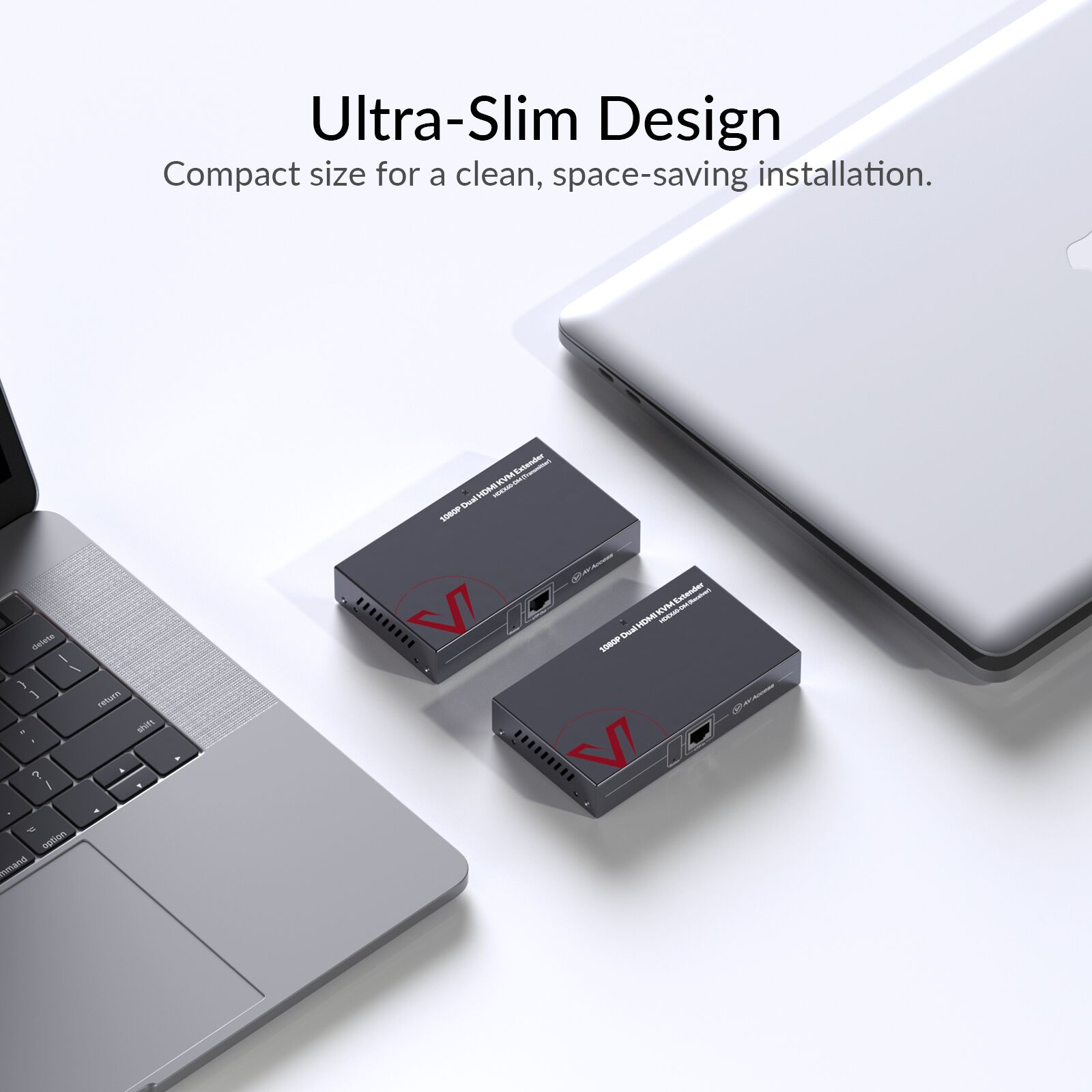

Ultra-Slim and Compact Design
This HDMI KVM transmitter and receiver kit is compact and portable, as small as a palm. It is easy to install and space-saving; you can almost place them everywhere in your house.
Ultra-Slim and Compact Design
This HDMI KVM transmitter and receiver kit is compact and portable, as small as a palm. It is easy to install and space-saving; you can almost place them everywhere in your house.

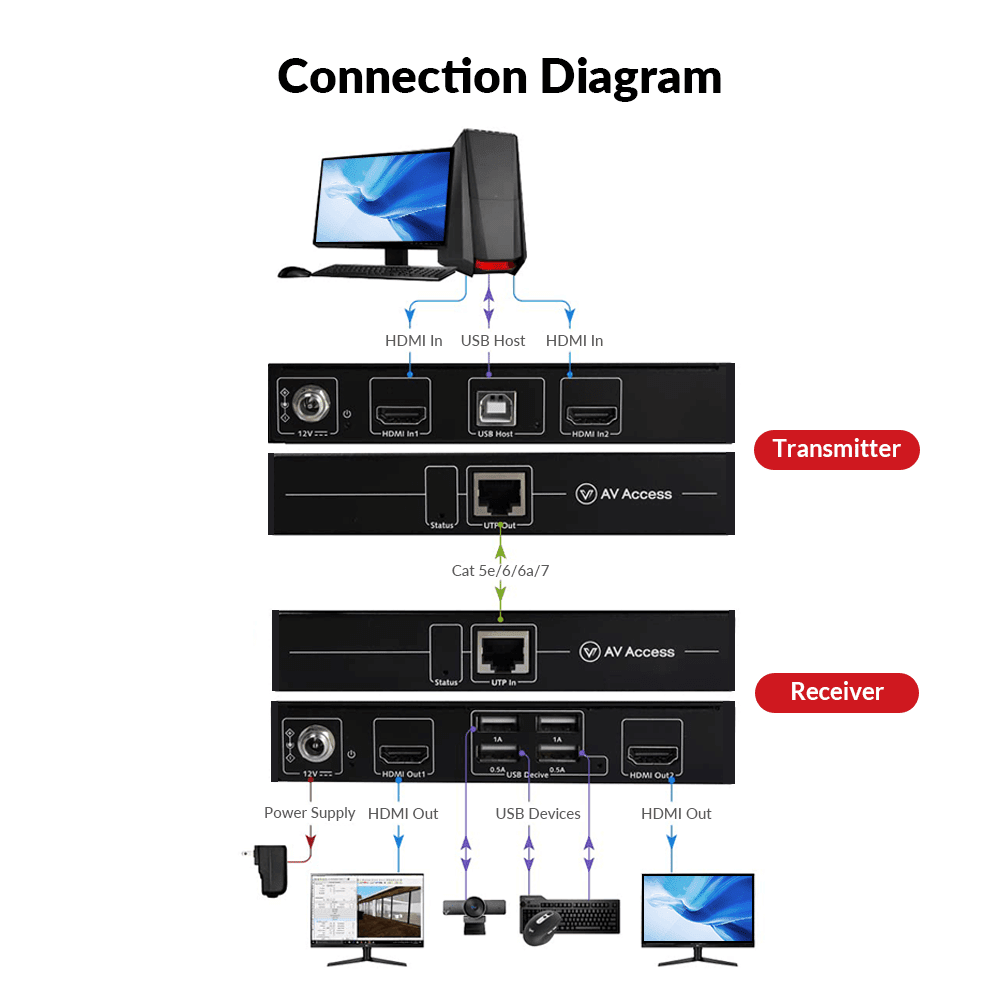

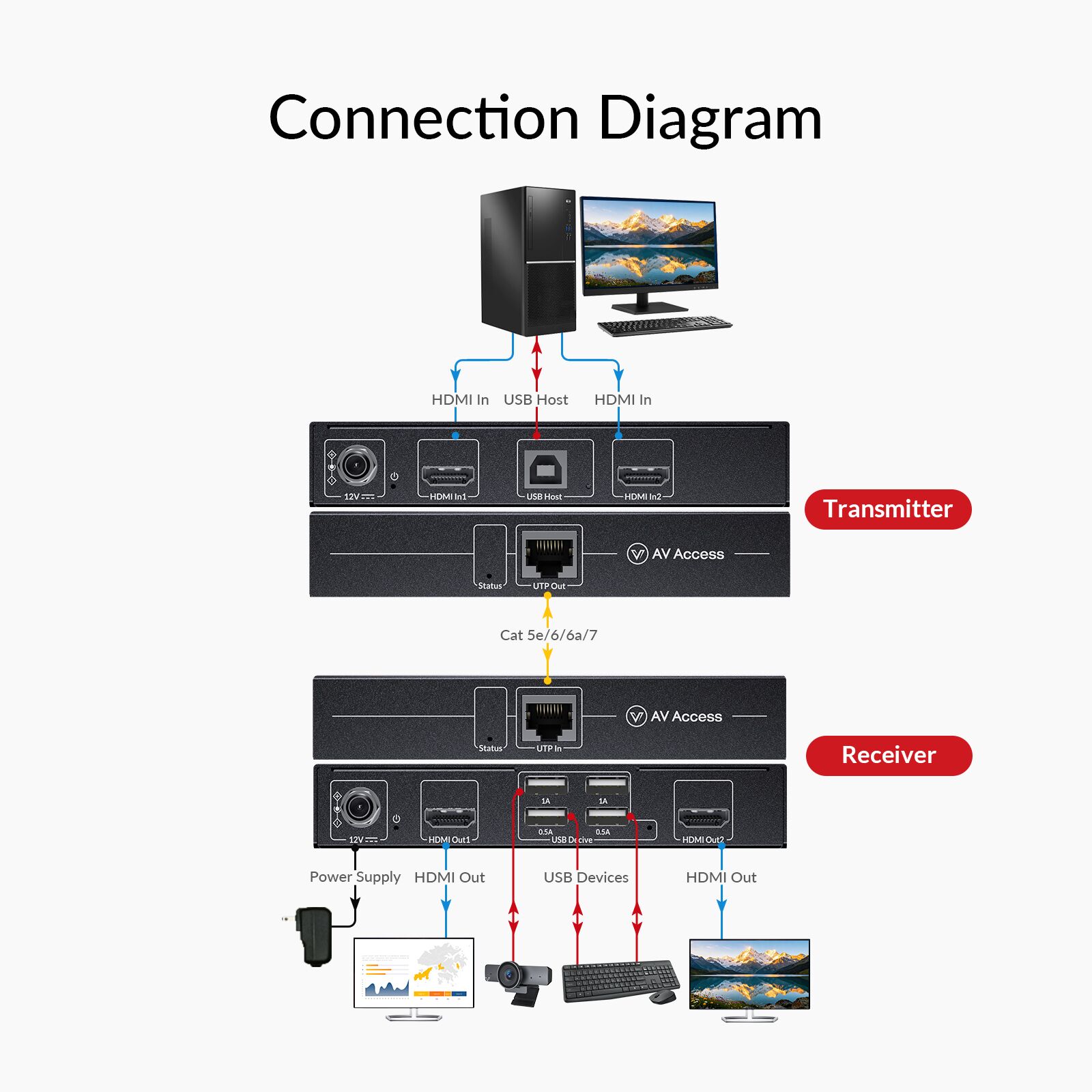

Connection Diagram
Notes:
1. The Cat 5e/6/6a/7 cable used must be within 60m/197ft.
2. With one-way PoC supported, one power adapter is needed to be connected to the receiver to power both units.
3. The two USB 2.0 ports supports 1A can be connected to high-power USB devices such as USB camera, USB hard disk.
Comparison Chart of Related Products
HDEX60-DM | HDEX80-KVM | 4KEX50-KVM | 4KIP100-KVM | 4KEX100-KVM | 4KEX100-DP-KVM | |
Product Type | Dual Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor |
Video Interface | 2x HDMI in, 2x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x DisplayPort in, 1x DisplayPort out |
HDMI Version | 1.3 | 1.3 | 2.0 | 1.4 | 1.4 | No, DP 1.2 |
HDCP Version | 1.4 | 1.4 | 2.2 | 1.4 | doesn't support HDCP | 1.4 |
Supported Video Resolution | Up to 1080p@60Hz | Up to 1080p@60Hz | up to 4K@60Hz 4:4:4 | up to 4K@30Hz; 1080P@120Hz | up to 4K@60Hz (4:2:0 8bit); 4K@30Hz 4:4:4, 1080P@120hz | up to 4K@30Hz, 1080P@120hz |
HDMI Audio Channel | Stereo | Stereo | 5.1 Channel | 7.1 Channel | 7.1 Channel | 7.1 Channel |
Maximum Transmission Range | 197ft (60m) | 260ft (80m) | 164ft (50m) | 395ft (120m) | 330ft (100m) | 330ft (100m) |
USB Ports | 4x USB 2.0 port | 2x USB 2.0 port | 4x USB 2.0 port | 3x USB 2.0 port | 4x USB 2.0 port | 2x USB 2.0 port |
POE/POH/POC | Uni-Direction (RX to TX) | Bi-Direction | Uni-Direction (RX to TX) | No | Uni-Direction (TX to RX) | Uni-Direction (TX to RX) |
RS232 | No | No | No | No | Yes | Yes |
IR | No | No | No | No | No | No |
Router/Ethernet Switch Compatibility | No, point to point | No, point to point | No, point to point | Yes, up to 16 sets of TX and RX | No, point to point | No, point to point |
Plug & Play | Yes | Yes | Yes | Yes | Yes | Yes |
Specifications
Technical | |
Video Signal Type | HDMI with 1080P@60Hz, 4:4:4 8bit, HDCP 1.4 |
Input/Output Resolution | 1080P@60/50/30/25Hz; 720P@60/50Hz; 480P@60Hz |
Audio Format | PCM 2.0 |
Max Data Rate | 6.75 Gbps |
General | |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 20% to 90%, non-condensing |
Power Consumption | 5.7W (Maximum) |
Device Dimensions (W x H x D) | 140 mm ×25 mm ×80.2 mm/ 5.51” x 0.98” x 3.16” |
Product Weight | Transmitter/Receiver: 0.33kg/0.73lb |
In the Box
- 1x Transmitter
- 1x Receiver
- 1x DC 12V Power Adapter (with US, UK and EU Pins)
- 1x USB 2.0 type-A to type-B Cable
- 4x Mounting Brackets (with Screws)
- 1x User Manual
Documents & Softwares
Frequently Asked Questions
A KVM extender extends video and USB signal over distance for remote control. They are widely used for data control centers, security surveillance systems, video gaming setups, etc. Read the KVM extender definitive guide to learn more.
A dual monitor KVM extender is a special type of extender, which allows you to extend dual audio/video signals along with USB over a single Cat cable.
The HDEX60-DM dual monitor KVM extender features a brand-new dual HDMI port, 4x USB 2.0 ports with full bandwidth up to 480Mbps, up to 60m/197ft transmission distance with zero latency, plug-n-play and ultra-slim design, one-way PoC, etc.
The HDEX60-DM KVM extender is built with 2x HDMI input port and 2x HDMI output port, and can connect up to 4x USB 2.0 device. It can transmit dual 1080P HDMI signals along with USB 2.0 up to 60m/197ft over a single Cat cable. In contrast, HDEX80-KVM is built with 1x HDMI input port and 1x HDMI output port, and can connect up to 2x USB 2.0 device. It can transmit one 1080P HDMI and USB signals over a single Cat cable up to 80m/260ft.
The HDEX60-DM KVM extender is ideal for home applications. You can extend your desktop, workstation, gaming PC, etc. It allows you to view extra screens and maximize your productivity.

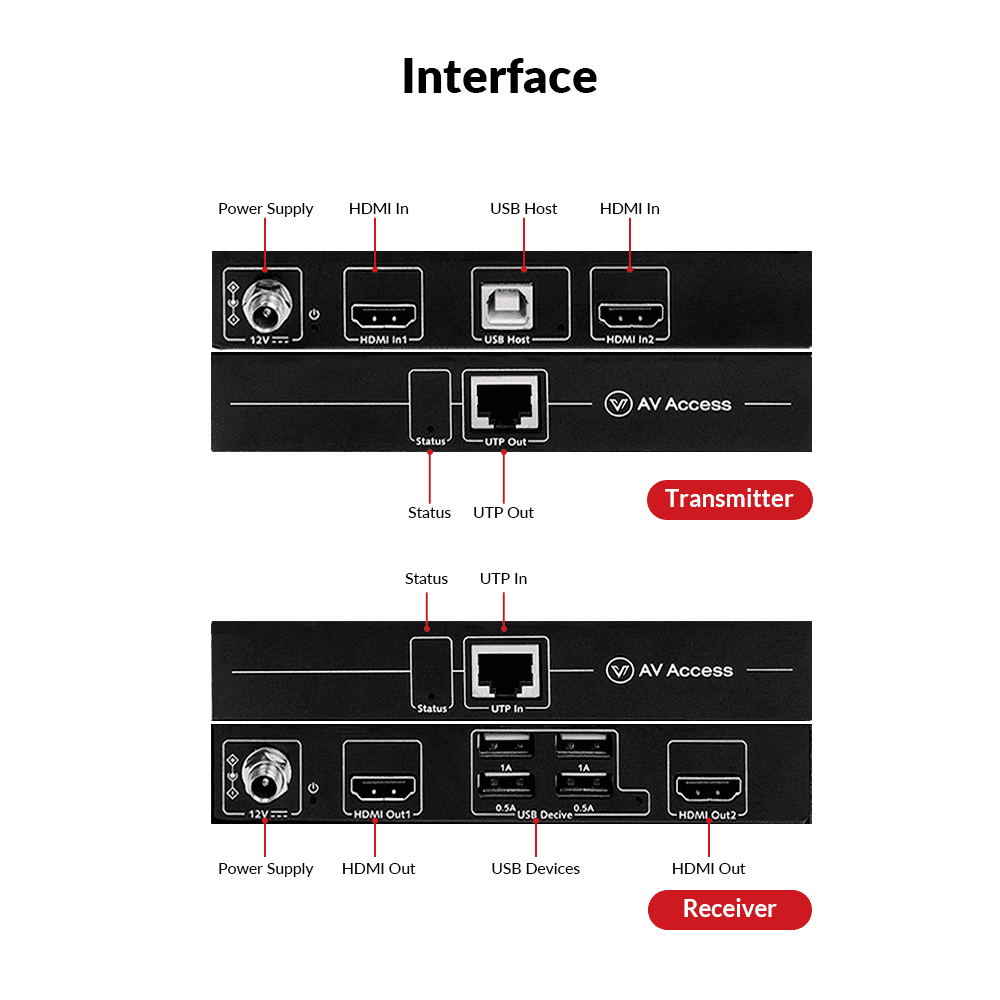

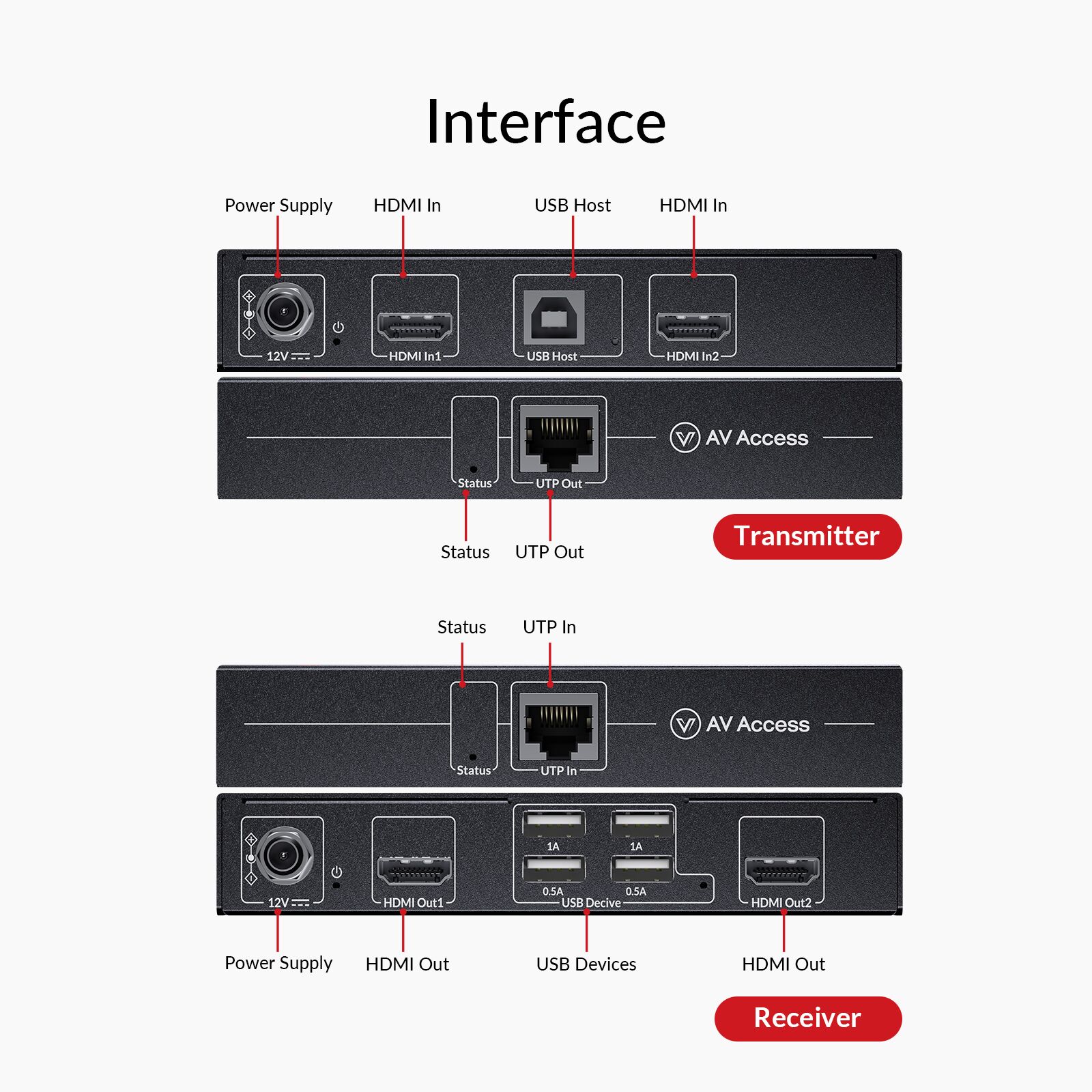

The HDEX60-DM KVM extender transmitter is built with 2x HDMI input port and 1x USB host port, while the receiver is built with 2x HDMI output port, 4x USB device port. With just a single Cat cable, it can extend dual 1080P HDMI signals along with USB 2.0 up to 60m/197ft.
Yes, the HDMI KVM extender can work with AV Access’s HDMI splitters and HDMI switches.
No, the HDMI transmitter and receiver work in pair and are sold in a kit.
