Economical 1080P AV over IP Extender Kit, H.265 HDMI Extender w/ Loop Out, IR Remote Control, Plug & Play, Ideal for Bar, Restaurant & Church
SKU: HDIP120$89.99
Partner Discounts | Free Quote
Extend and Split with Ease:
Supports one-to-one and one-to-many applications. Transmits 1080P@60hz full HD HDMI signal up to 120m/394ft. Easily build an extender splitter combo with one transmitter and up to 10 receivers.
No Configuration Required, Plug & Play:
Works flawlessly with universal Ethernet switches, no dedicated IGMP Gigabit switch required. Set up within minutes, just plug and play.
H.265 Codec & Low Latency:
The advanced H.265 codec takes up less bandwidth while also preserving superior video quality. The end-to-end latency is less than 0.1 seconds, ideal for sports programs, movies, PC games, or video presentations.
HDMI Loop out & IR Control:
Connect the transmitter to a local monitor for easy preview or video splitting. And the included IR signal emitter and receiver allow you to control the source device at the receiver side.
In stock

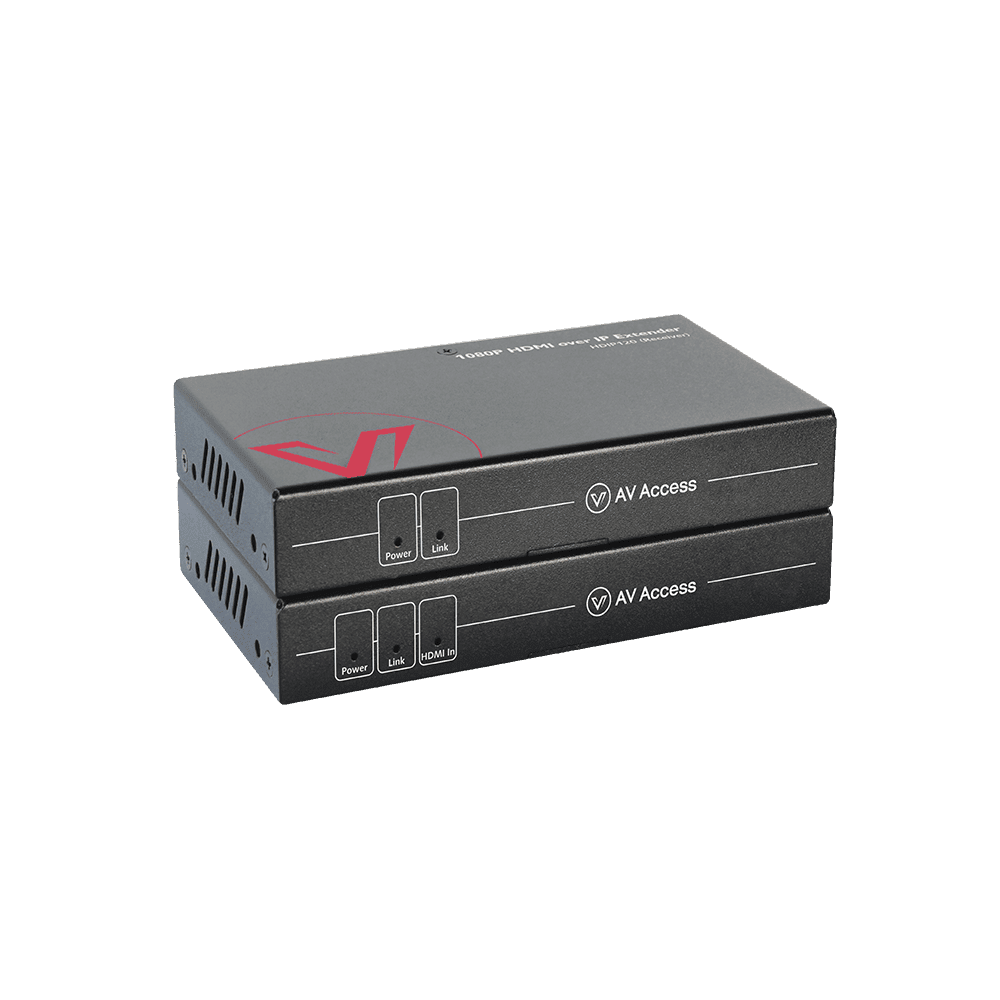

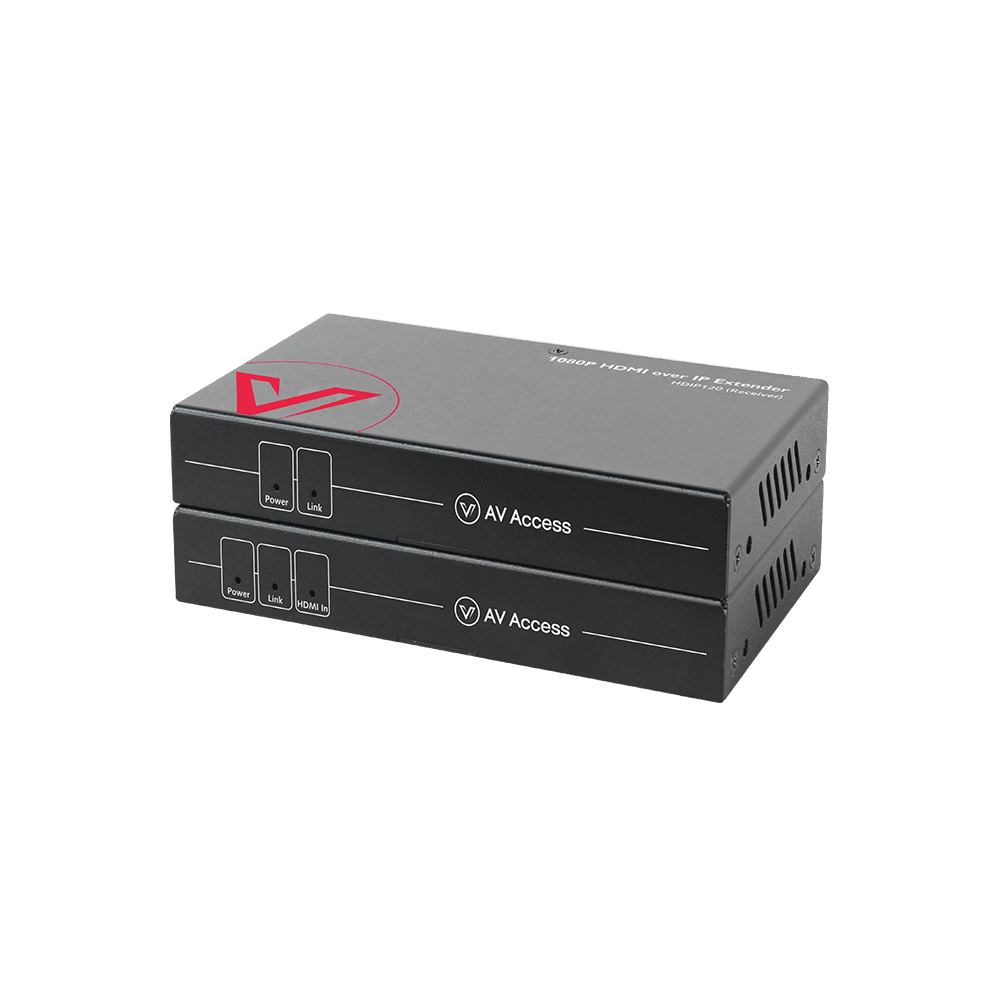

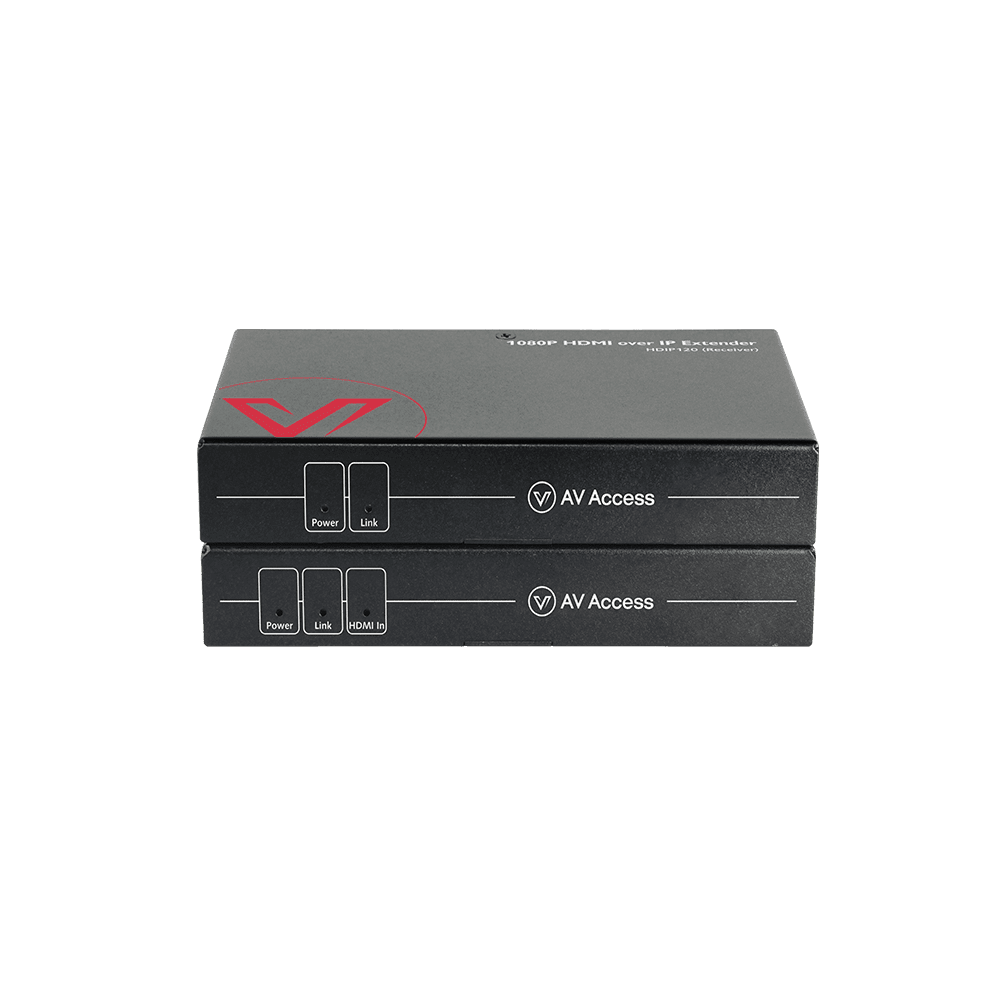

Economical H.265 1080P AV over IP Extender Kit w/ Loop Out
HDIP120 is AV Access’s brand-new economical HDMI over IP extender kit. It supports one-to-one and one-to-many applications. With just a single Cat5e/6 cable, it can extend 1080P@60hz full HD HDMI signal up to 120m/394ft. One transmitter and up to 10 receivers can also work with a gigabit switch to build an extender splitter combo. HDIP120 is ideal for sports bar, church, restaurant, home surveillance, broadcasting station or other scenarios where you need HDMI signal extension and splitting.
Note:
1. This kit only includes one transmitter and one receiver. If you need more receivers, please click this link for your purchase.
2. HDIP120 also supports many-to-many configuration. You can create a scalable distributed IP matrix system by configuring VLAN on your Ethernet switch. It is recommended to configure VLAN with the help of an IT specialist. Each VLAN can only accommodate 1 transmitter.
Main Features:
- Extends 1080P@60hz HDMI signal up to 120m/394ft via a single Cat5e/6 cable
- Works easily with an Ethernet switch, no need to configure; real plug and play
- Supports high-efficiency H.265 codec
- End-to-end latency: less than 0.1s
- HDMI local output & IR remote control
- Supports many-to-many configuration via VLAN configuration on the switch
Work as Extender Splitter Combo
With this extender kit, you can easily transmit 1080P@60hz full HD HDMI signal up to 120m/394ft via a single Cat5e/6 cable. You can also connect one transmitter and up to 10 receivers via a gigabit switch to build an extender splitter combo. HDIP120 is ideal for sports bar, church, restaurant, home surveillance, broadcasting station or other scenarios where you need HDMI signal extension and splitting.
Set up in Minutes, Just Plug and Play
HDIP120 is designed for users without any IP knowledge, as easy as HDBaseT products. It can work flawlessly with any universal Ethernet switch, both managed and unmanaged. Don’t need to configure the IGMP protocol on your Ethernet switch for one-to-many applications any more.
H.265 Codec & Low Latency
The advanced H265 codec takes up less bandwidth and greatly improves transmission efficiency, while also preserving superior video quality. Besides, the extender’s end-to-end latency (from one transmitter to one receiver) is less than 0.1 seconds, ideal for sports programs, movies, PC games, or video presentations.
HDMI Local Output & IR Remote Control
With the HDMI local output on the transmitter, you can connect it to a local monitor to easily preview whatever image streamed to the remote side. What’s more, with the included IR signal emitter and receiver, you can effortlessly control your source device even at the receiver side.
Connection Diagram
Application Scenarios
Comparison Chart of Related Products
4KIP200E/D | 4KIP204E | HDIP100E/D | HDIP120E/D | 4KIP100-KVM | |
Product Type | Transmitter & Receiver | Transmitter | Transmitter & Receiver | Transmitter & Receiver | Transmitter & Receiver |
HDMI Interface | Transmitter: 1x HDMI in Receiver: 1x HDMI out | 4x HDMI in | Transmitter: 1x HDMI in Receiver: 1x HDMI out | Transmitter: 1x HDMI in Receiver: 1x HDMI out | Transmitter: 1x HDMI in Receiver: 1x HDMI out |
Supported Video Resolution | Up to 4K@30hz | Up to 4K@30hz | Up to 1080P@60Hz | Up to 1080P@60Hz | Up to 4K@30hz; 1080P@120hz |
HDMI | 1.4 | 1.4 | 1.3 | 1.3 | 1.4 |
HDCP | 2.2 | 2.2 | 1.4 | 1.4 | 1.4 |
Audio Channel | Stereo | Stereo | Stereo | Stereo | 7.1 Channel |
Type of Switch Required | 100M (1G recommended) | 100M (1G recommended) | 100M (1G recommended) | 100M (1G recommended) | 1G |
Connection Mode | One to one, one to many, many to many | One to one, one to many, many to many (works with 4KIP200D) | One to one, one to many, many to many | One to one, one to many | (Multiple) one to one |
One-to-One Transmission Range | Transmits 4K@30hz HDMI signal up to 120m/394ft | Transmits 4K@30hz HDMI signal up to 120m/394ft | Transmits 1080P@60hz HDMI signal up to 120m/394ft | Transmits 1080P@60hz HDMI signal up to 120m/394ft | Transmits 4K@30hz HDMI signal up to 120m/394ft |
KVM Extension | No | No | No | No | Yes |
PoE | Yes | No | Yes | No | No |
IR Control | No | No | No | Yes | No |
RS232 | Yes | No | Yes | No | No |
Video Wall | Yes, up to 8x8 | Yes, up to 8x8 (need to work with 4KIP200D) | Yes, up to 8x8 | No | No |
Visual Control on App | Yes | Yes | Yes | No | No |
Specifications
Technical | |

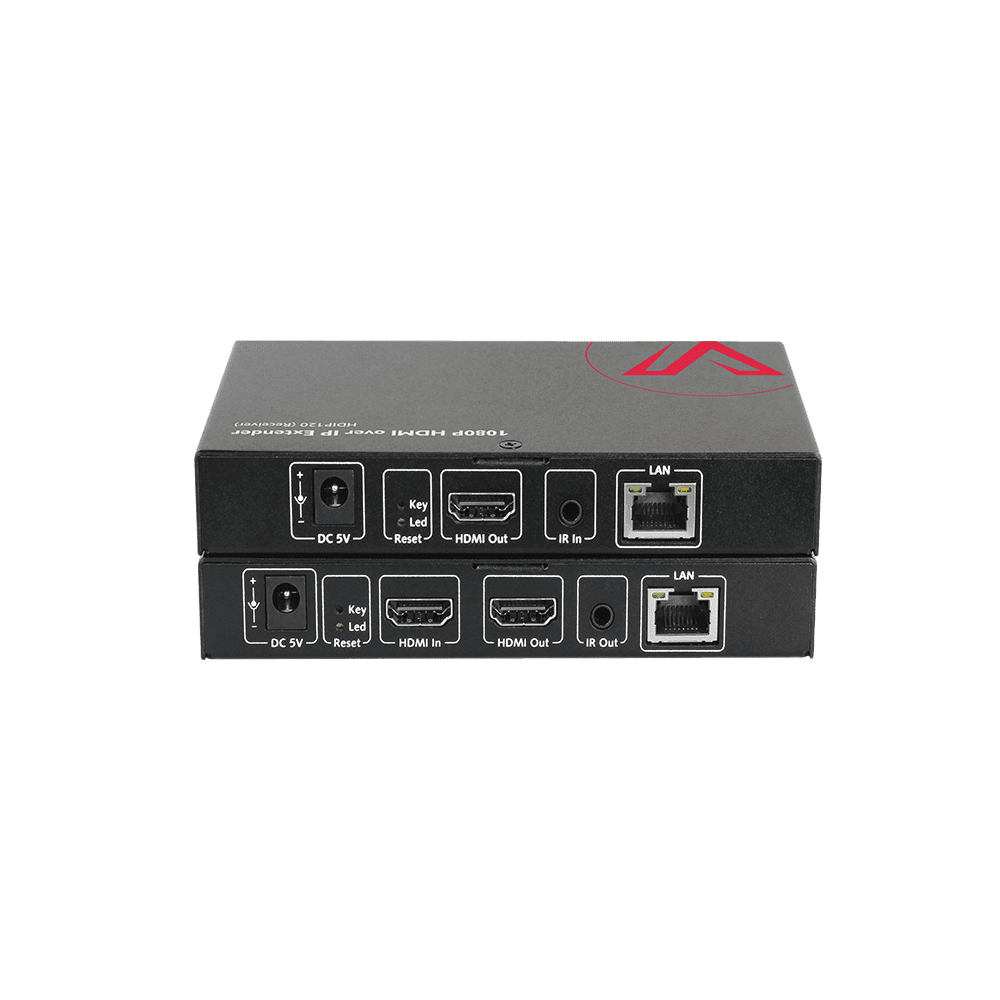

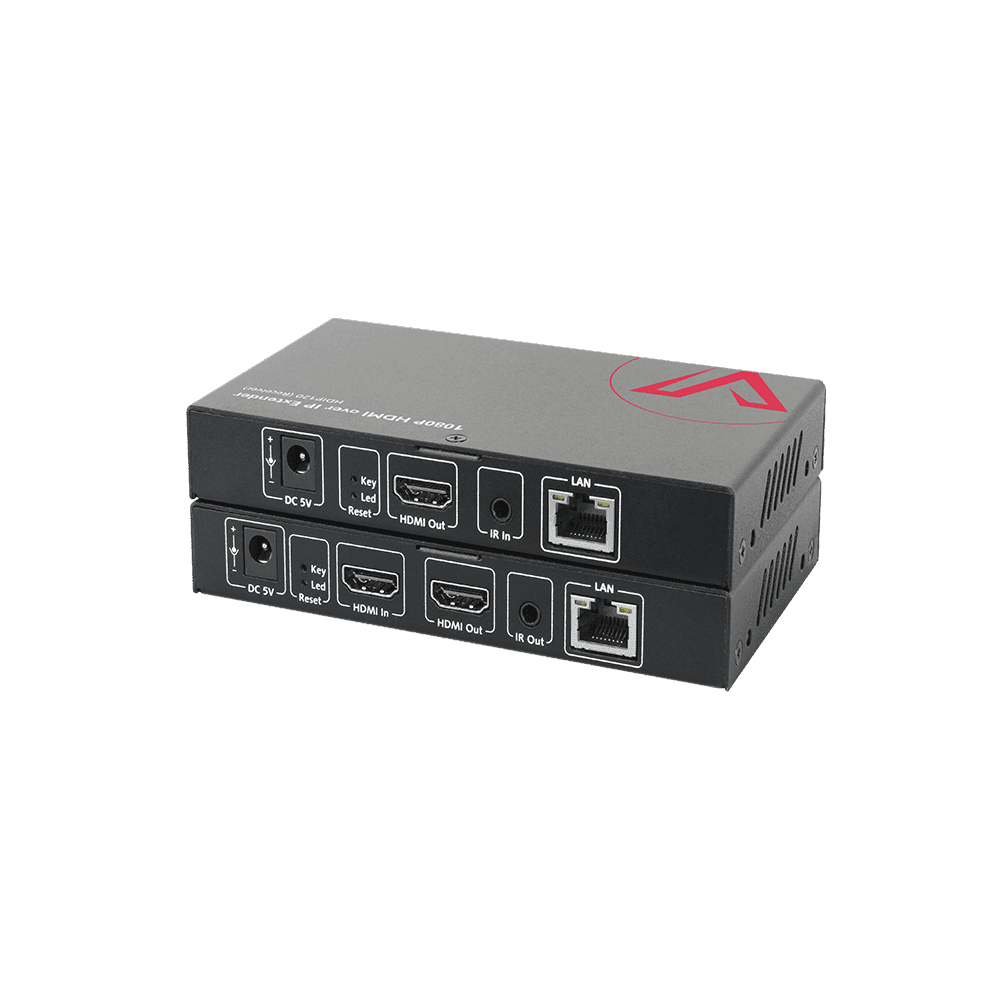

Input A/V Port | Transmitter: 1 x HDMI Receiver: 1 x LAN |
Input Resolutions | Up to 1080P@60Hz |
Output A/V Port | Transmitter: 1 x HDMI, 1 x LAN Receiver: 1 x HDMI |
Output Resolutions | Up to 1080P@60Hz |
Compliance | HDMI 1.3, HDCP 1.4 |
Transmission Distance | 120m/394ft |
General | |
Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing |
Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
Power Supply | DC 5V 1A |
Power Consumption | TX: 3.5W (Max) RX: 1.6W (Max) |
ESD Protection | Human body model: • ±8kV (air-gap discharge) • ±4kV (contact discharge) |
Product Dimension (W x H x D) | 140mm x 21mm x 80mm/5.5” x 0.83” x 3.15″ each for TX and RX |
Net Weight | TX: 0.3kg; RX: 0.29kg |
In the Box
- 1x Transmitter
- 1x Receiver;
- 2x Power Adapters (DC 5V 1A)
- 2x Exchangeable US Plugs
- 1x IR Emitter
- 1x Broadband IR Receiver (30-50KHz)
- 4x Mounting Ears (with Screws)
- 1x Quick Start Guide
Frequently Asked Questions
AV over IP stands for “Audiovisual over Internet Protocol”. It is the transmission of audio, video and control signals over a network cable infrastructure, like WAN, LAN or the Internet. Different from conventional analogue AV environments, AV over IP commonly refers to the use of standard network equipment to switch and transmit audio/video signals.
Compared with traditional AV solutions, AV over IP solutions boast more flexibility and scalability. The number of sources and displays attached is no longer limited. Even when physical ports run out, multiple IP switches can be connected to expand. They also break the distance barriers and allow you to have better ratio of inputs to outputs.
Different from HDIP120, HDIP100 AV over IP solution supports video wall up to 8×8 and easy visual control with mobile App. There is no need to configure your Ethernet switch to build a distributed IP matrix system. With HDIP120, you need to configure VLAN on your Ethernet switch for matrix switching. What’s more, HDIP120 features HDMI local output and IR remote control, which HDIP100 doesn’t support. If you need to build an IP matrix with video wall, HDIP100 is the right solution for you. If you only need HDMI extension and splitting, HDIP120 is a more economical option for you, priced only at $79.99 (a transmitter and receiver kit) on our site.
With the HDIP120 HDMI over IP extender kit, you can extend 1080P@60hz HDMI signal up to 120m/394ft via a single Cat5e/6 cable. It works easily with an Ethernet switch, no need to configure; real plug and play. It also supports high-efficiency H.265 codec, HDMI local output and IR remote control, etc.
This easy-to-use and plug-n-play AV over IP solution is ideal for sports bar, church, restaurant, home surveillance, broadcasting station or other scenarios where you need HDMI signal extension and splitting.
HDMI over Ethernet, also know as HDMI over IP, is a technology that allows users to extend HDMI signals over long distances using Ethernet cables.
It is a method of transmitting audio and video signals over a network. It involves sending HDMI signals from a source device, such as a Blu-ray player or computer, to a display, such as a TV or projector, through an Ethernet cable.
