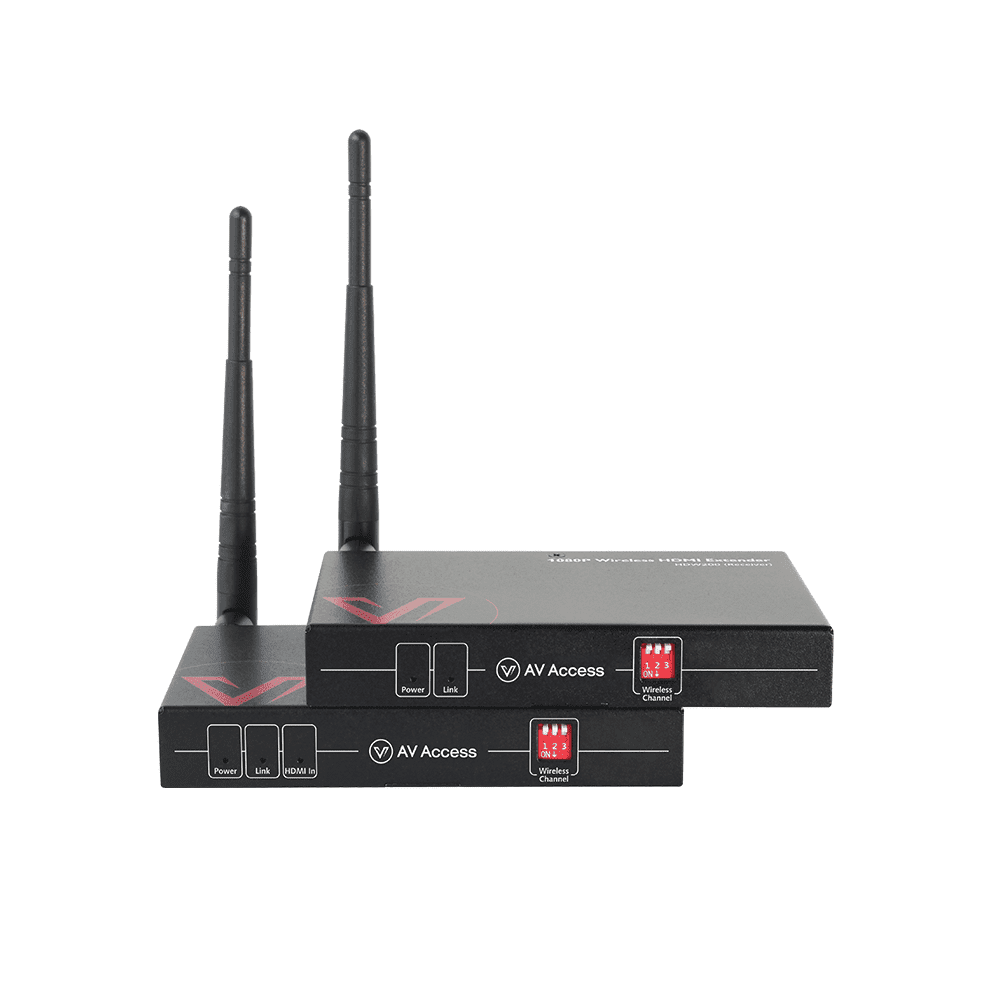

New-Generation Wireless 1080P HDMI Extender w/Loop Out, Max 200m/656ft Transmission Range, 5 Pairs Deployable, Ideal for Home Theater, Office & Church
SKU: HDW200$165.99
Partner Discounts | Free Quote
5 Pairs Deployable in One Zone
Deploy up to 5 pairs of transmitter and receiver in the same zone without interference. Transmit multiple HDMI sources to the far-end display devices wirelessly.
Up to 200m Transmission Range
Extend 1080P full HD HDMI signal wirelessly up to 200m/656ft in an open field. Transmit 10m-50m (32ft-165ft) through an interior drywall or other obstructions, stable and reliable.
HDMI Local Output & IR Control
With the HDMI local output on the transmitter, you can connect it to a local monitor for video splitting or preview. IR signal emitter/receiver is included for remote control.
Ultra-Low Latency
The transmission latency is about 0.1-0.2 seconds, ideal for TVs, movies and video presentations. For signals from the HDMI local output, there is no delay at all.
Out of stock
New-Generation 1080P 200m/656ft Wireless HDMI Extender
HDW200 is AV Access’s new-generation wireless HDMI extender. You can easily transmit multiple HDMI sources to the far-end display devices by deploying up to 5 independent pairs of transmitter and receiver in the same zone. It boasts up to 200m/656ft transmission range, low latency and IR remote control, ideal for both home and business applications where it is not convenient to install long cables, like sports bar, restaurant, home theater, meeting room, etc.
Notes:
1. HDW200 is not recommended for real-time applications, such as PC gaming and high-speed sports program. The HDMI local output has zero latency and can be connected to a local display.
2. This product is a transmitter and receiver kit. We don’t sell them separately.
Main Features:
- Up to 200m/656ft Wireless Transmission Range (Line-of-Sight)
- Transmits 10m-50m (32ft-165ft) through an Interior Drywall
- Up to 5 Pairs Deployable in the Same Zone
- 1080P Full HD Crystal-Clear Image & HDCP 1.4 Compliant
- 0.1s-0.2s Delay on Transmission
- HDMI Local Output & IR Remote Control
Ultra-Long Wireless Transmission Distance
HDW200 HDMI extender can transmit 1080P@60hz full HD HDMI signal wirelessly up to 200m/656ft in an open field. Even if there is an interior drywall or other obstructions between the transmitter and the receiver, the signal can still transmit 10m-50m (32ft-165ft), stable and reliable.
Enjoy Truly Wireless Freedom
HDW200 HDMI extender offers you truly wireless freedom as it saves the hassles of running cables through walls or drilling holes. It is an ideal choice for both home and business applications where it is not convenient to install long video cables.
Build a Complete Wireless System
Up to 5 independent pairs of HDW200 transmitter and receiver can be deployed in the same zone without interference. You can build a complete and robust wireless system to easily extend your HDMI sources to the far-end display devices.
Low Latency on Signal Transmission
The wireless extender can transmit lossless signals and may have a transmission latency of 0.1-0.2 second, which depends on the signal quality. It is great for TVs, movies and video presentations. For signals from the HDMI local output, there is no delay at all.
HDMI Local Output & IR Remote Control
With the HDMI local output on the transmitter, you can connect it to a local monitor to easily preview whatever image streamed to the remote side. What’s more, with the included IR signal emitter and receiver, you can effortlessly control your source device even at the receiver side.
Connection Diagram
Application Scenarios
Specifications
Technical | |
---|---|
Input A/V Port | Transmitter: 1 x HDMI Receiver: 1 x WLAN |
Input Resolutions | Up to 1080P@60Hz |
Output A/V Port | Transmitter: 1 x HDMI, 1 x WLAN Receiver: 1 x HDMI |
Output Resolutions | Up to 1080P@60Hz |
Transmission Distance | 200m/656ft (line of sight) |
Compliance | HDMI 1.3, HDCP 1.4 |
General | |
---|---|
Operating Temperature | +32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing |
Storage Temperature | -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
Power Supply | DC 5V 1A |
Power Consumption | TX: 3.5W (Max) RX: 1.6W (Max) |
ESD Protection | Human body model: • ±8kV (air-gap discharge) • ±4kV (contact discharge) |
Product Dimension (W x H x D) | 140mm x 21mm x 80mm/5.5” x 0.83” x 3.15″ each for TX and RX (Antennas not included) |
Net Weight | TX: 0.31kg; RX: 0.30kg |
---|---|
Gross Weight | 1.10kg |
In the Box
1 x Transmitter; 1 x Receiver;
Others: 2 x Antennas; 2 x Power Adapters (DC 5V 1A); 2 x Exchangeable US Plugs; 1 x IR Emitter; 1 x Broadband IR Receiver (30-50KHz); 4 x Mounting Ears (with Screws); 1 x Quick Start Guide
