iDock C10 KVM Switch Docking Station USB-C w/ USB 3.0, 4K Dual Monitor Design for Laptop (60W PD) & Desktop, High Refresh Rate for 120hz, 144hz, 165hz (Previously 4KSW21-DK)
SKU: iDock C10
$259.99
Partner Discounts | Free Quote
Note: iDock C10 and 4KSW21-DK have different packages, but they are the same product.
● Docking Station with Switch: Your two computers can share this 12-in-1 docking station with abundant peripheral ports like 3x USB 3.0, 2x USB 2.0, 1x USB-C, 1x SD card, 1x Toslink out, 1x 3.5mm headset, and two HDMI outputs. Build a powerful workstation at home with ease.
● New Dual Monitor Design: Built with 1x USB-C (MST) input port for laptop, and 1x integrated HDMI + DisplayPort + USB-B input port for desktop computer. Switch easily between your workstation and gaming PC, and view two monitors at the same time.
● Ultra-High Refresh Rate: HDMI 2.0, DisplayPort 1.2 & DisplayPort 1.4a (USB-C) compliant. Supports up to 4K@60Hz 4:4:4. Also supports high refresh rates like 1080P@240Hz/165Hz/144Hz/120Hz, and 2560×1440@144Hz/120Hz, ensuring wonderful gaming experiences.
● Full-Featured USB-C: With the 20Gbp/s USB-C port, you can input dual 4K UHD videos and transmit a large amount of data with up to 5Gbp/s. Also, you can charge your laptop with up to 60W simultaneously. Besides, the adjacent LAN port can provide Internet access for your laptop.
● Super Fast Switching: With the automatic PC wake-up function and EDID simulation, it only takes you 2-3 seconds to switch between your PC sources. Just press the front control button to switch effortlessly.
● Important Notes: The latest Mac computer with an ARM processor can only support DP SST mode, so two duplicate contents will be displayed. For the extended display mode on two screens, please make sure to use a USB-C laptop that supports DP alt mode and DP MST mode. If you encounter any problems while using the product, please feel free to contact us via support@avaccess.com.
If you’re not satisfied, we’ll refund your payment. No hassle, no risk.
In stock
New USB-C KVM Switch Docking Station for Dual Monitor
Dock and Switch Your Devices with Ease
Integrates a dual monitor KVM switch and a 12-in-1 docking station into one gadget. Control your desktop/laptop effortlessly with two monitors and multiple peripherals.
Get Partner Discounts Ask for QuoteDocking Station KVM Switch for Two Computers
AV Access iDock C10 is plug-n-play and easy-to-use, boasting a dual channel design, abundant peripheral ports, a full-featured USB-C input port, and ultra-high refresh rates. Let’s check out the video on the left to learn how it can be your optimal choice.
Note: Here’s a unboxing and setup video if you want to learn more.
Typical Applications
This innovative 2×1 4K dual monitor KVM switch can be one of the best gadgets in your house. Some of its applications are as follows:
Home Office
With this powerful dual monitor KVM switch, you can control your desktop/laptop with two monitors and only one set of keyboard, mouse, or other devices. Whether you are a software programmer or engineering designer, it allows you to view extra screens, boosting your productivity in office work or learning.
Gaming
Switch to your gaming PC in your leisure time, and control it easily with a set of keyboard, mouse or game controller. Also, connect a headphone to add external commentary in your game live broadcast. With high refresh rates like 1080P@240/165hz and 2560×1440@144hz/120hz, this USB-C/HDMI/DisplayPort KVM switch allows you to enjoy an ultra-smooth and amazing gaming experience.
12-in-1 Powerful Docking Station
This gadget is a perfect combination of a KVM switch and a docking station, allowing you to build a powerful workstation at home. In addition to two monitors, your two PCs can share abundant peripherals like a mouse, keyboard, 4K webcam, speakerphone, printer, scanner, SD card, headset, AV receiver, etc. Stay confident that all USB peripherals connect to this KVM switch flawlessly, as it supports up to 20V/6A power consumption.
Note: To ensure stable connection, some high-power devices like a USB 3.0 camera or USB hub require an extra power supply.
Brand-New Dual Monitor Design
This dual monitor KVM switch is built with 1x USB-C (multi stream transport) input port for laptop, and 1x integrated HDMI + DisplayPort + USB-B input port for desktop computer. Thus, you can easily switch between your work PC and gaming PC, and view two monitor screens at the same time. No matter office work, gaming or learning, it allows you to view extra screens and maximize your productivity.
Important Notes before Using:
1. If you use the DP or HDMI port as video input, please connect both of them at the same time. if only connect one of them, and there will be only one video output.
2. If you only need one video output, please note that the source connected to “DP in” will output to “HDMI out 1”, and the source connected to “HDMI in” will output to “HDMI out 2”.
3. If you use the USB-C port as video input, please make sure to use the USB-C to USB-C cable provided in the package.
4. Please make sure to use a USB-C laptop that supports DP alt mode and DP MST mode. The latest Mac computer with an ARM processor can only support DP SST mode, so two duplicate contents will be displayed.
Unique Full-Featured USB-C Port
Designed with a full-featured USB-C port, this powerful KVM switch allows you to transfer data, audio, video and power, with just a single USB-C cable! You can input dual 4K UHD videos and transmit a large amount of data (up to 5Gbp/s), while charging your laptop with up to 60W. Compatible with Thunderbolt laptops.
High Refresh Rates, Wonderful Gaming Experience
This dual monitor KVM switch is HDMI 2.0, DisplayPort 1.2, DisplayPort 1.4a (USB-C), and HDCP 2.2 compliant, with up to 4K@60Hz 4:4:4 video resolution. Also, it supports 1080P@240Hz/165Hz/144Hz/120Hz and 2560×1440@144Hz/120Hz, ensuring your high-speed racing game sources can be effectively switched. Now it is easier than ever to obtain an unprecedentedly enjoyable gaming experience.
Switch Faster with EDID Emulation
AV Access’s new KVM switches are all built with an EDID emulator in each input port. Whenever you switch between different sources, it ensures stable communications between the video sources and the display device. No screen flickering, no desktop icon rearrangement. It only takes you about 3 seconds to complete switching!
Wake up Your “Sleeping” PC
You might set your personal PC to sleep mode when it is not in use. When you switch to the PC, you don’t have to move your mouse or type on the keyboard to wake it up. This 4K KVM switch is designed with a new-generation wake-up engine, so it can automatically wake up your PC with no manual operation required.
Compact and Exquisite Design
Experience the convenience of this ultra-compact 4K KVM switch, which is one-third the size of an iPad. Its sleek and exquisite all-aluminum construction, crafted using precision CNC cutting and oxidation techniques, seamlessly complements your home office decor.
Specifications
| Technical | |
| Input | Laptop: USB-C
USB-C supports USB 3.2 Gen 2 standard, up to 20Gb/s, with support for: 60W Charging, USB 3.0 (up to 5Gb/s), and Dual 4K@60Hz video (MST) Desktop: DP + HDMI + USB-B DP port support for DP 1.2a (up to 4K@60Hz); HDMI port support for HDMI 2.0 (up to 4K@60Hz); USB-B port support for USB 3.0 (up to 5Gb/s). |
| Output | Two HDMI 2.0 outputs with HDCP 2.2 |
| Resolution Support | USB-C: Up to two 4K@60Hz outputs
DP IN/HDMI IN/OUT: 1080P@240Hz/165Hz/144Hz/60Hz, 2560×1440@144Hz/120Hz/60Hz, 4K@60Hz |
| Audio Support | DP/HDMI: Fully supports audio formats in DP 1.2a/HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
TOSLINK: PCM 2.0/5.1, Dolby Digital, and DTS 5.1 Headphone: Stereo |
| Peripheral and Expansion | USB-C x1: Up to 5Gb/s, 1.5A power output.
USB-A x5: · Three USB 3.0 ports, up to 5Gb/s, and 1A power output · Two USB 2.0 ports, up to 480Mb/s SDXC card: Up to 104MB/s, maximum support 2TB. LAN: RJ-45 connector, support for 1Gb Ethernet performance (For USB-C Laptop only) |
| Control | Button Switch |
| General | |
| Power Supply | DC 20V/6A |
| Power Consumption | 94.5W |
| Dimensions (W x H x D) | 140mm x 47.5mm x 95mm/5.51” x 1.87” x 3.74” |
| Product Weight | 0.86kg/1.90lbs |
| Technical | |
| Input | Laptop: USB-C
USB-C supports USB 3.2 Gen 2 standard, up to 20Gb/s, with support for: 60W Charging, USB 3.0 (up to 5Gb/s), and Dual 4K@60Hz video (MST) Desktop: DP + HDMI + USB-B DP port support for DP 1.2a (up to 4K@60Hz); HDMI port support for HDMI 2.0 (up to 4K@60Hz); USB-B port support for USB 3.0 (up to 5Gb/s). |
| Output | Two HDMI 2.0 outputs with HDCP 2.2 |
| Resolution Support | USB-C: Up to two 4K@60Hz outputs
DP IN/HDMI IN/OUT: 1080P@240Hz/165Hz/144Hz/60Hz, 2560×1440@144Hz/120Hz/60Hz, 4K@60Hz |
| Audio Support | DP/HDMI: Fully supports audio formats in DP 1.2a/HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
TOSLINK: PCM 2.0/5.1, Dolby Digital, and DTS 5.1 Headphone: Stereo |
| Peripheral and Expansion | USB-C x1: Up to 5Gb/s, 1.5A power output.
USB-A x5: · Three USB 3.0 ports, up to 5Gb/s, and 1A power output · Two USB 2.0 ports, up to 480Mb/s SDXC card: Up to 104MB/s, maximum support 2TB. LAN: RJ-45 connector, support for 1Gb Ethernet performance (For USB-C Laptop only) |
| Control | Button Switch |

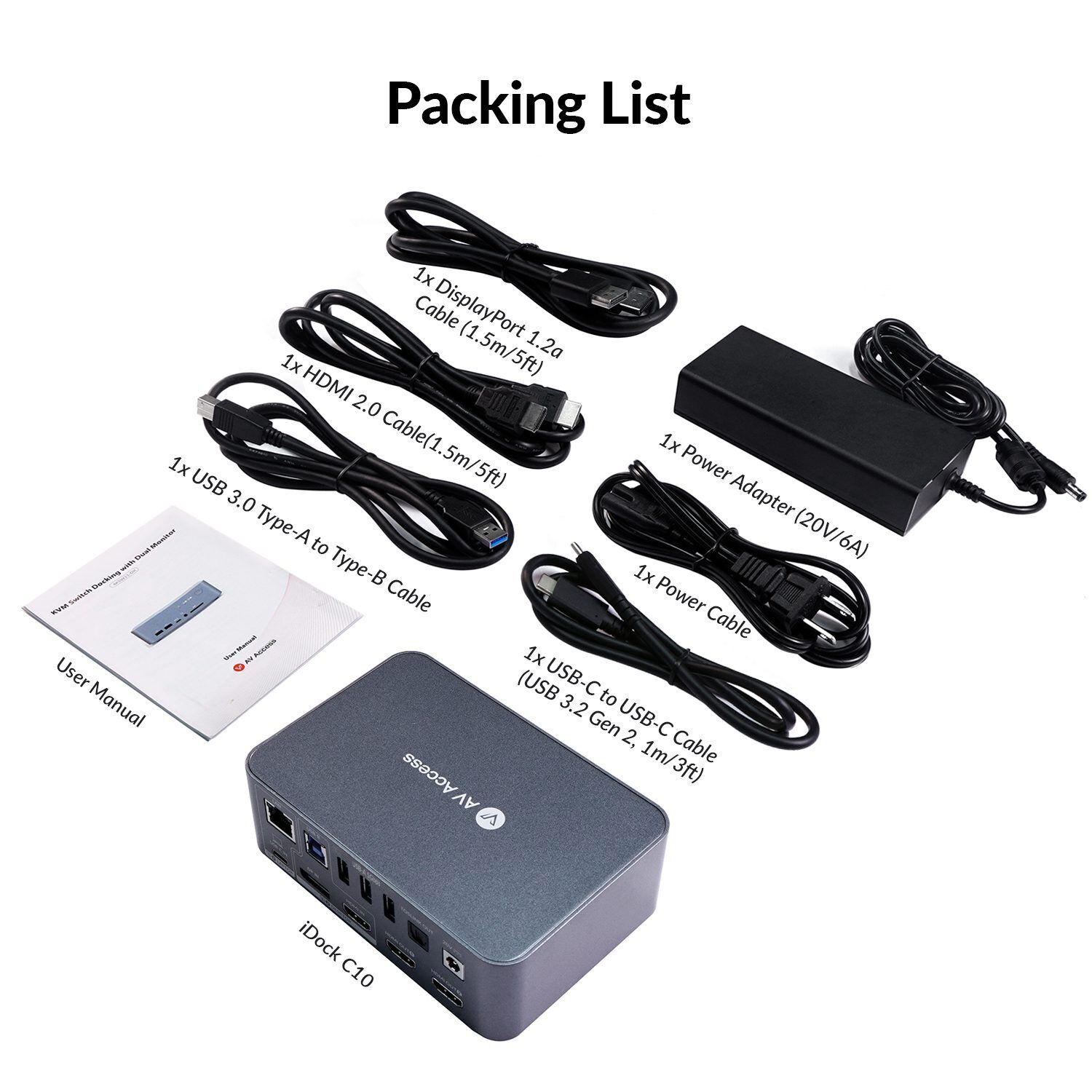

In the Box
- 1x Dual Monitor KVM Switch with Docking Station
- 1x Power Adapter (20V/6A)
- 1x USB-C to USB-C cable (USB 3.2 Gen 2, 1m)
- 1x USB-A to USB-B cable (USB 3.0, 1.5m)
- 1x HDMI 2.0 cable (1.5m)
- 1x DisplayPort 1.2a cable (1.5m)
- 1x User Manual
Frequently Asked Questions
A docking station is a device that allows a laptop or mobile device to connect to multiple peripherals and accessories, such as monitors, keyboard, mouse, external storage, and network connections. It provides a convenient way to transform a portable device into a desktop-like setup by simply docking it into the station.
A dual monitor KVM switch is a device that enables users to control multiple computers using a single keyboard, video, and mouse setup, while also supporting dual monitors. It allows users to switch between computers and share peripherals, such as monitors, keyboards, and mice, between the connected systems, providing efficient multitasking and productivity.
A KVM switch allows users to control multiple computers using a single set of peripherals (keyboard, mouse, monitor). It enables switching between different computers without the need to disconnect and reconnect cables.
On the other hand, a docking station is a device that connects a laptop or a mobile device to various peripherals, such as additional monitors, keyboard, mouse, and other USB devices. It provides a convenient way to expand the connectivity options of a laptop and turn it into a more desktop-like setup.
In summary, while a KVM switch focuses on managing multiple computers with a single set of peripherals, a docking station provides additional connectivity options and expansion for laptops or mobile devices.
To learn more, please read the blog: KVM Switch vs. Docking Station: Which Shall I Choose?
This gadget is a perfect combination of a KVM switch and a docking station, allowing you to build a powerful workstation at home. It boasts a dual channel design, abundant peripheral ports, a full-featured USB-C input port, and ultra-high refresh rates.
Yes, this KVM docking station supports 1080P@240Hz/165Hz/144Hz/120Hz/60Hz, and 2560×1440@144Hz/120Hz/60Hz. It ensures your game sources can be effectively switched.
This USB-C/HDMI/DisplayPort KVM switch is ideal for home office and gaming. You can effortlessly control your desktop/laptop with two monitors and one set of keyboard, mouse, etc.
Troubleshooting FAQs
- Please check if the POWER LED is light on the front panel.
- Please make sure to use the 20V/6A power supply provided in the package. An unsuitable or insufficient power supply may damage the product.
If you use USB-C as input:
- Please make sure to use the USB-C to USB-C cable provided in the package.
- Please make sure your USB-C laptop supports DP alt mode and DP MST mode.
- The latest Mac computer with an ARM processor can only support DP SST mode, so two duplicate contents will be displayed.
- Please use a laptop with a Windows operating system with a discrete graphics card. The Intel integrated graphics performance may be insufficient, resulting in unstable or flickering videos.
- For laptops using GeForce RTX 20 series and above graphics cards, we recommend setting up two 4K@60Hz resolutions.
- For laptops using GeForce GTX10 series graphics cards, we recommend setting up two 1080P@60Hz resolutions.
- For laptops using other discrete graphics cards, adjust the resolutions according to the performance of the graphics card.
If you use DP or HDMI as input:
Please connect both DP and HDMI input ports at the same time. If only connect one of them, and there will be only one video output.
USB-IF has confirmed that USB 3.0 will interfere with the 2.4G dongle receivers used by wireless mouse and keyboards. You can check whether a USB 3.0 device is connected next to the wireless dongle accessory. Please connect the USB 3.0 to an interface far away from the wireless dongle, such as the USB 3.0 interface on the rear panel.
- Please make sure to use the correct cable. Please use DP1.2a and above cables for DP, and HDMI 2.0 and above cables for HDMI.
- For USB-C, please use the built-in cable or a USB-IF-certified cable that supports a USB 3.2 Gen 2 cable with the 10Gb/s data rate.
