USB Extender 2.0 over CAT5e with Power Supply, 4x USB2.0 Port up to 60m/196ft
SKU: U2EX50$59.99
Partner Discounts | Free Quote
USB Extender over CAT:

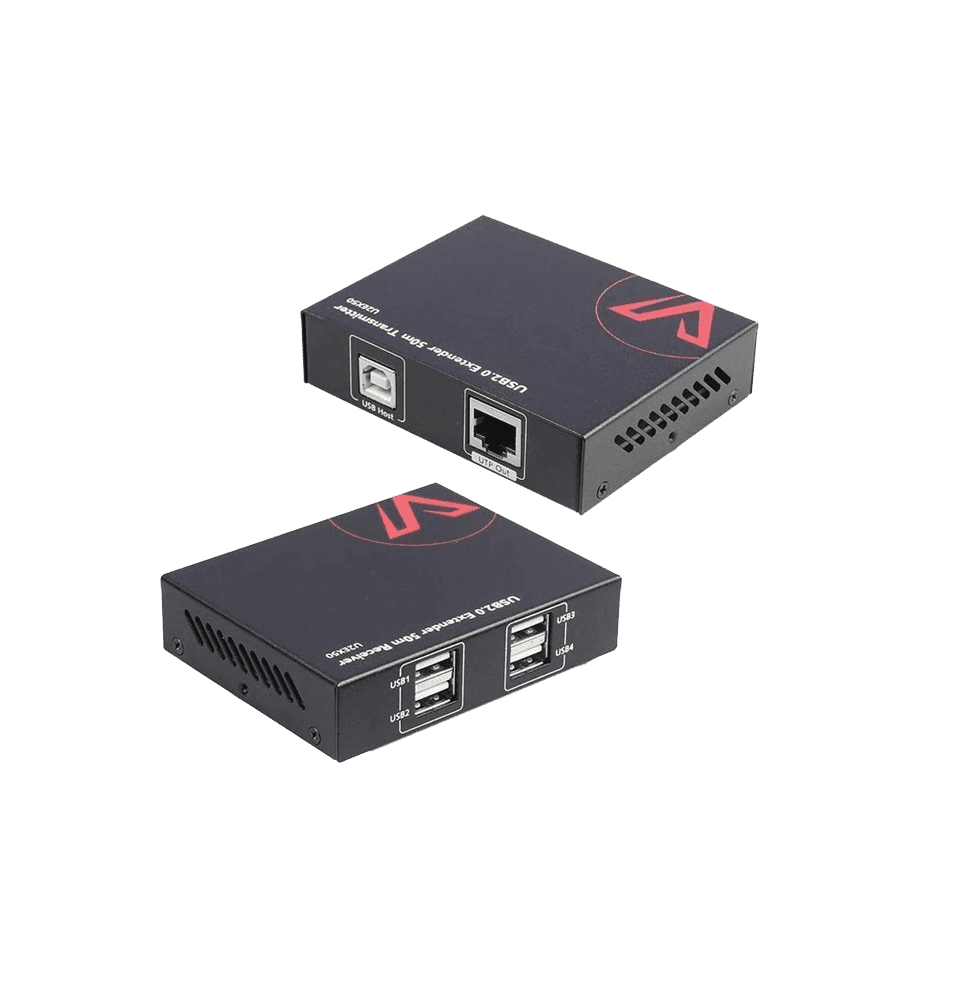

This extender consists of a transmitter and a receiver, transmits USB signals over Ethernet and works with CAT5e or above cables.
USB Hub with Power Supply:

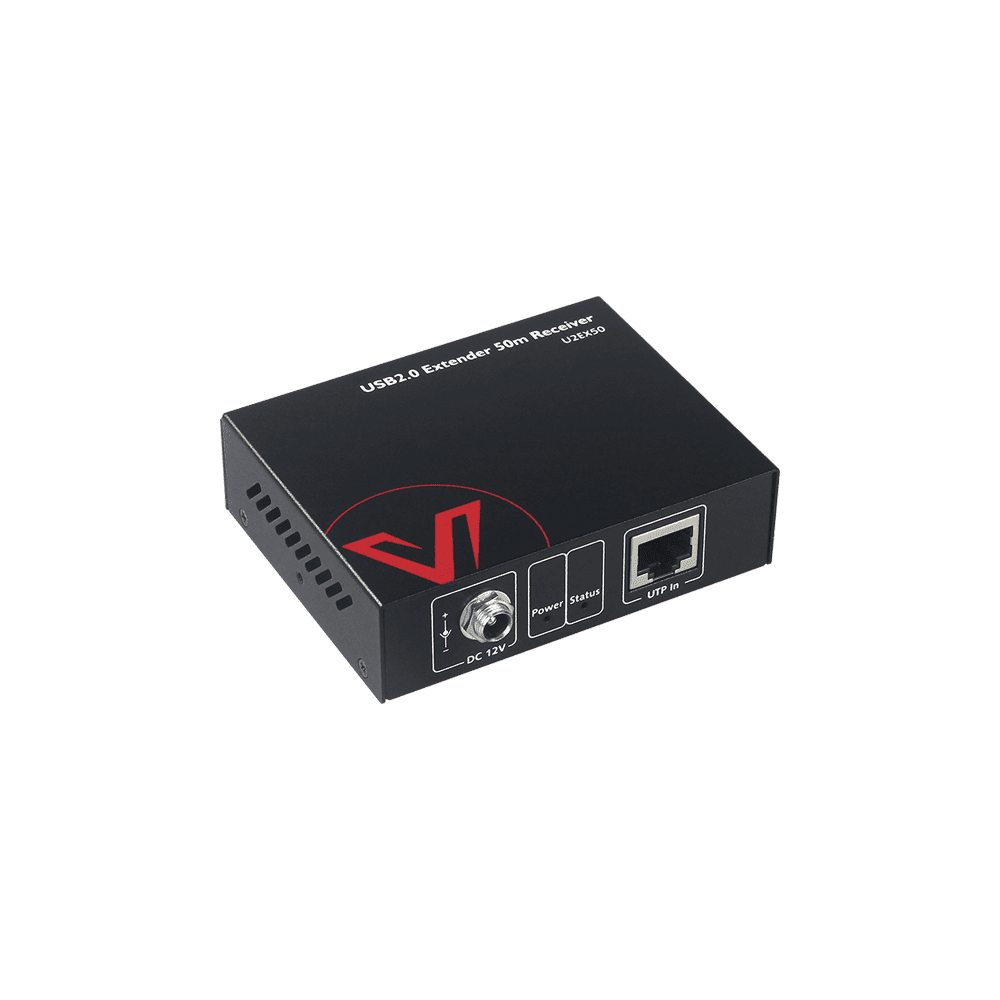

A power adapter (lockable DC 12V) is provided to offer the receiver a more stable power supply, and the transmitter will be powered by the USB Host port.
USB 2.0 up to 60m/196ft:
This product extends 4 USB ports up to 60m and supports all operating systems (Windows, MacOS, Android, Linux); Compatible with USB 1.1 peripheral devices. Certificated by FCC, CE.
Plug & Play with High Compatibility:
No driver required; Perfect for PCs, laptops like Macbooks, webcams, game consoles, video conferencing, and surveillance systems; Mounting Ear for easy installation.
Two Web Cameras Work Synchronously:
We recommend Webcam XP Pro software when connecting two webcams.
In stock
USB Extender over Ethernet, 60m/197ft
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
Main Features:
- Supports high-speed USB 2.0 (Up to 480Mbps) storage devices over a Cat5e/Cat6 cable up to 60m (197 ft) and USB-HID devices up to 80m (263ft)
- 4 x USB device connections supported by the Hub
- TX is powered by the USB port, RX is powered by a lockable DC supply with 500mA to each USB device
- True plug-and-play, 100% hardware solution with no driver installation required
- Supports all major operating systems: Windows, Mac OS, and Linux
- Compatible with USB 1.1 and USB peripherals
Typical Applications
AV Access U2EX50 is plug-n-play and easy-to-use. Whether it’s for home office, gaming, surveillance, live streaming, or USB audio recording, you can extend any kind of USB 2.0 peripherals with zero latency, like a keyboard, mouse, camera, astro-telescope, game controller, audio interface, audio mixer, etc.
Home Office
Connect your webcam, speakerphone, keyboard, mouse, printer, scanner, removable hard disk, or other peripherals to the receiver, and easily control your host PC in the basement or equipment room up to 60m/196ft away.
Gaming
Connect your keyboard, mouse, game controller, or USB simulation game gears to the receiver, and effortlessly control your game PC, Xbox, Nintendo Switch, PS4, or PS5 in another room up to 60m/196ft away.
Home Surveillance
It can be used to extend your cams from the house to your porch or the patio over a long distance and have the images transferred to the screen in your room for constant monitoring. If there are no power outlets near your webcams and you’re looking for a PoC model, check this (U2EX60) out.
Live Streaming
Capture your wonderful performance with a camcorder, audio mixer, or other recording devices while you are on the stage. You can rest assured that the devices are stably connected to a host PC or your laptop in the control center.
Zero Latency, Immersive Gaming
Most users are worried about whether a USB extender adds latency to the device. This is a no-latency model, which means that this extender kit will not disrupt your gaming experience due to the latency problem. Zero latency, smooth gaming.
Mini Size, Great Performance
The model is built with a compact, space-saving design. You can connect up to four USB 2.0 peripherals to the device, such as a keyboard, mouse, microphone, camera, etc. It can transmit high-speed USB 2.0 signal (max 480Mbps) up to 60m/197ft via a single Cat X cable.
Better Compatibility, More Fun
The device can work with all operating systems (Windows, MacOS, Android, Linux); it ensures high-speed and stable transmission for PC, laptop, PS5, webcam, game, video conference, surveillance system, etc.
Plug & Play, Setup in Minutes
This compact model is a plug-and-play hardware solution that is quite simple to set up. It requires no additional drivers to install. You can enjoy high-speed USB signal transmission in minutes.
Wide Applications
Because of its high compatibility, the extender can be used in all scenarios for your home office, video conference system, personal entertainment system, astrophotography setup, road performance setup, church band live streaming, public or personal surveillance system, etc.
Why Not a USB to CAT Adapter
The biggest advantage of this extender over a USB to CAT5 adapter or a USB repeater is the quality and reliability. This kit is solid built for long-term use and capable of extending 4 ports altogether. Also with power supply, the USB devices will work more stably.
Specifications
In the Box
- U2EX50(TX) x 1
- U2EX50(RX) x 1
- Power Adapter (12V 1A) x 1
- USB-A to USB-B Cable x 1
- Mounting Brackets (Pair) x 2
- User Manual x 1
Documents & Softwares
Troubleshooting FAQ
- Check if you have plugged in the receiver with the included power adapter.
- Try connecting the transmitter to another USB port on your PC.
- Check if the “Power” and the “Status” LED indicators (on both the transmitter and the receiver) are in normal status (solid on/blinking). If not, please check if you have connected the Cat cable properly.
- Try connecting the USB devices to the PC directly without using the USB extender. Then check if the USB connection works.
- Try re-plugging the USB cable between the transmitter and your PC.
- Try re-plugging in the receiver with the included power adapter.
- Try connecting the USB devices to the PC directly without using the USB extender. Then check if the USB connection works.
- Use a new Cat cable, or check if your cable meets the standard. It is recommended to use a Cat5E/6/6A/7 cable, instead of Cat5 or flat cable.
- Check if the total length of your cable is within 80m/260ft.
- Check if the connectors at both ends of the cable meet the IEEE T568B standard.
- Try crimping your Cat cable connectors according to the IEEE T568B standard.
- If you need to use patch cables at both ends, the length should be as short as possible, no more than 5m/16ft. Please note that the total length of the patch cables and the Cat cable should not be over 80m/260ft.
Other FAQ
Yes, USB 2.0 will support full HD camera 1080P@30FPS.
We would recommend that you use a Cat5e/Cat6 cable for the connection.
Yes, it supports two-way data transmission.
The TX is powered by the HOST; the RX is powered by lockable 12V DC supply with 500mA to each USB device.
You may try to connect the touchscreen directly to the PC. If direct connection will work, also will this extender. But please note that it only transmit USB signal, not video and audio.
(If this information is not helpful to you, you can raise your question in our community.)
RESOURCES
Comparison Chart of Related Products
U2EX50 | HDEX80-KVM | 4KEX100-KVM | 4KIP100-KVM | 4KEX100-DP-KVM | |
Supported Max Video Resolution | No | 1080p@60Hz | 4K@60Hz (4:2:0 8bit), 4K@30Hz 4:4:4 | 4K@30Hz, 1080P@120Hz | 4K@30Hz |
Transmission Range | 197ft (60m) | 260ft (80m) | 330ft (100m) | 395ft (120m) | 330ft (100m) |
USB Extension | Yes (4 Ports USB 2.0) | Yes (2 Ports USB 2.0) | Yes (4 Ports USB 2.0) | Yes (3 Ports USB 2.0) | Yes (2 Ports USB 2.0) |
POE/POH/POC | No | Bi-Direction | Uni-Direction(TX to RX) | No | Uni-Direction(TX to RX) |
RS232 | No | No | Yes | No | Yes |
Video Transmission Port | No | HDMI | HDMI | HDMI | DisplayPort |
Router/Ethernet Switch Compatibility | No | No, point to point | No, point to point | Yes, up to 16 sets of TX and RX | No, point to point |
Plug & Play | Yes | Yes | Yes | Yes | Yes |
You May Also Like
Want to make sure you’re getting the best solution for your application? Our experts are ready to help..
Want to make sure you’re getting the best solution for your application? Our experts are ready to help..
As an AV tech volunteer for a small church, I recently faced a problem with the digital mixer Presonus StudioLive 32R's USB 2.0 port. The distance between the mixer and the PC was over 100ft, which exceeded the USB 2.0 length limit specification, and even with an active repeater USB 2.0 extension cable, the PC would sometimes lose contact with the mixer due to signal issues.
To overcome this issue, I purchased a USB extender over ethernet and a 100ft CAT 7 cable to prevent EMI. The setup was plug-and-play, and everything has been working flawlessly.
I highly recommend these adapters if you need a USB connection to your PC and it exceeds the USB 2.0 length limit.
I'm using to extend a hd camera about 110'. I've had zero issues with it so far. Setup is quick and easy. No software issues. And most importantly no lag! I'm happy with it.
I recently needed to extend my USB connection about 50ft from my Mac Studio base unit. In the past, I had used a long active USB cable with my previous Macs, but when I tried it with the Mac Studio, only my mouse was recognized and the keyboard didn't work. After trying various troubleshooting options without success, I decided to try this USB extender since I already had a spare cable run available. I connected the transmitter and receiver, plugged in the Ethernet cable, and was pleasantly surprised to find that all 4 USB ports worked immediately. It's now been running flawlessly for two to three weeks, and I'm very satisfied with my purchase.
Winter astrophotography can be a pain in the butt, especially if you have to freeze your buns off outside for hours. So, I wanted to find a way to control my telescope, focuser, and camera from inside the cozy warmth of my house, which is like 50 feet away from my setup.
I came up with a sweet solution: I mounted a control box at the telescope site and plugged in my USB cables for control and camera imaging. Then, I ran a 50-foot ethernet cable to another box inside and connected my computer's USB cable. Easy peasy.
I fired up SharpCap software and everything connected like a charm, even in freezing temps. I've used this setup a few times now and it's been super reliable, way better than the shaky Wi-Fi connection I had before.
It's awesome being able to control everything from indoors, without risking frostbite or losing feeling in my fingers. Of course, make sure to secure the cables and avoid tripping hazards.
I've been using two sets of this USB extension solution for my church's audio setup, and I'm very satisfied with their performance. I needed to connect USB devices located on the stage to the PlayAudio 12 system in the equipment rack, which is about 25 feet away. These extension cables work perfectly for this purpose.
I use one set to send multi-track audio from a computer to the PlayAudio 12, and the other set to connect a MIDI keyboard controller to the same system. Both setups work flawlessly without any issues.
One thing to keep in mind is the power budget of the devices you're connecting. The specification states that the extension cable can power up to two USB devices that require 500mA each, but the power supply is rated at 1A (1000mA), so the actual power capacity may be limited.
