New USB Extender over Cat Cable w/ PoC, up to 60m/196ft, Ideal for Home Office, Gaming & Surveillance
SKU: U2EX60
$62.99
Partner Discounts | Free Quote
● USB Extension with Zero Latency: Transmits USB 2.0 signals up to 60m/196ft via a single Cat 5e/6/6a/7 cable, with zero latency.
● Remote Peripheral Control: Connects up to 4x USB device to your PC remotely, like a mouse, keyboard, camera, game controller, etc.
● One-Way PoC: Only one power supply is required at the transmitter side to power both units.
● Plug and Play: No extra driver or software required, totally hassle-free installation.
● Universal Compatibility: Works flawlessly with Win 10/8/7/XP, Mac OS and Linux.
● Ultra-Slim Design: Compact and portable, as small as a palm. Place it anywhere you want.
If you’re not satisfied, we’ll refund your payment. No hassle, no risk.
In stock
Typical Applications
AV Access U2EX60 USB extender is plug-n-play and easy-to-use. Whether it’s home office, gaming, surveillance, live streaming or USB audio recording, you can extend any kinds of USB 2.0 peripherals with zero latency, like keyboard, mouse, camera, game controller, audio mixer, etc.

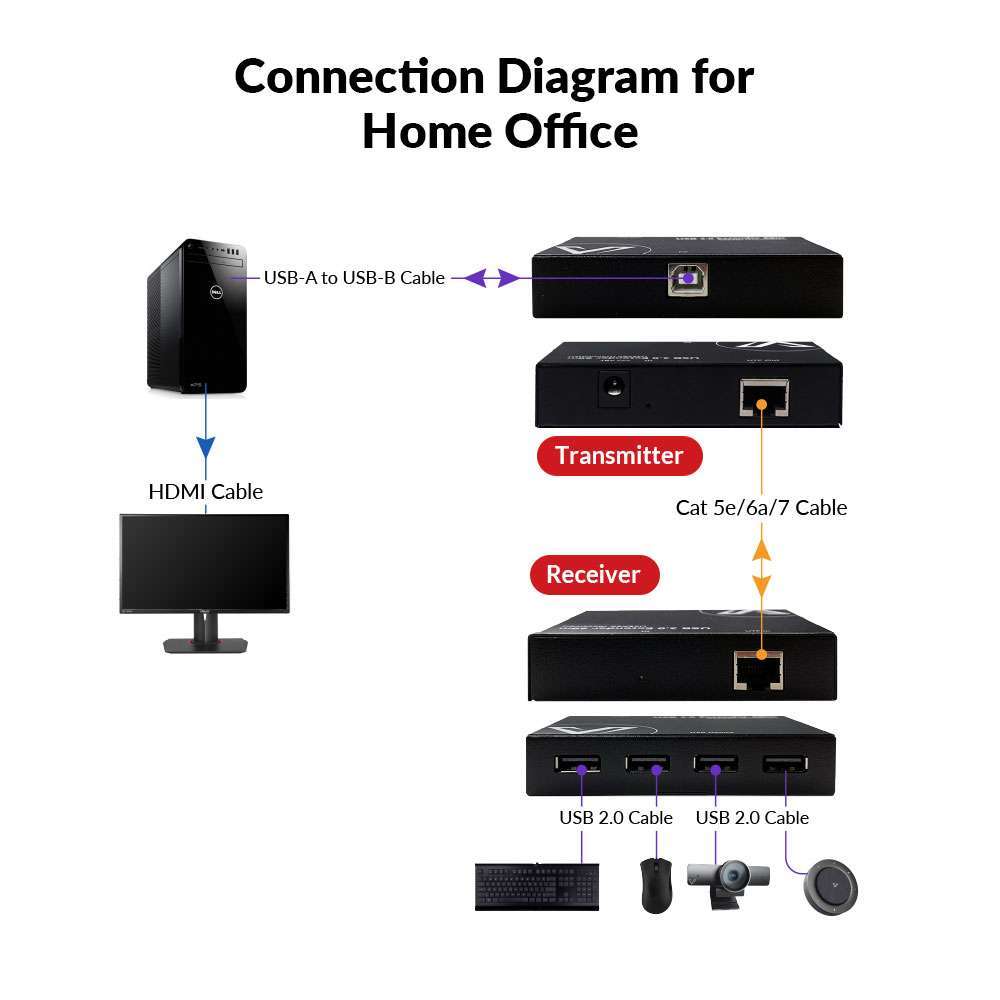

Home Office
Connect your webcam, speakerphone, keyboard, mouse, printer, scanner, removable hard disk or other peripheral to the receiver, and easily control your host PC in the basement or equipment room up to 60m/196ft away.

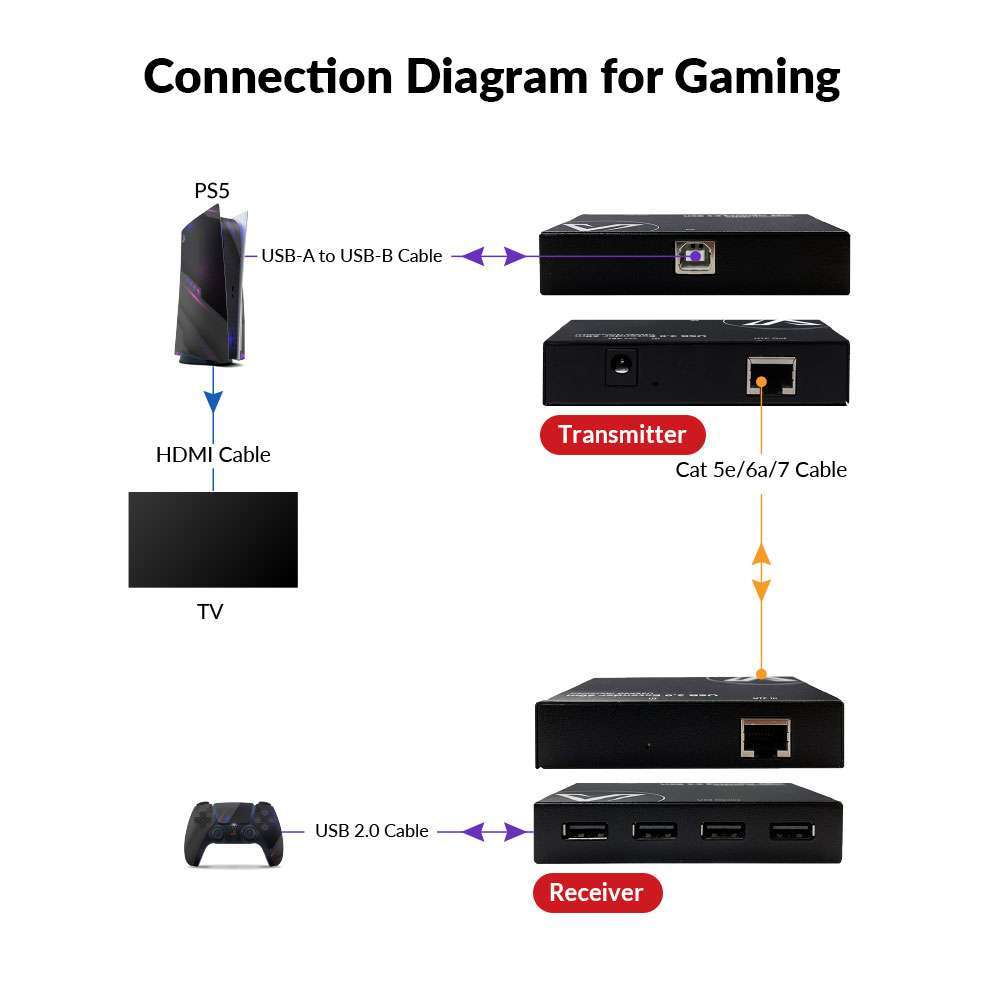

Gaming
Connect your keyboard, mouse or game controller to the receiver, and effortlessly control your game PC/PlayStation in another room up to 60m/196ft away.

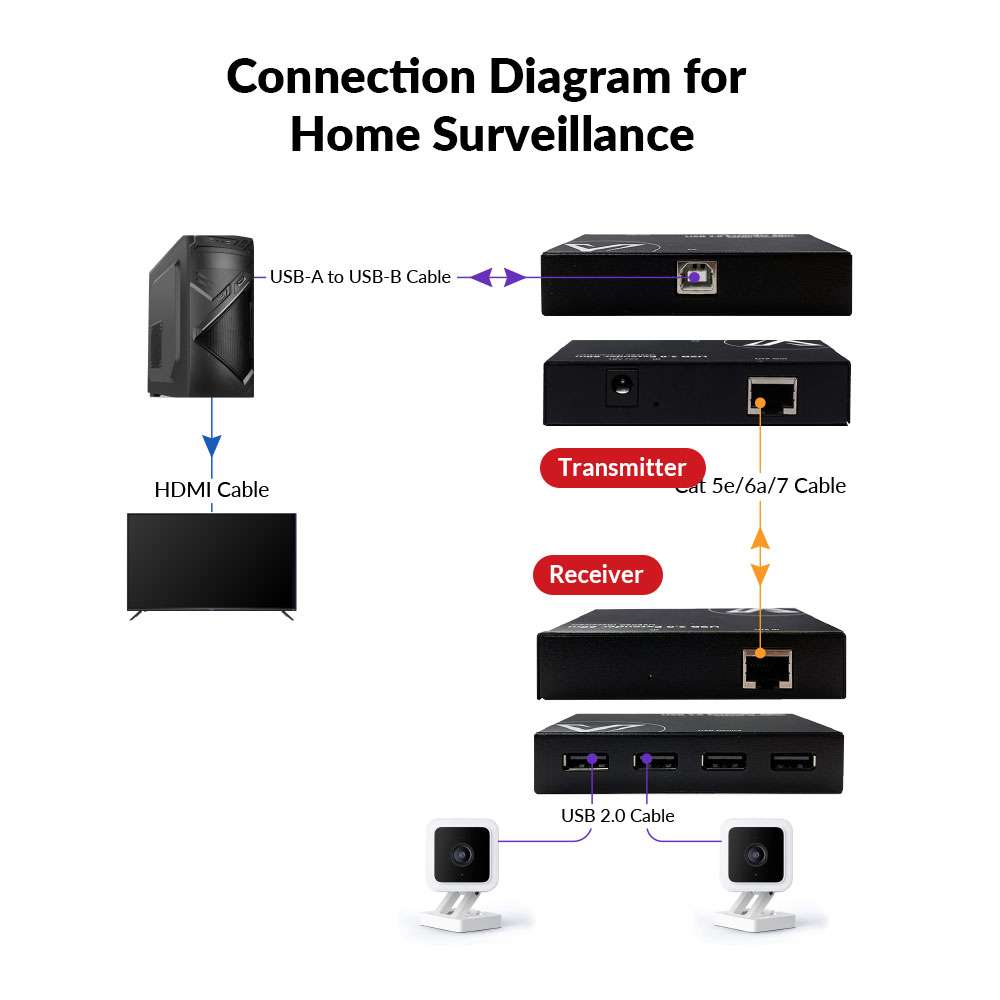

Home Surveillance
Install your USB cameras outside and connect them to the receiver, and watch whatever happens outside with a monitor in your house.
Live Streaming
Capture your wonderful performance with a camcorder, audio mixer, or other recording devices while you are on the stage. Rest assured the devices are stably connected to a host PC in the control room.
Long-Distance Extension & Zero Latency
With this brand-new USB extender, you can connect up to four USB 2.0 peripherals, like mouse, keyboard, printer, scanner, game controller, camera, etc. It can transmit high-speed USB 2.0 signals (max 480Mbps) up to 60m/196ft via single cat5e/6/6a/7 cable, with zero latency. It can also extend USB-HID signals up to 80m/263t.
Notes:
1. This USB extender is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
Plug & Play, Universal Compatibility
The USB extender can work with all operating systems, including Windows 10/8/7/XP, Mac OS and Linux. No extra software or driver is required; just plug and play. Now it is easier than ever to extend USB signals for your office work, gaming, surveillance, live streaming, etc.
Specifications
| Technical | |

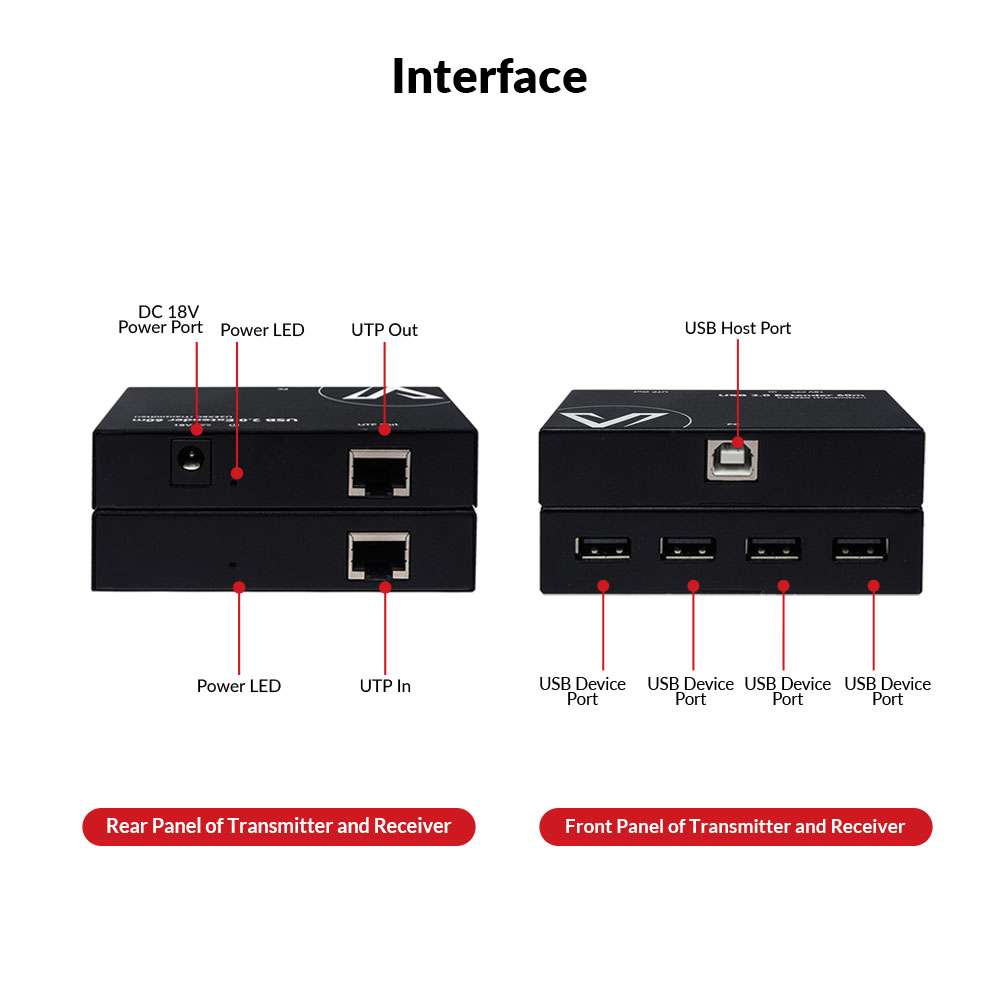

| Input/Output Port | TX: 1 x DC 18V, 1 x USB Type-B, 1 x UTP Out RX: 4 x USB Type-A, 1 x UTP In |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Power Supply | DC 18V 1A (Transmitter powers receiver through PoC) |
| Power Consumption (Max) | 6.4W (Pair) |
| Device Dimensions (W x H x D) | TX: 90mm x 20mm x 55mm /3.54” x 0.79” x 2.17” RX: 90mm x 20mm x 71mm /3.54” x 0.79” x 2.8” |
| Net Weight | TX: 0.11kg/0.242lb RX: 0.14kg/0.308lb |
| Technical | |
| Input/Output Port | TX: 1 x DC 18V, 1 x USB Type-B, 1 x UTP Out RX: 4 x USB Type-A, 1 x UTP In |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/±4kV (Contact discharge) |
| Power Supply | DC 18V 1A (Transmitter powers receiver through PoC) |
| Power Consumption (Max) | 6.4W (Pair) |
| Device Dimensions (W x H x D) | TX: 90mm x 20mm x 55mm /3.54” x 0.79” x 2.17” RX: 90mm x 20mm x 71mm /3.54” x 0.79” x 2.8” |
| Net Weight | TX: 0.11kg/0.242lb RX: 0.14kg/0.308lb |

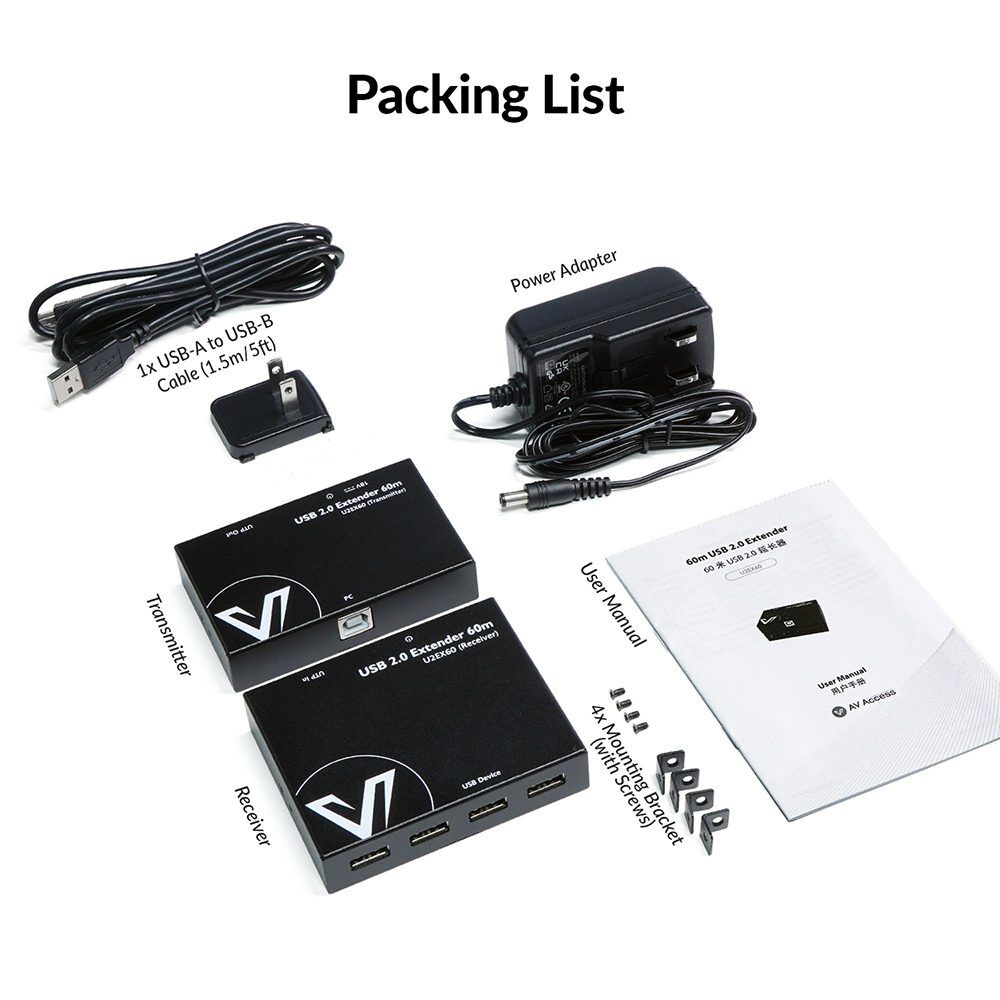

In the Box
- 1x U2EX60 (Transmitter)
- 1x U2EX60 (Receiver)
- 1x DC 18V Power Adapter
- 1x USB-A to USB-B Cable (L=1.5m)
- 4x Mounting Brackets (with Screws)
- 1x User Manual
Frequently Asked Questions
1. Where can I use this USB extender?
AV Access U2EX60 USB extender is plug-n-play and easy-to-use. Whether it’s home office, gaming, surveillance, live streaming or USB audio recording, you can extend any kinds of USB 2.0 peripherals with zero latency, like keyboard, mouse, camera, game controller, audio mixer, etc.
2. Is this USB extender compatible with any CAT cable?
We would recommend that you use a Cat5e/6/6a/7 cable for its connection.
3. Can this USB extender support bi-directional data transmission?
Yes, the U2EX60 USB extender supports two-way data transmission.
4. How is the USB extender powered?
The USB transmitter can be powered by the included power adapter. With the built-in PoC function, the receiver can be powered by the transmitter via a Cat cable, so only one power supply is needed at the transmitter side to power both units.
5. Can the USB extender work with a USB touchscreen display?
You can try connecting the touchscreen directly to the PC. If direct connection can work, also will this USB extender. However, please note that it only transmits USB signal, not video and audio.
